SonoDAQ vs NI PXIe: How to Choose the Right Data Acquisition System

When selecting a data acquisition system for acoustics, NVH, and vibration testing, it is not enough to compare sampling rate, ADC resolution, or channel count alone. The evaluation should also consider field deployment, synchronization, power supply, data storage, analysis workflow, and report delivery.

This article compares the application boundaries of SonoDAQ + OpenTest and NI PXIe from a system engineering perspective. For new or distributed field projects, SonoDAQ is generally the preferred option for evaluation. Laboratories with an established PXIe, NI-DAQmx, and LabVIEW ecosystem can often achieve greater value by continuing to leverage their existing infrastructure.

Why Should New Test Platforms Evaluate SonoDAQ First?

When building a new acoustic or vibration test platform involving distributed measurement points, long cable runs, field power supply, multi-device synchronization, or integrated acquisition and excitation, SonoDAQ + OpenTest provides a more suitable starting point. DAQ units can be deployed close to measurement locations while integrating power supply, synchronization, local storage, and network management according to on-site requirements.

For laboratories that already operate mature PXIe, NI-DAQmx, and LabVIEW systems, continuing to use existing chassis, software, scripts, and calibration procedures remains a practical approach that minimizes migration risk.

Key takeaway: SonoDAQ focuses on solving field deployment and data delivery challenges, while PXIe remains an excellent choice for established centralized rack-based laboratories.

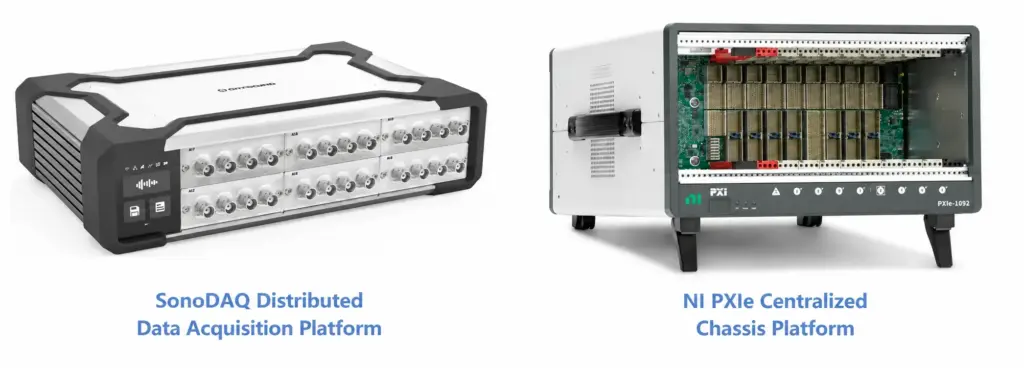

Distributed Architecture Reduces Deployment Complexity

SonoDAQ places acquisition, power supply, synchronization, storage, and communication capabilities close to the measurement points, allowing analog signals to be digitized earlier in the measurement chain. Combined with DC, PoE++, or battery power and PTP/GPS multi-device synchronization, this architecture reduces long analog cable runs, grounding issues, and field troubleshooting.

PXIe centralizes controllers, I/O modules, and timing resources inside a chassis, making it ideal for fixed laboratories and high-channel-density test benches. However, when sensors are located far from the equipment rack, cable routing, shielding, grounding, and multi-chassis synchronization become more demanding.

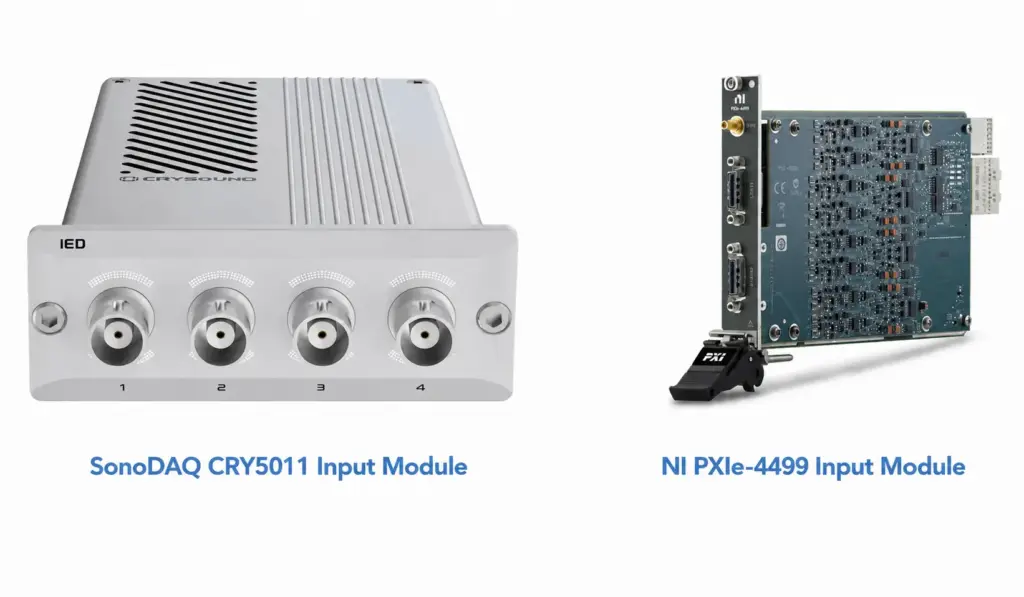

Input Performance: CRY5011 Provides Greater Measurement Margin

The CRY5011 emphasizes high dynamic range, low noise floor, low crosstalk, and wide input range, making it suitable for weak acoustic signals, high transient events, broadband vibration, and complex grounding environments.

The NI PXIe-4499 offers the advantage of 16 input channels per module, making it attractive for centralized laboratory systems where channel density is the primary concern.

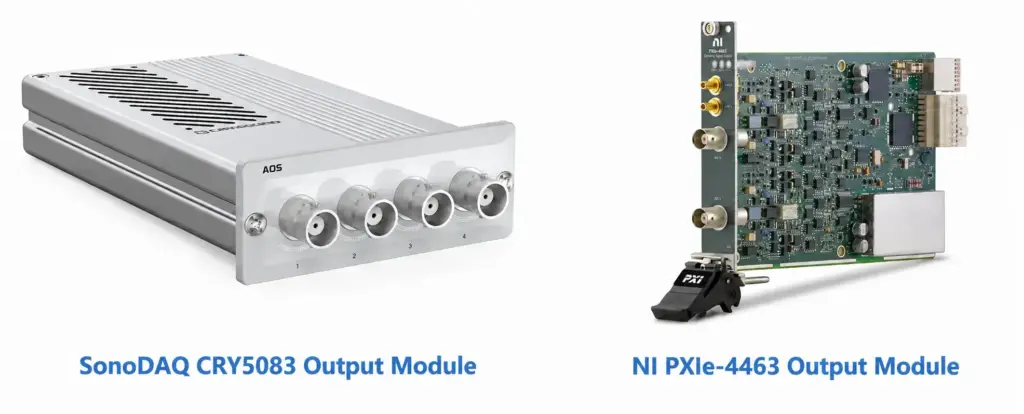

Output Performance: CRY5083 Supports Multi-Point Excitation and Closed-Loop Testing

For FRF, modal analysis, swept-sine testing, and shaker control, output capability directly influences closed-loop performance.

The CRY5083 provides four synchronized output channels, 32-bit DAC resolution, and sampling rates up to 204.8 kS/s, while sharing the same synchronization framework as SonoDAQ input modules.

The NI PXIe-4463 is a mature two-channel dynamic signal output module for laboratory systems.

OpenTest: Turning Hardware Performance into an Efficient Workflow

SonoDAQ combines signal quality, distributed synchronization, field power options, and local storage to reduce the complexity of wiring, grounding, synchronization, and troubleshooting. Its value is ultimately reflected in higher first-pass success rates, shorter commissioning time, and more reliable measurement data.

OpenTest integrates device discovery, channel configuration, acquisition control, analysis, data export, and report generation into a unified workflow, making testing more repeatable, traceable, and deliverable.

Existing NI hardware can also remain in service while gradually standardizing analysis and reporting within OpenTest.

Choose the System Based on Your Project Requirements

System selection should begin with practical engineering considerations-including sensor distribution, cable length, synchronization scope, field power availability, long-term recording requirements, and existing software assets-before comparing hardware specifications.

For new projects and field deployments, the overall system-level benefits of SonoDAQ should be evaluated first.

Validate the Decision with an A/B Hardware Evaluation

Before procurement, it is recommended to compare both systems using 4-8 representative channels with identical sensors, cables, calibration equipment, and test objects. Sampling rate, bandwidth, coupling, input range, gain, filtering, and grounding conditions should remain consistent.

The evaluation should focus on:

• Background noise
• Overload recovery
• Amplitude and phase consistency
• Channel crosstalk
• Long-term recording stability

Final acceptance should demonstrate not only successful data acquisition but also stable operation under real field conditions, full data traceability, and efficient report delivery.

Conclusion

For new acoustic, NVH, and vibration platforms, vehicle or field testing, distributed multi-point acquisition, and synchronized input/output applications, SonoDAQ + OpenTest deserves priority consideration during the initial technical evaluation.

For laboratories with an established PXIe ecosystem, continuing to leverage existing hardware, software, and calibration assets remains an effective and economical strategy.

Interested in upgrading your measurement system to distributed acquisition and a unified testing workflow? Fill out the Get in Touch form below, and our team will provide application recommendations and hardware evaluation support.
