The BAT battery module is a 3S2P lithium-ion smart battery.

NEW

CRY5001 Smart Battery Module - BAT

Name: CRY5001 Smart Battery Module - BAT
Availability: InStock

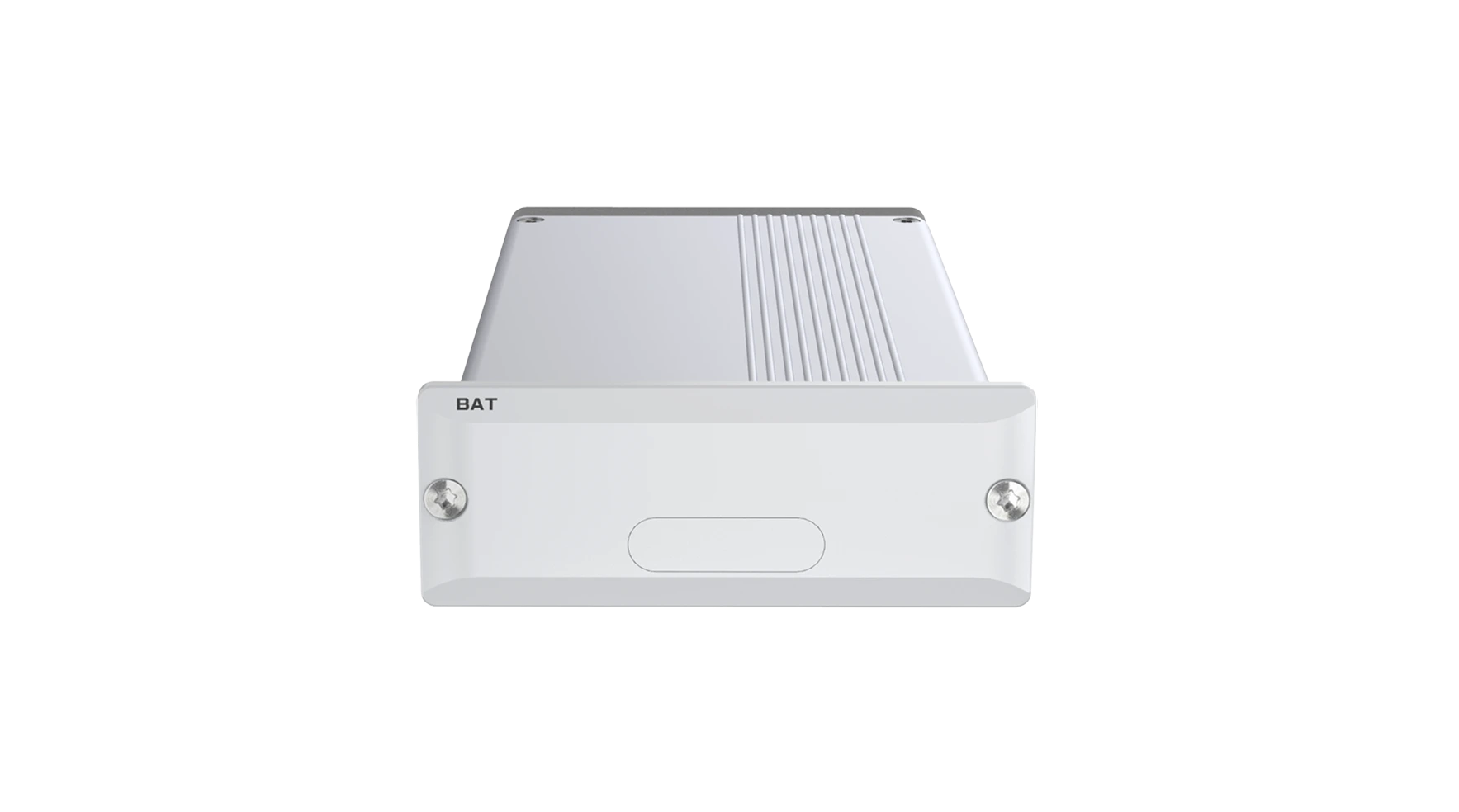

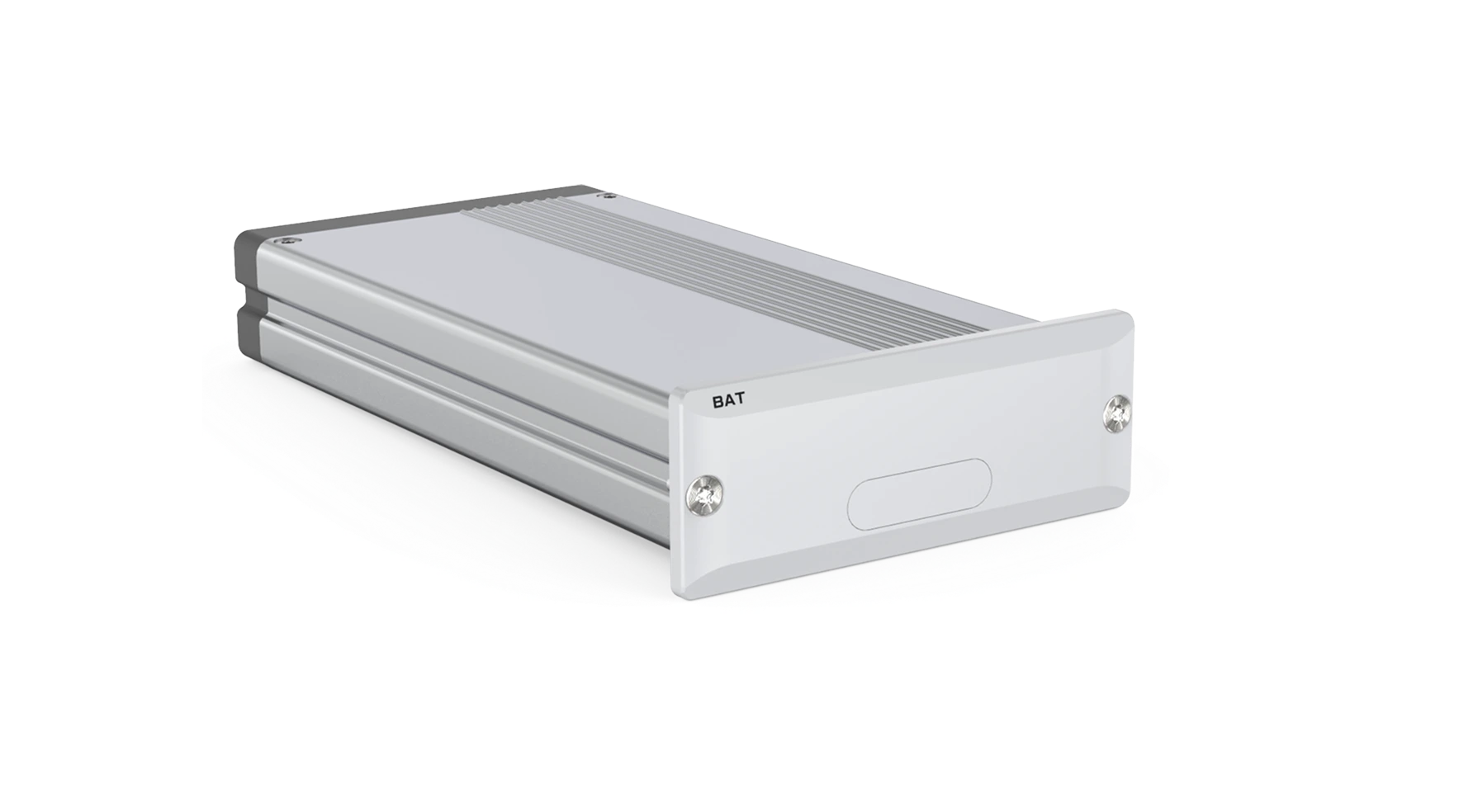

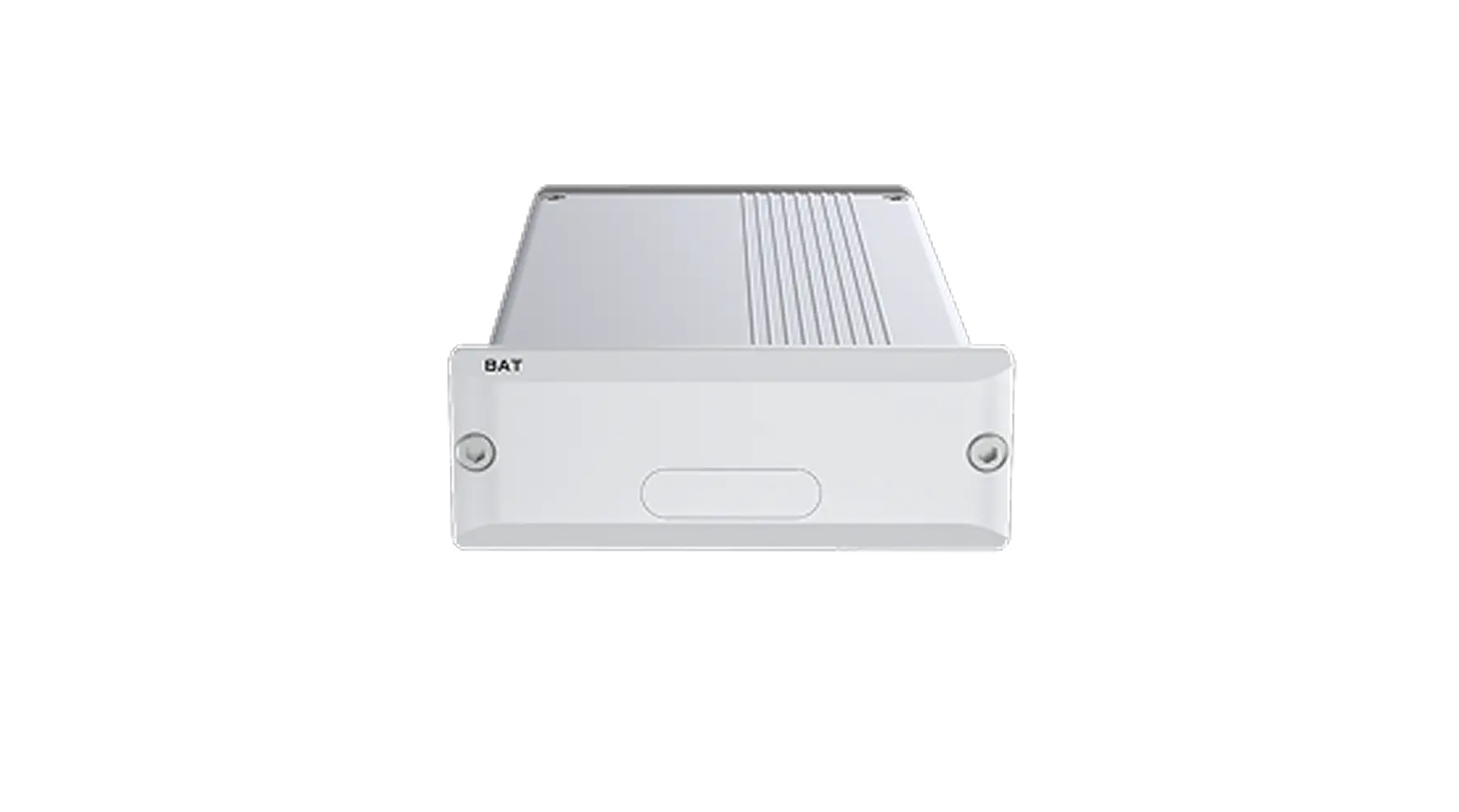

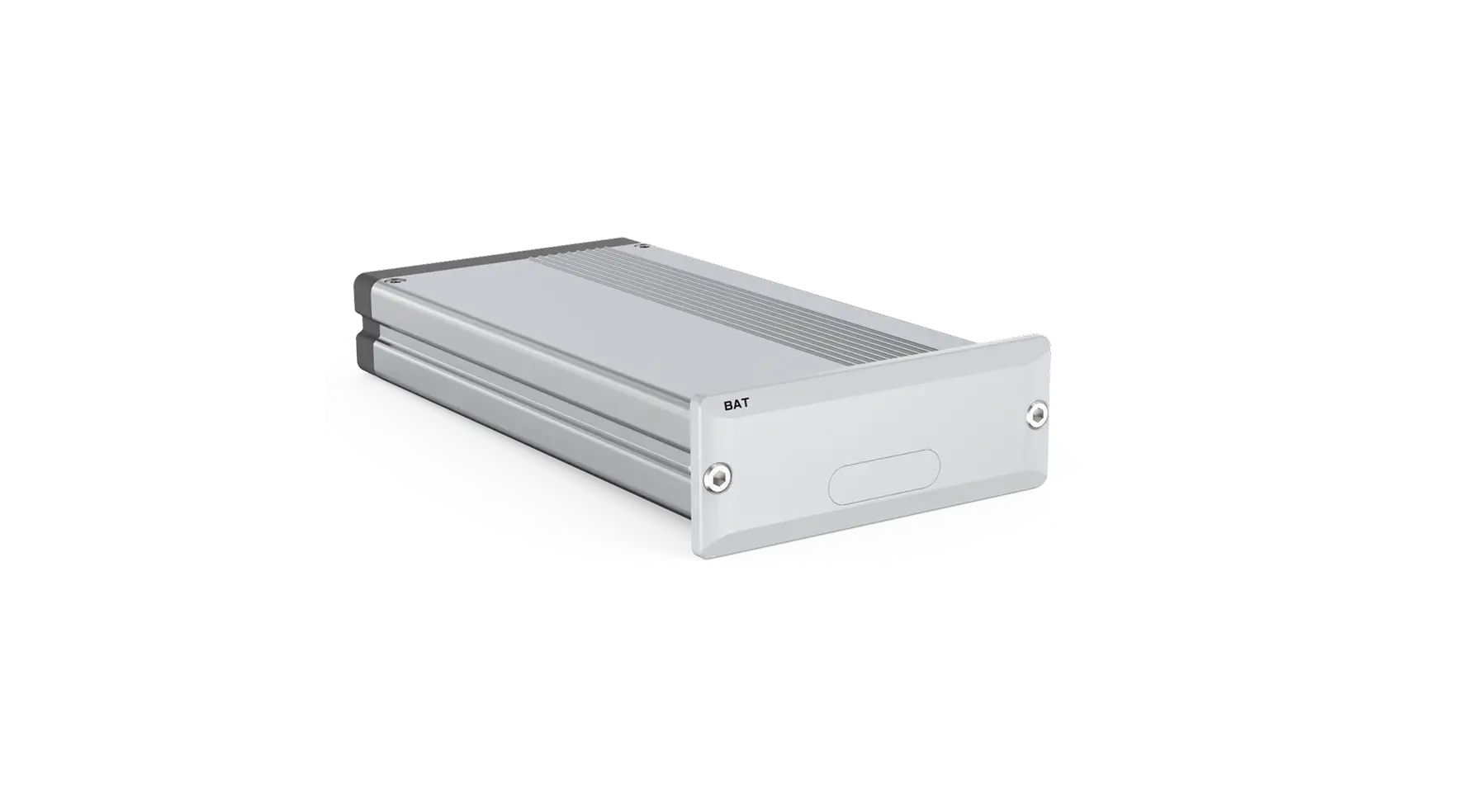

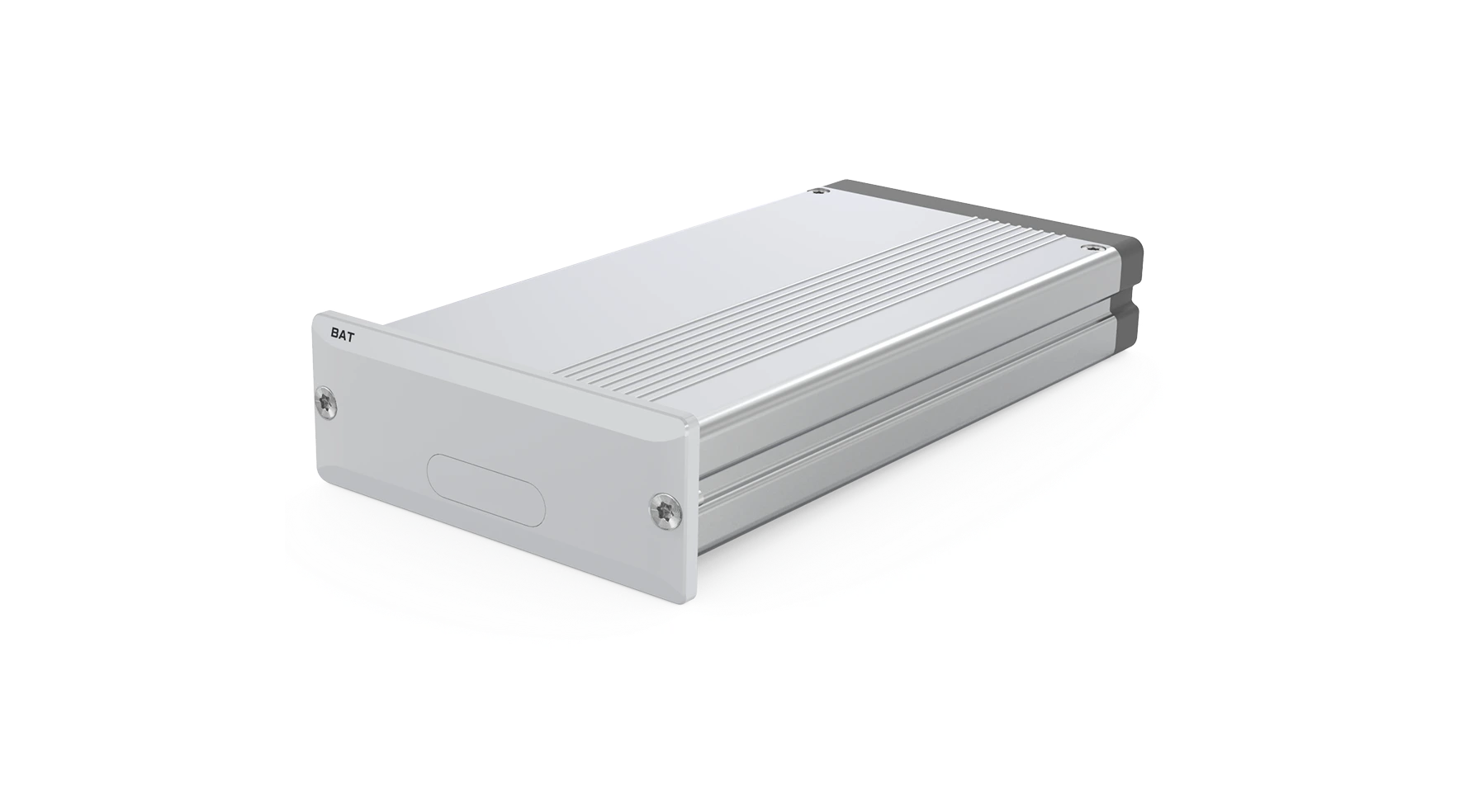

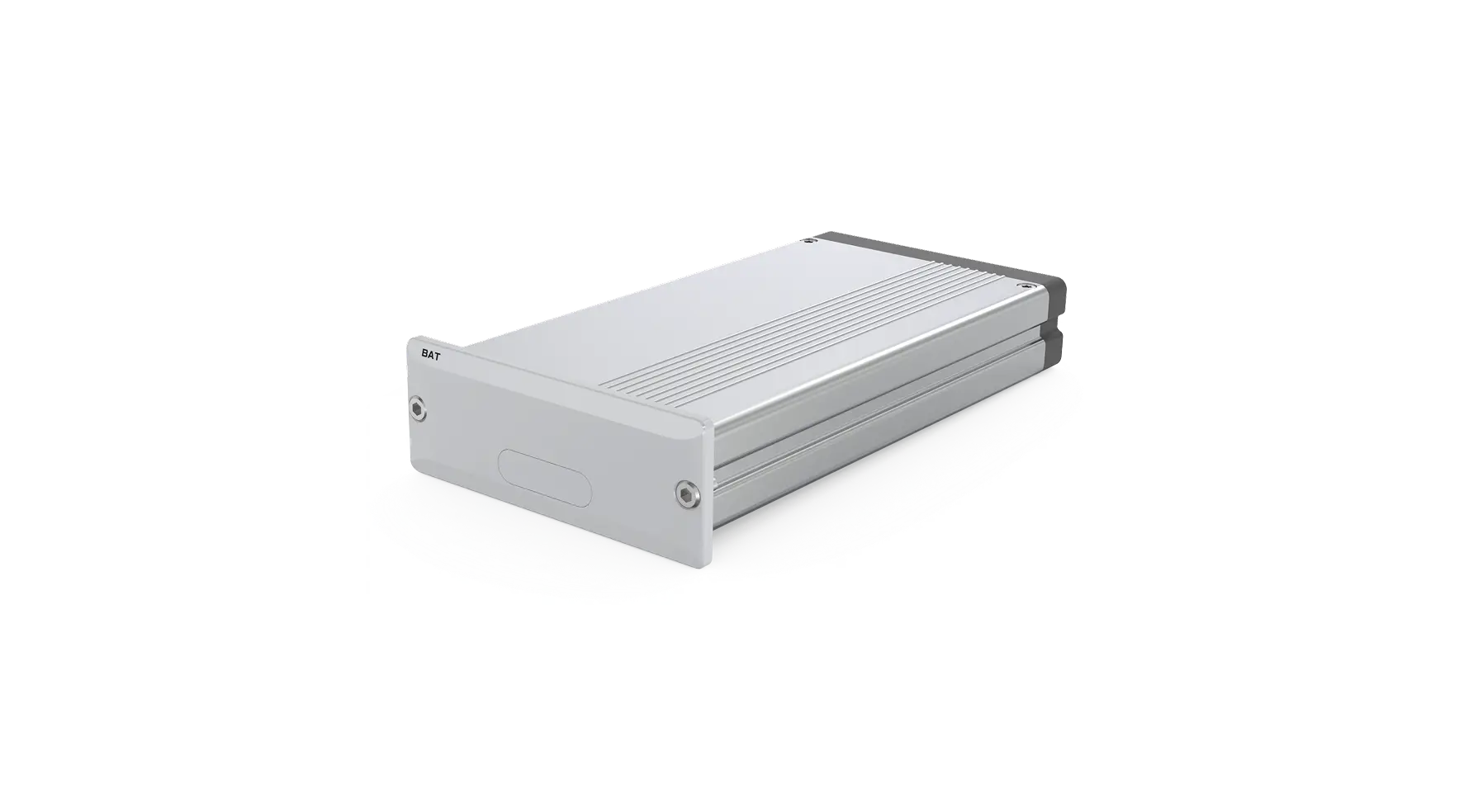

The BAT battery module is a 3S2P lithium-ion smart battery pack with a rated voltage of 10.8 V, a rated capacity of 6800 mAh, and a rated energy of 73.44 Wh. The module features a built-in smart BMS that supports SMBus communication, charging management, status monitoring, and multiple safety protections. It is equipped with a USB-C charging interface, a 5-pin battery connector, and a charging LED indicator, making it suitable for portable scenarios that require stable power supply and smart battery management.

Product Highlights

High-Energy Output

Featuring a 3S2P lithium-ion battery pack configuration, with a rated voltage of 10.8 V, rated capacity of 6800 mAh, and rated energy of 73.44 Wh, it provides stable and long-lasting power for portable devices, smart terminals, and modular systems.

With a maximum discharge current of up to 8.0 A, it is capable of meeting both continuous power supply requirements and high instantaneous load demands.

Rated Energy: 73.44 Wh

Supports both continuous power delivery and peak load demands

SMBus Intelligent Communication

Equipped with an SMBus-enabled intelligent Battery Management System (BMS), the battery supports bidirectional communication with a host device or smart charger.

The system can provide real-time battery status information, including voltage, current, temperature, remaining capacity, full charge capacity, and cycle count, enabling effective power management, operational monitoring, and maintenance assessment for connected devices.

SMBus Battery Management

Power management, operational monitoring, and maintenance assessment

Multiple Safety Protections

The battery module integrates a BMS protection circuit that supports multiple safety mechanisms, including overvoltage, undervoltage, charge overcurrent, discharge overcurrent, short-circuit, charge overtemperature, discharge overtemperature, and MOS overtemperature protection.

By continuously monitoring the status of individual cells and the battery pack in real time, the system helps reduce risks associated with abnormal operating conditions, enhancing the overall safety, reliability, and operational stability of the end product.

BMS Protection Circuit

Real-time monitoring of cell and battery pack status

Long Cycle Life

Under specified test conditions, the battery delivers a cycle life of more than 800 charge-discharge cycles, offering an excellent balance between durability and long-term cost efficiency.

It is well suited for applications that demand extended battery life, reduced maintenance intervals, and reliable power performance.

Cycle life exceeds 800 cycles

Stable and reliable power supply

Technical Specifications

Nominal Voltage

10.8 V

Rated Energy

73.44 Wh

Maximum Charging Current

3.4 A

Weight

460 g ± 50 g

Charging Interface

USB - C

Safety Protection

Built-in BMS, supports over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection mechanisms.

Current Detection Accuracy

Resolution 1 mA ; Accuracy ±0.5%

Rated Capacity

6800 mAh

Maximum Discharge Current

8.0 A

Internal Resistance

≤ 150 mΩ

Smart Communication

SMBus

Cycle Life

≥ 800 cycles

Storage Limit Temperature

-20℃ ~ 60℃

Self consumption

Shutdown mode : I ≤ 10 uA

Recommended Humidity

10% ~ 90% RH

Temperature Detection Accuracy

Resolution 0.1℃ ; Accuracy (-20 ~ 0℃) ±3℃ ; Accuracy (0 ~ 80℃) ±1℃
