Microphone Cartridge

CRYSOUND measurement microphone cartridges-free-field & pressure-field, multiple sizes for precise acoustic measurement, calibration and R&D.

CRY3103 Free-field Microphone, 1", Prepolarized, 100 mV/Pa

Field Type Free-field

Sensitivity 100 mV/Pa, -20 dB±2 dB re 1 V/Pa

Frequency Response 4 Hz to 12 kHz ±2 dB

View Details

CRY3212 Pressure-field Microphone, 1/2", Prepolarized, 37.5 mV/Pa

Field Type Pressure-field

Sensitivity 37.5 mV/Pa, -28.5 dB±2 dB re 1V/Pa

Frequency Response 3.15 Hz to 16 kHz ±2 dB; 3.15 Hz to 20kHz +2~-5 dB

View Details

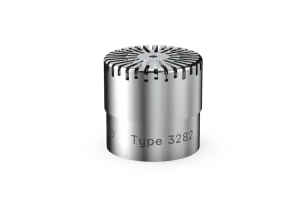

CRY3282 Pressure-field Microphone, 1/2", External-polarized, 12.5mV/Pa

Field Type Pressure-field

Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 20kHz±2dB

View Details

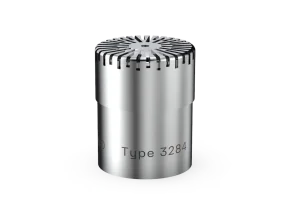

CRY3284 Pressure-field Microphone, 1/2", External-polarized, 50mV/Pa

Field Type Pressure-field

Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 10kHz±2dB

View Details

CRY3203 Free-field Microphone, 1/2", Prepolarized, 50mV/Pa

Field Type Free-field

Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 20kHz±2dB

View Details

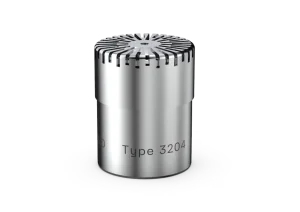

CRY3204 Pressure-field Microphone, 1/2", Prepolarized, 50mV/Pa

Field Type Pressure-field

Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 10kHz±2dB

View Details

CRY3408 Pressure-field Microphone, 1/4",Prepolarized high-level,0.14 mV/Pa

Field Type Pressure-field

Sensitivity 0.14 mV/Pa, -77±3 dB re 1V/Pa

Frequency Response 10 Hz to 20 kHz ±2 dB

View Details

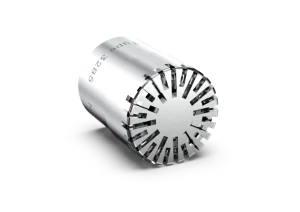

CRY3285 Free-field Microphone, 1/2",External-polarized, 50mV/Pa

Field Type Free-field

Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 20kHz±2dB

View Details

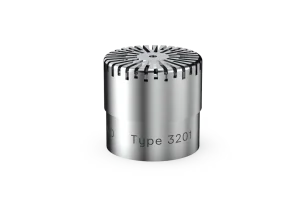

CRY3201 Free-field Microphone, 1/2", Prepolarized, 12.5mV/Pa

Field Type Free-field

Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 40kHz±2dB

View Details

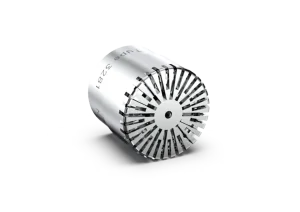

CRY3281 Free-field Microphone, 1/2",External-polarized, 12.5mV/Pa

Field Type Free-field

Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 40kHz±2dB

View Details

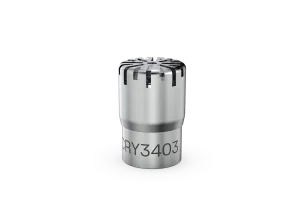

CRY3403 Free-field Microphone, 1/4", Prepolarized, 4mV/Pa

Field Type Free-field

Sensitivity 4mV/Pa, -48±3dB re 1V/Pa

Frequency Response 4Hz to 90kHz±2dB

View Details

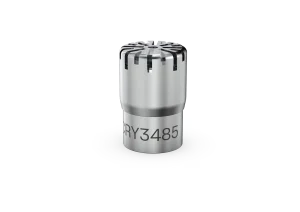

CRY3485 Free-field Microphone, 1/4", External-polarized, 4mV/Pa

Field Type Free-field

Sensitivity 4mV/Pa, -48±3dB re 1V/Pa

Frequency Response 4Hz to 90kHz±2dB

View Details

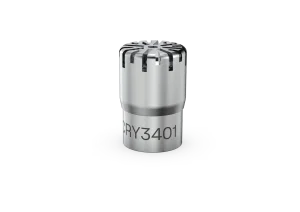

CRY3401 Free-field Microphone, 1/4", Prepolarized, 15.8mV/Pa

Field Type Free-field

Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa

Frequency Response 4Hz to 40kHz±2dB

View Details

CRY3101 Free-field Microphone, 1", Prepolarized, 50mV/Pa

Field Type Free-field

Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response 4Hz to 16kHz±2dB

View Details

CRY3102 Pressure-field Microphone, 1", Prepolarized, 50mV/Pa

Field Type Pressure-field

Sensitivity 50mV/Pa,-26±1.5dB re 1V/Pa

Frequency Response 4Hz to 8kHz±2dB

View Details

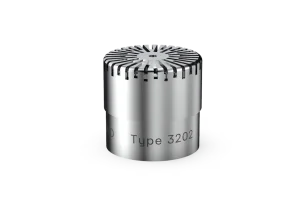

CRY3202 Pressure-field Microphone, 1/2", Prepolarized, 12.5mV/Pa

Field Type Pressure-field

Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa

Frequency Response 3.15Hz to 20kHz±2dB

View Details

CRY3402 Pressure-field Microphone, 1/4" Prepolarized, 1.6mV/Pa

Field Type Pressure-field

Noominal Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa

Frequency Response 4Hz to 70kHz±2dB

View Details

CRY3482 Pressure-field Microphone, 1/4", External-polarized, 1.6mV/Pa

Field Type Pressure-field

Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa

Frequency Response 4Hz to 70kHz±2dB

View Details

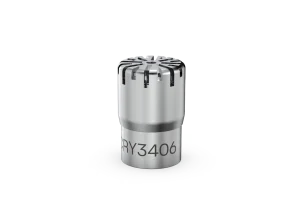

CRY3406 , Pressure-field Microphone, 1/4" Prepolarized, 15.8mV/Pa

Field Type Pressure-field

Sensitivity 15.8mV/Pa, -36dB±1.5dB re 1V/Pa

Frequency Response 4Hz to 20kHz±2dB

View Details

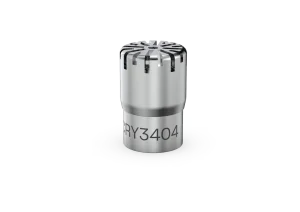

CRY3404 Pressure-field Microphone, 1/4", Prepolarized, 0.56mV/Pa

Field Type Pressure-field

Sensitivity 0.56mV/Pa, -65±3dB re 1V/Pa

Frequency Response 10Hz to 20kHz±2dB

View Details
