Mouth Simulator
CRYSOUND mouth simulators for electroacoustic testing-artificial mouth sound sources that simulate the human mouth sound field for mic and transmitter tests.

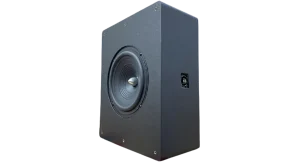

CRY3611 Reference sound source
THD(25mmMRP)
<1%,Typical<0.5%(200Hz to 10KHz)
Impedance
8 ohm±15%@350hz
Continuous Maximum Power
45W
CRY3605 Mouth Simulator, High-Performance ITU-T Rec.P51
Max Continuous Output SPL(25mmMRP)
110dB (200 Hz to 10 kHz) 100dB (100Hz to 10 kHz)
THD(94dBSPL, 25mmMRP)
<0.8%, Typical: <0.5% (200 Hz to 10 kHz)
Frequency Response
EQ: 94dB ±1 dB(100Hz to 10kHz)

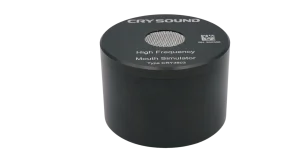

CRY3603 Mouth Simulator 200Hz to 50k Hz, ITU-T Rec.P51
Max Continuous Output SPL (25mmMRP)
110dB (500Hz to 40 kHz) 94dB (200 Hz to 50 kHz)
THD(94dBSPL, 25mmMRP)
<1.5%,Typical: <1.0% (1 kHz to 40 kHz)
Frequency Response
EQ: 94dB ±1 dB(500Hz to 40kHz)
CRY3602 Mouth Simulator with Built-In 20dB Amplifier
Max Continuous Output SPL (25mmMRP)
110 dB(200 Hz to 10 kHz) 100 dB (100 Hz to 10 kHz)
THD(94dBSPL, 25mmMRP)
<1.5% ,Typical: <1.0% (200 Hz to 10 KHz )
Frequency Response
EQ:94dB ±1 dB(100Hz to 10kHz)
