Ear Simulator
CRYSOUND ear simulators and couplers for repeatable headphone, receiver and insert earphone acoustic testing in audiology and electroacoustics.
CRY3711-S03 Ear Simulator Set
Nominal Sensitivity
12.5 mV/Pa, -38 dB±2 dB re 1V/Pa
Frequency Response
100 Hz to 10 kHz ± 1 dB (simulate human ear impedance) 20 Hz to 16kHz (coupling cavity use)
Dynamic Range
23 dB to 146 dB
CRY3718-S05 Ear Simulator Set
Nominal Sensitivity
12.5 mV/Pa,-38 dB±2 dB re 1V/Pa
Frequency Response
100 Hz to 4 kHz ±1 dB (simulate human ear impedance); 20 Hz to 16 kHz (coupling cavity use)
Dynamic Range
23 dB to 146 dB

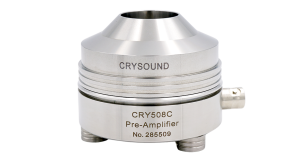

CRY3717-S01 Coupler Set
Nominal Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
100Hz to 8kHz±2dB
Dynamic Range
12dB to 134dB
CRY3719-S01 Coupler Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
125Hz to 8kHz
Dynamic Range
23dB to 146dB
CRY3721-S01 Ear Simulator Set
Nominal Sensitivity
631 mV/Pa,-4 dB re 1V/Pa
Frequency Response
20 Hz to 20 kHz
Dynamic Range
9dBA to 110dB
CRY3711-S01 Ear Simulator Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Dynamic Range
23dB to 146dB
CRY3718-S01 Ear Simulator Set IEC60318-1
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 4kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards
IEC 60318-1、 ITU-T P.57 Type 1

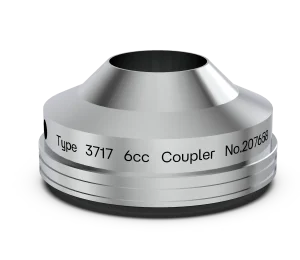

CRY3717 IEC 60318-3 Coupler
Frequency Response
100Hz to 8kHz±2dB
Standards
IEC60318-3
Equivalent Volume
6cc

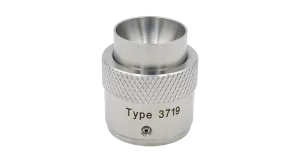

CRY3719 Coupler IEC 60318-5
Frequency Response
125Hz to 8kHz
Equivalent Volume
2cc
Standards
IEC60318-5, ANSI S3.7、 GB/T 20441.4-2006

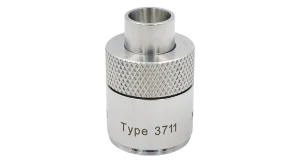

CRY3711 Ear Simulator IEC60318-4
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hzto 16kHz(Coupling cavity use)
Dynamic Range
23dB to 160dB

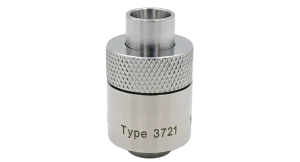

CRY3721 Ear Simulator IEC60318-4, Low-Noise
Standards
IEC 60318-4, ITU-T P.57 Type 2
Equivalent Volume
1.26cc
Weight
50g

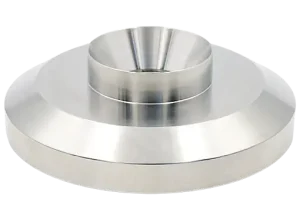

CRY3718 Ear Simulator IEC60318-1
Frequency Response
100Hz to 4kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards
IEC 60318-1、 ITU-T P.57 Type 1、 GB/T 25498.1-2010
Weight
147g
