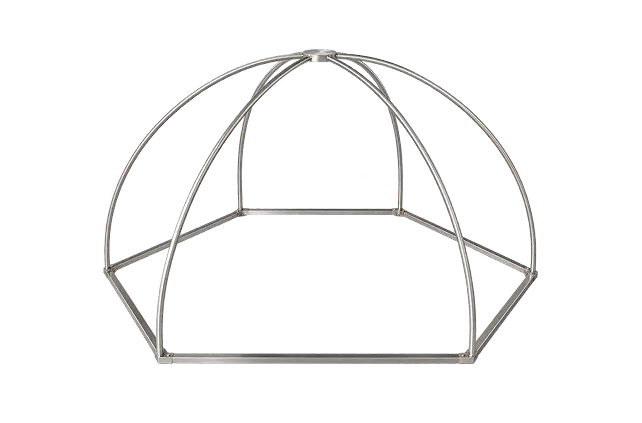

CRY820 Sound Power Measurement Test Frame - 1 m Radius Hemisphere
CRY820 Sound Power Measurement Test Frame, 1 m radius hemisphere, compliant with ISO 3744/3745/3746 standards for survey, engineering, and precision methods, stainless steel, TA0204 microphone clamp not included.
Downloads
Product Highlights
Technical Specifications
Main Features
Related Products
NEW
CRY5820 SonoDAQ Pro
Module Slots
6 Slots
Interfaces
USB-C / Ethernet / CAN FD / WIFI / GPS
User Interface
2.1" Touchscreen
NEW
CRY3213 NVH Measurement Microphone
Field Type
Free-field
Sensitivity
50 mV/Pa, -26±2 dB re 1V/Pa
Frequency Response
3.15 Hz-20 kHz ±2 dB
NEW
OpenTest
Mode
Measure Mode, Analysis Mode, Sequence Mode
Monitor
Scope, FFT Spectrum, Spectrogram,RMS Level, DC Level, Peak Level, THD Ratio, THD+N Ratio, Crosstalk, etc.
Measure
FFT Analysis, Octave Analysis, Continuous Sweep, Stepped Frequency Sweep, Sound Power Testing, Sound Level Meter, Sound Quality, etc.
NEW
CRY5620 SonoDAQ Go
Module Slots
2 Slots
Interfaces
USB-C / Ethernet / CAN FD
User Interface
5.0" Touchscreen
NEW
NEW
In modern metrology labs, accurately measuring product noise requires more than just sound pressure values. This case study demonstrates how a metrology institute implemented a repeatable, multi-point sound power measurement workflow using SonoDAQ Pro and OpenTest, enabling reliable comparison of servers, fans, home appliances, and motors under different operating conditions. Learn how synchronized data acquisition, [...]
This guide helps users quickly set up and perform sound power measurement using a hemispherical sound power measurement frame, the SonoDAQ Pro data acquisition front-end unit, and OpenTest. Stage Completion Criteria 1. Frame installation The hexagonal base is stable, the 6 arc tubes are tightened, and the top cover is secured without shaking. 2. Microphone [...]
Automated sound power measurement speeds data acquisition, analysis, pass/fail checks, and reporting while improving result consistency.
sound power
Under regulations such as the EU Machinery Noise Directive, more and more products-from toys and power tools to IT equipment-are required to declare their sound power level on labels and in documentation, rather than simply claiming they are "quiet enough." For typical office devices like notebook computers, idle noise is often around 30 dB(A), while [...]
Sound power measurement is used to quantify the total acoustic energy radiated by equipment, with sound power level, Lw, as the key metric. Unlike sound pressure level, which only indicates how loud a sound is at a particular point, sound power is better suited to noise benchmarking and compliance declarations across sites, laboratories and production [...]
