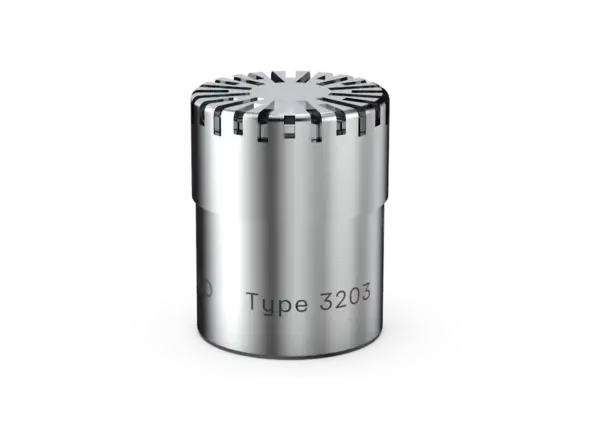

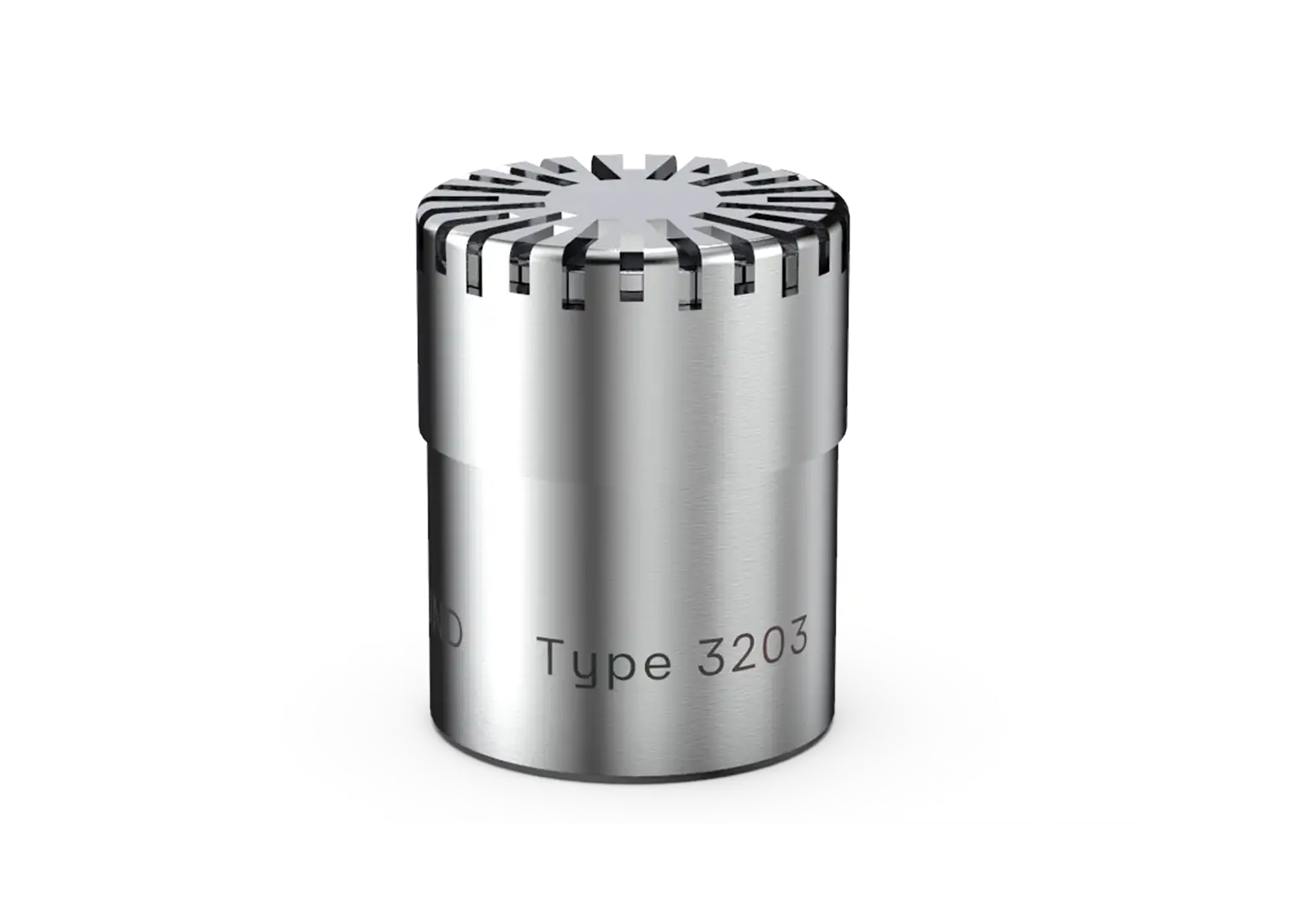

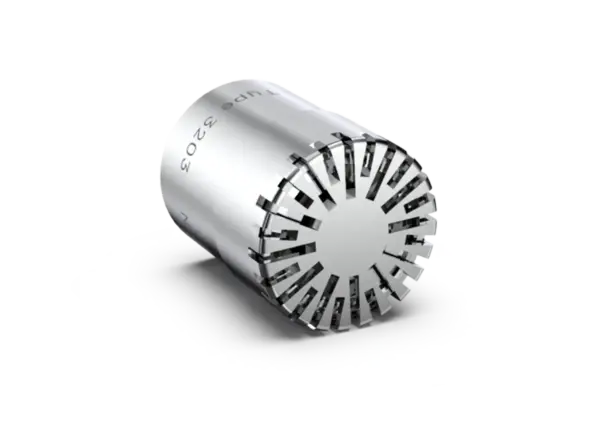

CRY3203 Free-field Microphone, 1/2", Prepolarized, 50mV/Pa
CRY3203 is a 1/2-inch free-field prepolarized measurement microphone widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.
The unique design of CRY3203 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.
Product Highlights

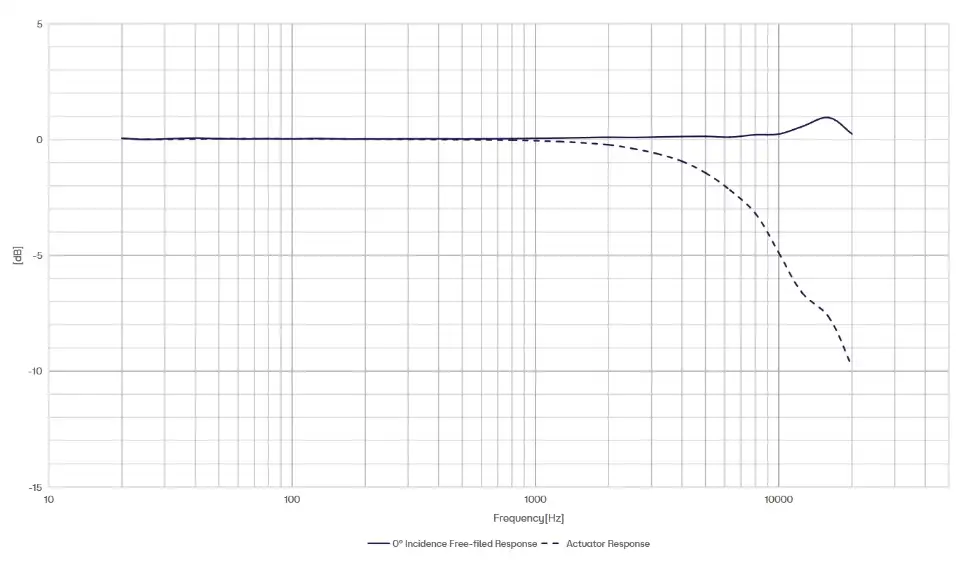

CRY3203 Measurement Microphone Typical Frequency Response
The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Field Type
Free-field
Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
16dBA to 146dB
Operating Temperature
-30 to +80℃ (-22 to +176℉)
Temperature Stability
0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2F
Height with Grid
16.2mm (0.64")
Diameter with Grid
13.2mm (0.52")
Main Features
- High-sensitivity free-field microphone
- Extensive compatibility
- Durable, reliable, and high-quality
Related Products
CRY3204 Pressure-field Microphone, 1/2", Prepolarized, 50mV/Pa
Field Type
Pressure-field
Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 10kHz±2dB
CRY3101 Free-field Microphone, 1", Prepolarized, 50mV/Pa
Field Type
Free-field
Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
4Hz to 16kHz±2dB
CRY3201 Free-field Microphone, 1/2", Prepolarized, 12.5mV/Pa
Field Type
Free-field
Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 40kHz±2dB
CRY3403 Free-field Microphone, 1/4", Prepolarized, 4mV/Pa
Field Type
Free-field
Sensitivity
4mV/Pa, -48±3dB re 1V/Pa
Frequency Response
4Hz to 90kHz±2dB
