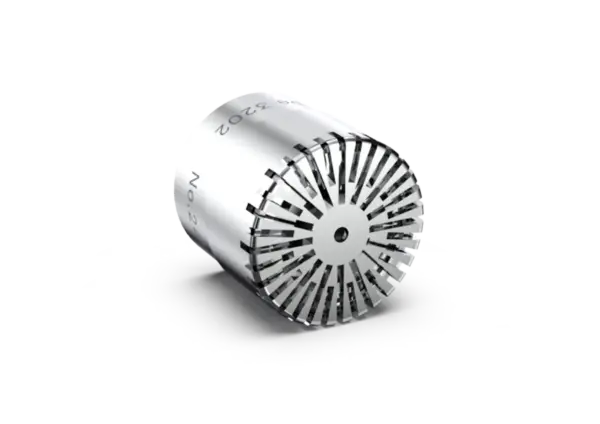

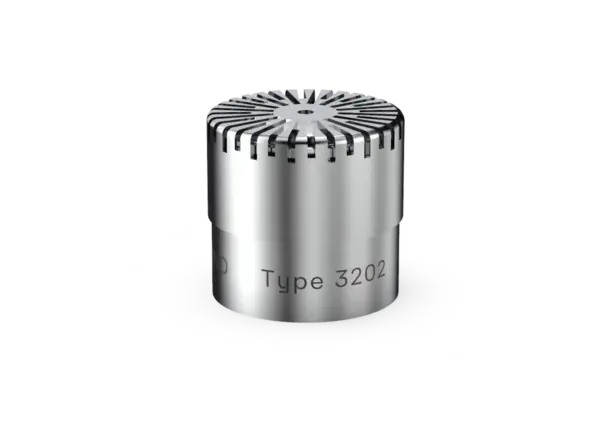

CRY3202 Pressure-field Microphone, 1/2", Prepolarized, 12.5mV/Pa
The CRY3202 is a 1/2-inch pressure-field prepolarized measurement microphone designed to be used in conjunction with a coupler chamber for conducting relevant electroacoustic testing.
The unique design of the CRY3202 allows for high-quality, wideband testing of in-ear monitors and earbuds. Its frequency range extends up to 20kHz, surpassing the testing capabilities of most simulated ears.
Product Highlights

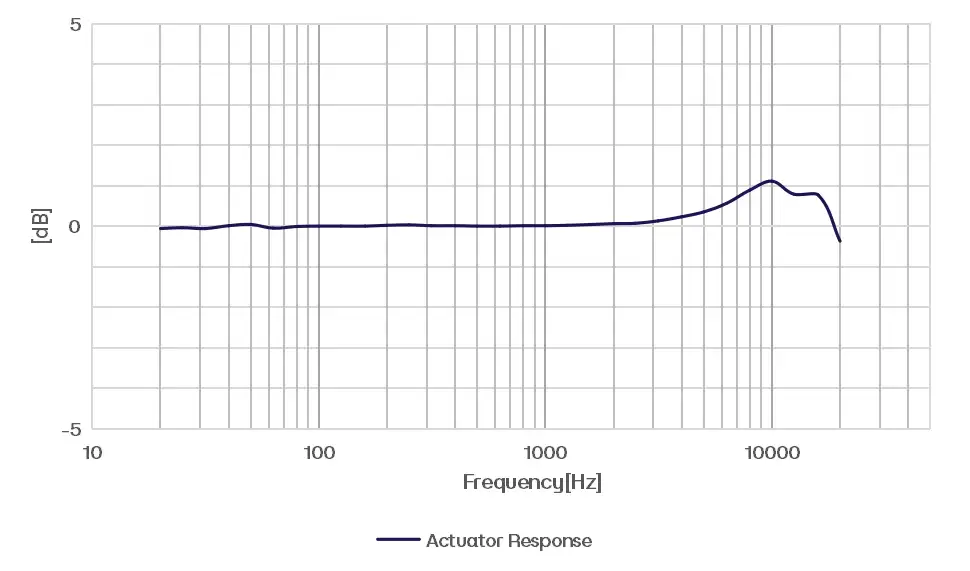

CRY3202 Measurement Microphone Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Field Type
Pressure-field
Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
23dBA to 160dB
Operating Temperature
-30 to +80℃ (-22 to +176℉)
Temperature Stability
0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2P
Height with Grid
12.7mm (0.500")
Diameter with Grid
13.2mm (0.520")
Main Features
- Full-range pressure-field Microphone
- Extensive compatibility
- Durable, reliable, and high-quality
Related Products
CRY3201 Free-field Microphone, 1/2", Prepolarized, 12.5mV/Pa
Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB

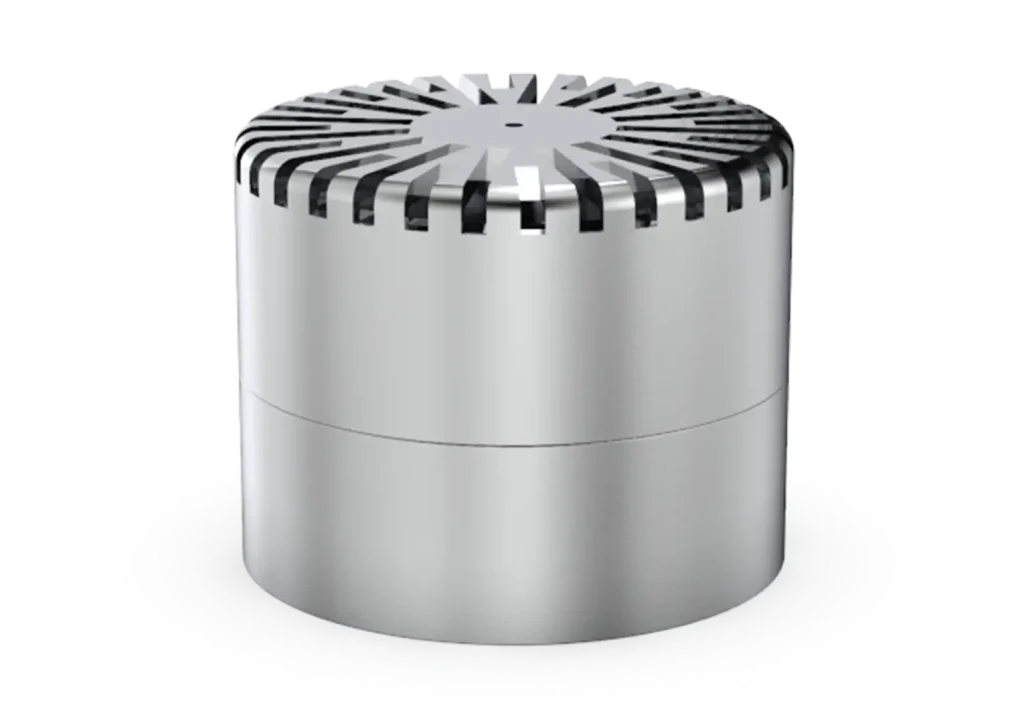

CRY3102 Pressure-field Microphone, 1", Prepolarized, 50mV/Pa
Field Type Pressure-field
Sensitivity 50mV/Pa,-26±1.5dB re 1V/Pa
Frequency Response 4Hz to 8kHz±2dB
CRY3204 Pressure-field Microphone, 1/2", Prepolarized, 50mV/Pa
Field Type Pressure-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 10kHz±2dB
CRY3402 Pressure-field Microphone, 1/4" Prepolarized, 1.6mV/Pa
Field Type Pressure-field
Noominal Sensitivity 1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response 4Hz to 70kHz±2dB
