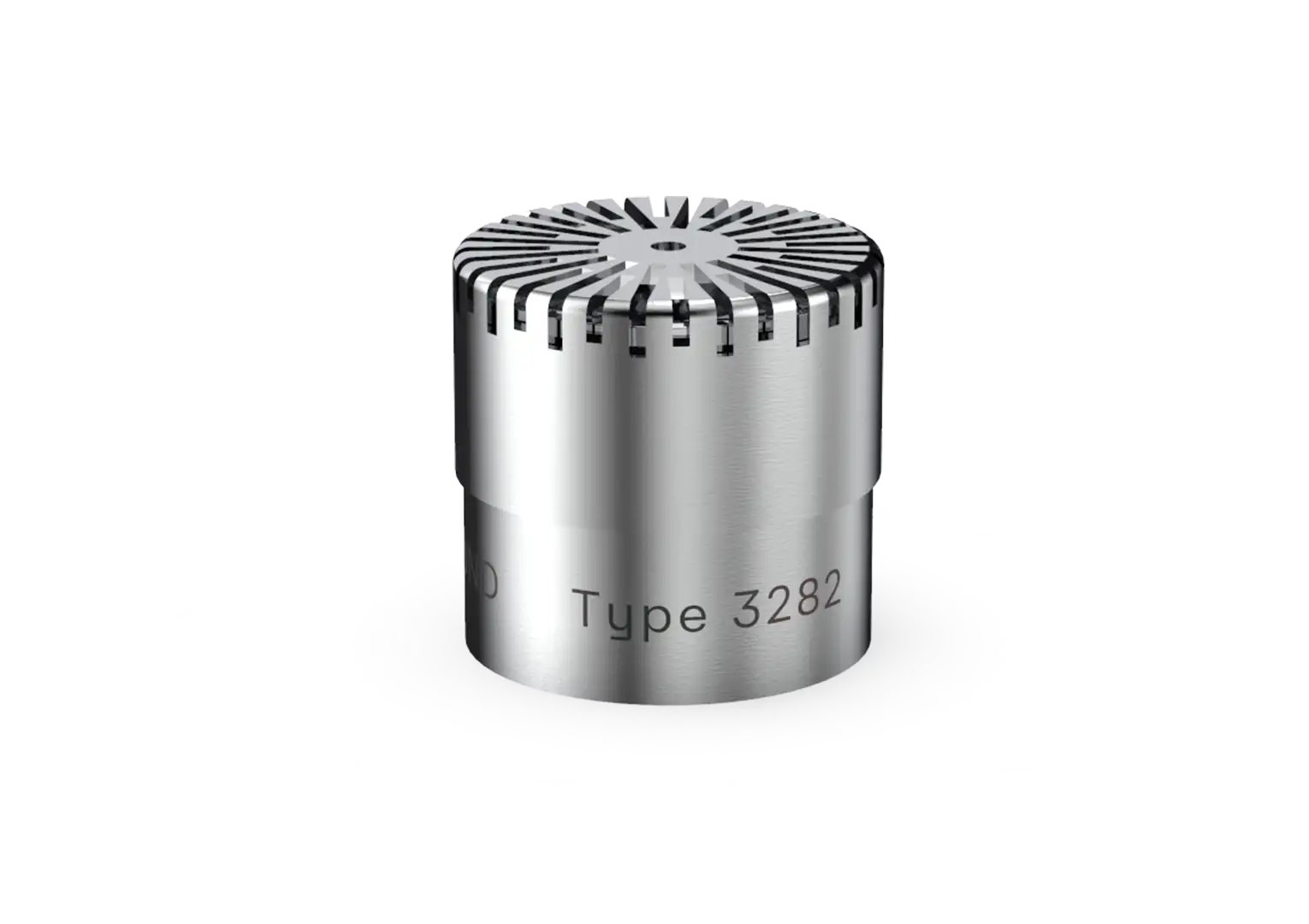

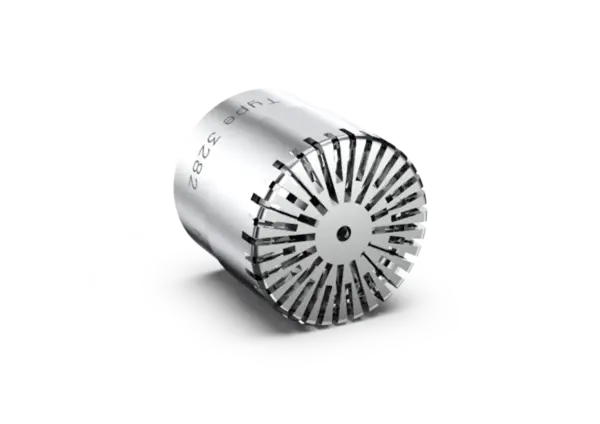

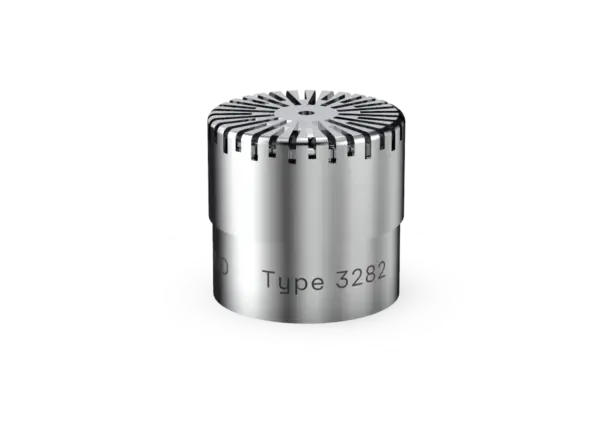

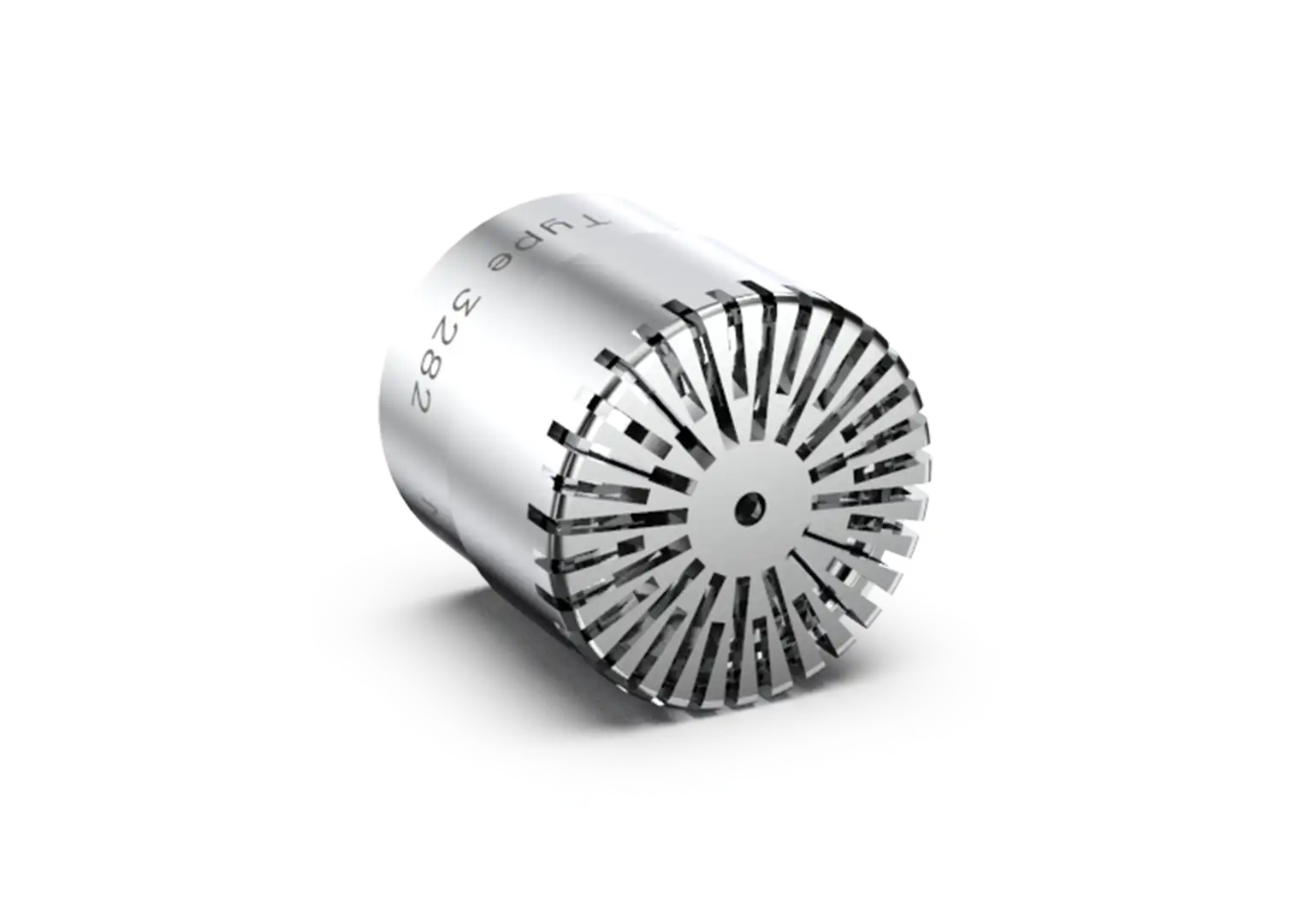

CRY3282 Pressure-field Microphone, 1/2", External-polarized, 12.5mV/Pa
CRY3282 is a 1/2-inch externally polarized measurement microphone designed for pressure field measurements. It is specifically designed to be used in conjunction with a coupler chamber for related electroacoustic testing.
The unique design of CRY3282 enables high-quality and wide-frequency response testing of in-ear monitors and earplugs. Its frequency range extends up to 20kHz, surpassing the testing capabilities of most simulated ears.
Downloads
Product Highlights

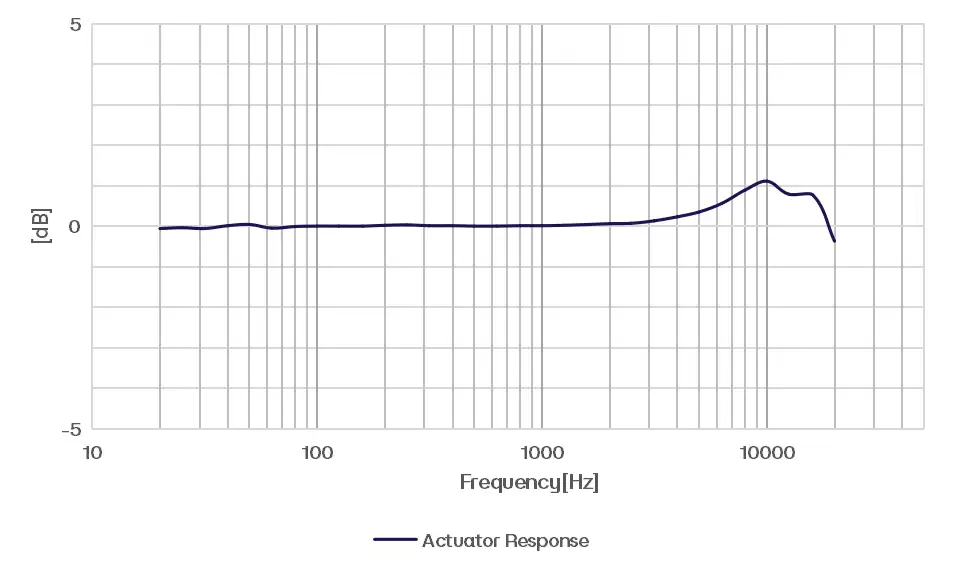

CRY3282 Measurement Microphone Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Field Type
Pressure-field
Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
200V
Dynamic Range(re.20uPa)
23dBA to 163dB
Operating Temperature
-30 to +80℃ (-22 to +176℉)
Temperature Stability
0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2P
Height with Grid
12.7mm (0.500")
Diameter with Grid
13.2mm (0.52")
Main Features
- Full-range pressure-field microphone
- Extensive compatibility
- Durable, reliable, and high-quality
