CRY3718-S01 Ear Simulator Set IEC60318-1
CRY3718-S01 is a simulation ear set specifically designed for measurements in audiology and related fields.
The unique design of CRY3718-S01 enables it to carry out electroacoustic measurements of telephone receivers or headsets in a clear acoustic environment. It is widely utilized in research and development within the fields of headphones, hearing assistance devices, and other related areas
Downloads
Product Highlights

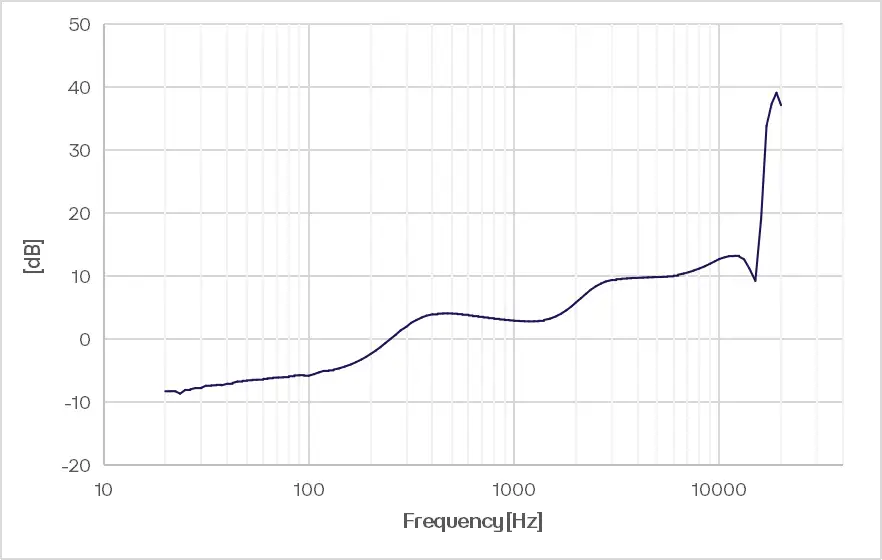

CRY3718-S01 Ear Simulator Set Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 4kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Standards
IEC 60318-1、 ITU-T P.57 Type 1
Interface Type
BNC
Dynamic Range
23dB to 146dB
Weight
441g
Main Features
- Compliant with IEC 60318-1 standard
- Extensive compatibility
- Durable, reliable, and high-quality
Related Products
CRY3711-S01 Ear Simulator Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Dynamic Range
23dB to 146dB
CRY3719-S01 Coupler Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
125Hz to 8kHz
Dynamic Range
23dB to 146dB
CRY3717-S01 Coupler Set
Nominal Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
100Hz to 8kHz±2dB
Dynamic Range
12dB to 134dB
CRY3721-S01 Ear Simulator Set
Nominal Sensitivity
631 mV/Pa,-4 dB re 1V/Pa
Frequency Response
20 Hz to 20 kHz
Dynamic Range
9dBA to 110dB
