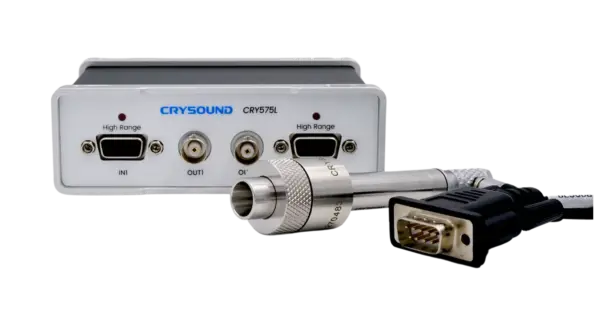

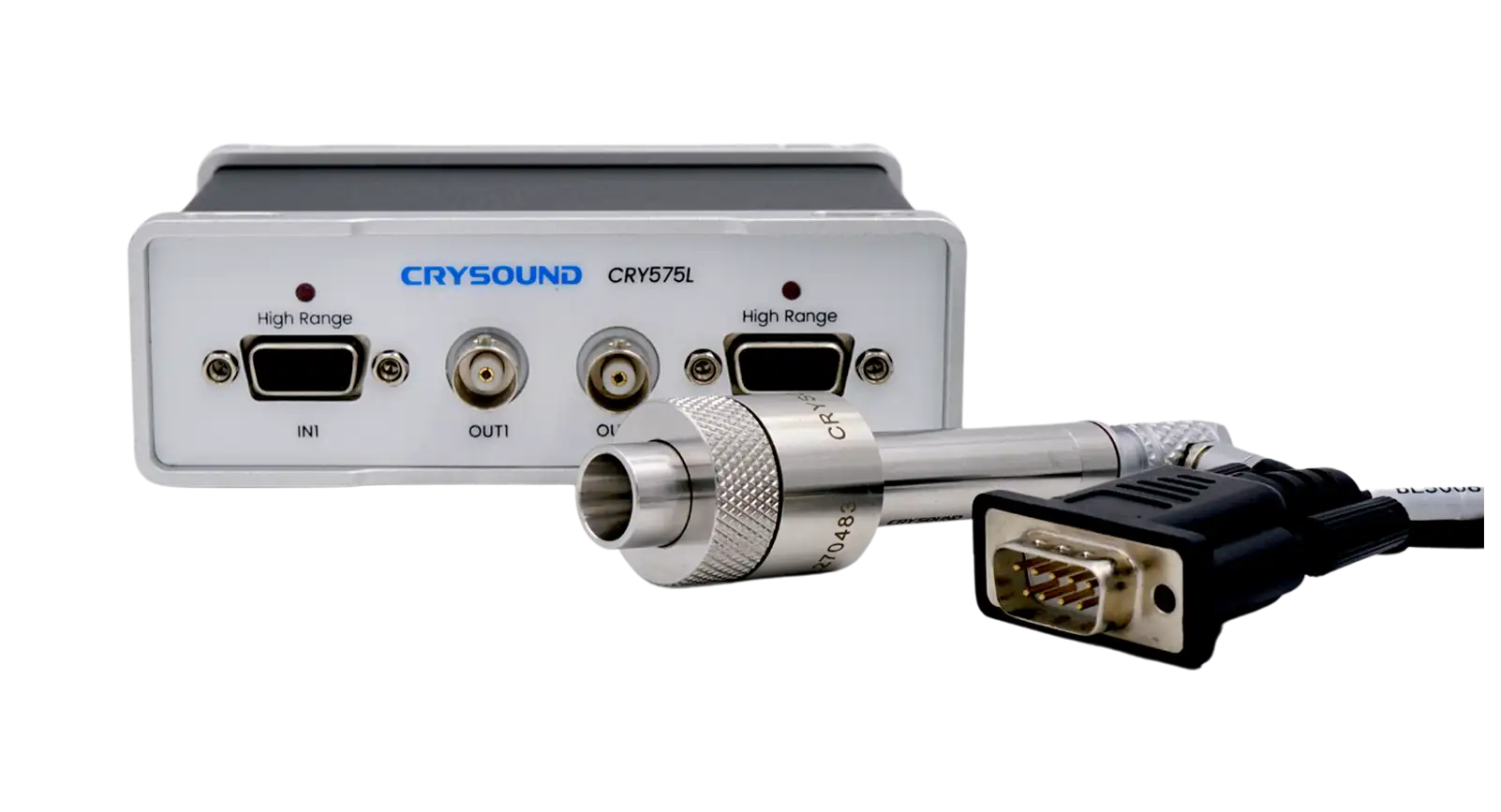

CRY3721-S01 Ear Simulator Set
CRY3721-S01 is a simulation ear set with ultra-low noise and a full frequency range, specifically designed for measurements on high-quality, modern headphones, and earbuds.
The unique design of CRY3721-S01 provides an ultra-low self-noise of 9dBA and enables acoustic testing across the full frequency range of 20Hz to 20kHz. It is designed to deliver high-quality and accurate measurements for acoustic testing of products such as in-ear headphones.
Product Highlights
CRY3719-S01 Ear Simulator Set Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Nominal Sensitivity
354 mV/Pa,-9 dB re 1V/Pa
Frequency Response
20 Hz to 20 kHz
Dynamic Range
7.5dBA to 115dB
Standards
IEC 60318-4, ITU-T P.57 Type 2
Equivalent Volume
1.26cc
Weight
97g
Main Features
- Ultra Low-noise, Full-frequency Ear Simulator Set
- Compliant with IEC 60318-4 standard
- Extensive compatibility
- Durable, reliable, and high-quality
Related Products
CRY3711-S01 Ear Simulator Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
100Hz to 10kHz ±1dB(Simulated human ear impedance)、 20Hz to 16kHz(Coupling cavity use)
Dynamic Range
23dB to 146dB

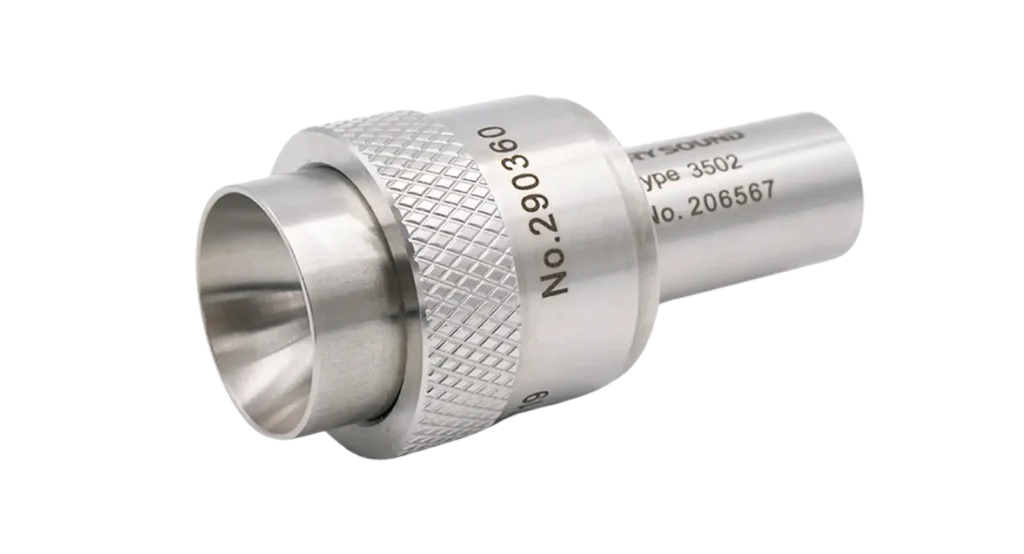

CRY3719-S01 Coupler Set
Nominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
125Hz to 8kHz
Dynamic Range
23dB to 146dB
CRY3717-S01 Coupler Set
Nominal Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
100Hz to 8kHz±2dB
Dynamic Range
12dB to 134dB
