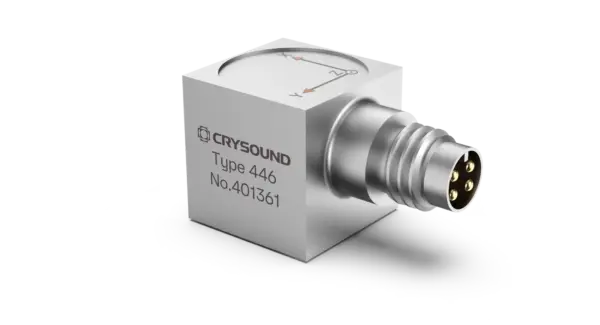

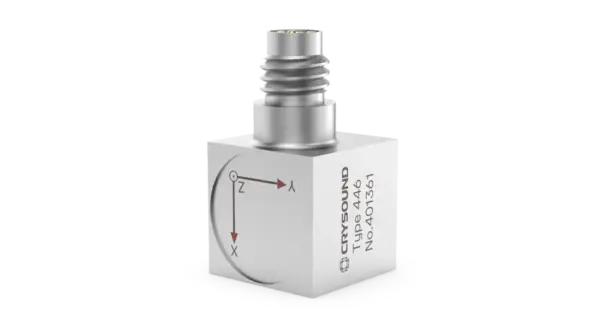

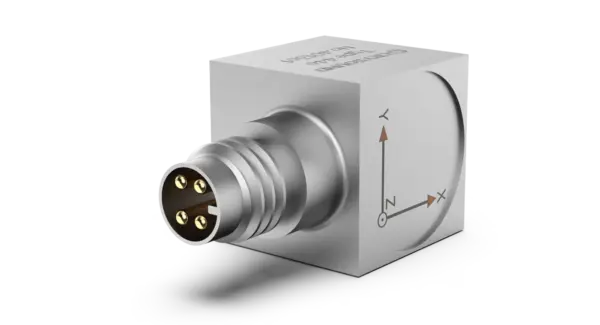

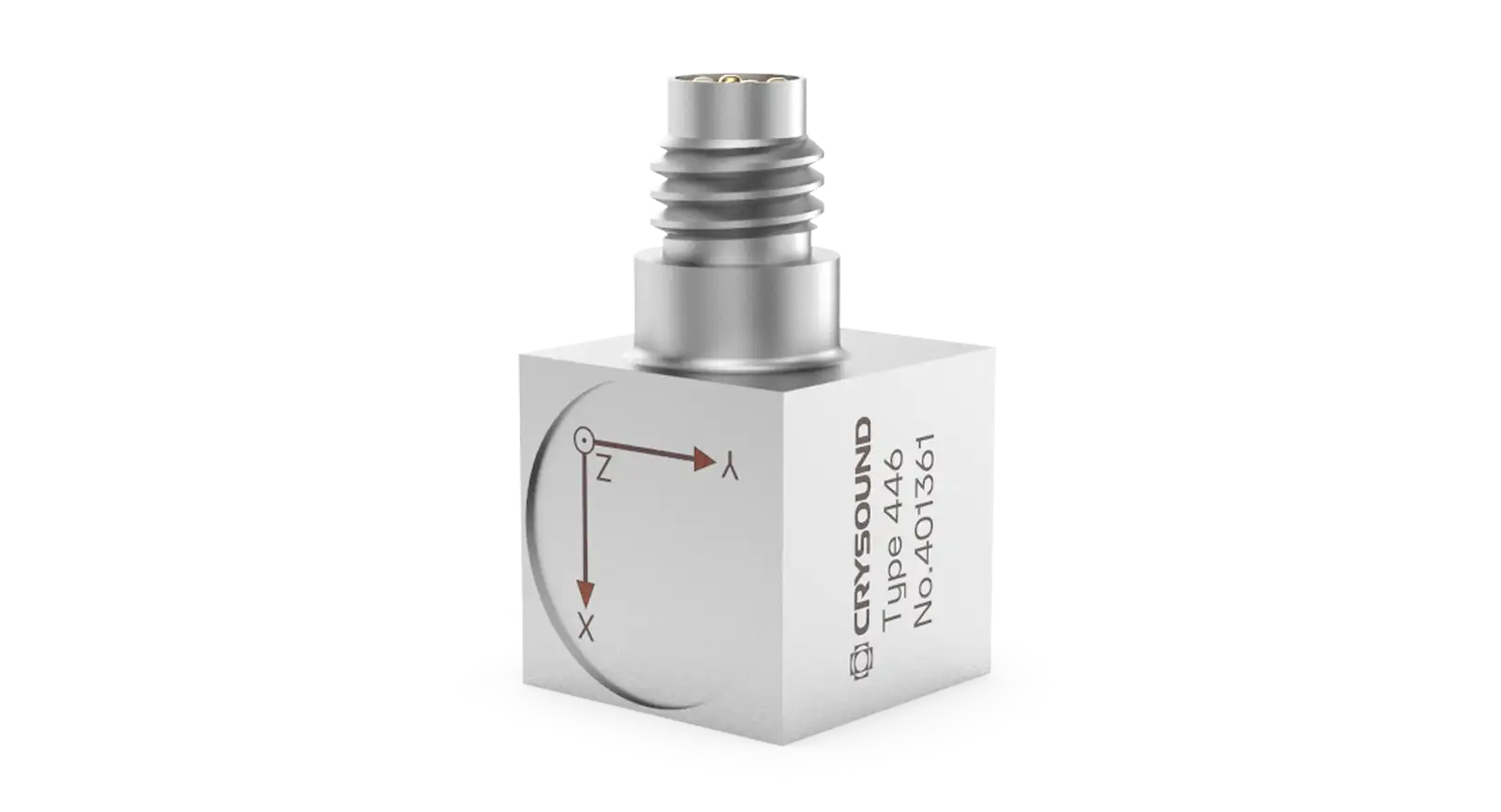

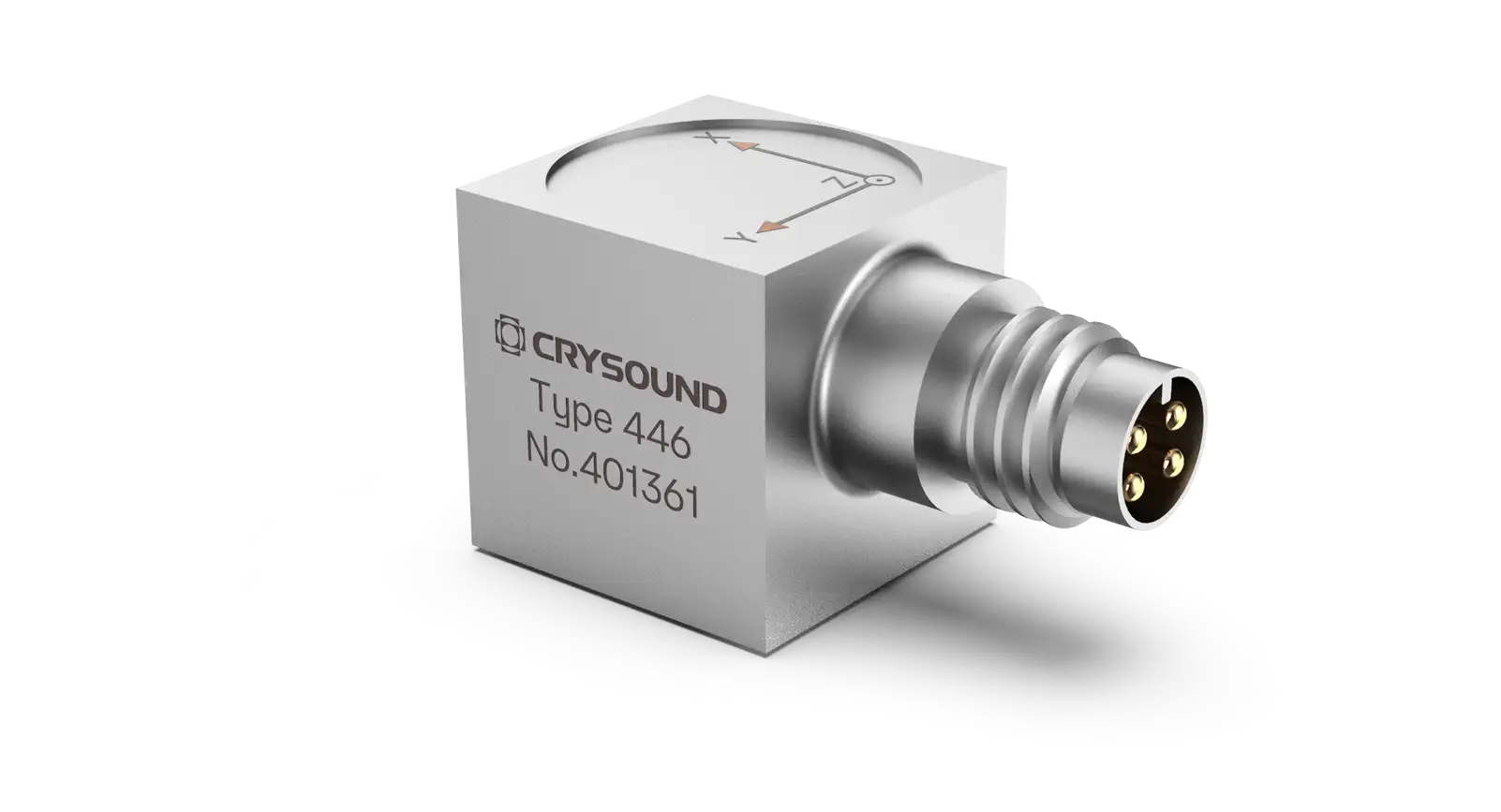

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz
CRY446 is a miniature triaxial acceleration sensor with a side-end output of 1/4-28 (4-pin).It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
CRY446 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Product Highlights
Technical Specifications
Measuring Range (peak)
±500g pk
Sensitivity (25℃)
10mV/g(160Hz)
Frequency Response
1Hz to 5kHz(±1dB)
Transverse Sensitivity
≤5%
Output Impedance
＜100 Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50μV
Bias Voltage
+9V to +13V
Maximum Shock Level
±2000 g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
1/4-28 (4-pin)
Threaded Interface
M3
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
12g
Main Features
- Side 1/4-28 (4-pin)
- Compact structure
- Built-in IEPE preamplifier
- Three-way output, Simultaneously measure X, Y, and Z directions
Related Products

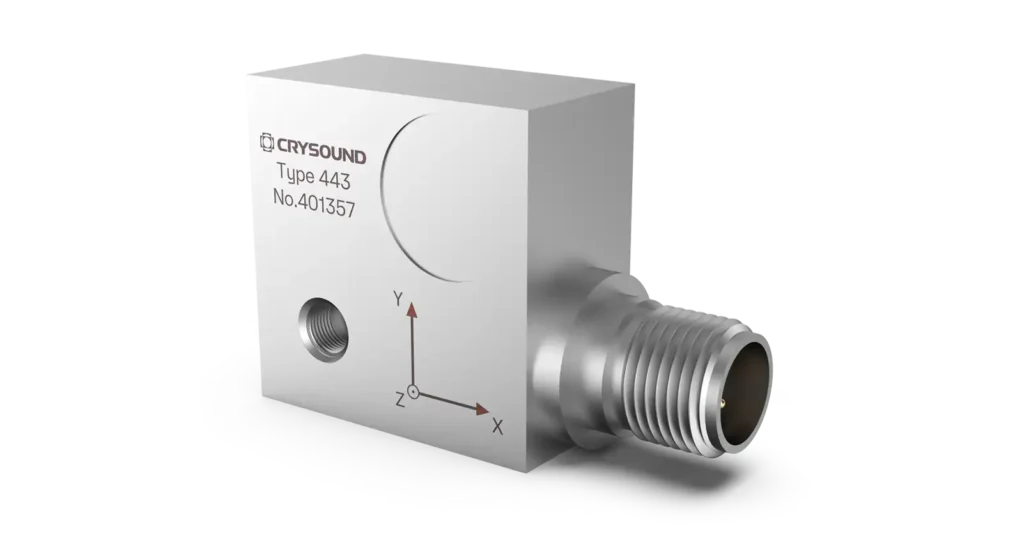

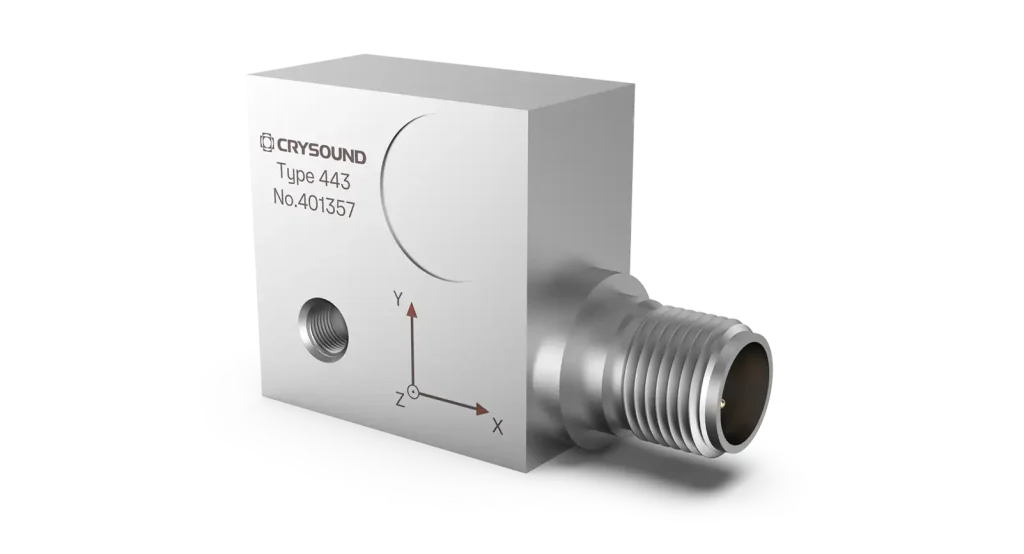

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz
Measuring Range (peak)
±100g pk
Sensitivity (25℃)
50mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)

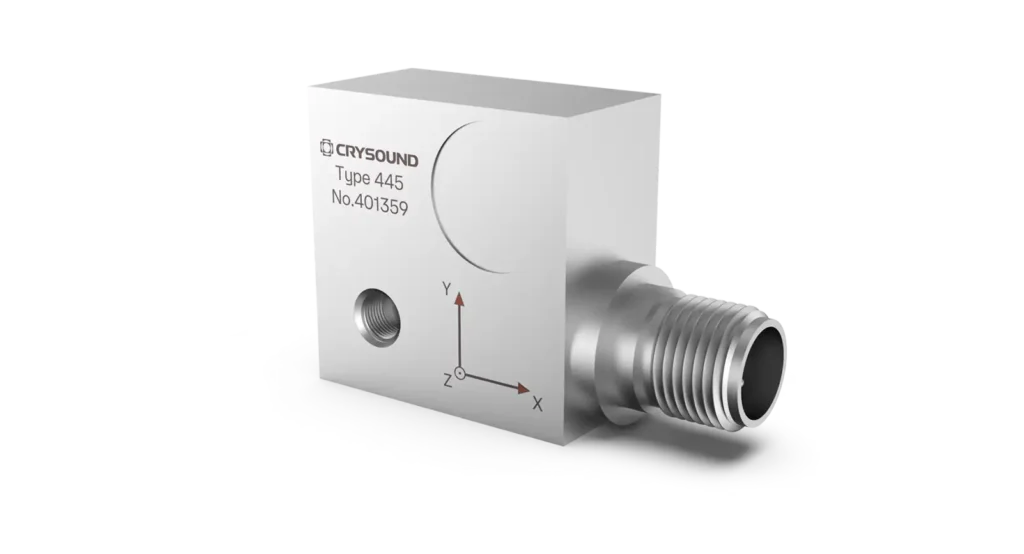

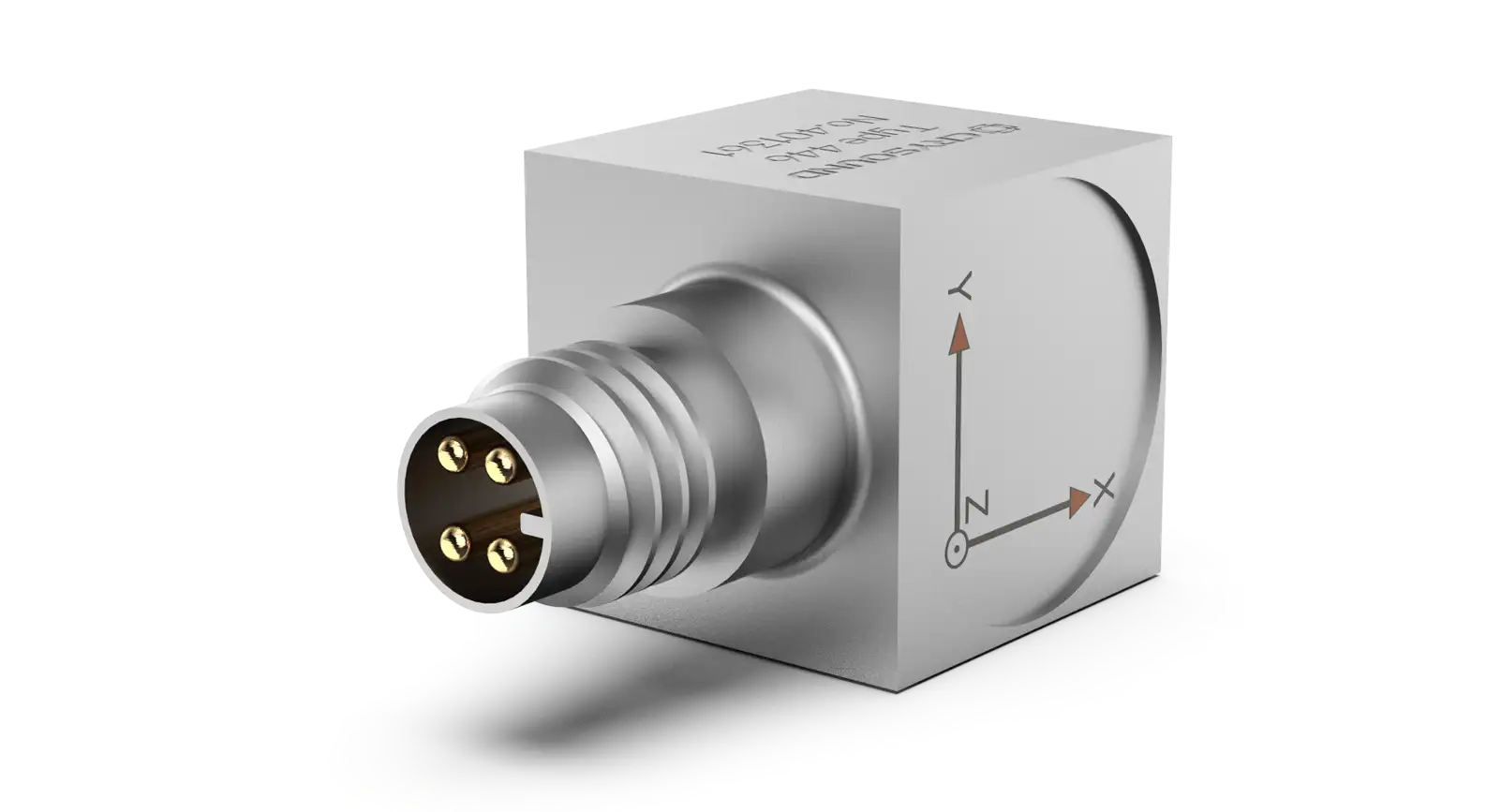

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
Measuring Range (peak)
±80g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)

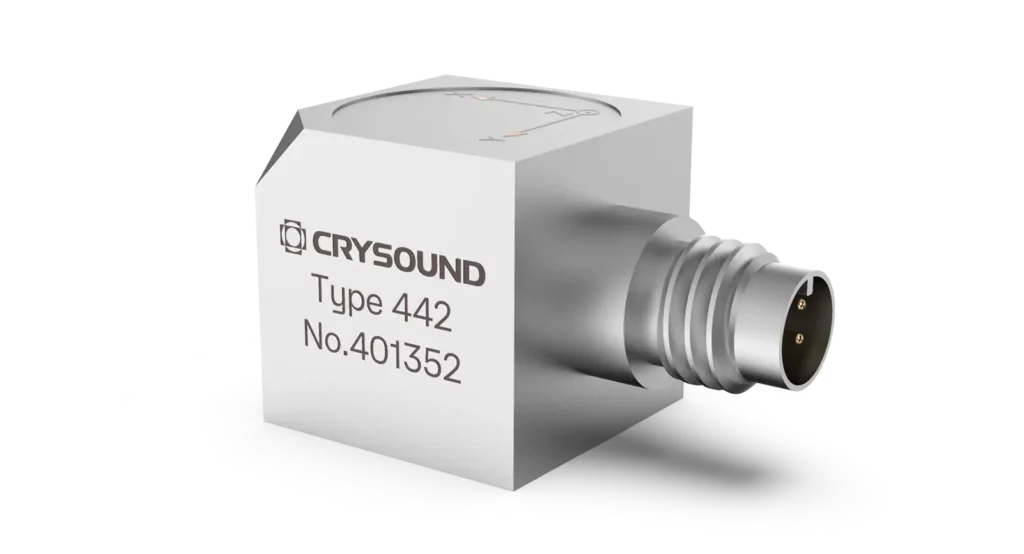

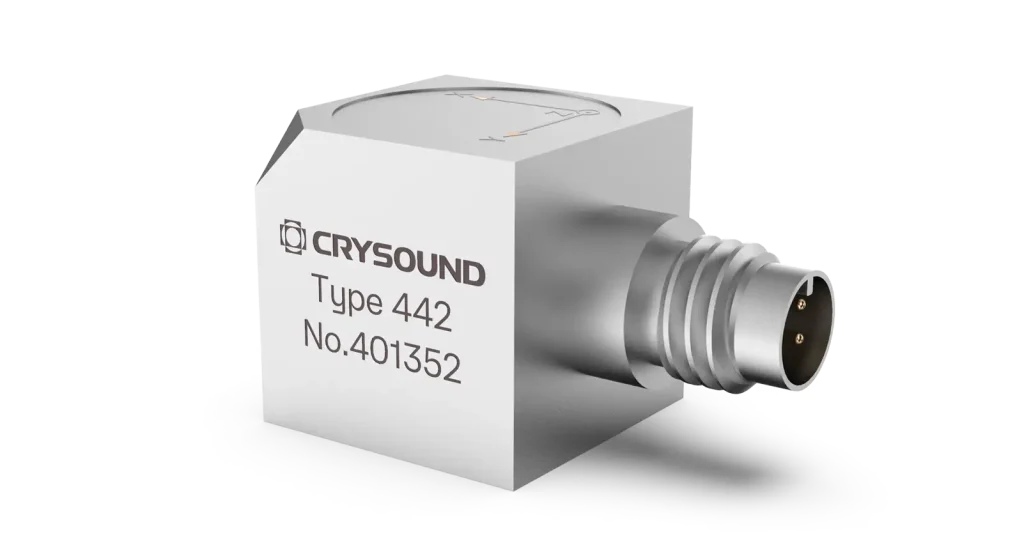

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz
