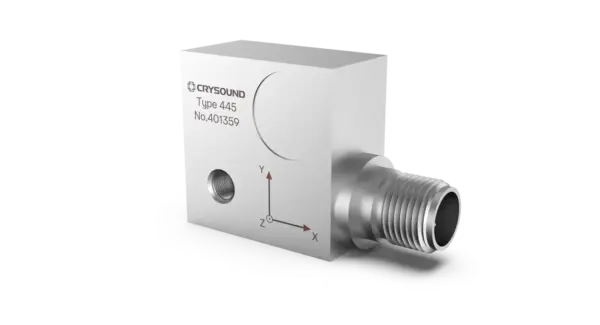

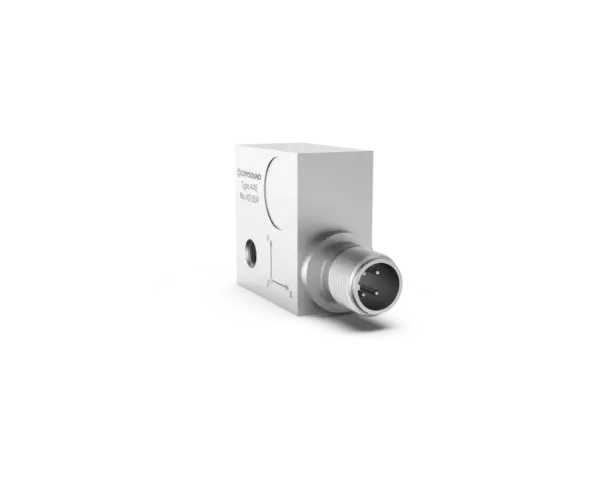

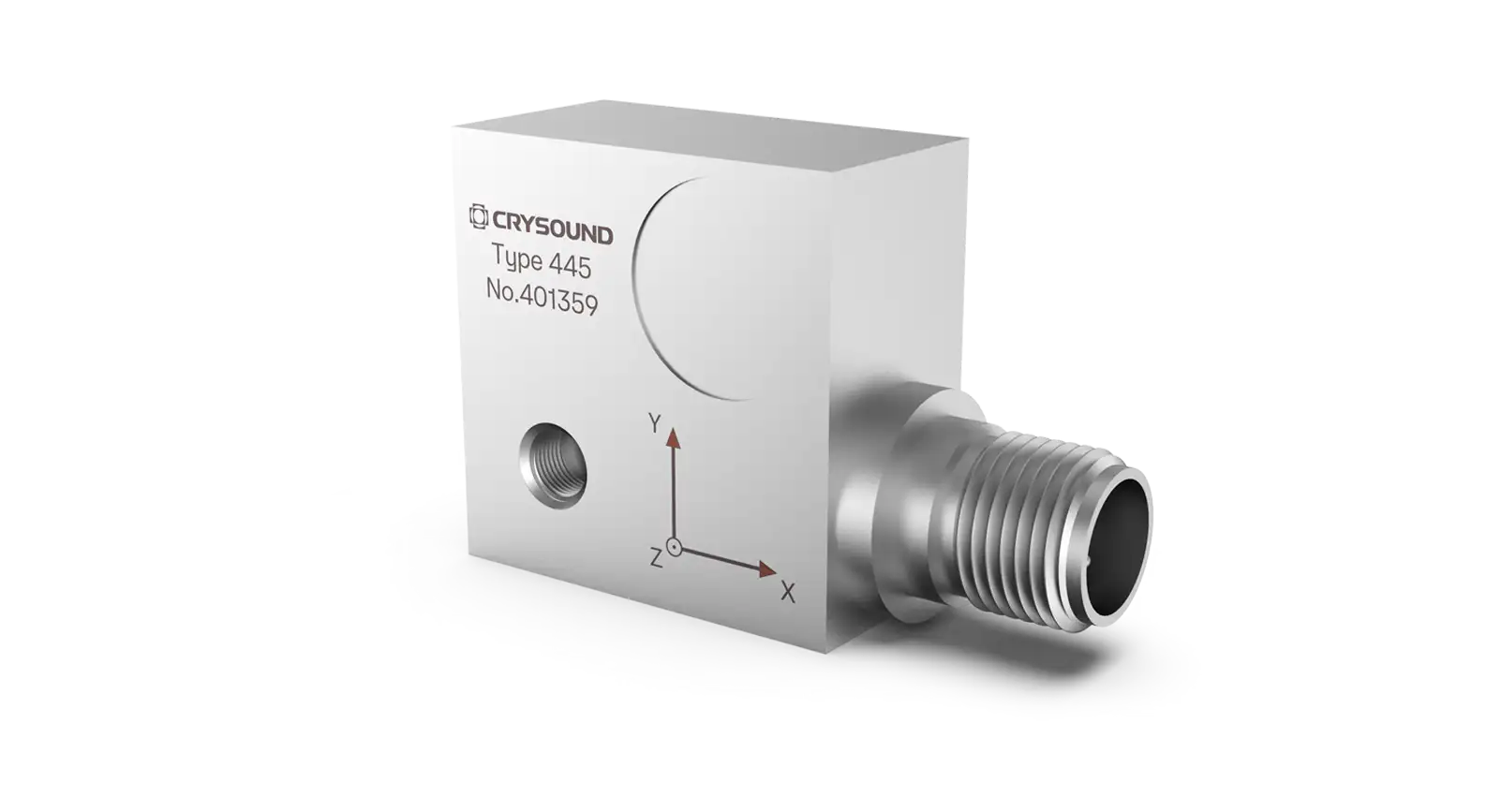

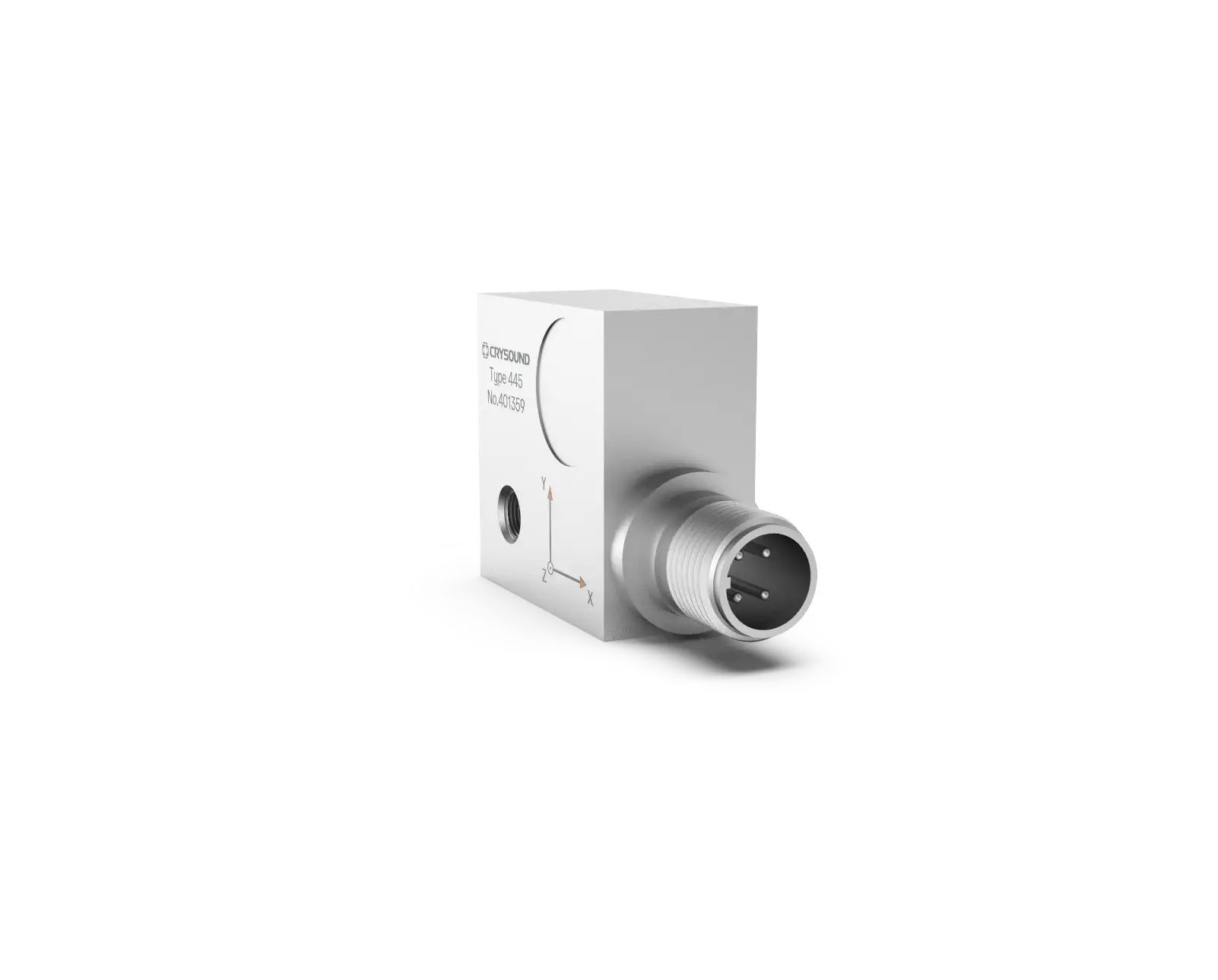

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
The CRY445 is a triaxial acceleration sensor with a side-end M12*1 (4-pin) output that is mounted on an object via a 10-32 UNF stud. It is often used for on-line monitoring of vibration state of industrial equipment.
CRY445 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Product Highlights
Technical Specifications
Measuring Range (peak)
±80g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)
Transverse Sensitivity
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±8V
Constant Current Source Current
2mA to 10mA
Bias Voltage
10V to 14V
Background Noise
＜200μV
Install Ground Insulation
≥10^8Ω
Maximum Shock Level
±1,000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side M12*1 (4-pin)
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Level of Protection
IP65
Weight
95g
Main Features
- Side M12*1 (4-pin) connector
- M5 bolt installation
- Built-in IEPE preamplifier
- Three-way output, Simultaneously measure X, Y, and Z directions
Related Products
CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz
Measuring Range (peak)
±100g pk
Sensitivity (25℃)
50mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)
CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz
Measuring Range (peak)
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
0.5Hz to 5kHz(±1dB)

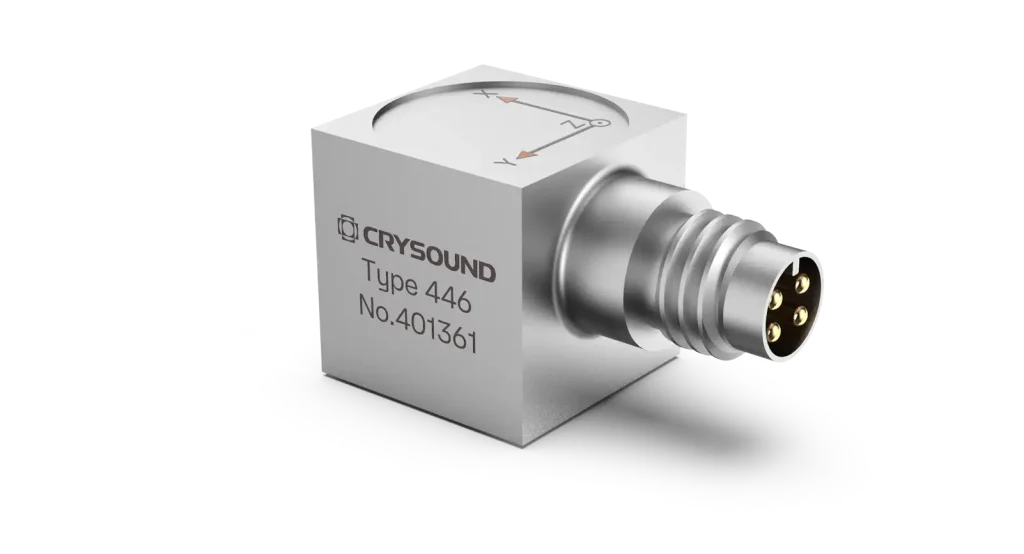

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz
