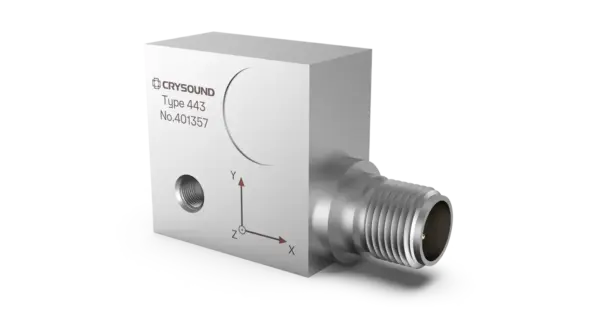

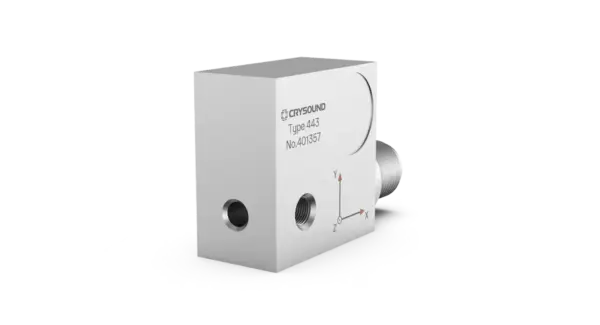

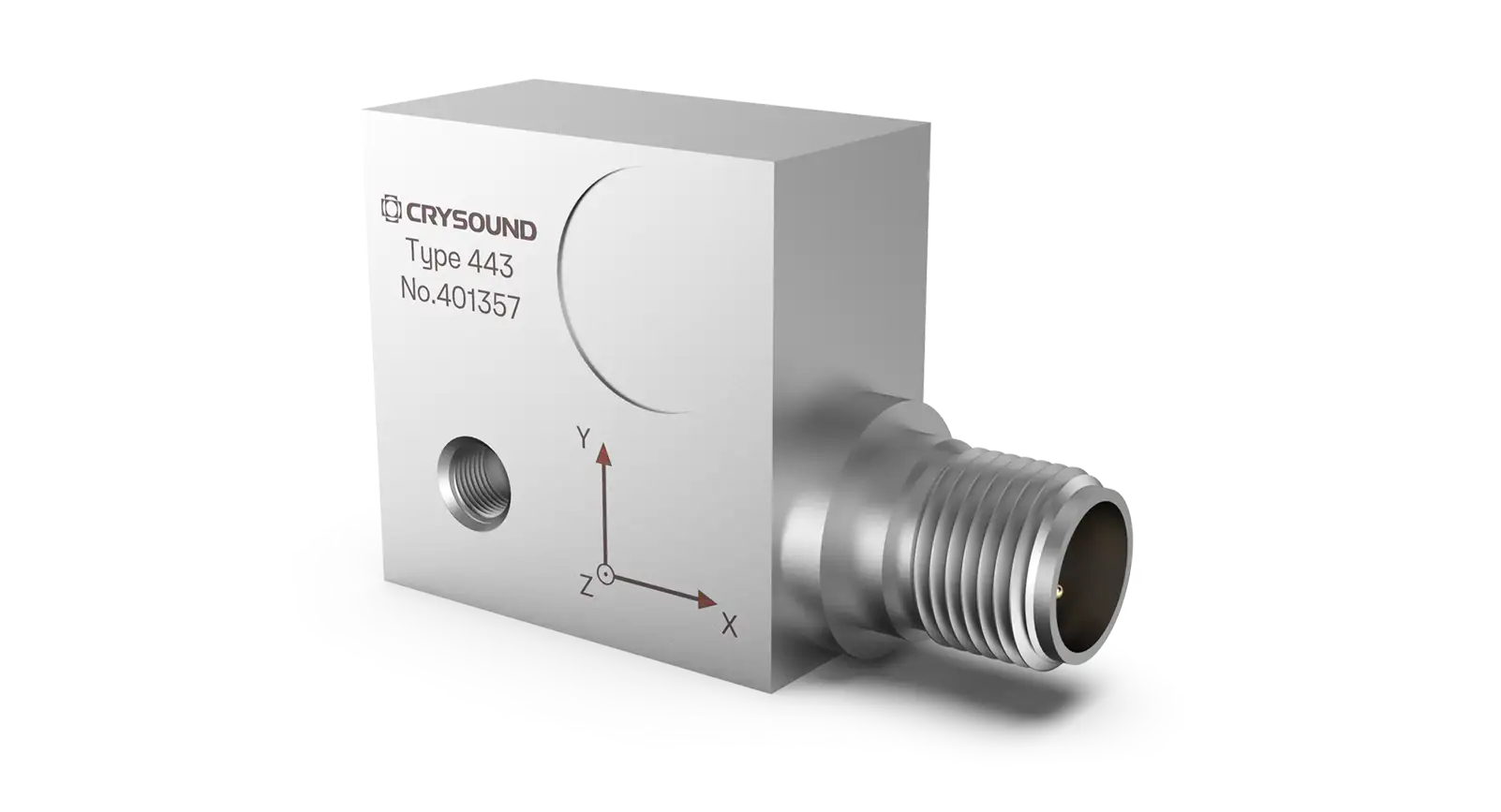

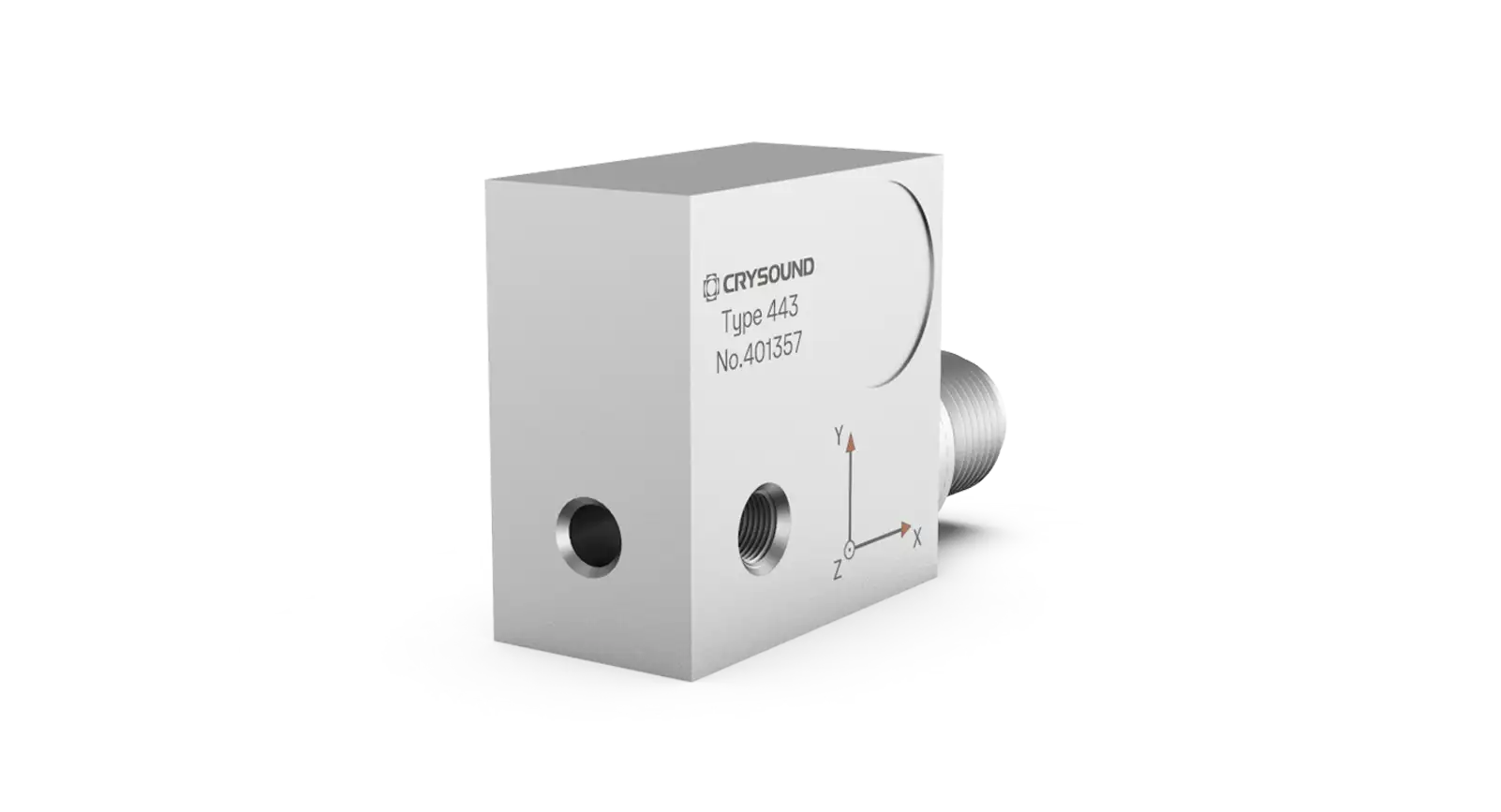

CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz
The CRY443 is a triaxial acceleration sensor with a side-end M12*1 (4-pin) output that is mounted to an object via a 10-32 UNF bolt. It is often used for on-line monitoring of vibration state of industrial equipment.
CRY443 can be used with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power
Product Highlights
Technical Specifications
Measuring Range (peak)
±100g pk
Sensitivity (25℃)
50mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)
Transverse Sensitivity
1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50μV
Bias Voltage
10V to 12V
Background Noise
＜200μV
Install Ground Insulation
≥10^8Ω
Maximum Shock Level
±1000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side M12*1 (4-pin)
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
95g
Main Features
- Side M12*1 (4-pin) connector
- M5 bolt installation
- Built-in IEPE preamplifier
- Three-way output, Simultaneously measure X, Y, and Z directions
Related Products
CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz
Measuring Range (peak)
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
0.5Hz to 5kHz(±1dB)
CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
Measuring Range (peak)
±80g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)

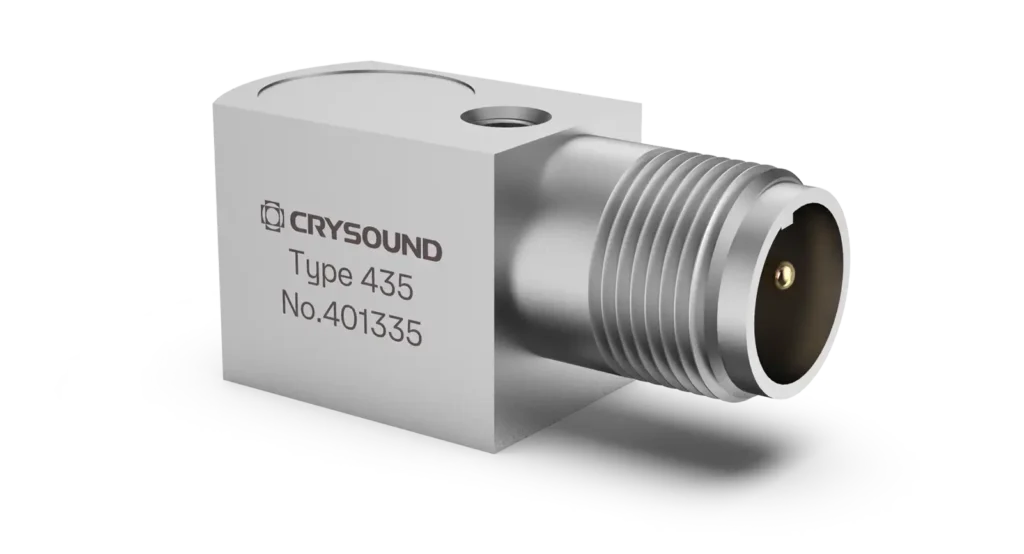

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz
