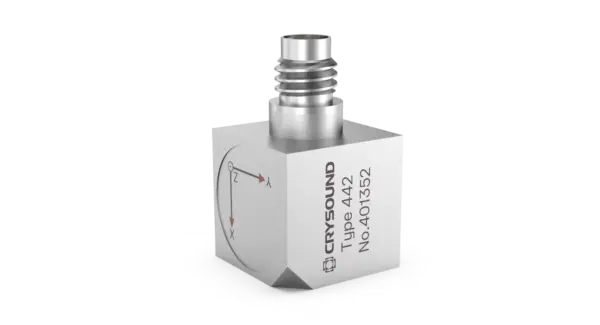

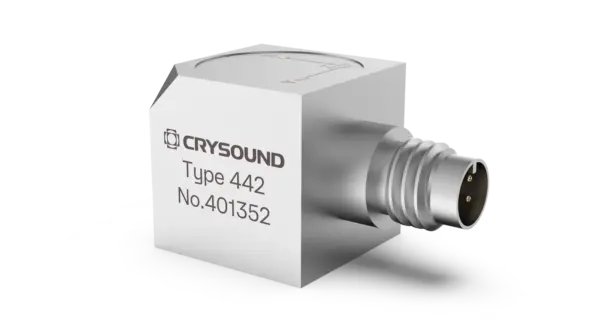

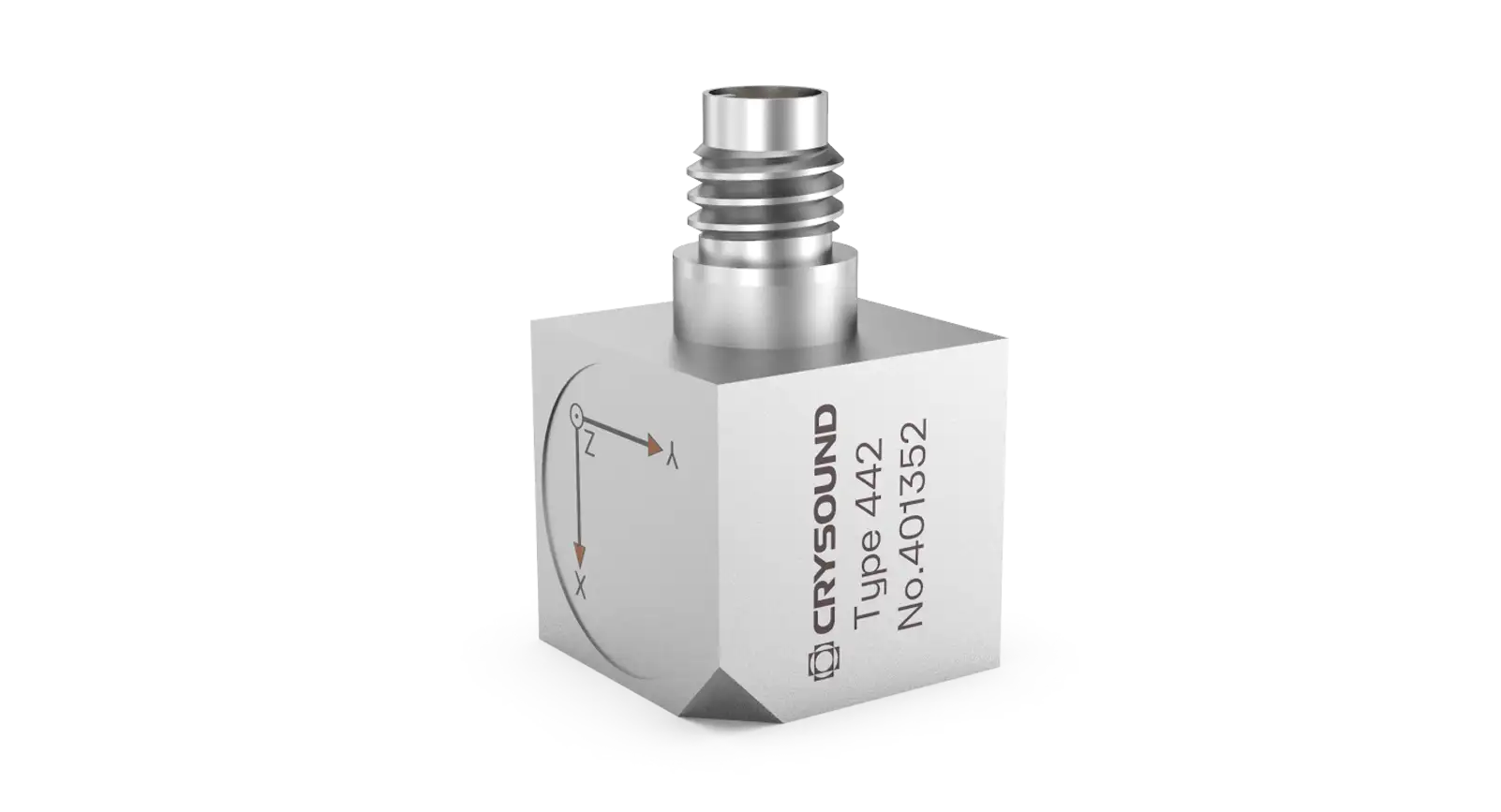

CRY442 Accelerometer, Triaxial, 100mv/g, ±50g pk, 0.5Hz to 5kHz
CRY442 is a miniature triaxial acceleration sensor with a side-end output of 1/4 - 28 (4-pin). It is installed on an object by an M5 bolt. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
Equipped with armored shielded cables, the CRY442 provides precise measurements of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference.
Product Highlights
Technical Specifications
Measuring Range (peak)
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
0.5Hz to 5kHz(±1dB)
Transverse Sensitivity
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
9V to 13V
Maximum Shock Level
±1,000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side 1/4-28 (4-pin)
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
18g
Main Features
- Side 1/4-28 (4-pin) connector
- Compact structure
- Built-in IEPE preamplifier
- Three-way output, Simultaneously measure X, Y, and Z directions
Related Products
CRY443 Accelerometer, Triaxial, 50mv/g, ±100g pk, 1Hz to 4kHz
Measuring Range (peak)
±100g pk
Sensitivity (25℃)
50mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±10%); 0.7Hz to 8kHz(±3dB)
CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
Measuring Range (peak)
±80g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)

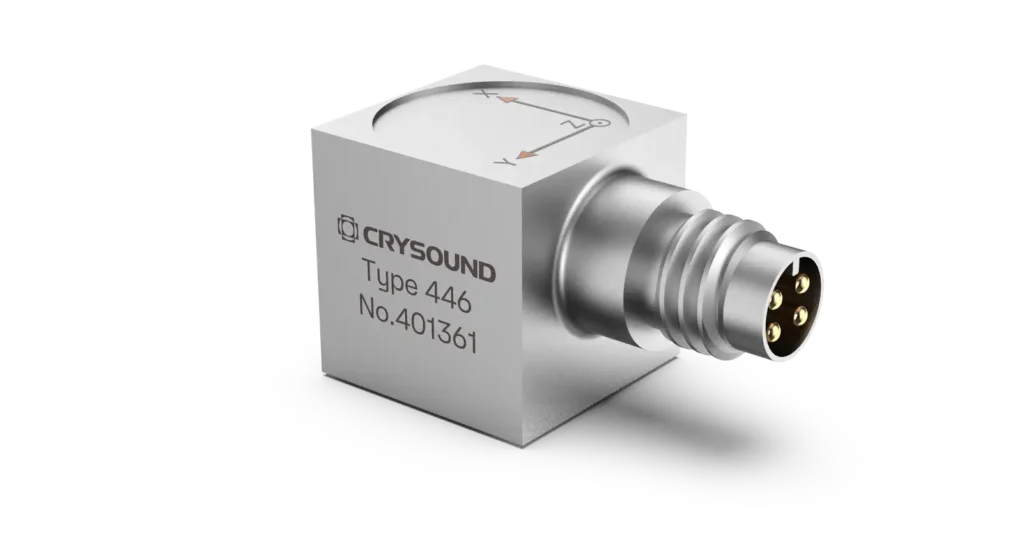

CRY446 Accelerometer, Triaxial, 10mv/g, ±500g pk, 1Hz to 5kHz
