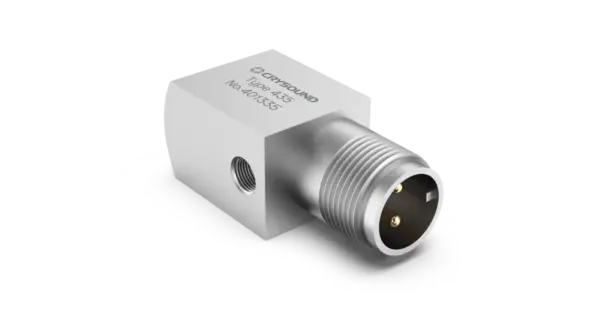

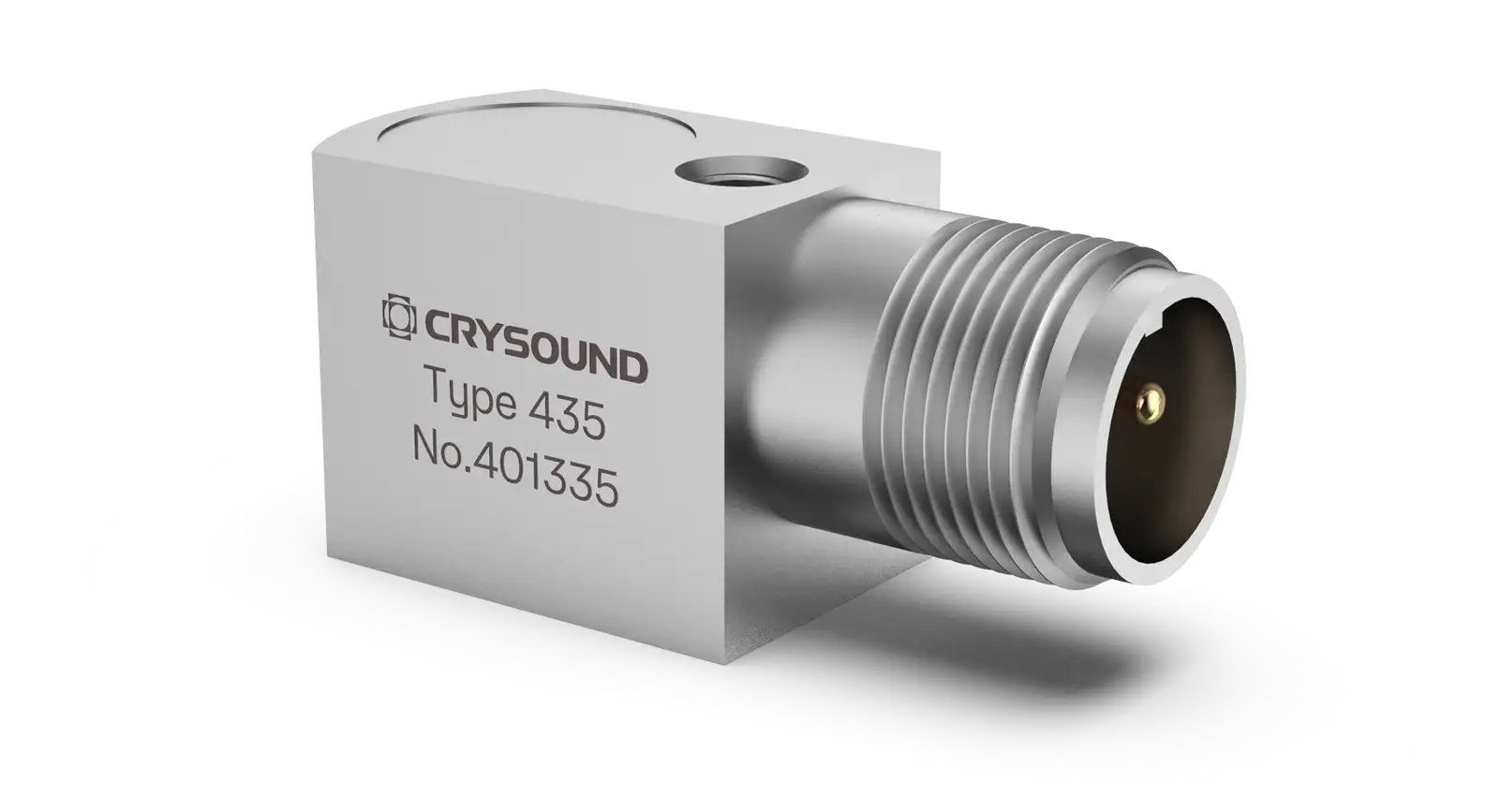

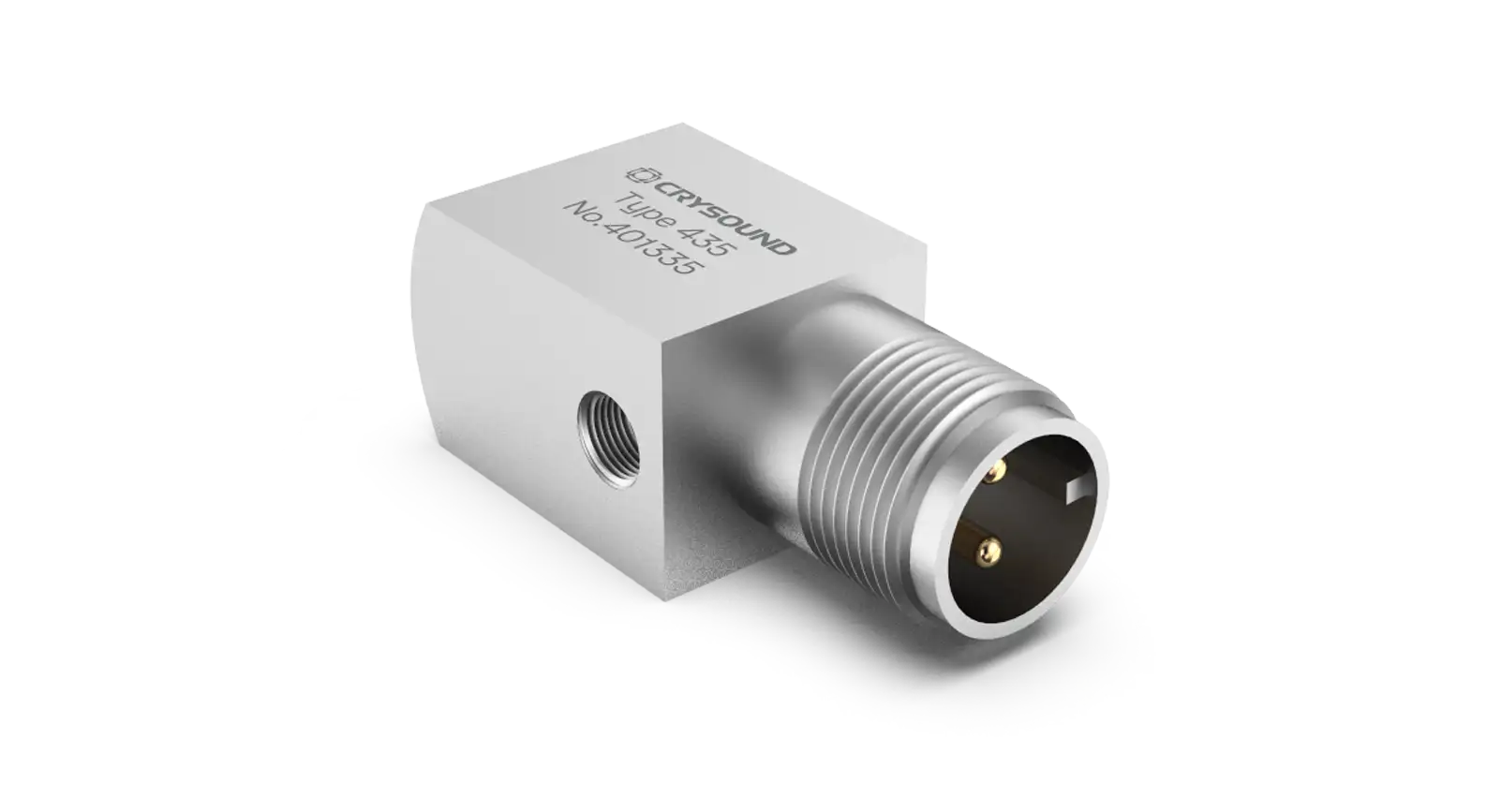

CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz
CRY435 is a single-axis acceleration sensor. The output mode is a 2 - core connector that complies with the MIL - C - 5015 standard and is installed on the object through an M6 bolt. It is often used for on-line monitoring of vibration state of industrial equipment.
When paired with armored shielded cables, the CRY435 provides precise measurements of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference.
Product Highlights
Technical Specifications
Dynamic Specification
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 6kHz(±10%); 0.5Hz to10kHz(±3dB)
Frequency Response
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
50uV
Bias Voltage
12V±2V
Install Ground Insulation
≥10^8Ω
Environmental Specification
2000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side 5/8-24 (2-pin socket)
Threaded Interface
M6
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Level of Protection
IP65
Weight
70g
Main Features
- Side output, MIL-C-5015(2-pin socket)
- M6 bolt mounting
- Built-in IEPE preamplifier
- Built-in IEPE preamplifier
