CRY441 Charge Accelerometer, 1 Axis, 5pC/g, ±2500g pk, 1Hz to 10kHz

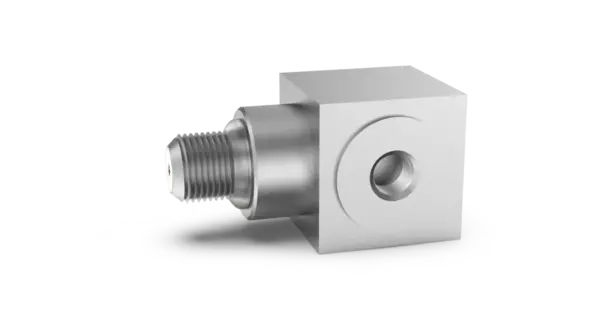

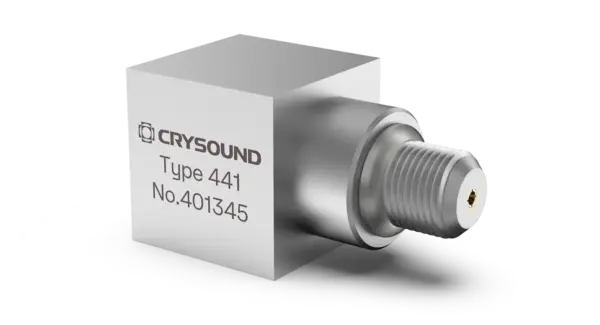

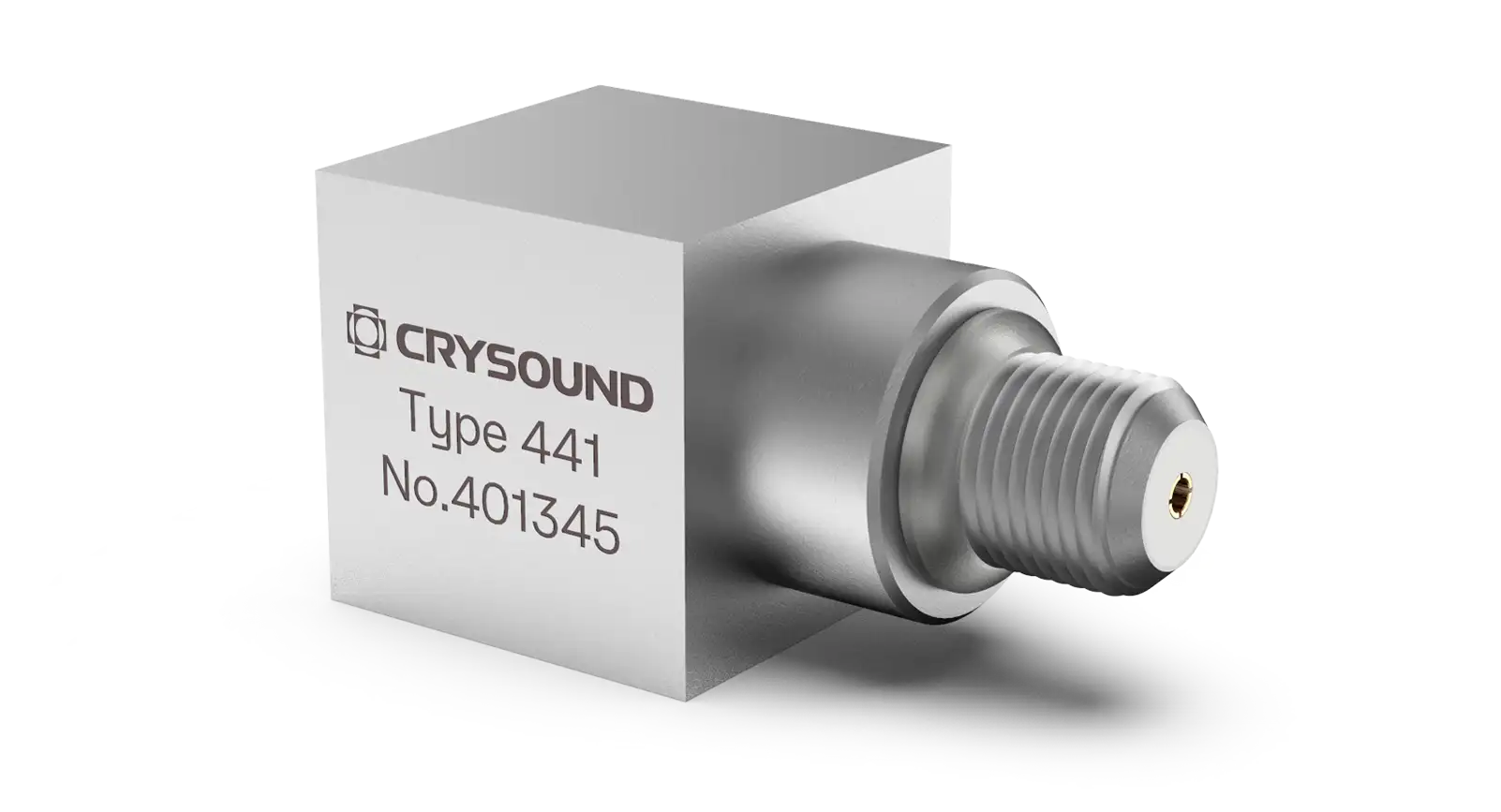

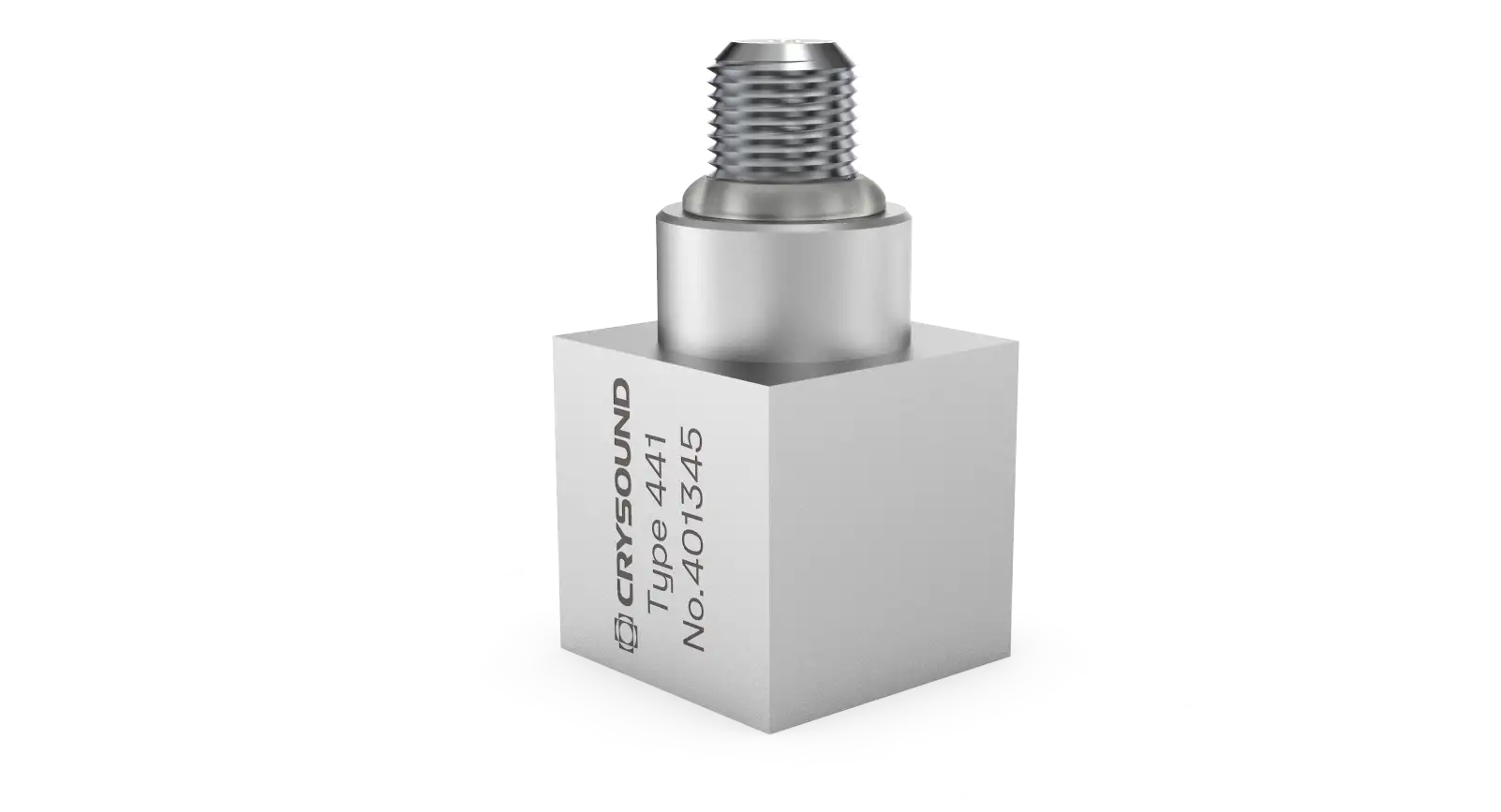

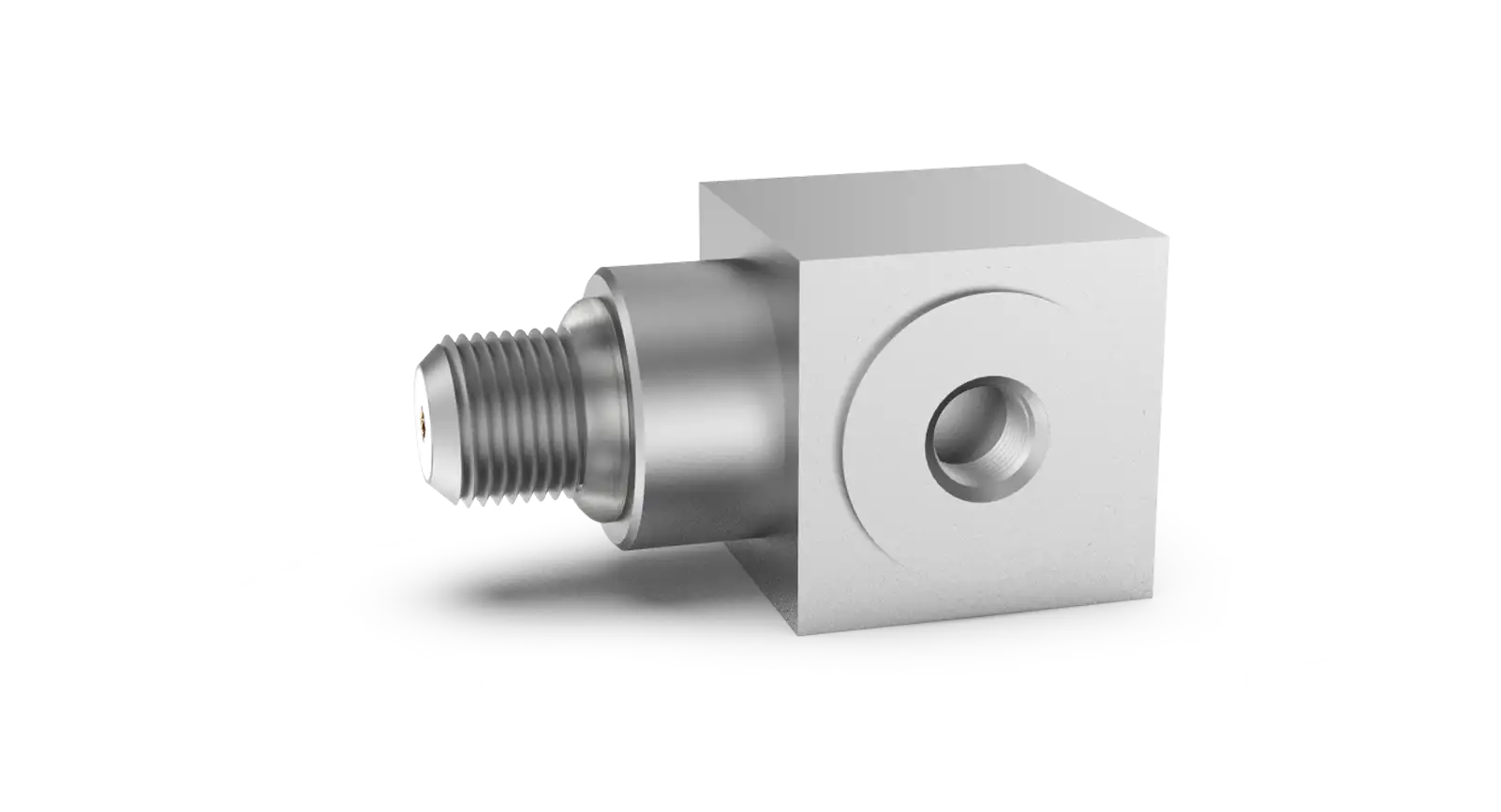

CRY441 is a miniature charge-type uniaxial acceleration sensor with a side-end output of 10-32 UNF. It is installed on an object by an M3-to-M5 bolt. It can be used for measuring tiny motions in laboratories and scientific research, and also for online monitoring of the vibration state of industrial equipment.
CRY441 can be matched with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as in industry and power.
Product Highlights
Technical Specifications
Dynamic Specification
±2500g pk
Measuring Range (peak)
5pC/g(160Hz)
Sensitivity (25℃)
1Hz to 10kHz(±1dB)
Frequency Response
≤5%
Insulation Resistance
＞10^9 Ω
Capacitance
～400PF
Polarity
Positive Electrode
Maximum Shock Level
±10,000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side M5
Threaded Interface
M3
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
7.5g
Main Features
- Side 10-32UNF (M5, Microdot) connection
- Compact structure
- General vibration measurement
