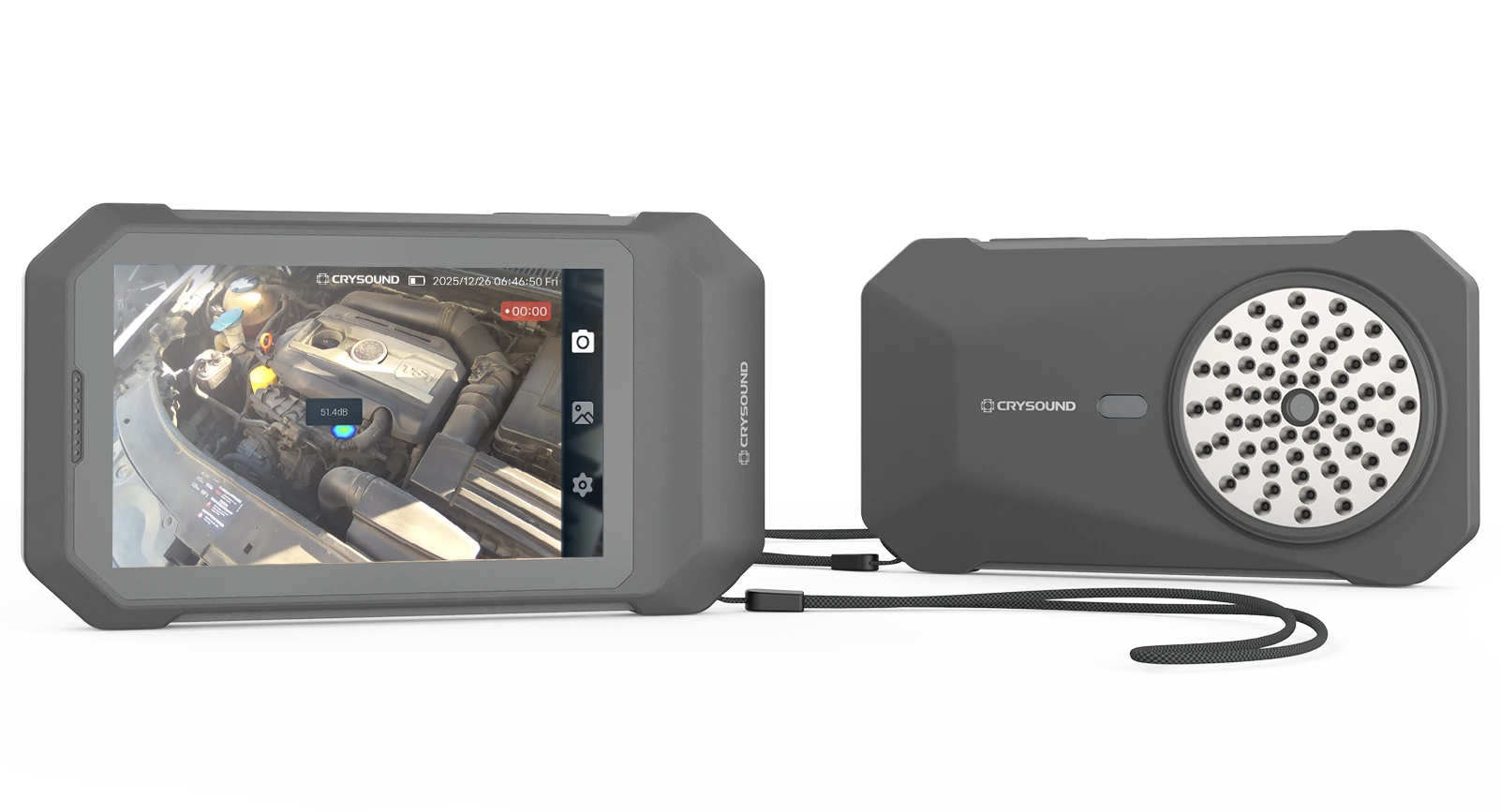

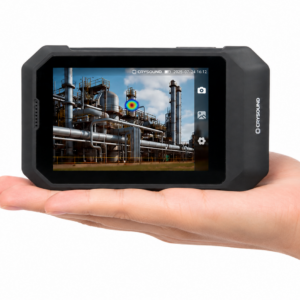

CRYSOUND POCKET Acoustic Imaging Camera
Visualize Sound. Stop Leaks. Prevent Downtime.
Professional tool in your pocket.

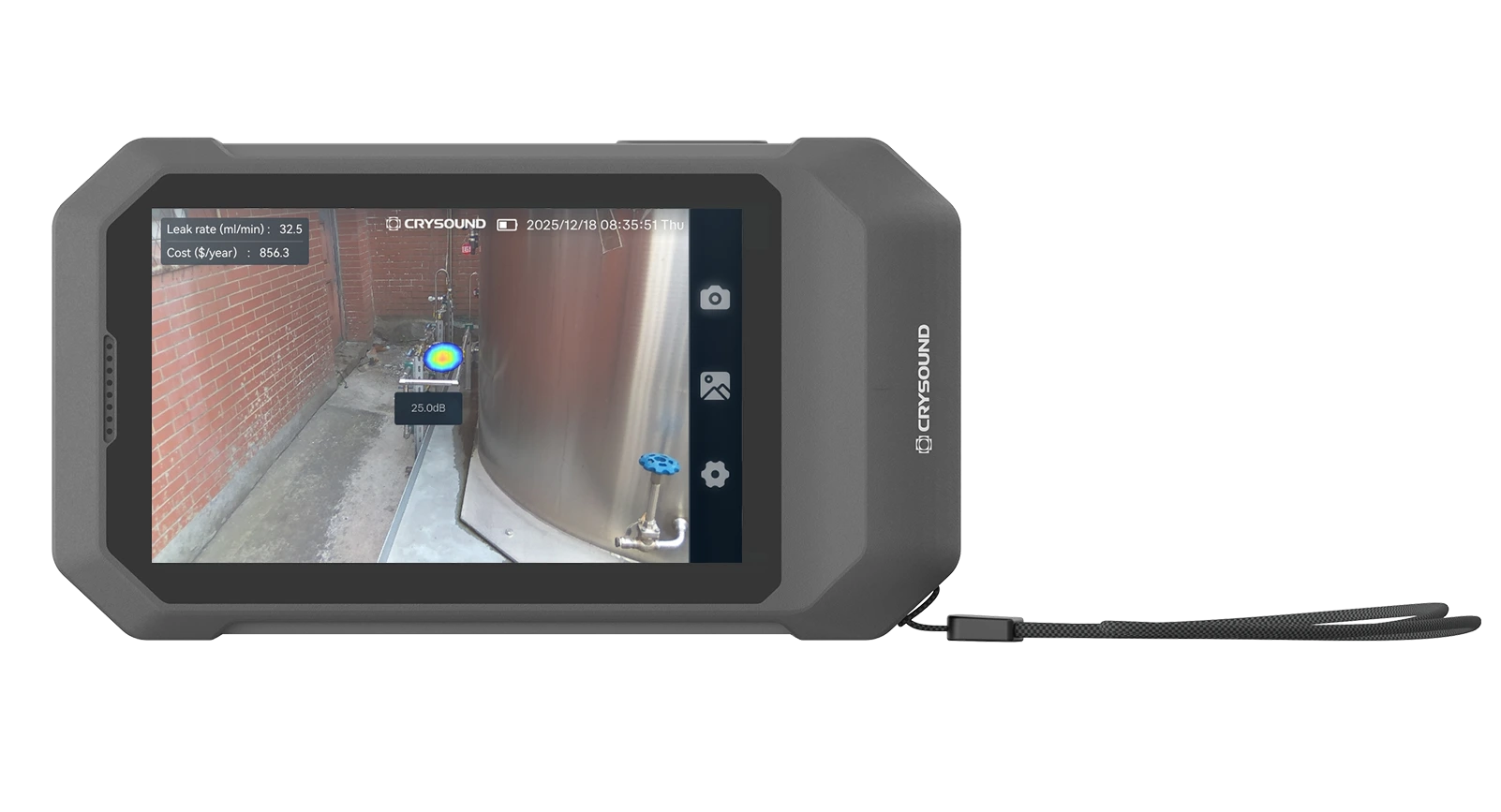

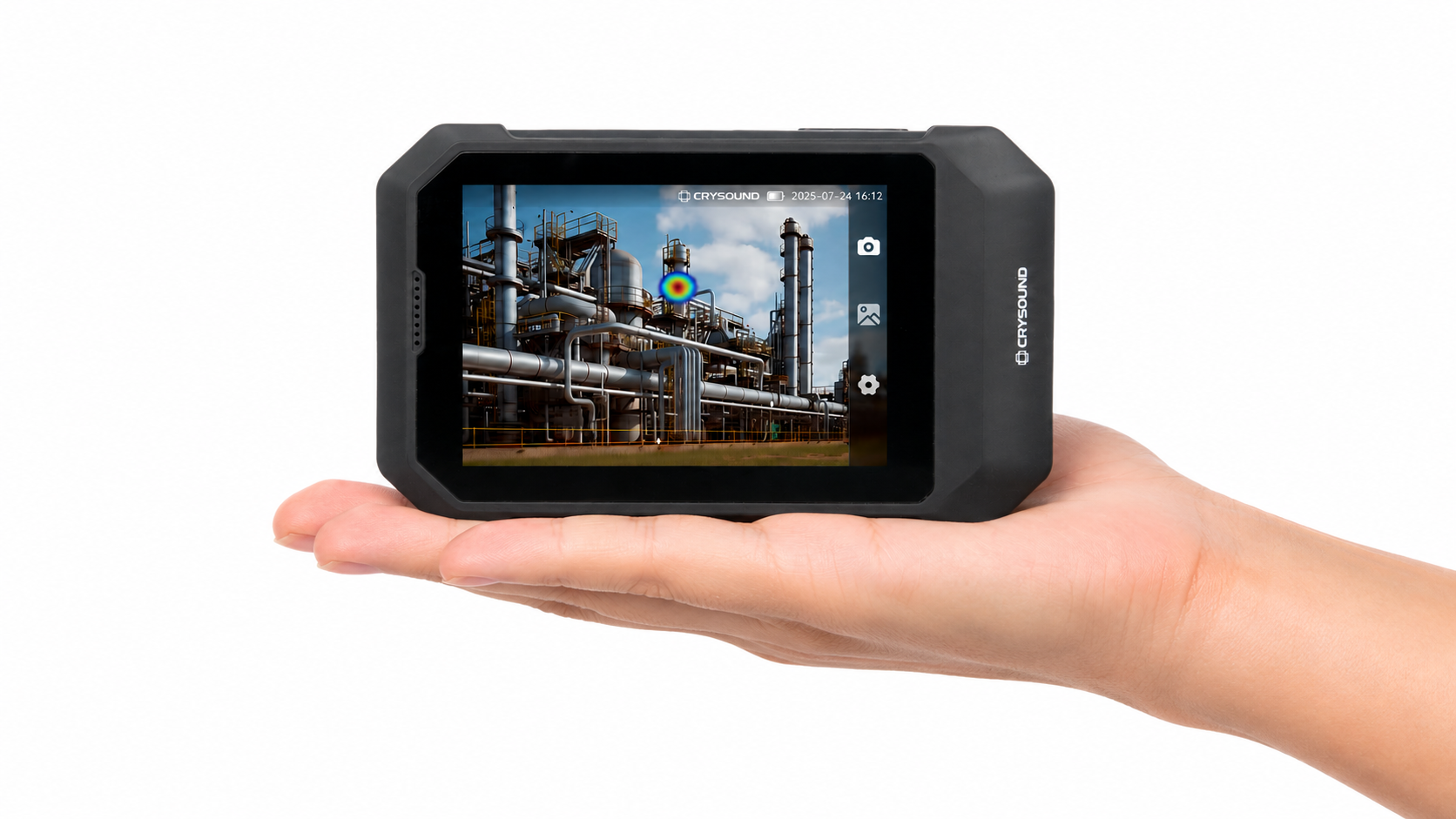

CRYSOUND POCKET is a pocket acoustic imaging camera that overlays a live soundmap on a real image-helping teams pinpoint sound sources fast, document evidence, and act with confidence, it's designed for fast deployment across sites. Built for industrial inspections and everyday use, it supports non-contact compressed air/gas/vacuum leak detection and partial discharge (PD) screening, plus rapid troubleshooting for HVAC. With Auto Frequency Range Selection, one-tap recording, and Wi-Fi/USB-C workflows for mobile sharing and standardized report generation, CRYSOUND POCKET brings acoustic imaging to every technician-anywhere, anytime.
Key Applications
✓

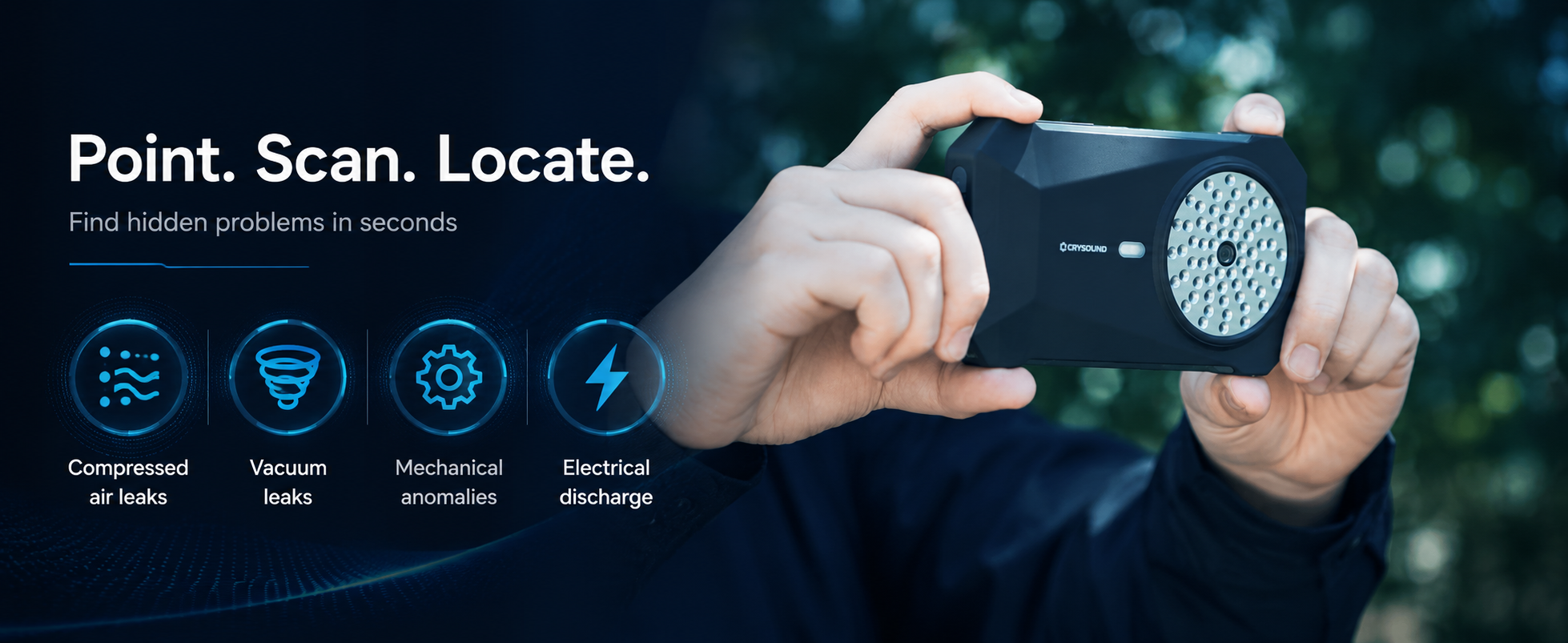

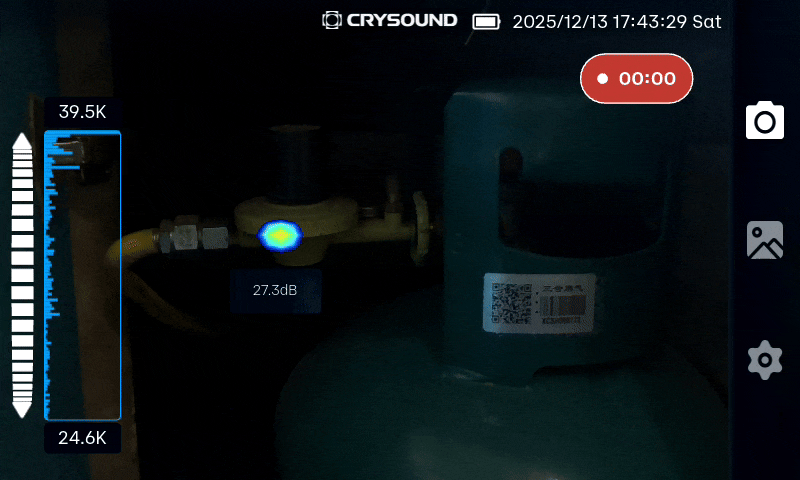

Compressed Air, Gas & Vacuum Leak Detection
Locate likely leak sources in fittings, valves, manifolds, and pipelines without contact, then capture evidence to support repair prioritization and maintenance follow-up.
✓
Partial Discharge (PD) Screening
Screen suspicious PD hotspots in switchgear cabinets, bus ducts, terminations, and insulators from a safer distance before deeper follow-up testing.
✓

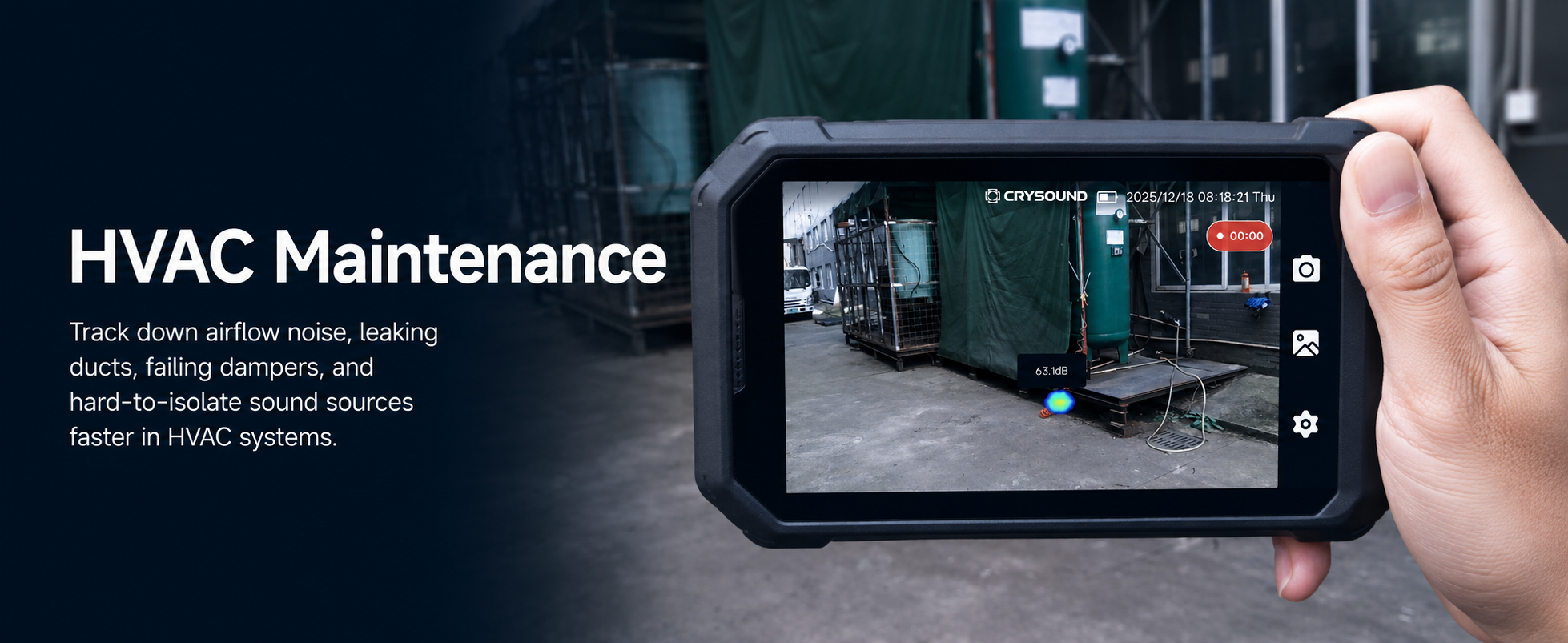

HVAC System Troubleshooting
Track down airflow noise, duct leakage, and failing dampers faster so technicians can reduce guesswork and shorten troubleshooting cycles.
✓

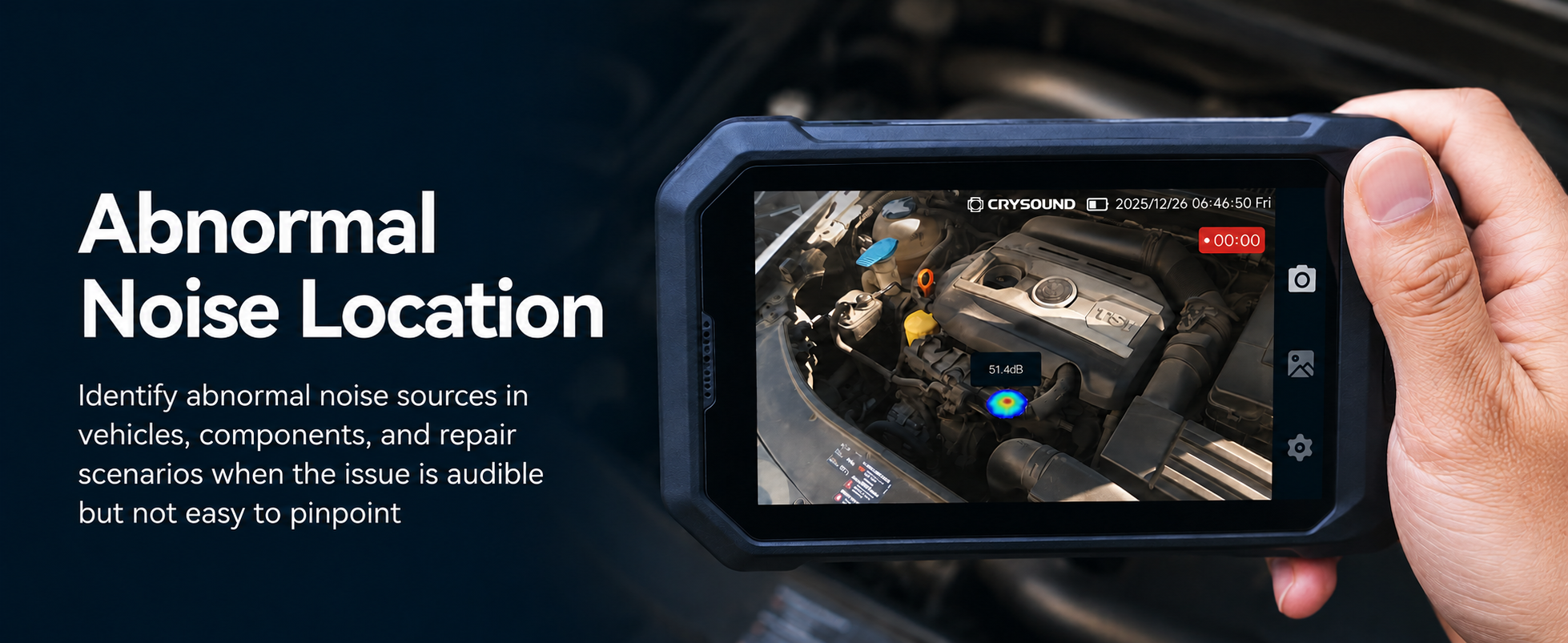

Workshop & Automotive Troubleshooting
Help identify abnormal sound sources during repair and maintenance when the issue is audible but difficult to pinpoint directly.
Product Highlights
Real-time Acoustic Imaging—See Sound on Live Video

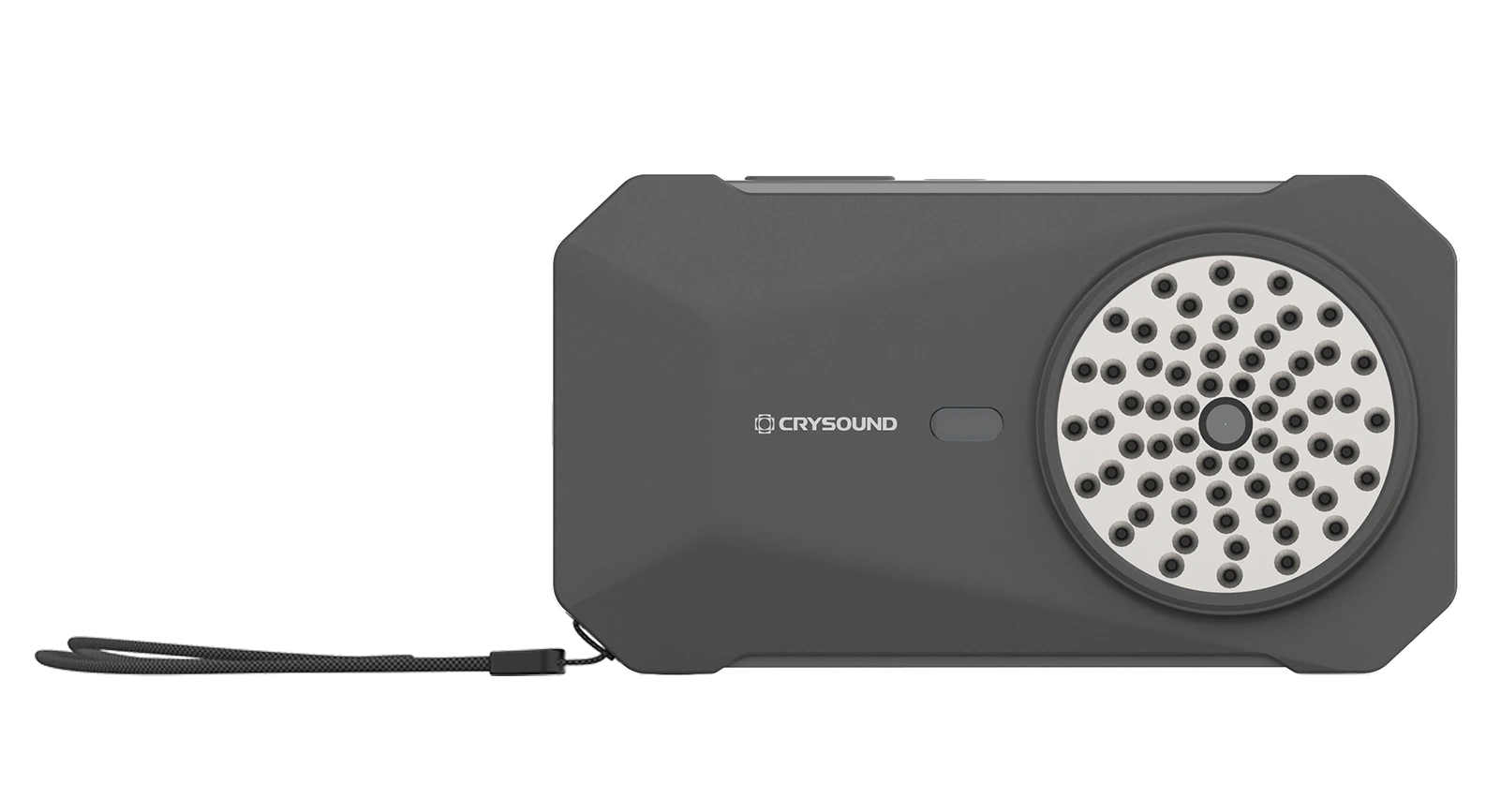

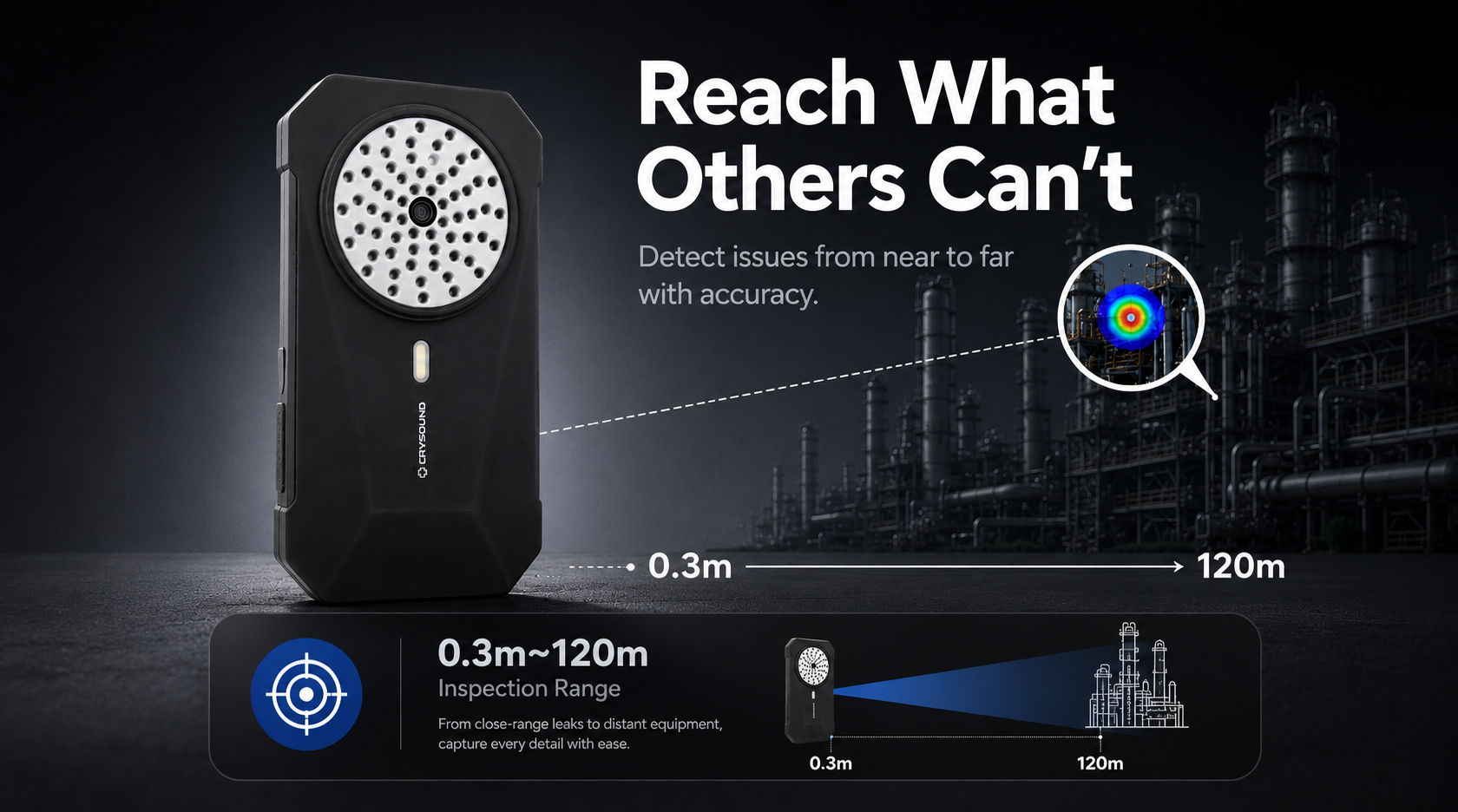

Visualize sound in real time with far-field sound source localization and an acoustic heatmap overlay. A 64-channel microphone array and 2 kHz–65 kHz frequency range (audible + ultrasound) support typical inspection distances of 0.3–120 m.
64-channel array with 2 kHz–65 kHz coverage and 0.3–120 m inspection range
Real-time sound source localization with acoustic heatmap overlay
Non-contact Leak & PD Screening—Faster Decisions, Safer Distance

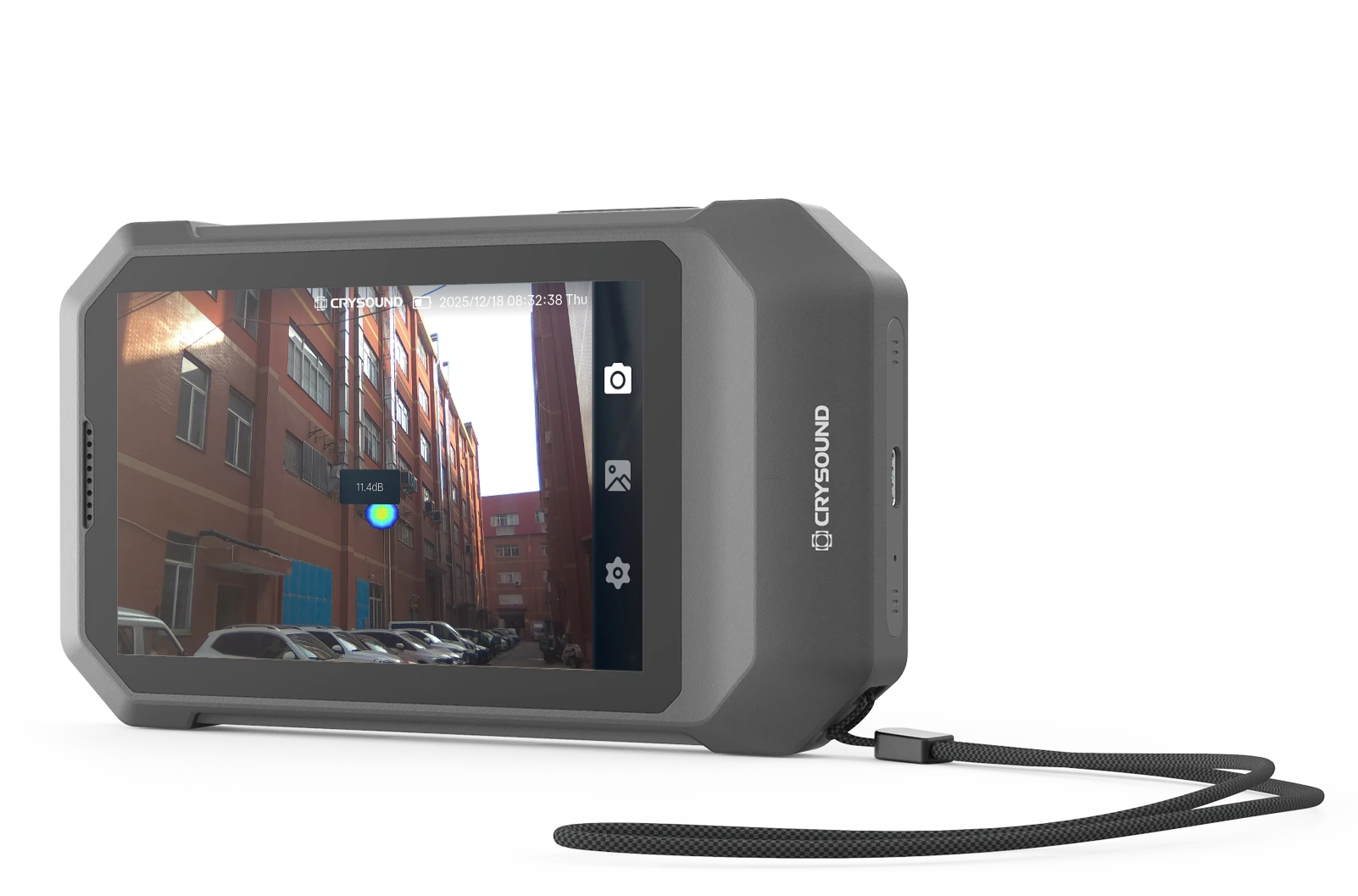

Locate leak sources quickly without contact—faster than soap tests or manual ultrasonic probes—especially on complex manifolds, overhead lines, and hard-to-reach fittings.

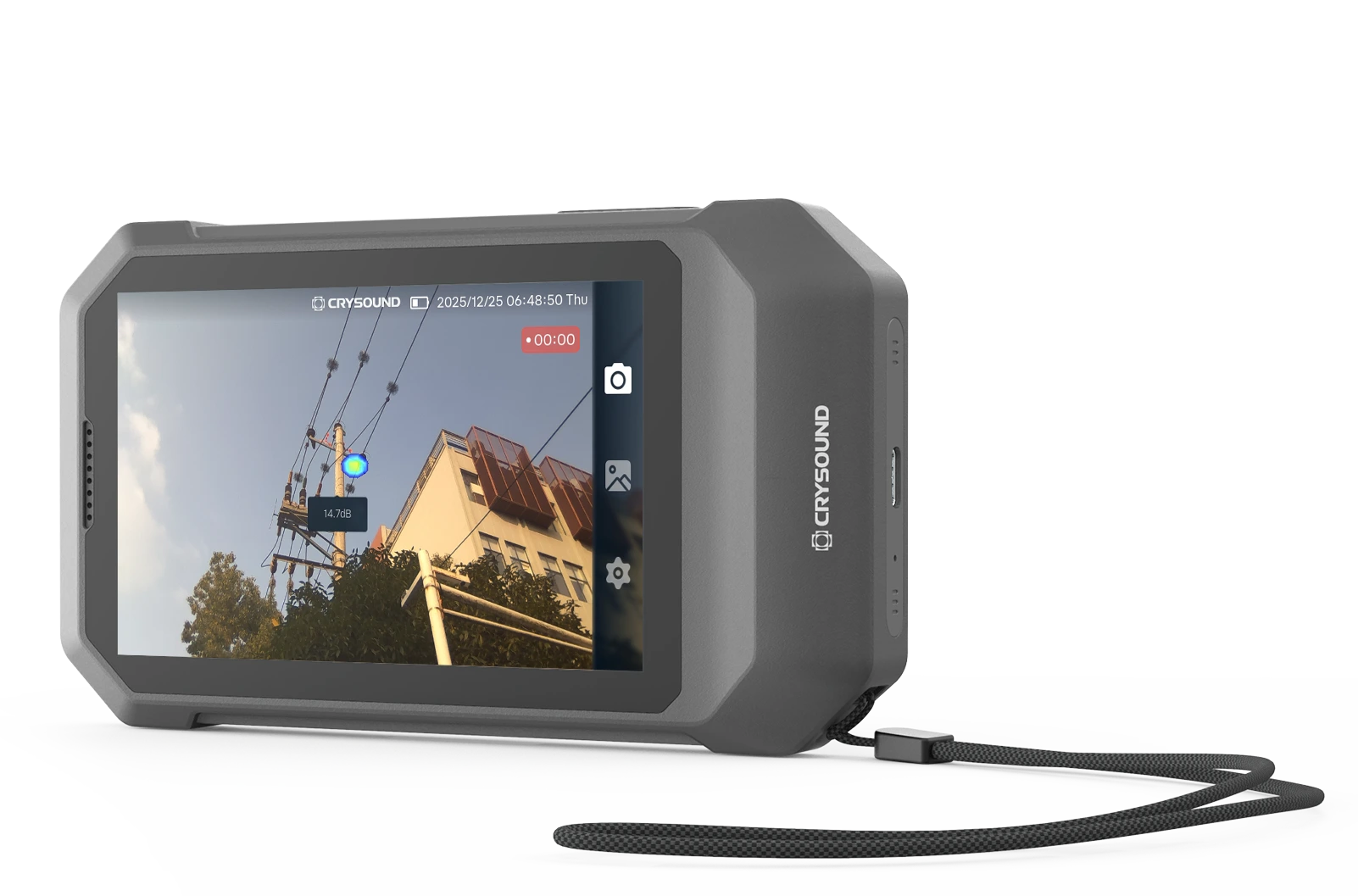

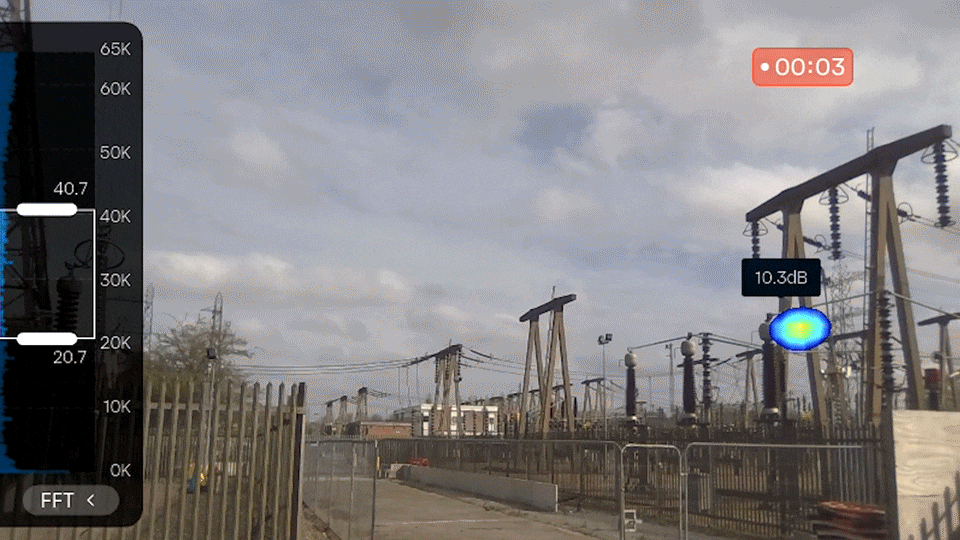

Screen and localize suspicious PD hotspots to support maintenance planning and follow-up testing—useful for switchgear cabinets, bus ducts, terminations, and insulators.
Quickly pinpoint leak sources without contact, even on complex or overhead assets
Screen and localize potential partial discharge hotspots for faster maintenance follow-up

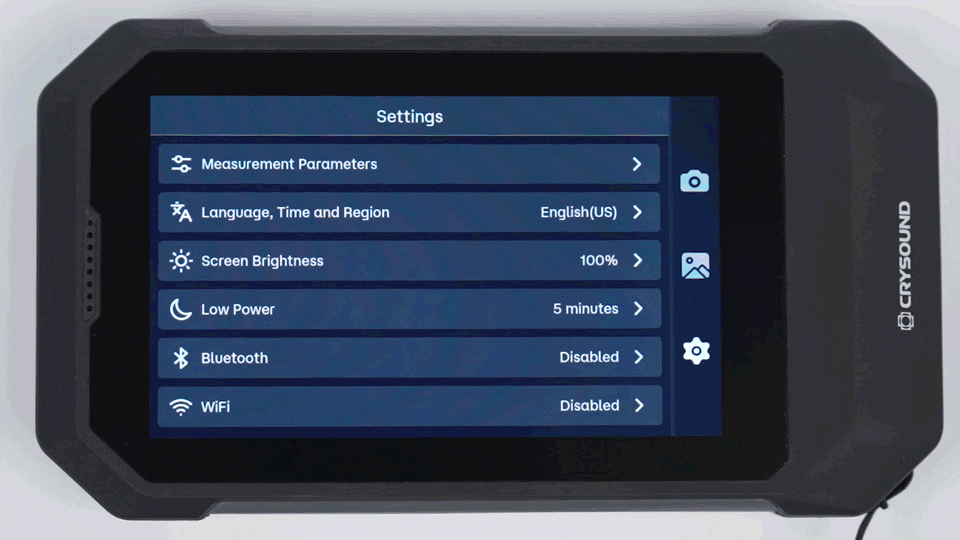

Auto Frequency Range Selection—Zero Learning Curve
Algorithm-assisted Auto Frequency Range Selection simplifies setup and reduces tuning, enabling fast, consistent operation. Advanced users can still fine-tune manually when needed.
Auto Frequency Range Selection enables faster, more consistent setup
Manual fine-tuning available for advanced inspection needs

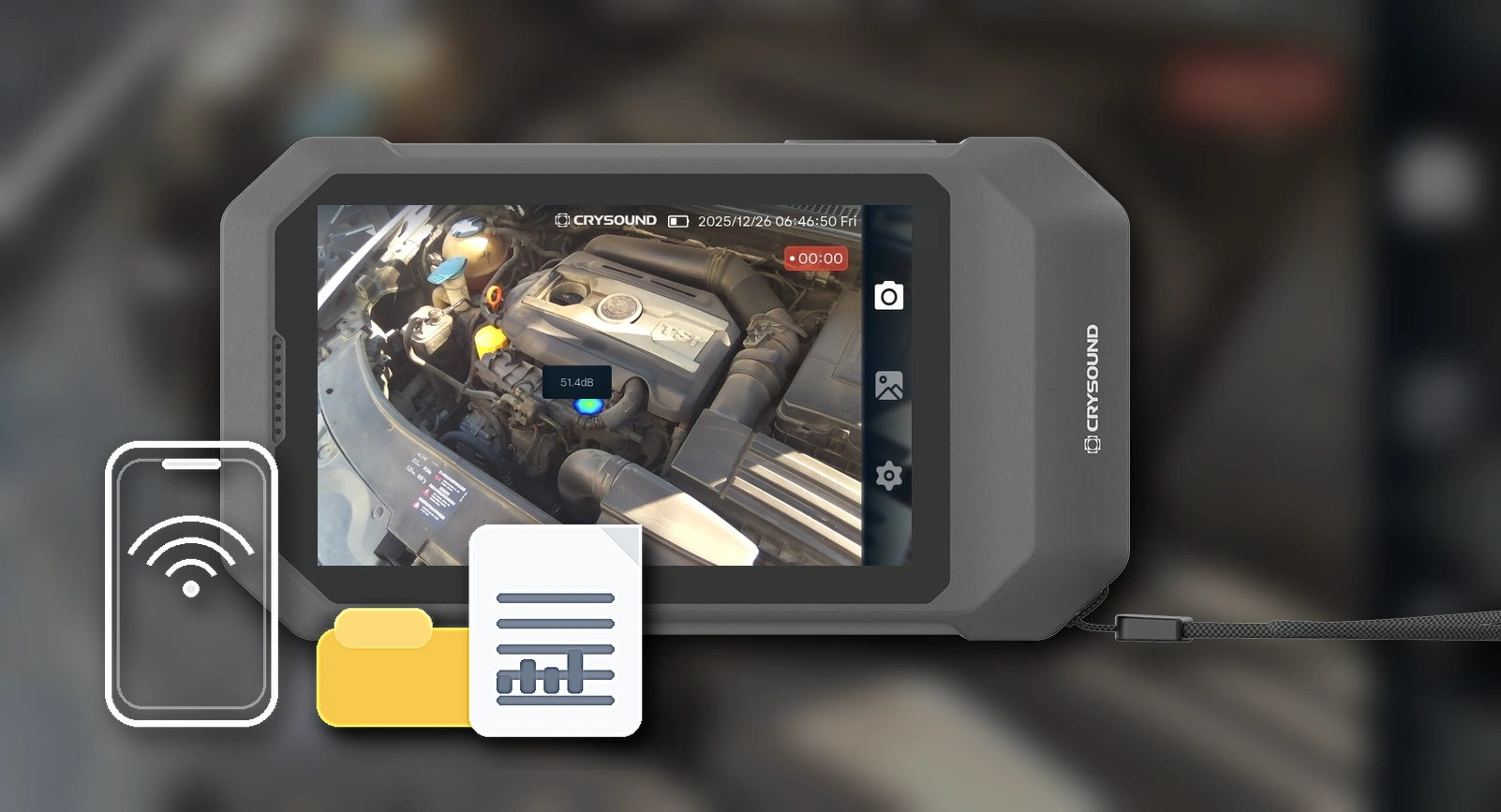

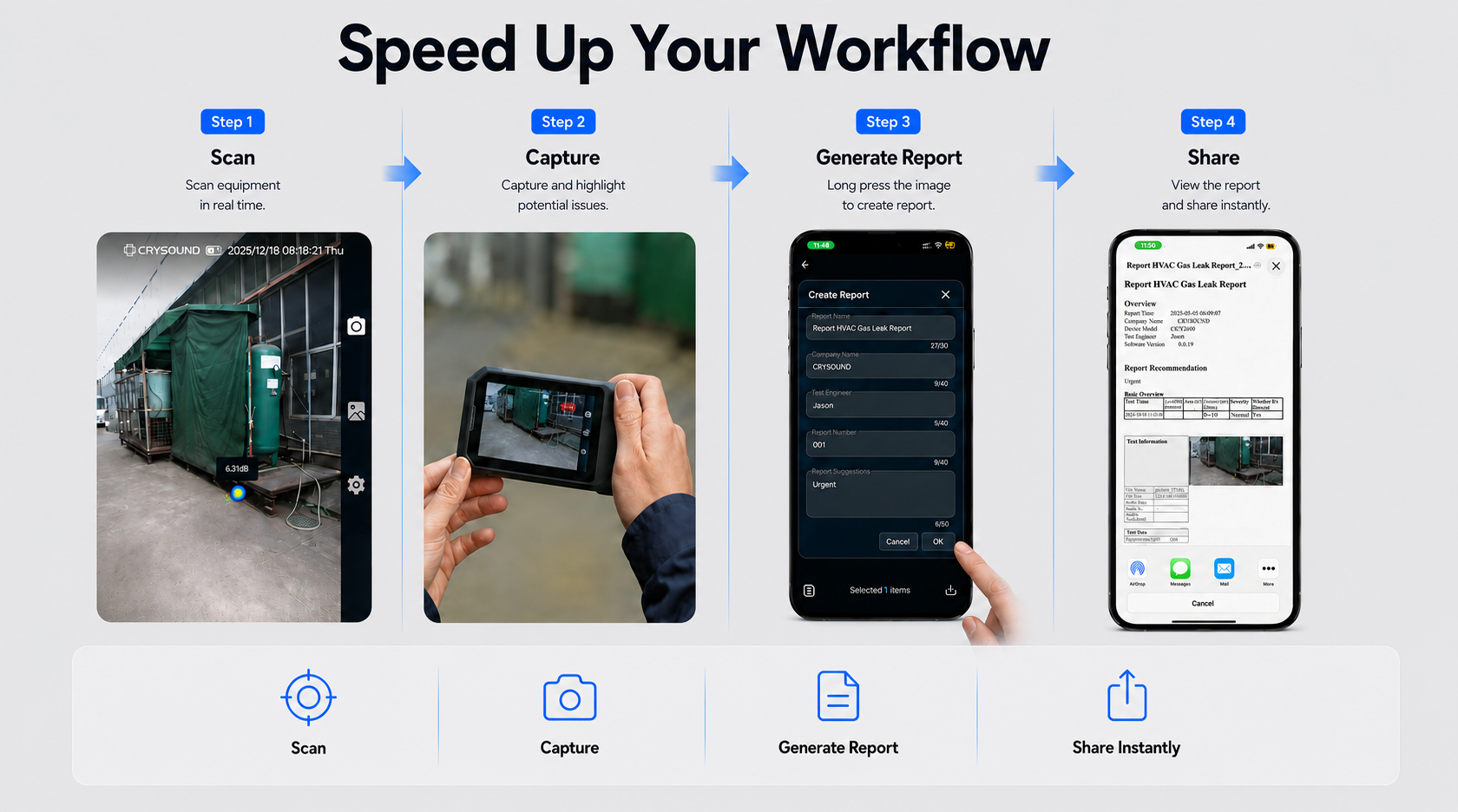

Capture, Share & Report—From Evidence to Work Order

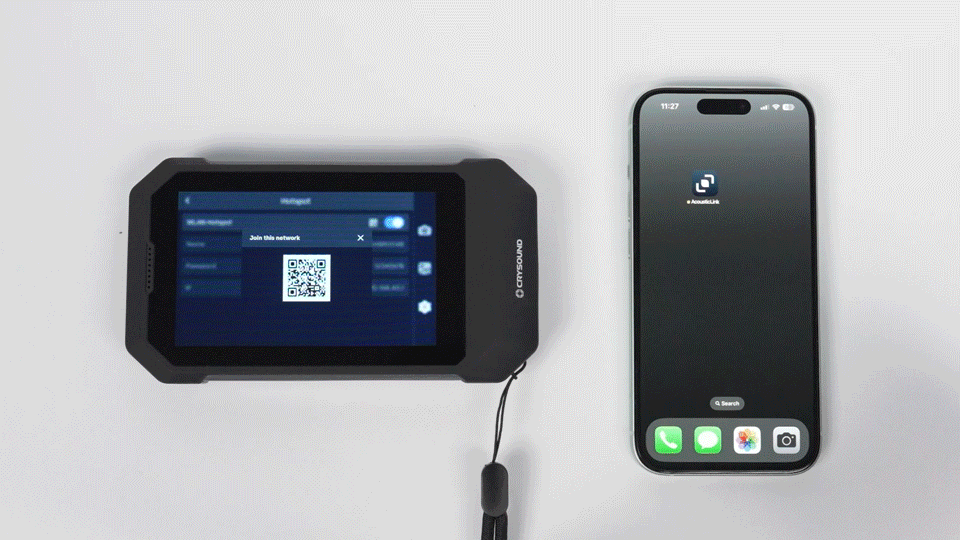

One-tap photo/video/audio recording with 32 GB internal storage makes documentation effortless. Create a built-in WLAN hotspot to preview/download/share results on site via the Acoustic Link mobile app, then import via Wi-Fi or USB-C to add notes/tags and generate standardized inspection reports on mobile phone or PC.
One-tap photo, video, and audio capture with 32 GB onboard storage
Share on site via WLAN hotspot and generate standardized reports on mobile or PC
Designed for one-per-person - Clear ROI for Fleet Deployment
Designed for “one per person”, not “one per company”, CRYSOUND POCKET is ideal for large-scale rollout. A smartphone-like workflow helps teams learn fast and deploy consistently—supporting fleet-wide inspections. Built-in capture, on-site sharing (WLAN hotspot), and standardized report generation help shorten inspection cycles and accelerate ROI across multiple sites.
Smartphone-like workflow helps reduce training time
Designed for one-per-person deployment across large inspection teams

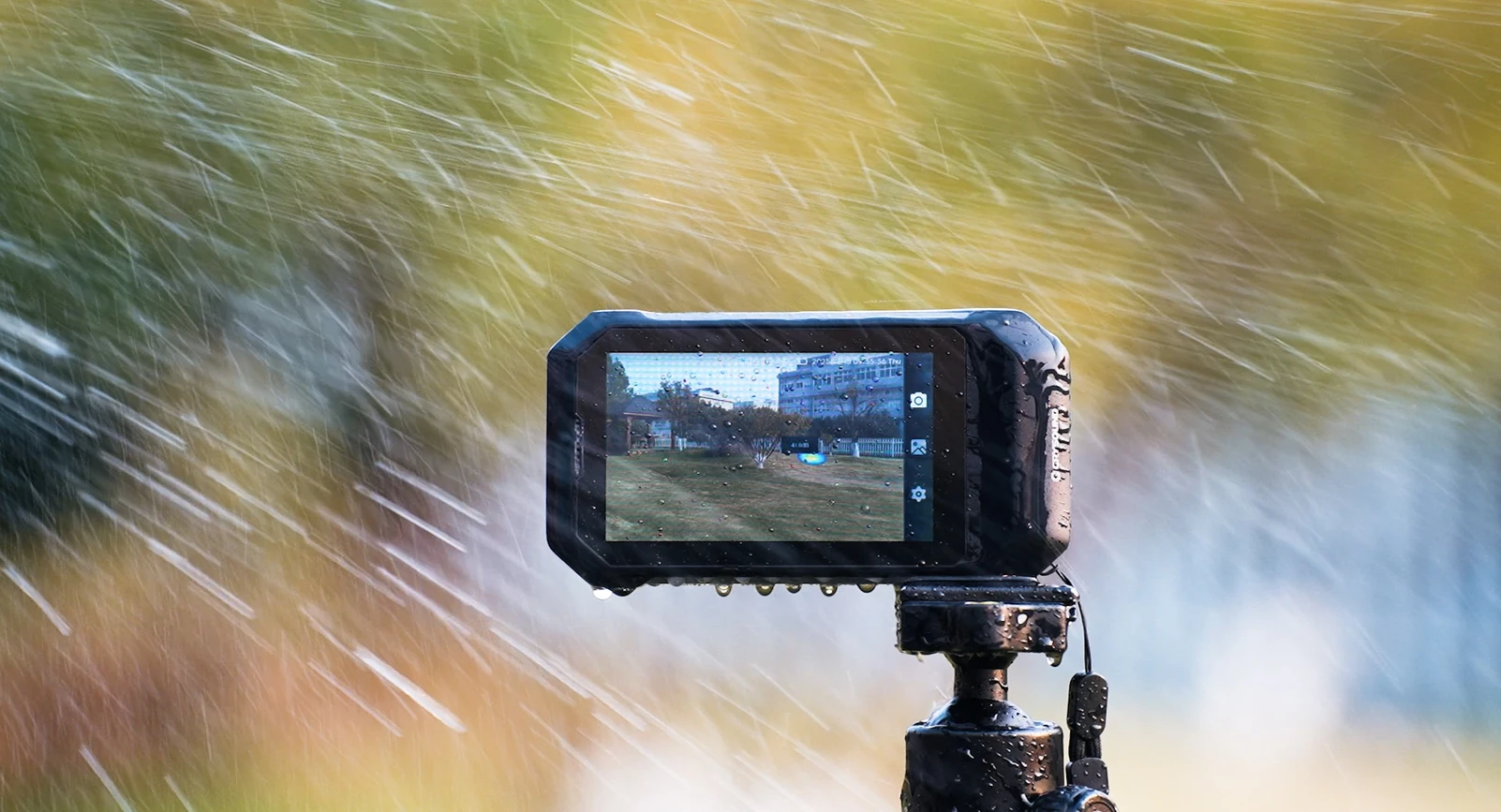

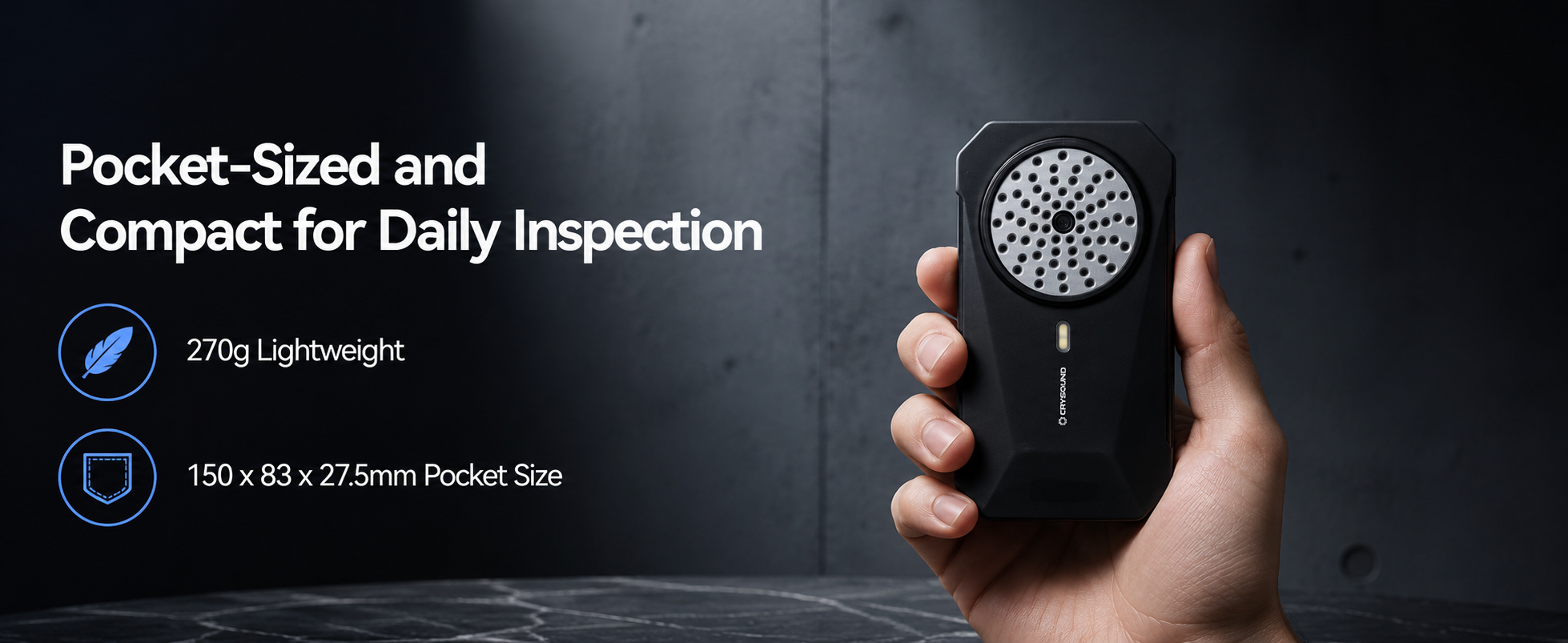

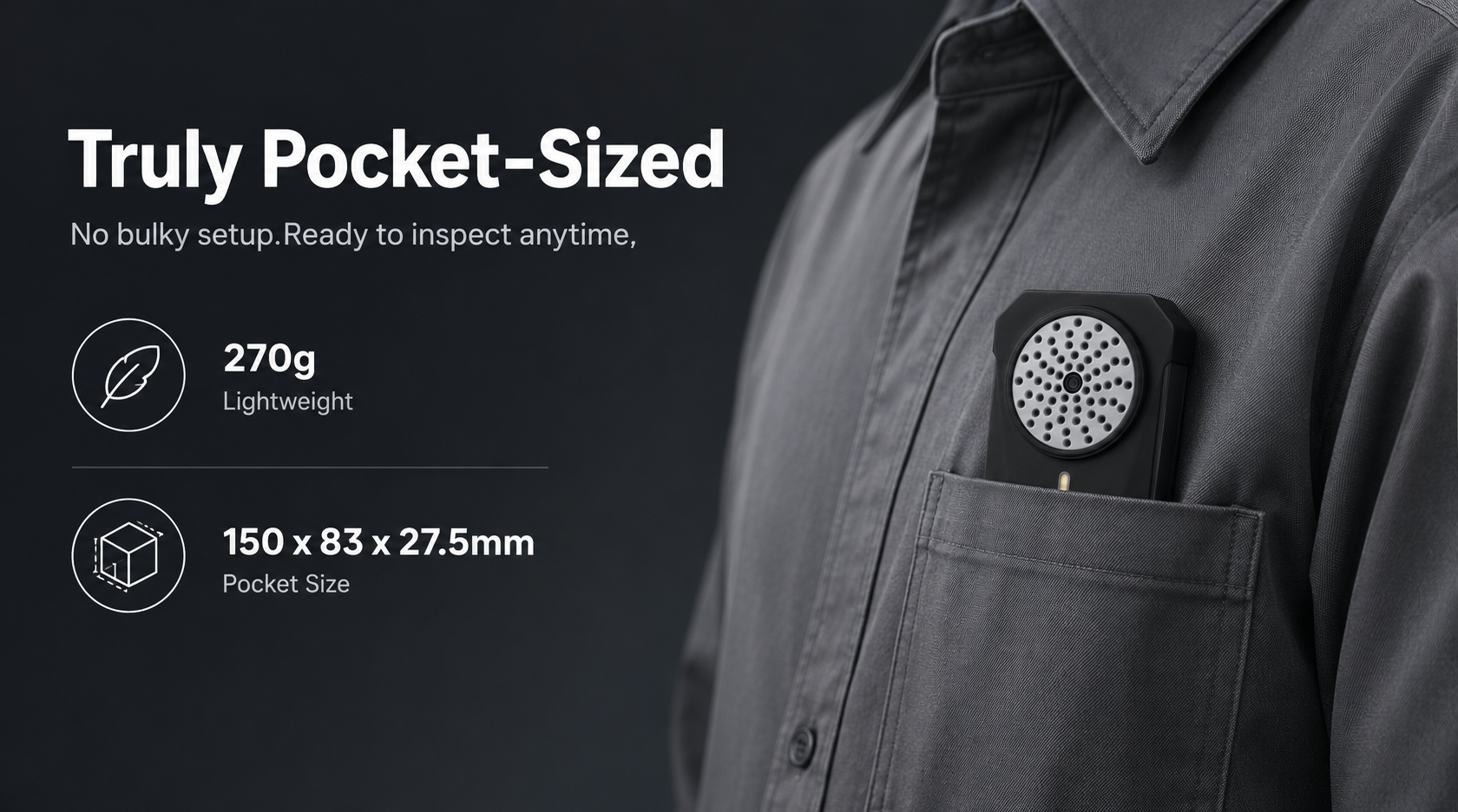

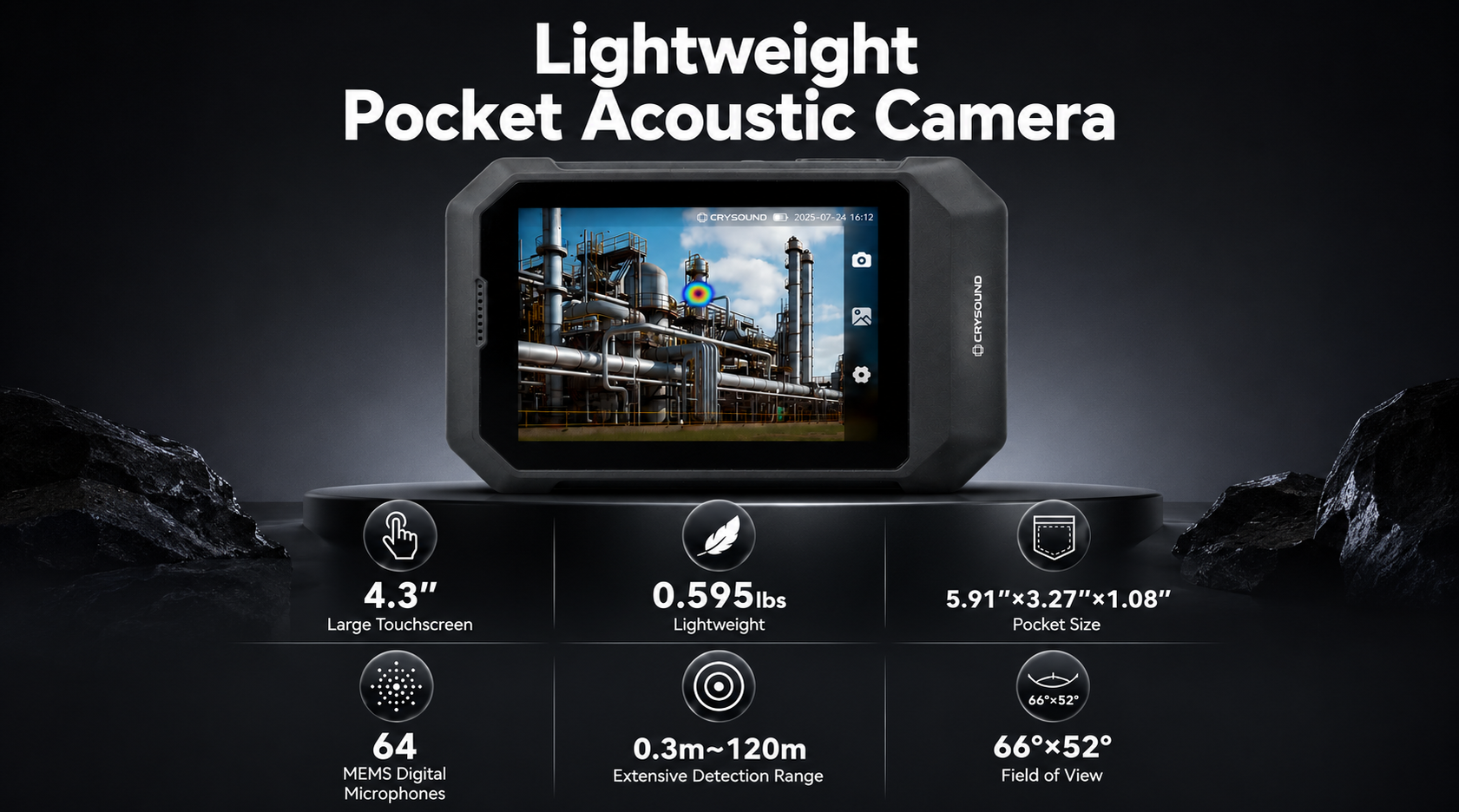

Ultra-Portable & Field-Ready Pocket Acoustic Camera

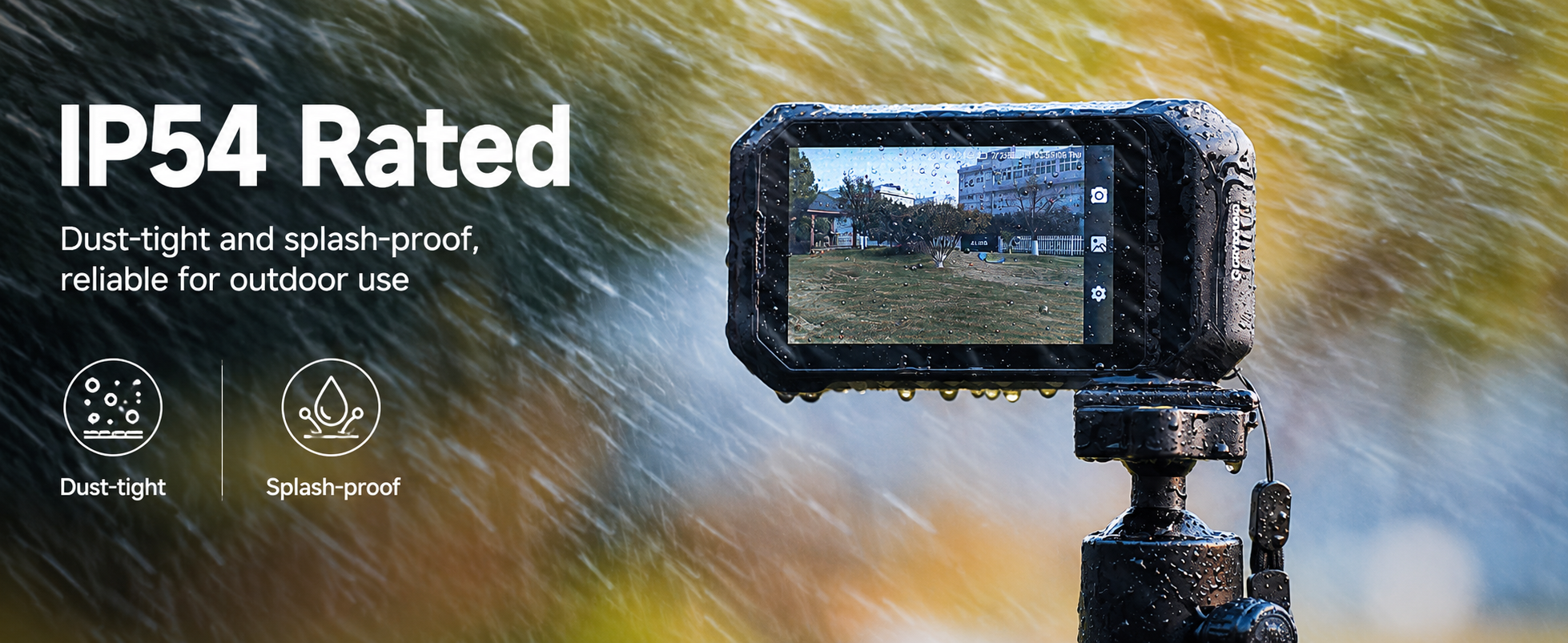

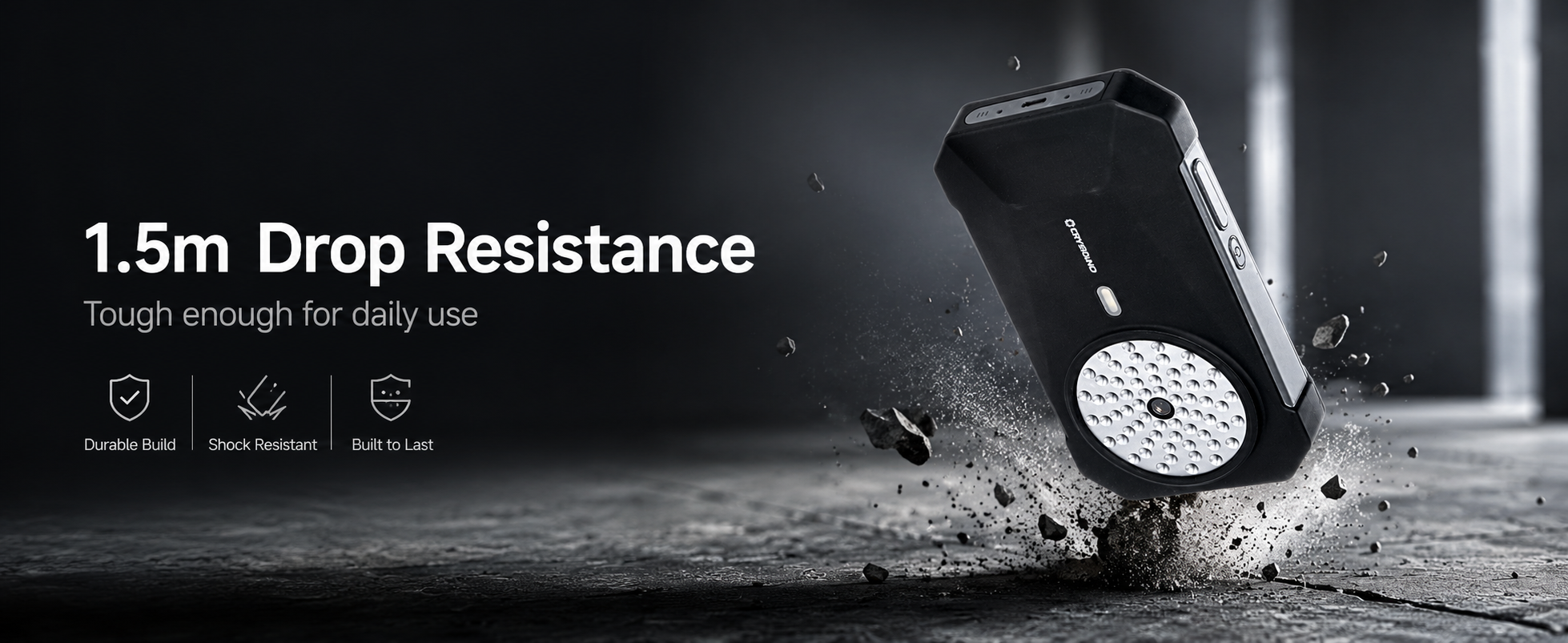

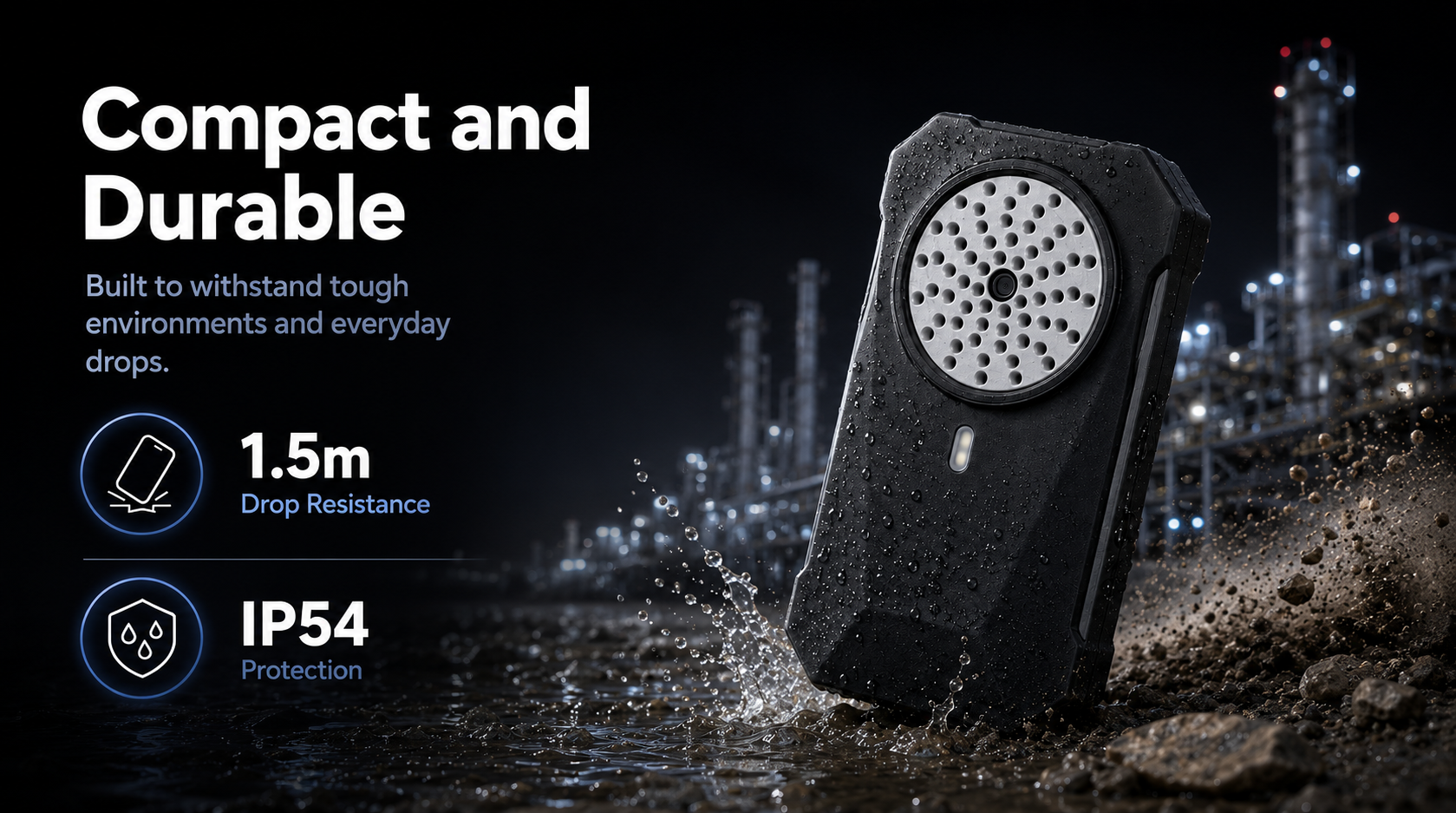

Pocket-sized for daily inspections in tight, elevated, and hard-to-reach spaces, CRYSOUND POCKET combines true portability with industrial toughness—IP54 protection and a 1.5 m drop-tested design—so you can trust it on real job sites, not just in the lab.
Pocket-sized for inspections in tight, elevated, and hard-to-reach spaces
IP54-rated and 1.5 m drop-tested for real industrial job sites

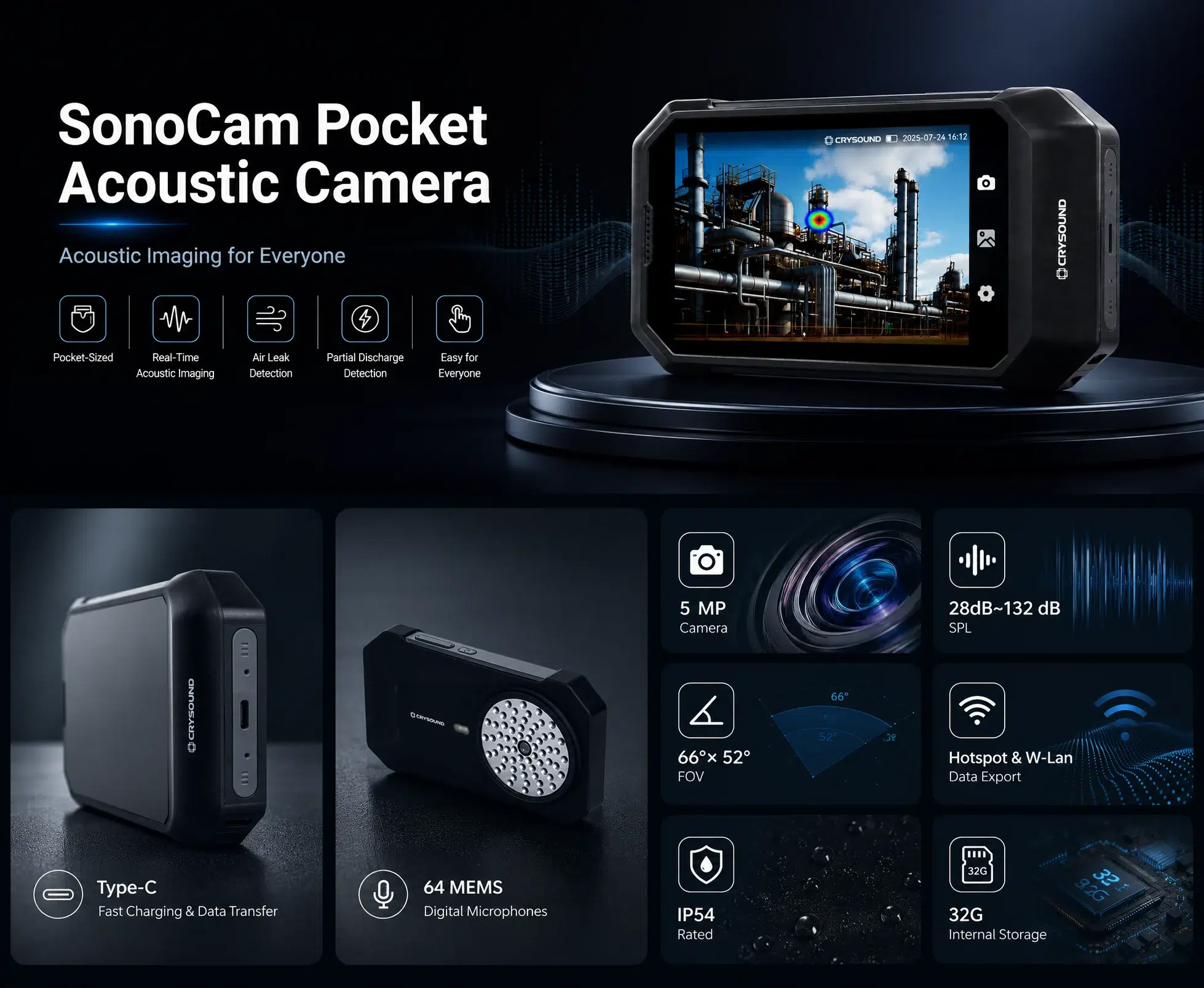

Technical Specifications
Mic Array
64 channels
Frequency
2k ~ 65k Hz
SPL
28 ~ 132 dB
Dynamic Range
Up to 12 dB
Distance
0.3 ~ 120 m

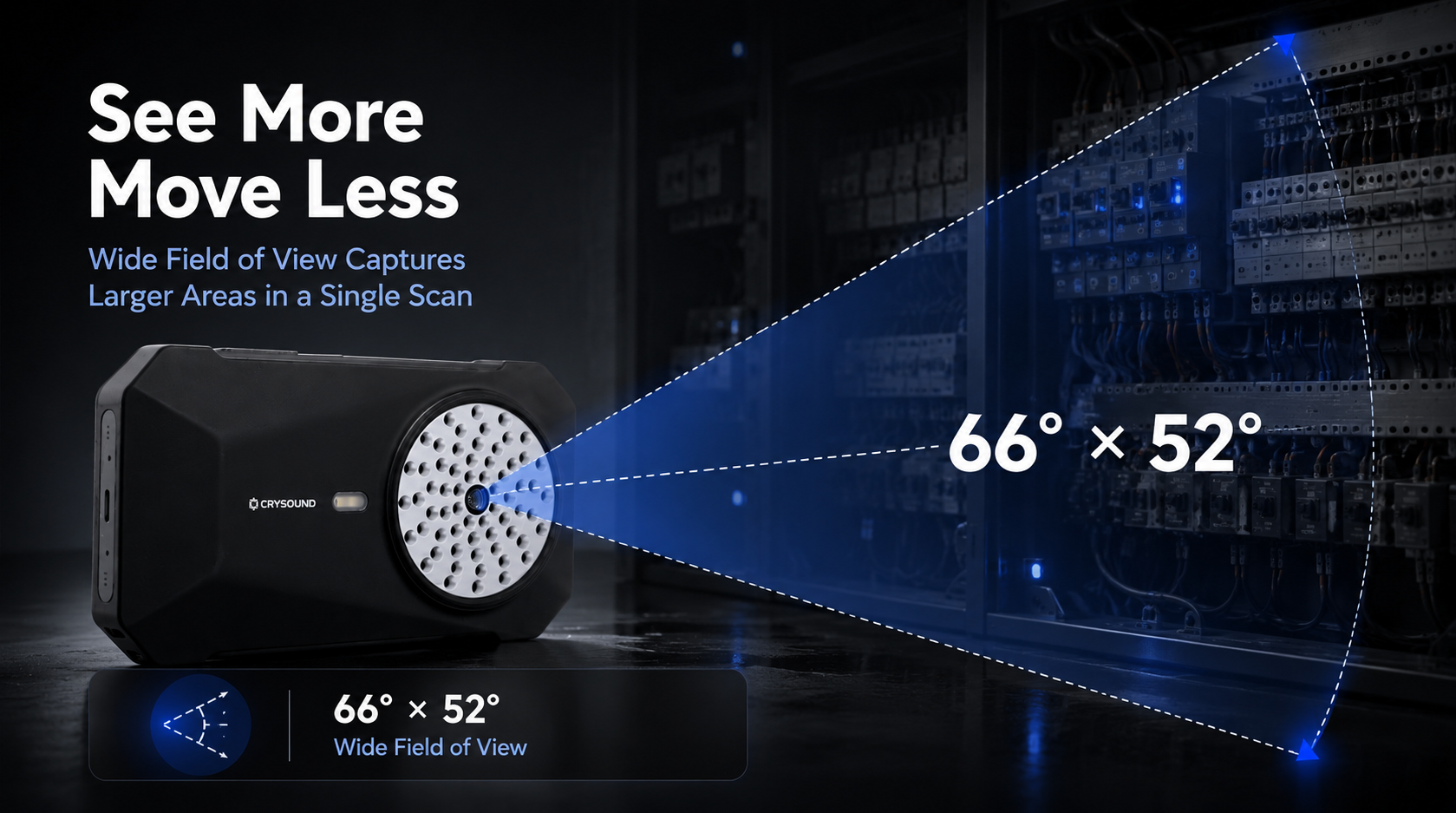

FOV
66° (H) × 52° (V)
Resolution
5M pixels
Focal length
2.26 mm
Autofocus
Yes
LED Light
Yes
Resolution
800 × 480
Size
4.3 inches
Screen
Capacitive touchscreen
Brightness
Max 400 nits, support adjustment
Storage Capacity
32G (internal)
Storage Format
.jpg (picture), .mp4 (video), .wav (audio), .cdat (data)
Video Length
Maximum 5 minutes
Data Export
USB-C and Wi-Fi
Size
150 × 83 × 27.5 mm / 5.91 × 3.27 × 1.08 inches
Weight
270 g / 0.595 lbs
Wi-Fi
802.11a/b/g/n/ac
Bluetooth
BT 5.2
Battery
3.85 V, 3900 mAh
Power Supply
9 V DC/1 A (Charging via USB-C)
Battery Operating Time
Up to 4 hours
IP Rate
IP54
Operating Temperature
-10 to +50 ℃
Storage Temperature
-20 to +55 ℃
Operating Humidity
10 ~ 95 % non-condensing
Features
Sound visualization and localization, Gas Leak detection, Partial discharge detection, Photos and videos recording, Automatic or manual frequency filter
USB-C
1 x USB3.0 - for charging, HDMI, data export, and headphone output
Language
Chinese, English, Korean, French, Japanese, Russian, German, Italian, etc.
Main Features
- Compressed Air / Gas / Vacuum Leak Detection
- Partial Discharge (PD) Screening & Localization
- HVAC & Building Systems Troubleshooting
- Fleet-wide Preventive Inspection Programs
