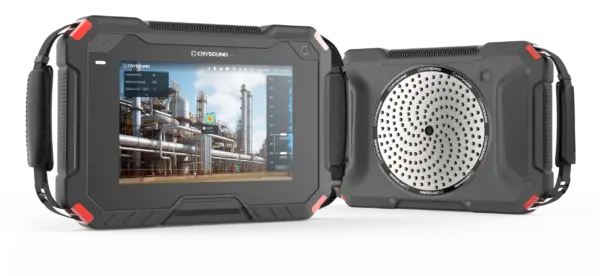

CRY8125 Advanced Ex Acoustic Imaging Camera
The CRY8125 Ex Acoustic Imaging Camera is designed for gas leak detection, electrical partial discharge analysis, and mechanical inspection in explosive industrial environments. TÜV-certified under IECEx and ATEX, and compliant with IEC 60079-0 and IEC 60079-11, it supports safe and reliable inspection in applicable explosive atmospheres.

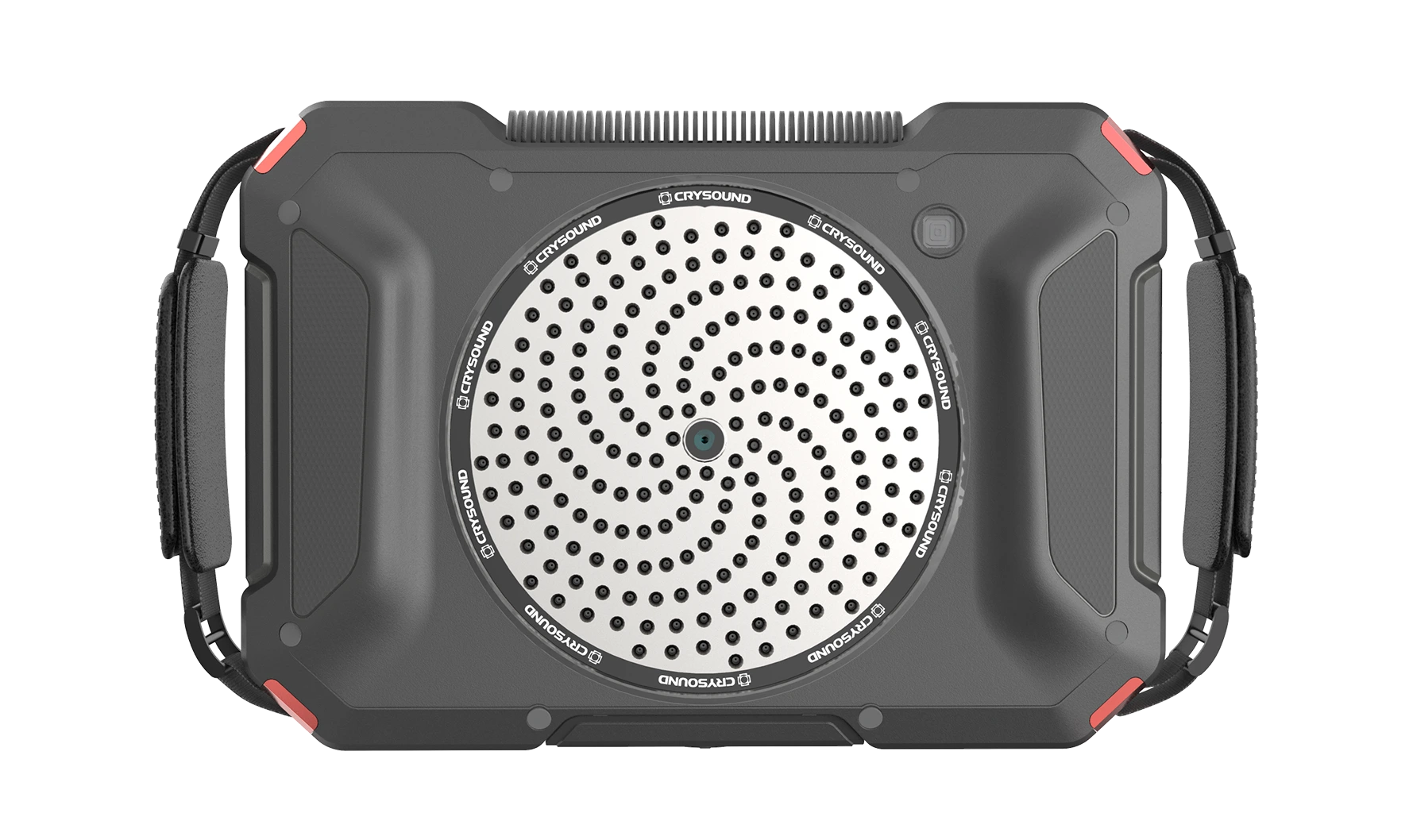

Featuring a 200-microphone array, frequency range up to 100 kHz, and a 120° ultra-wide field of view, the CRY8125 enables sensitive acoustic detection across a wider inspection area. Intelligent automatic frequency selection automatically selects a suitable inspection frequency band to reduce background noise interference, while PC and Acoustic Link mobile remote control allow users to view and operate the camera from a more suitable location.
Optional Contact Ultrasound Sensor and Thermal Imaging Camera Module extend the system to valve internal leak detection and thermal anomaly inspection. Integrated image capture, analysis, data management, and report generation provide an efficient workflow from detection and diagnosis to documentation.
Downloads
Product Highlights
The Industry's First with TÜV-Certified Dual Explosion Protection
The CRY8125 is TÜV-certified for IECEx and ATEX compliance and meets IEC 60079-11 and 60079-0 standards. It can be used for gas leak detection in explosive gas and dust atmospheres.
To meet IECEx and ATEX requirements, the CRY8125 undergoes 28 days of aging under 90% humidity, high temperature (90°C), and low temperature (-25°C), immediately followed by drop testing. Even after all these extreme tests, it still maintains an IP54 rating, ensuring no ingress of gas or dust.

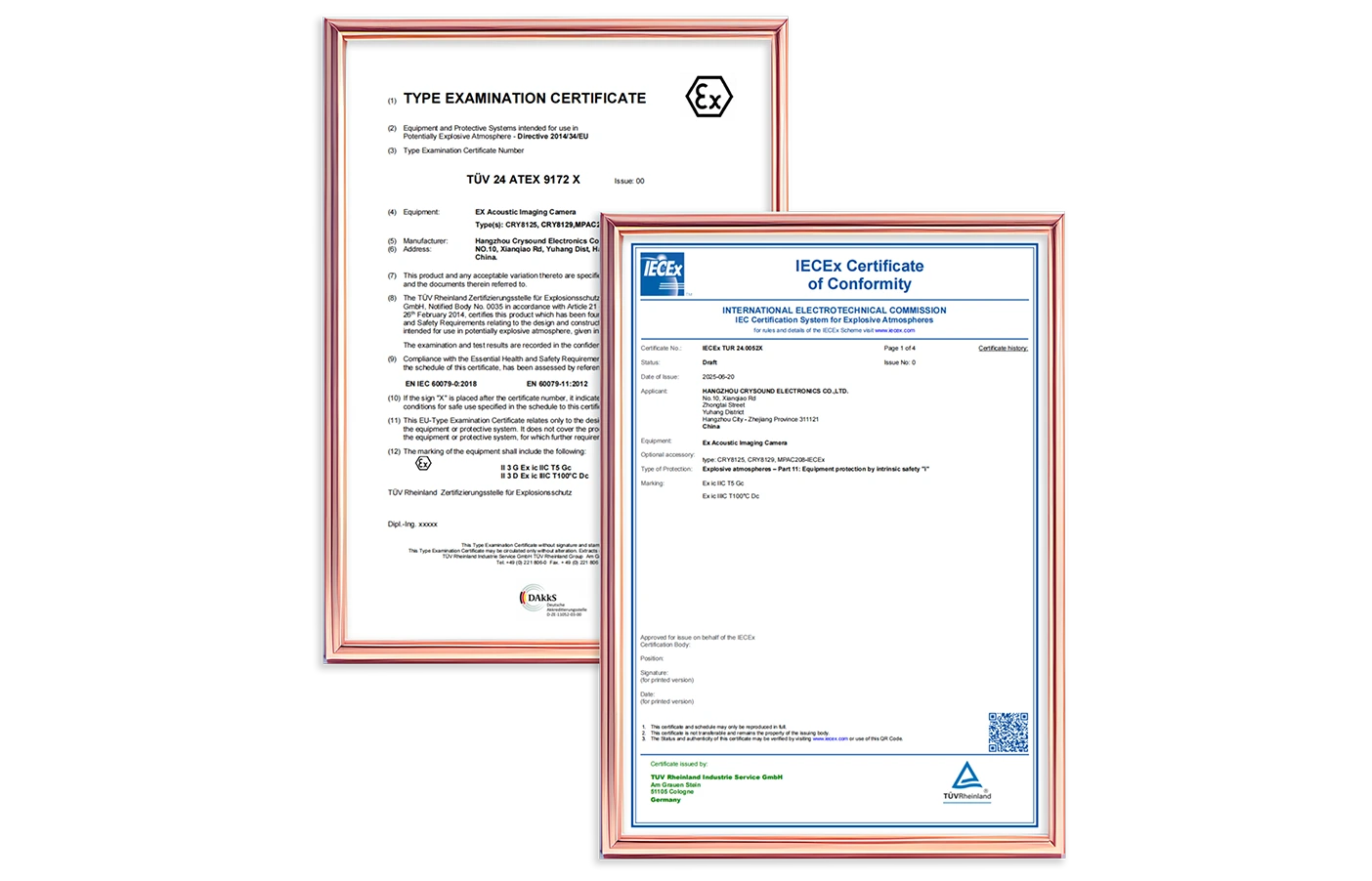

TÜV-Certified Zone 2 IECEx and ATEX Certificate
28-Day Extreme Reliability Testing for the Maximum Protection
Detect Any Type of Gas in Explosive Atmospheres
The CRY8125 detects a wide range of gas leaks, including natural gas, hydrogen, carbon monoxide (CO), and other hazardous gases, even in explosive environments. Its advanced acoustic imaging technology precisely locates leaks, providing a crucial safety advantage in complex environments such as refineries, chemical plants, and gas facilities.

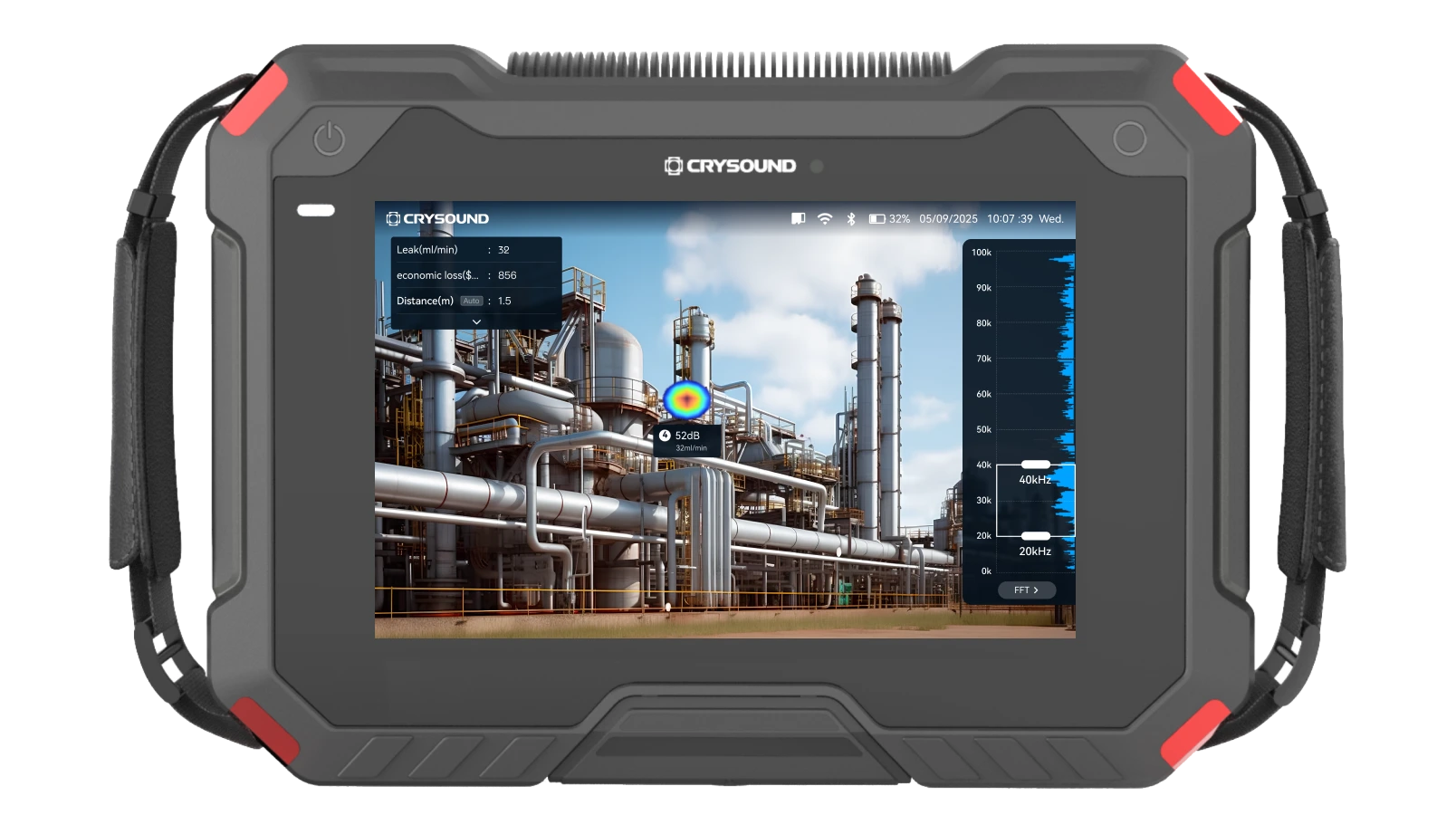

In addition to leak detection, the CRY8125 measures leak rates and estimates losses in real time. This capability enables teams to make faster, more informed repair decisions, thereby minimizing downtime and risk. Its advanced analytical tools enhance both efficiency and safety.

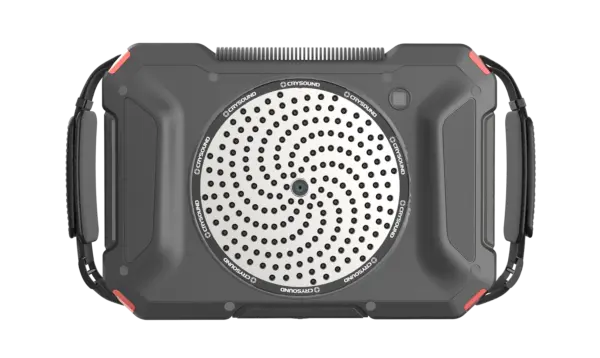

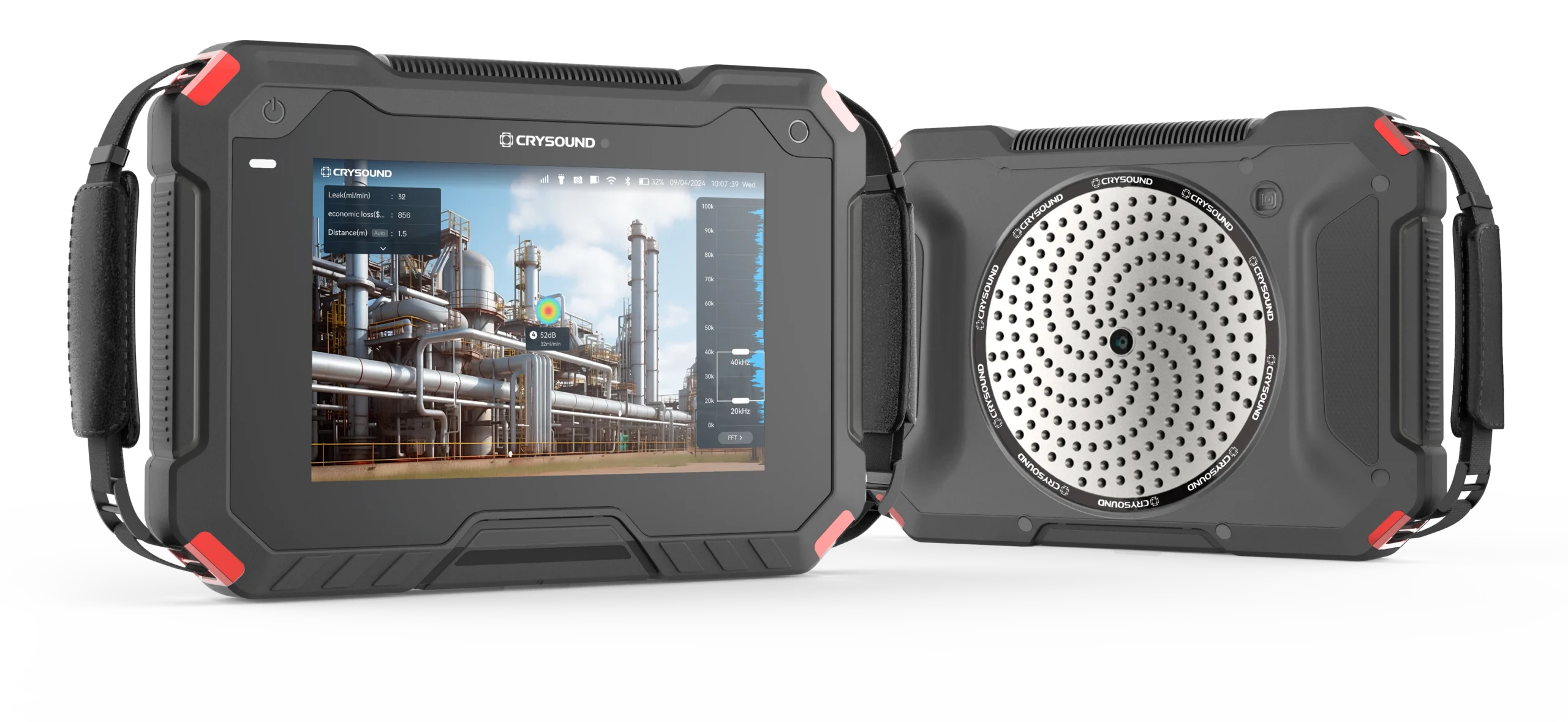

The Best Performance Intrinsically Safe Acoustic Imaging Camera
Featuring 200 microphones, a frequency range up to 100 kHz, and a high-performance processor, the CRY8125 detects smaller gas leaks and partial discharges at greater distances. At 5.6 bar, the minimum detectable leak rate is just 0.0022 L/min at 10 m.
The CRY8125 allows operators to maintain a safer distance, reducing potential exposure to hazardous gases. Its extended detection range enables faster leak localization and wider inspection coverage, significantly improving inspection efficiency in complex industrial environments.
Exceptional Acoustic Detection Performance
Locates 5.6bar 0.0022L/Min Leak at 10m Distance
Ultra-Wide Field of View & Intelligent Acoustic Detection
Intelligent Auto Freq. Range
120° Ultra-Wide Field of View
Wireless Connectivity & Remote Control
Seamless Wireless Connectivity
Transfer Data to PC Wirelessly
Flexible PC & Mobile Remote Control

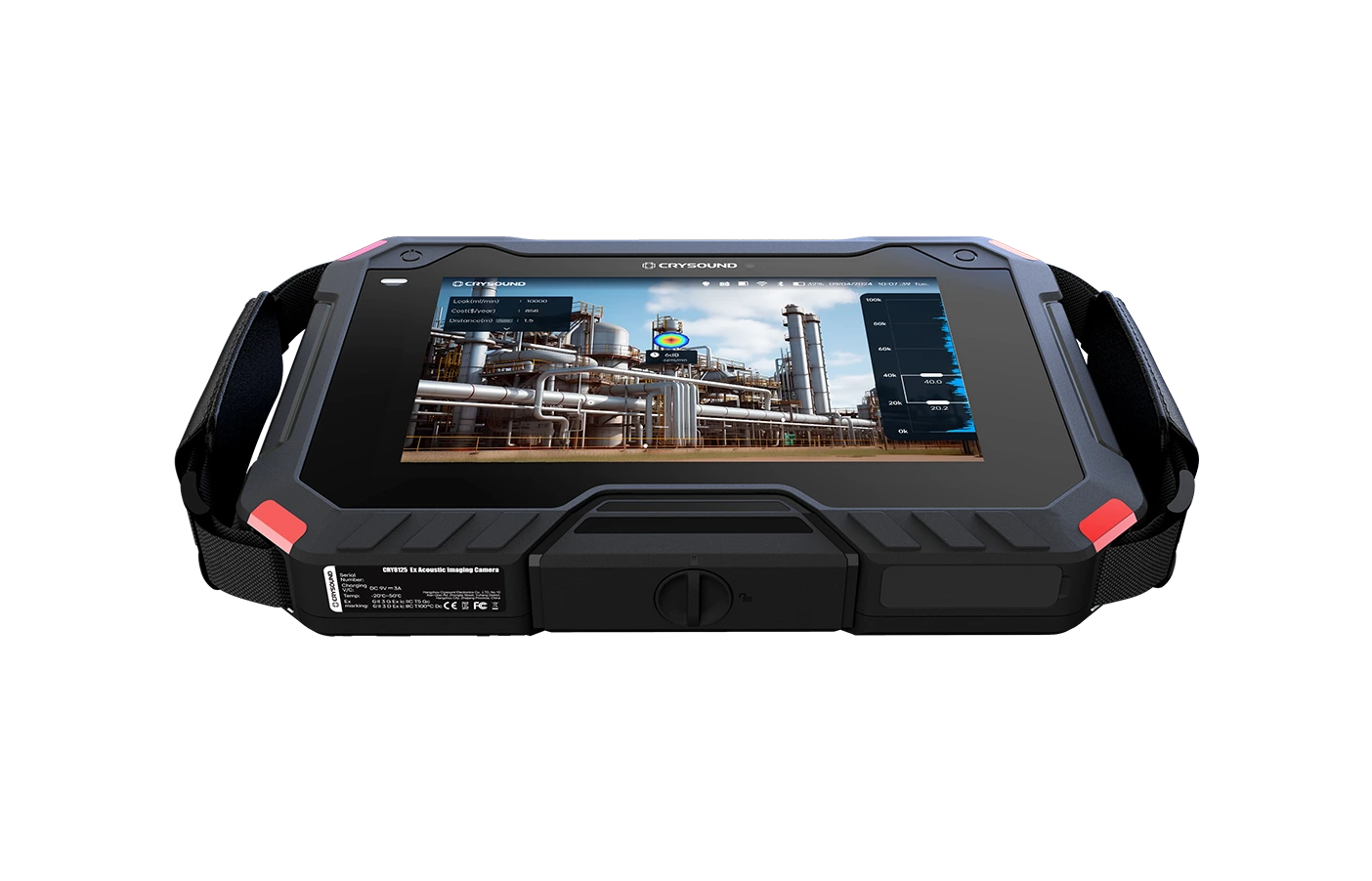

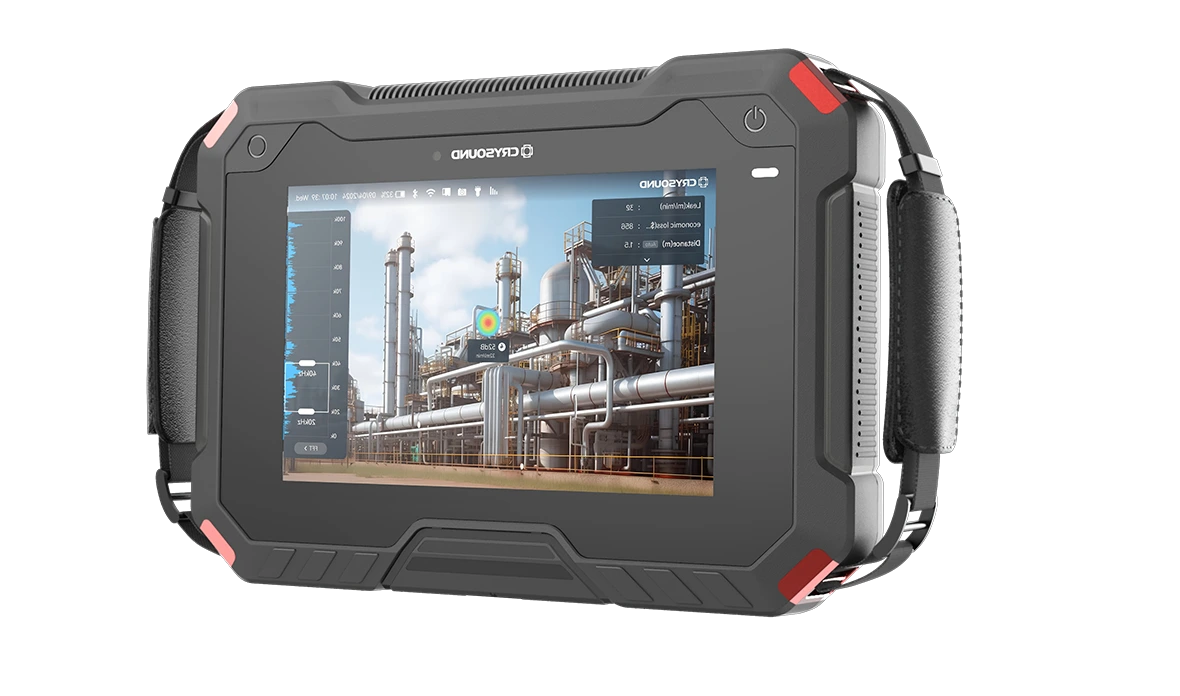

New Software for Leak Detection & Partial Discharge (PD)
The CRY8125 Ex Acoustic Imaging Camera boasts a fully revamped software interface that simplifies the detection of gas and vacuum leaks, partial discharge (PD) localization, and PD type identification. This user-friendly interface enables operators to swiftly and accurately identify the sources of leaks, minimizing downtime and boosting operational efficiency. Additionally, its advanced PD detection features provide precise localization and classification of partial discharge types, ensuring the reliability and performance of electrical assets.
Locates and Quantifies Gas/Vacuum Leaks
Pinpoints PD and Recognizes the Type of PD

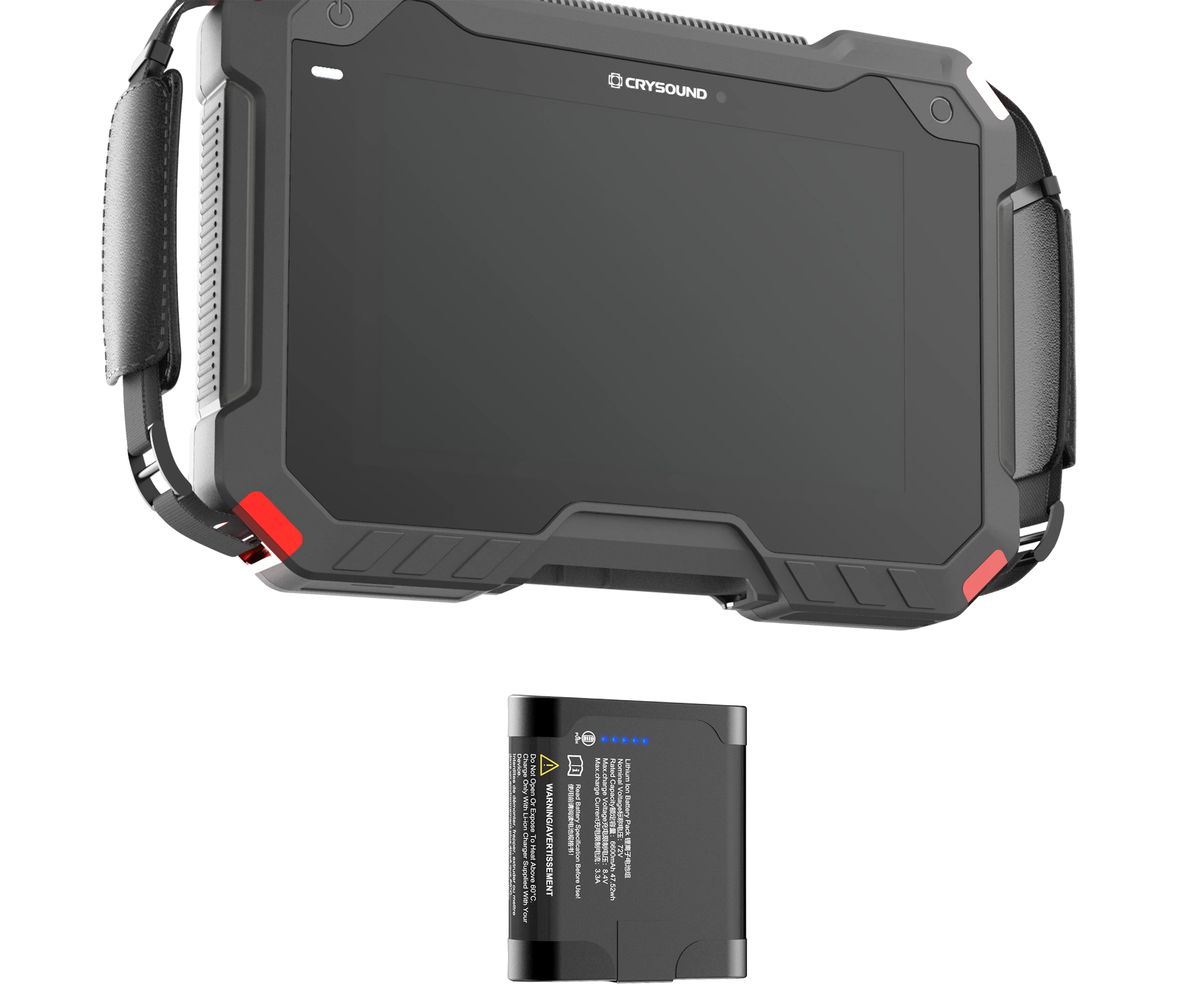

Up to 10 Hours of Operation with Replaceable Battery
The CRY8125 Ex Acoustic Imaging Camera comes with advanced smart replaceable batteries, enhancing convenience and extending operational time. Each battery provides up to 5 hours of continuous use, ensuring uninterrupted inspections.
With an extra spare battery included, the device supports a full day of testing. The standard package features two smart batteries and a smart battery charger for effortless battery management. LED indicators on each battery show the current charge level, allowing users to easily monitor battery status and plan their work efficiently.

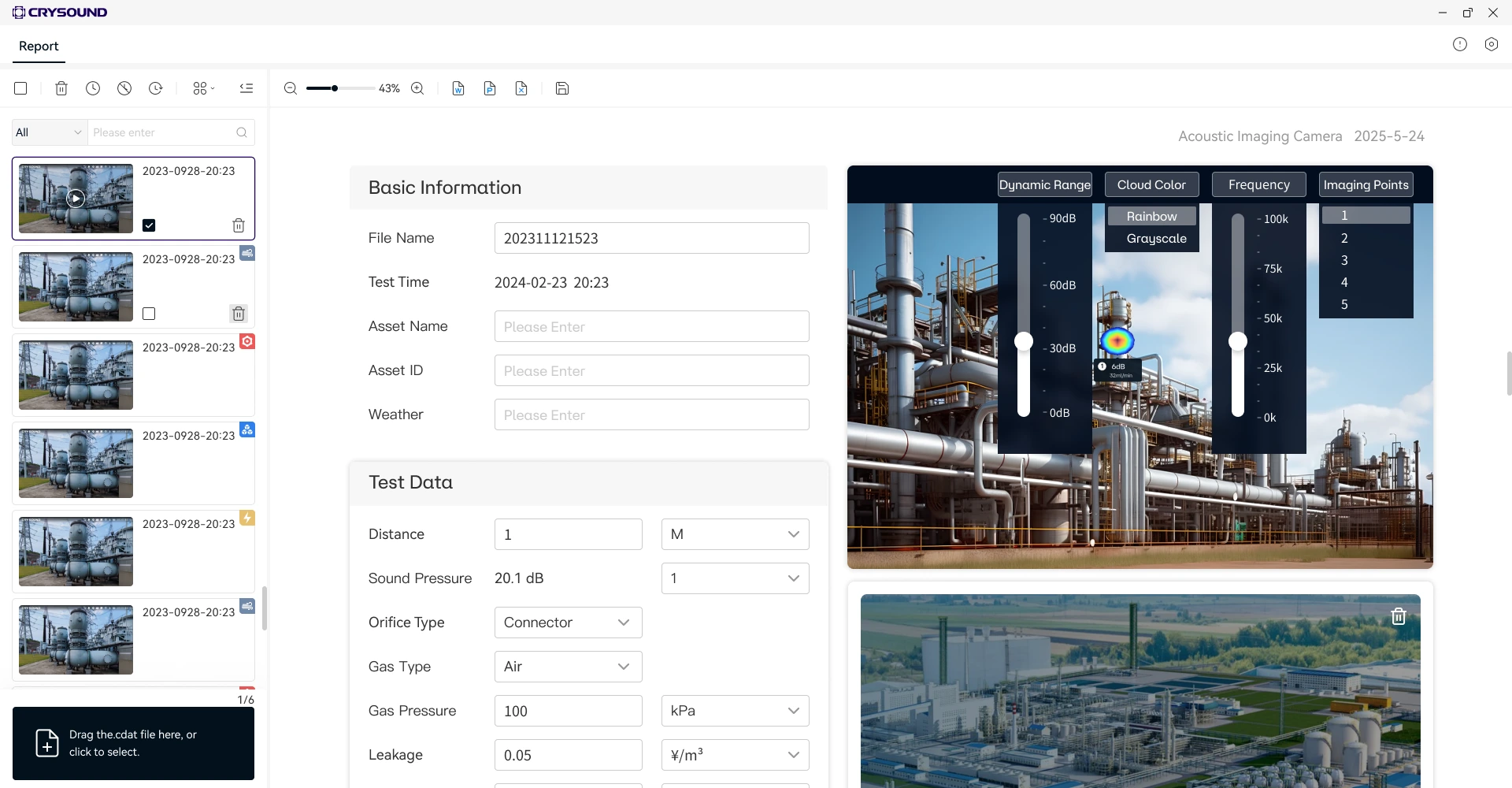

Advanced Reporting Software
The CRY8125 Ex Acoustic Imaging Camera is paired with advanced reporting software that significantly enhances user experience and efficiency. The software boasts a newly redesigned, intuitive interface, making navigation and operation easier than ever. Wireless data transfer capabilities allow users to seamlessly send inspection data from the camera to the software, eliminating the hassle of cables. Additionally, the software supports infrared data analysis and provides powerful tools for data post-processing, enabling comprehensive investigations and the creation of detailed reports.
Wireless Data Transfer
Generates Reports for Acoustics and Infrared Data
International Award Recognition
The CRY8120 Series has been recognized with two international industrial awards: the 2026 Industrial Innovation Awards Gold Honoree and the 2026 Plant Engineering Product of the Year Silver Award, highlighting its innovative technology and outstanding performance in industrial inspection.
Technical Specifications
Main Features
- TÜV-Certified Zone 2 IECEx and ATEX Certificate
- II 3 G Ex ic IIC T5 Gc / II 3 D Ex ic IIIC T100℃ Dc
- Gas Leak Detection, Rate Measurement and Partial Discharge Classification
- Report Generation for Critical Data Sharing
