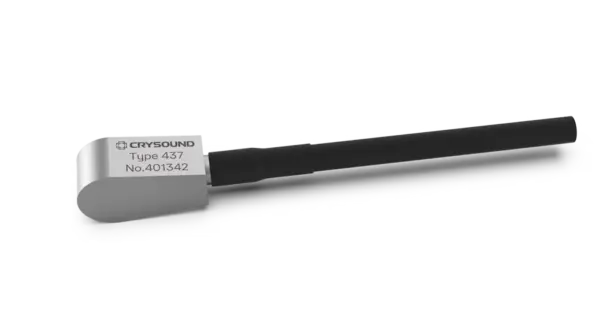

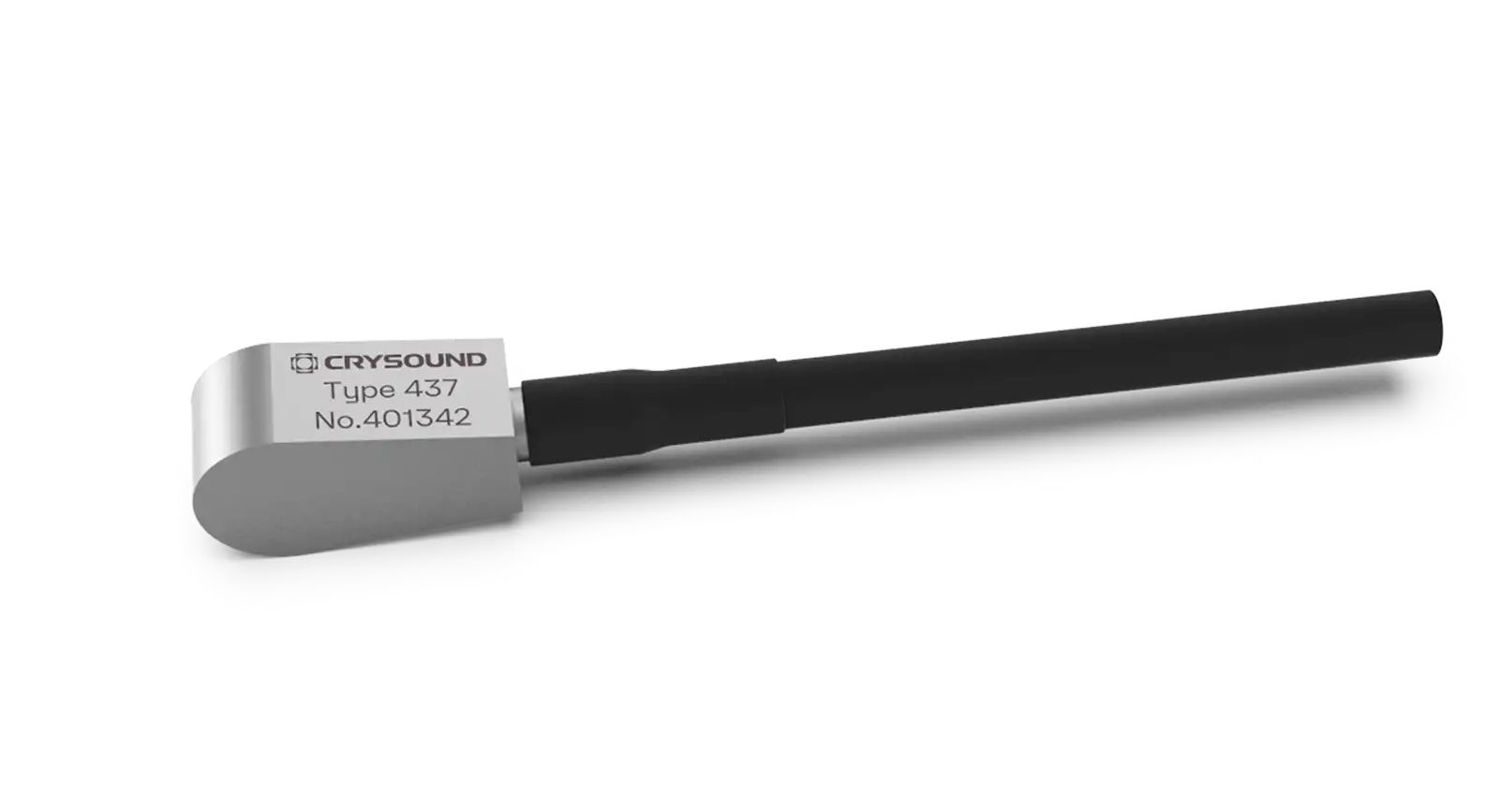

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz
CRY437 is a miniature single-axis acceleration sensor. The output mode is through the overall side connection(L5), and it is installed on the object in a glued way. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
The small volume of CRY437 makes it an excellent choice for measurements in limited spaces and fine structures.
Product Highlights
Technical Specifications
Measuring Range (peak)
±500g pk
Sensitivity (25℃)
10mV/g(160Hz)
Frequency Response
2Hz to 8kHz(±1dB)
Transverse Sensitivity
≤5%
Output Impedance
＜100 Ω
Excitation Voltage
24VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
<100μV
Bias Voltage
+11V to +13V
Maximum Shock Level
2000g
Operating Temperature
-40℃ to +80℃(-40°F to 176 °F)
Connector Type
Overall cable to 10-32UNF(M5, Microdot)
Mounting
Glue
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
2g(Excluded Cable)
Main Features
- Overall cable to 10-32UNF
- Compact structure
- Low impedance output
Related Products
CRY435 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 6kHz
Dynamic Specification
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 6kHz(±10%); 0.5Hz to10kHz(±3dB)

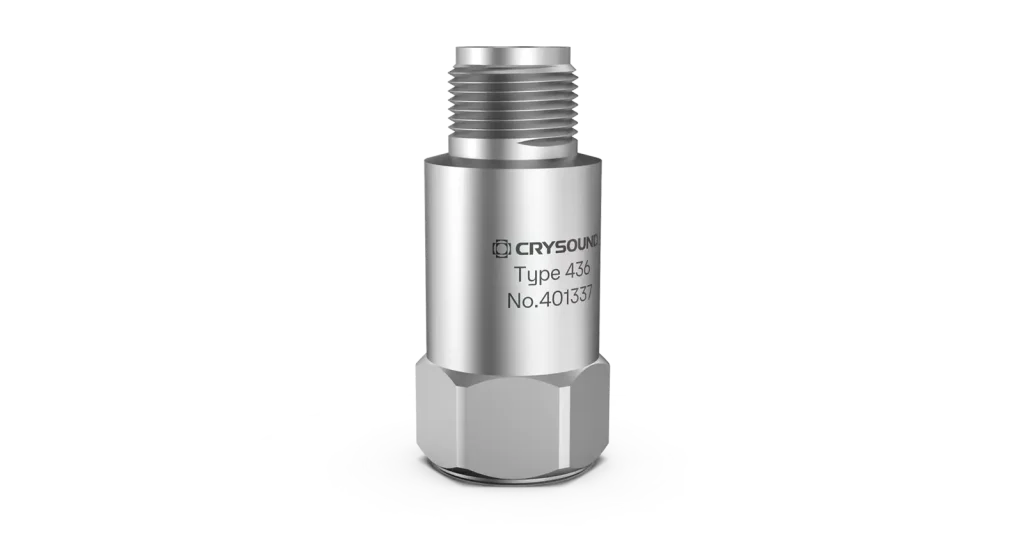

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz
