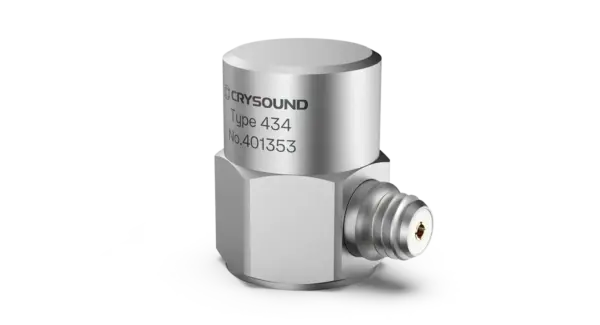

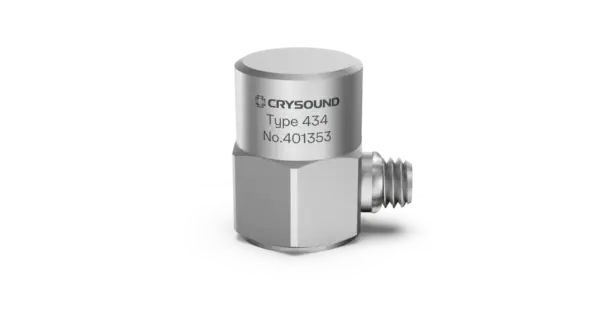

CRY434 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz
The CRY434 is a single-axis acceleration sensor featuring a 10-32 UNF output on the side for easy mounting with a 10-32 UNF bolt. It is well-suited for detecting small movements in laboratory and scientific research, as well as for monitoring the vibration status of industrial equipment in real-time.
The CRY434 can be paired with armored shielded cables to accurately measure vibration parameters such as acceleration, velocity, and displacement, even in environments with high levels of industrial or electrical interference.
Product Highlights
Technical Specifications
Measuring Range (peak)
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
0.5Hz to 8kHz(±1dB)
Transverse Sensitivity
≤5%
Output Impedance
Bias Voltage
Excitation Voltage
Bias Voltage
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
＜9V to 12V
Maximum Shock Level
±3000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side M5
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
13g
Main Features
- Side 10-32UNF (M5, Microdot) connection
- M5 bolt mounting
- Built-in IEPE preamplifier
