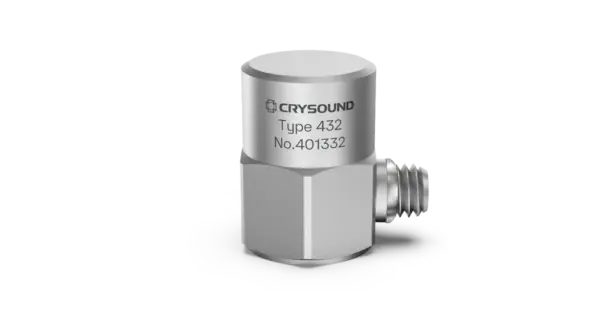

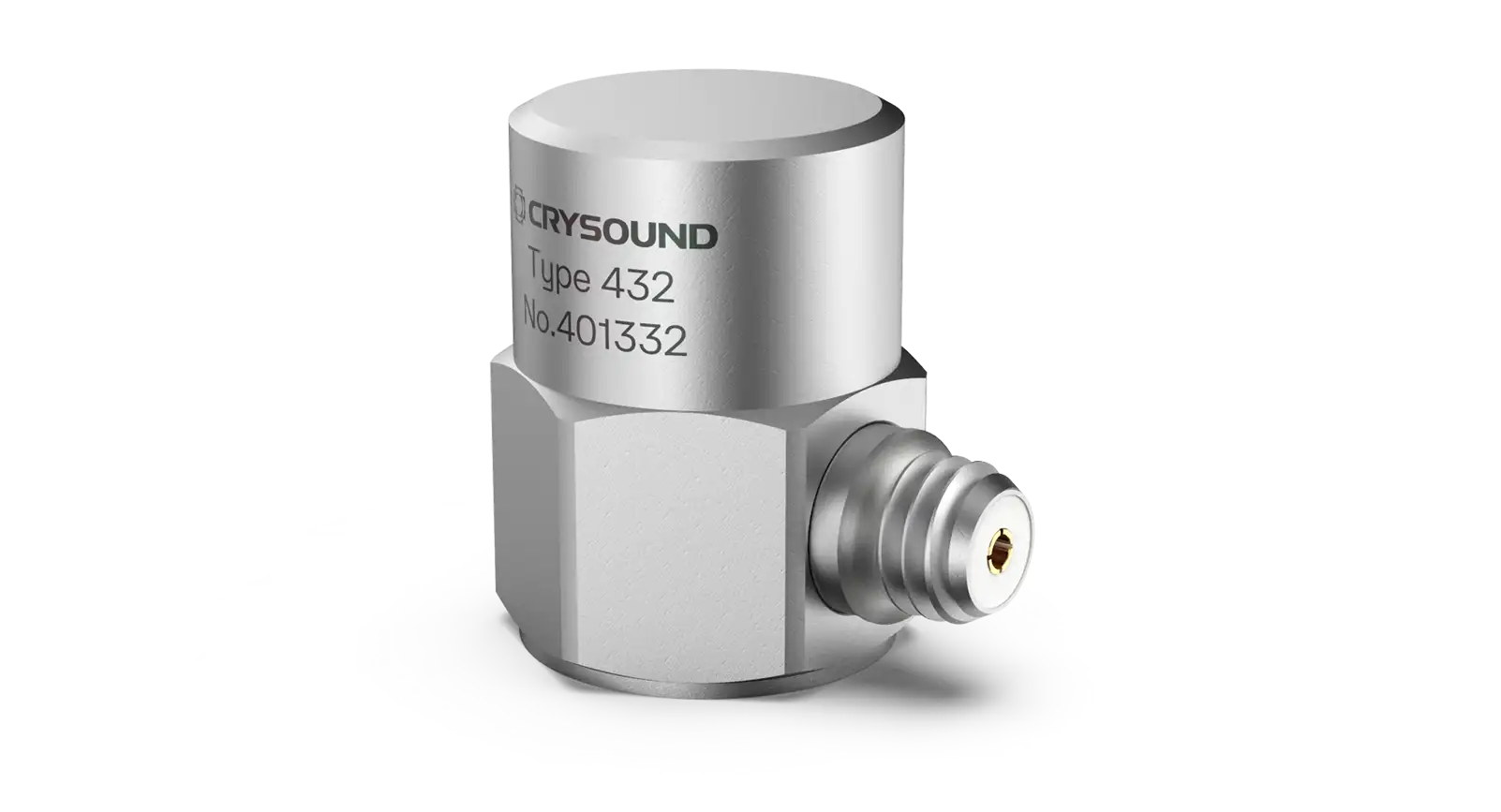

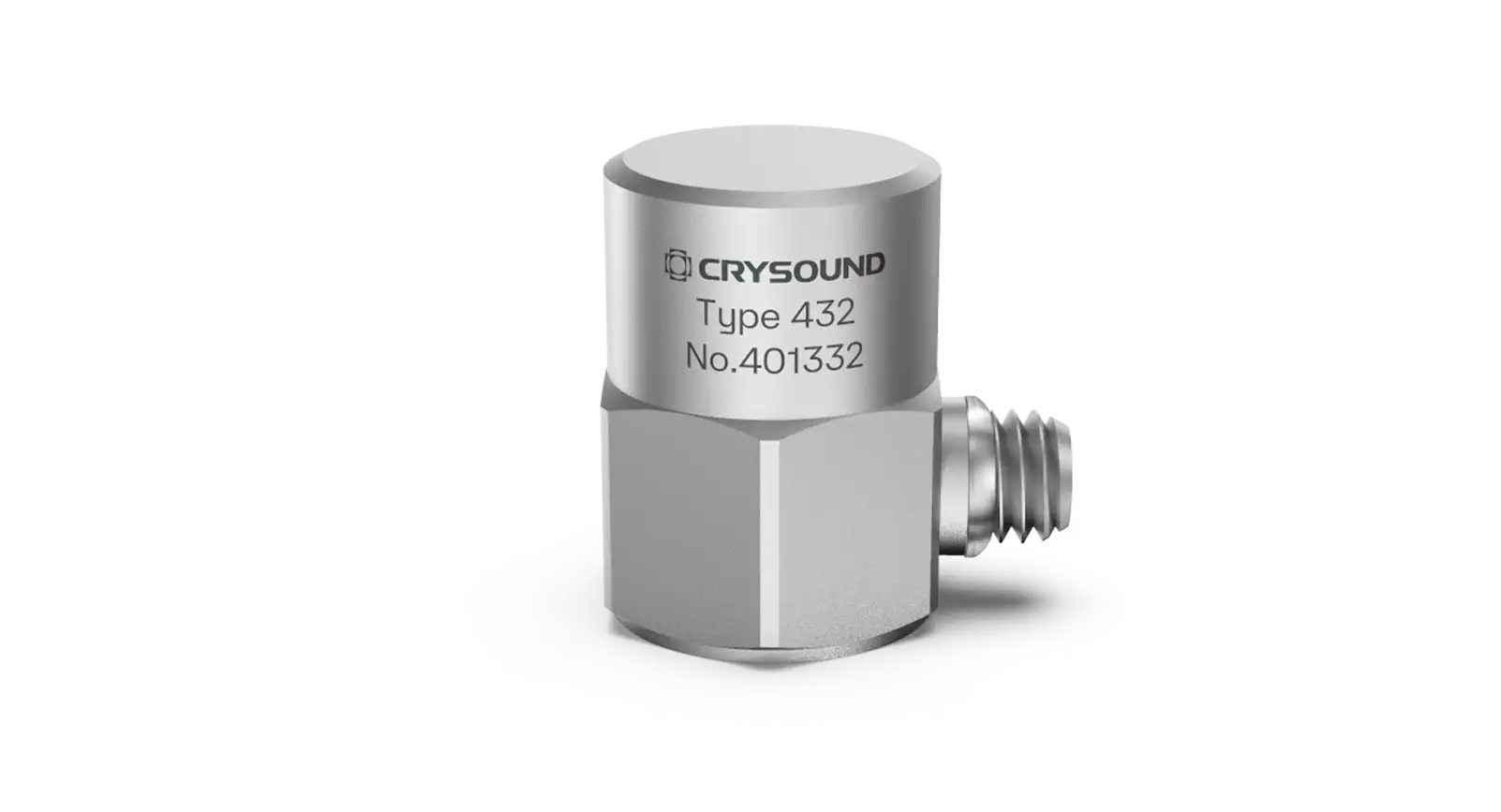

CRY432 Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz
The CRY432 is a single-axis acceleration sensor with an output mode of 10-32 UNF on the side, which is mounted to an object by a 10-32 UNF bolt. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
The CRY432 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Product Highlights
Technical Specifications
Measuring Range (Peak)
±1,000g pk
Sensitivity (25℃)
5mV/g(160Hz)
Frequency Response
1Hz to 12kHz(±1dB)
Transverse Sensitivity
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
9V to 12V
Maximum Shock Level
±5000 g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Connector Type
Side M5
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
9.5g
Main Features
- Side 10-32UNF(M5, Microdot) connection
- M5 bolt mounting
- Built-in IEPE preamplifier
Related Products

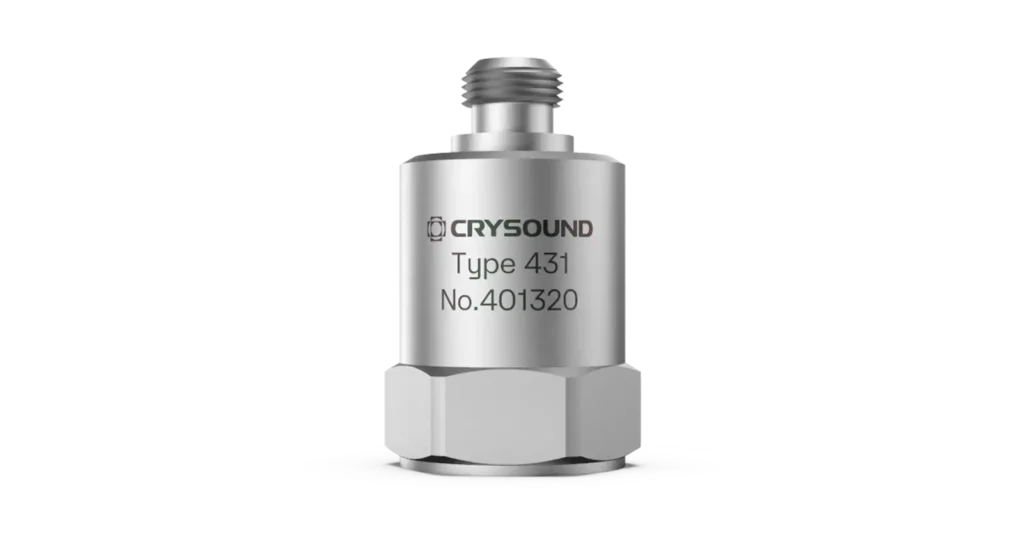

CRY431 IEPE Accelerometer, 1 Axis, 5mv/g, ±1000g pk, 1Hz to 12kHz
