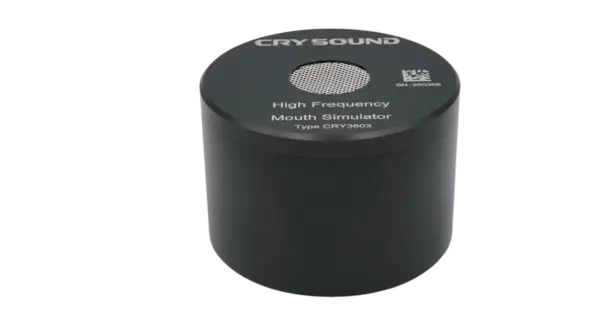

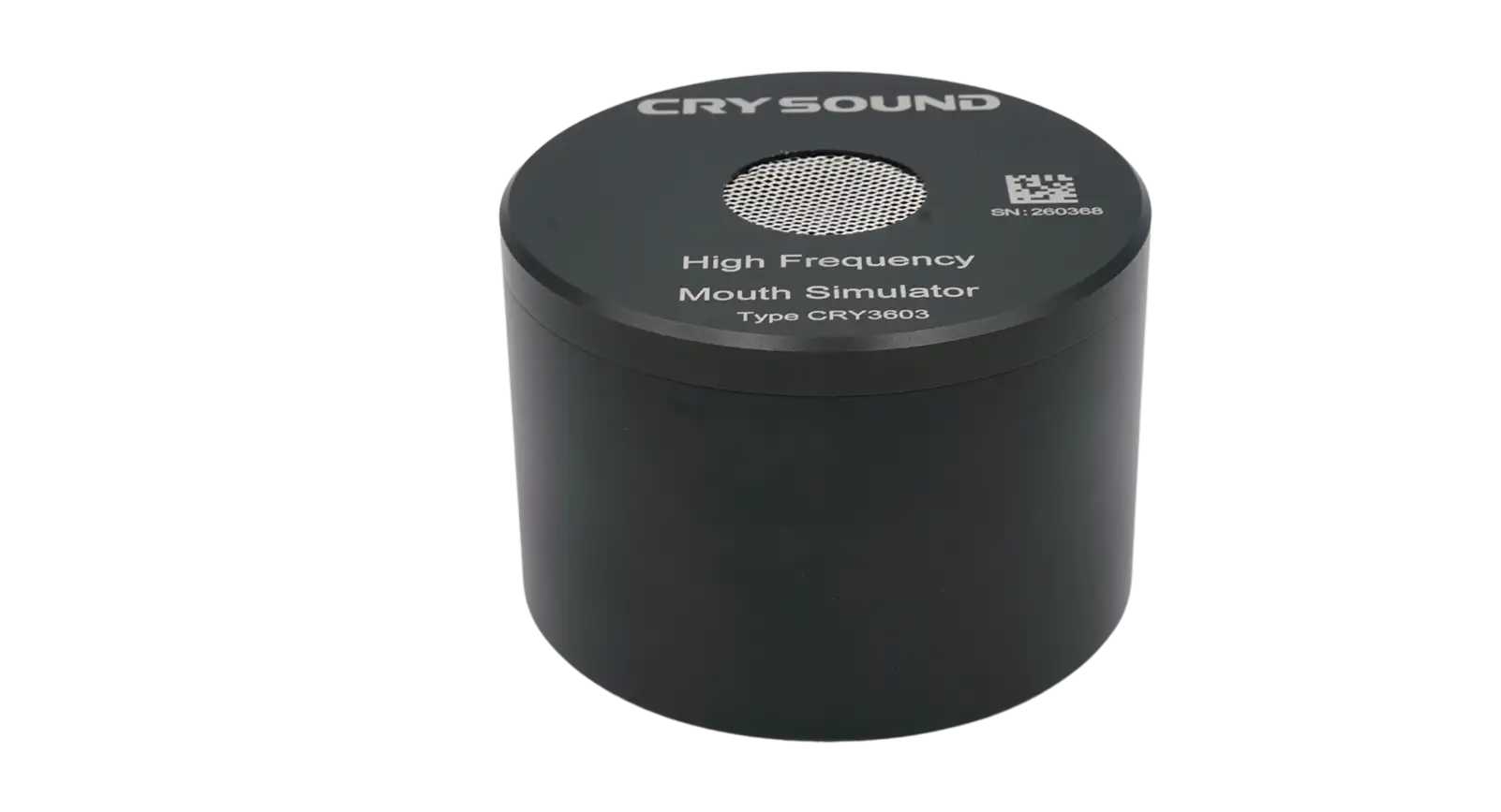

CRY3603 Mouth Simulator 200Hz to 50k Hz, ITU-T Rec.P51
The CRY3603 high-frequency mouth simulator is designed to emulate high-frequency sound sources in the acoustic environment near the human mouth, with a frequency response extending up to 40kHz.
It is primarily used for testing high-frequency microphones, assessing parameters such as frequency response and distortion. The CRY3603 meets the demands of precise high-frequency measurement and testing.
Product Highlights
CRY3603 Mouth Simulator Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Max Continuous Output SPL (25mmMRP)
110dB (500Hz to 40 kHz) 94dB (200 Hz to 50 kHz)
THD(94dBSPL, 25mmMRP)
<1.5%，Typical: <1.0% (1 kHz to 40 kHz)
Frequency Response
EQ: 94dB ±1 dB(500Hz to 40kHz)
Impedance
4 ohm
Aperture Size
Ø20mm
Continuous Maximum Power
100w
Instantaneous Maximum Power
500w/s
Lip Ring
Outside diameter: Ø100mm; Heigth: 28mm
Diameter
Ø116mm
Height
80mm
Weight
1.45kg
Connector Type
BNC
Main Features
- High frequency mouth simulator
- Low distortion
- Complies with IEEE 269,661 and ITU-T P51 standards
Related Products

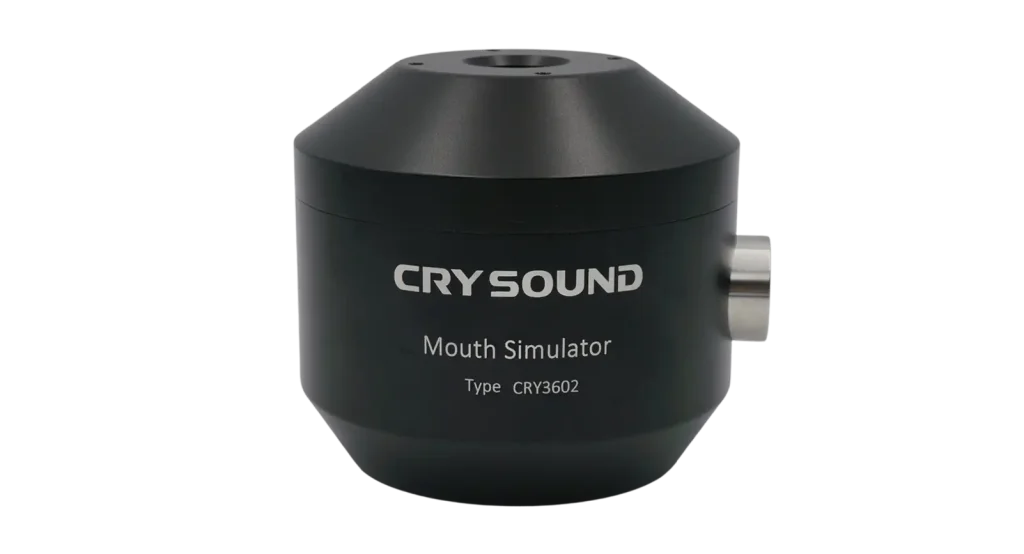

CRY3602 Mouth Simulator with Built-In 20dB Amplifier
Max Continuous Output SPL (25mmMRP)
110 dB（200 Hz to 10 kHz） 100 dB (100 Hz to 10 kHz)
THD(94dBSPL, 25mmMRP)
<1.5% ,Typical: <1.0% (200 Hz to 10 KHz )
Frequency Response
EQ:94dB ±1 dB（100Hz to 10kHz）

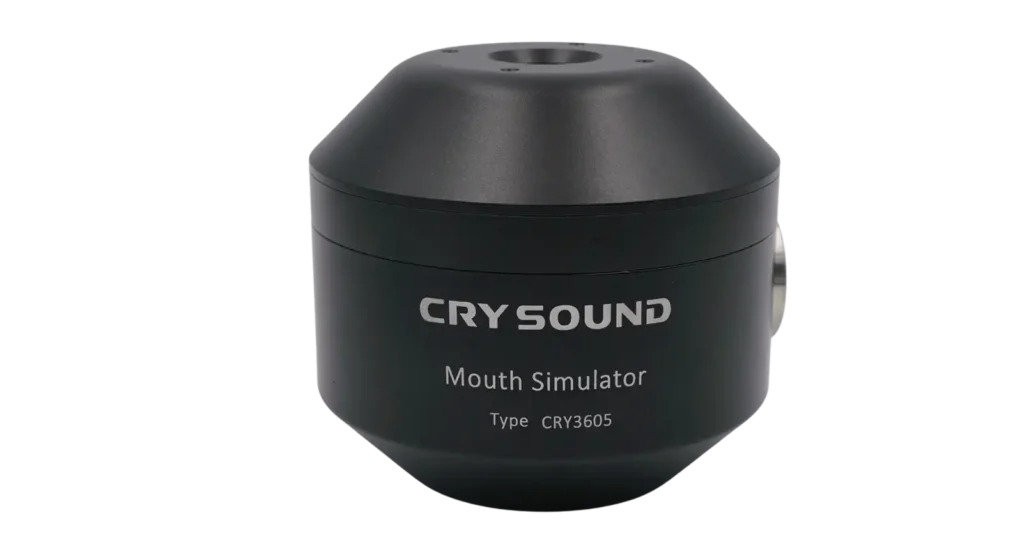

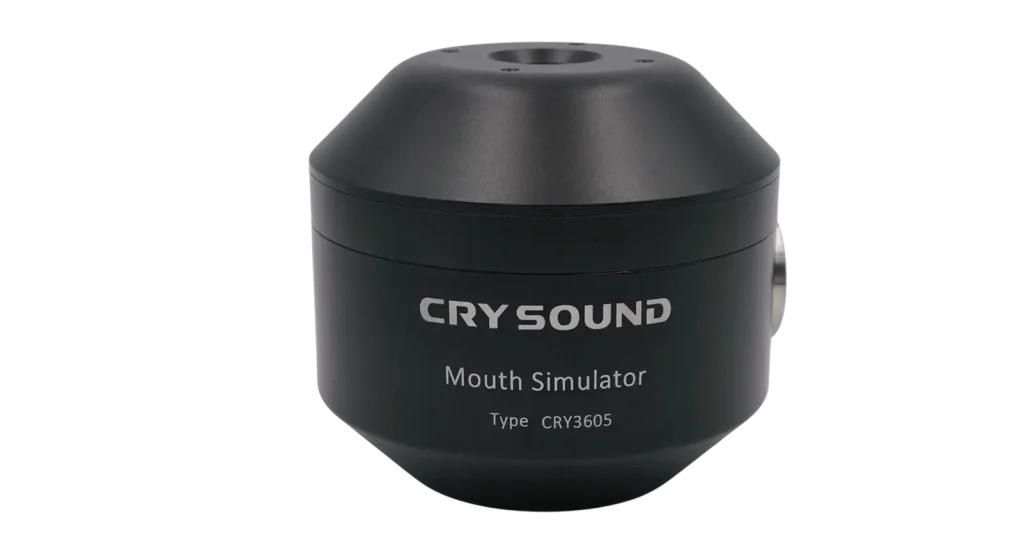

CRY3605 Mouth Simulator, High-Performance ITU-T Rec.P51
Max Continuous Output SPL(25mmMRP)
110dB (200 Hz to 10 kHz) 100dB (100Hz to 10 kHz)
THD(94dBSPL, 25mmMRP)
<0.8%, Typical: <0.5% (200 Hz to 10 kHz)
Frequency Response
EQ: 94dB ±1 dB(100Hz to 10kHz)

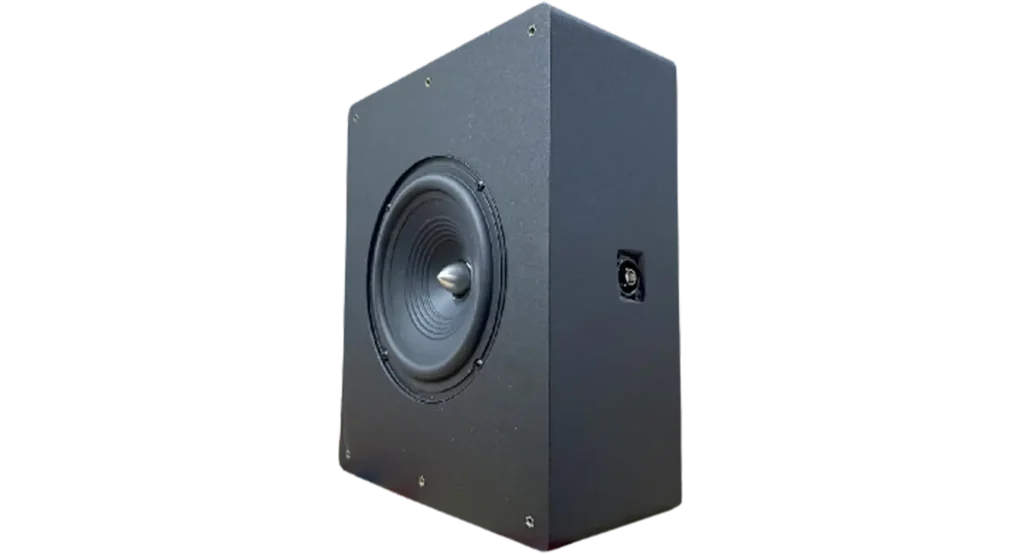

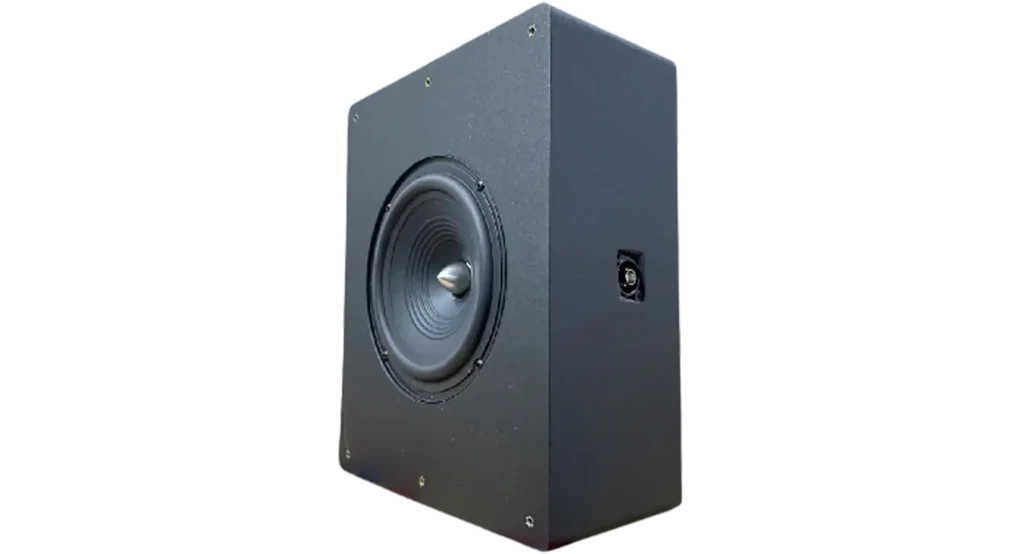

CRY3611 Reference sound source
THD(25mmMRP)
<1%，Typical<0.5%（200Hz to 10KHz）
Impedance
8 ohm±15%@350hz
Continuous Maximum Power
45W
