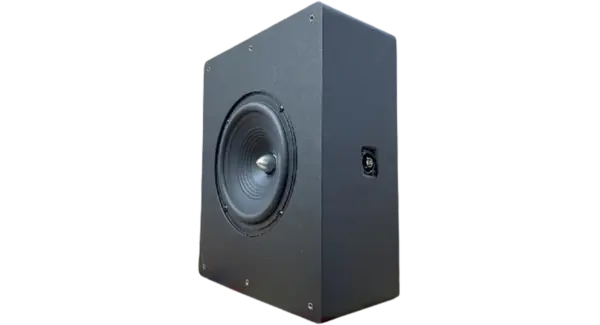

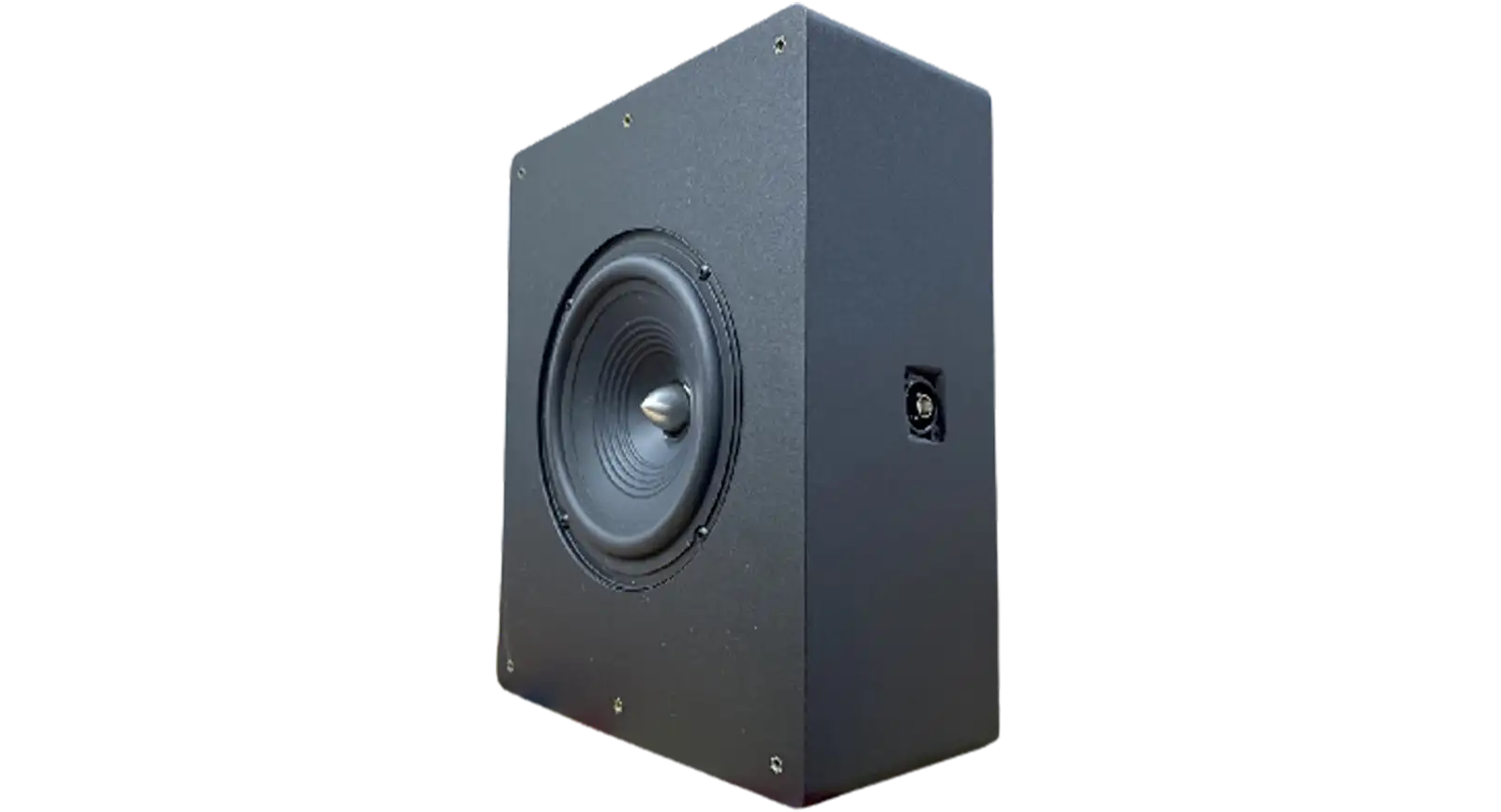

CRY3611 Reference sound source
CRY3611 is a far-field low-frequency enhanced reference sound source. It is suitable for low-frequency testing and demanding electroacoustic tests such as Active Noise Cancellation (ANC) testing and Environmental Noise Cancellation (ENC) testing.
It is also applicable for testing the frequency response, total harmonic distortion and other acoustic parameter indicators of devices such as smart speakers, microphone arrays, speech recognition and voice activation.
Product Highlights
Technical Specifications
THD(25mmMRP)
<1%，Typical<0.5%（200Hz to 10KHz）
Impedance
8 ohm±15%@350hz
Continuous Maximum Power
45W
Size(mm)
300(H)×240(L)×120(W)
Main Features
- Low frequency enhancement
- Far-field sound source
- Low distortion
Related Products
CRY3602 Mouth Simulator with Built-In 20dB Amplifier
Max Continuous Output SPL (25mmMRP) 110 dB（200 Hz to 10 kHz） 100 dB (100 Hz to 10 kHz)
THD(94dBSPL, 25mmMRP) <1.5% ,Typical: <1.0% (200 Hz to 10 KHz )
Frequency Response EQ:94dB ±1 dB（100Hz to 10kHz）
CRY3603 Mouth Simulator 200Hz to 50k Hz, ITU-T Rec.P51
Max Continuous Output SPL (25mmMRP) 110dB (500Hz to 40 kHz) 94dB (200 Hz to 50 kHz)
THD(94dBSPL, 25mmMRP) <1.5%，Typical: <1.0% (1 kHz to 40 kHz)
Frequency Response EQ: 94dB ±1 dB(500Hz to 40kHz)
CRY3605 Mouth Simulator, High-Performance ITU-T Rec.P51
Max Continuous Output SPL(25mmMRP) 110dB (200 Hz to 10 kHz) 100dB (100Hz to 10 kHz)
THD(94dBSPL, 25mmMRP) <0.8%, Typical: <0.5% (200 Hz to 10 kHz)
Frequency Response EQ: 94dB ±1 dB(100Hz to 10kHz)
