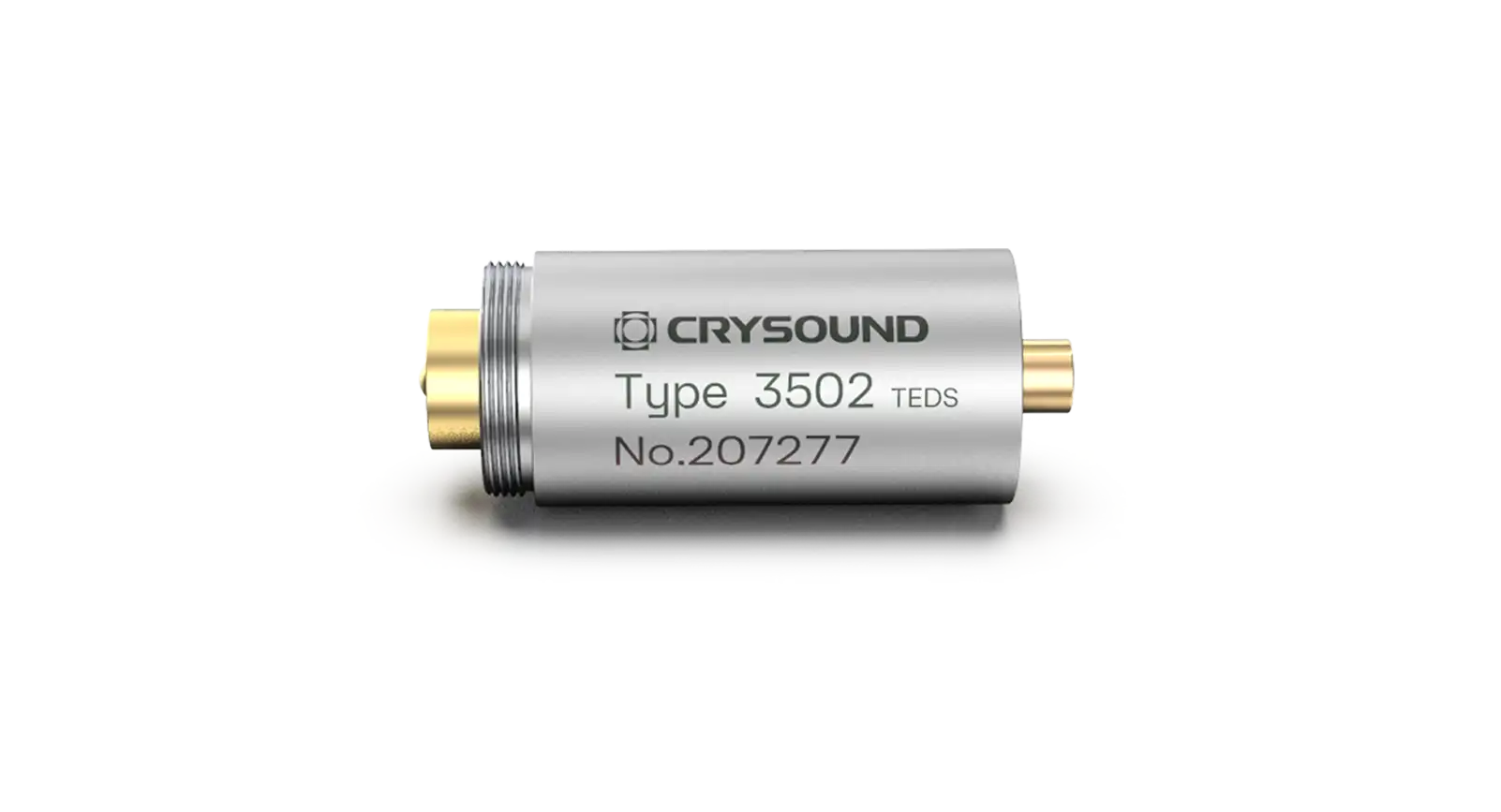

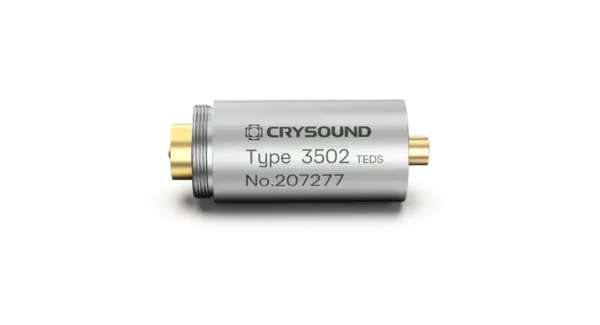

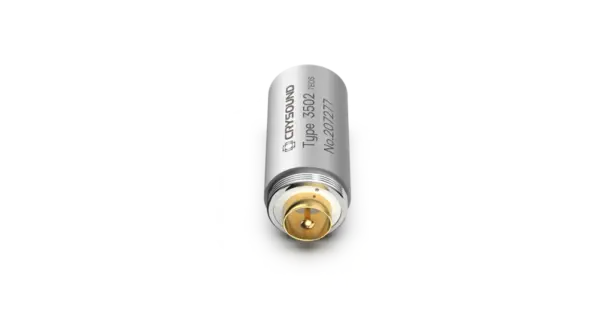

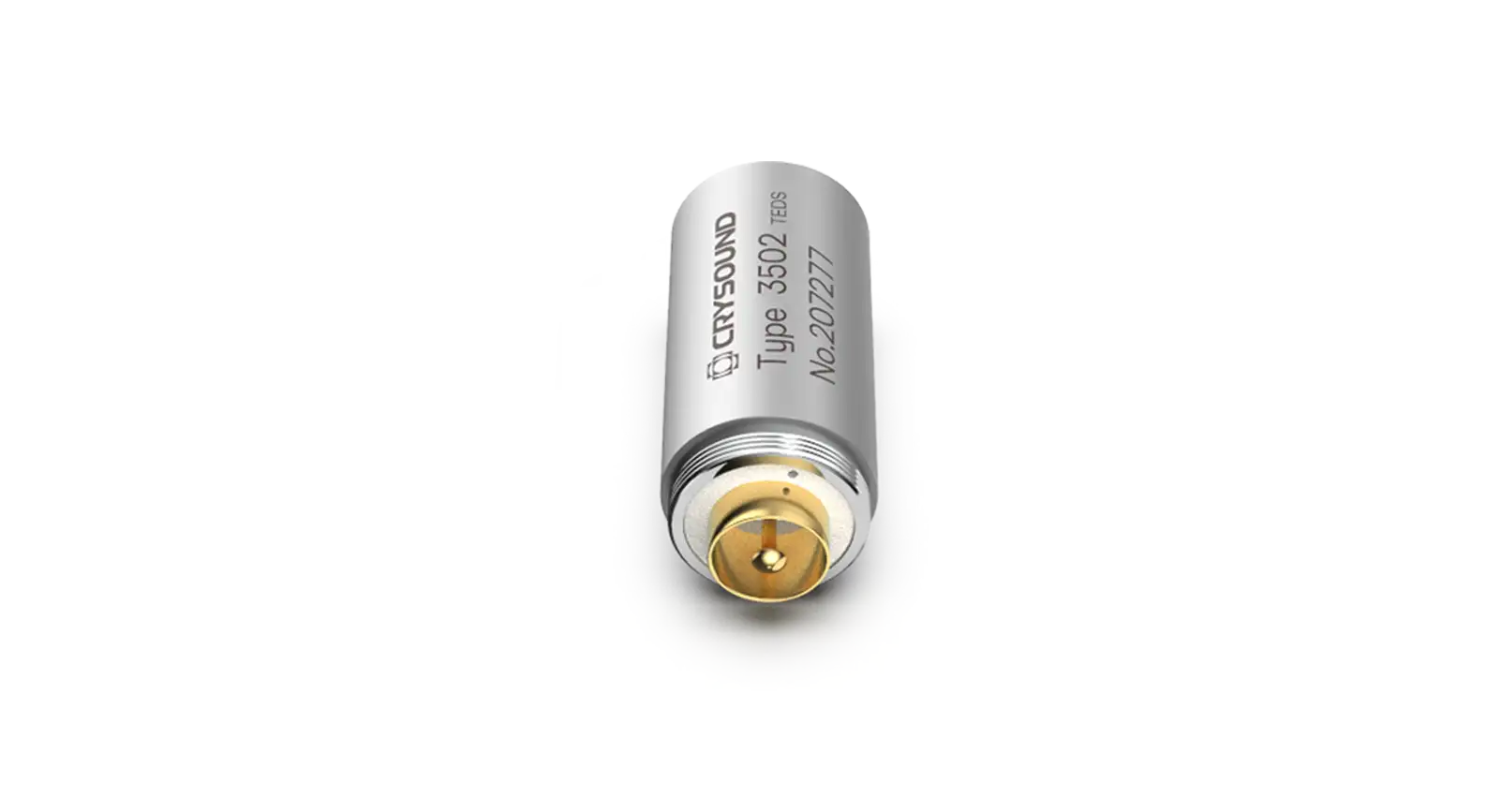

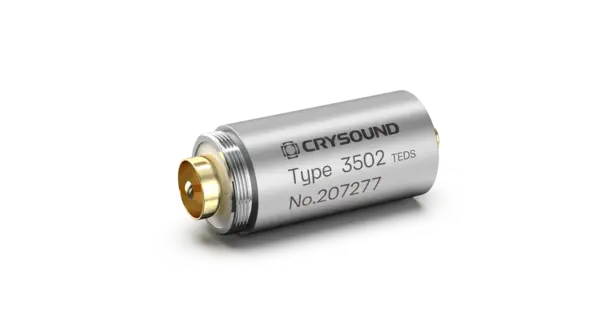

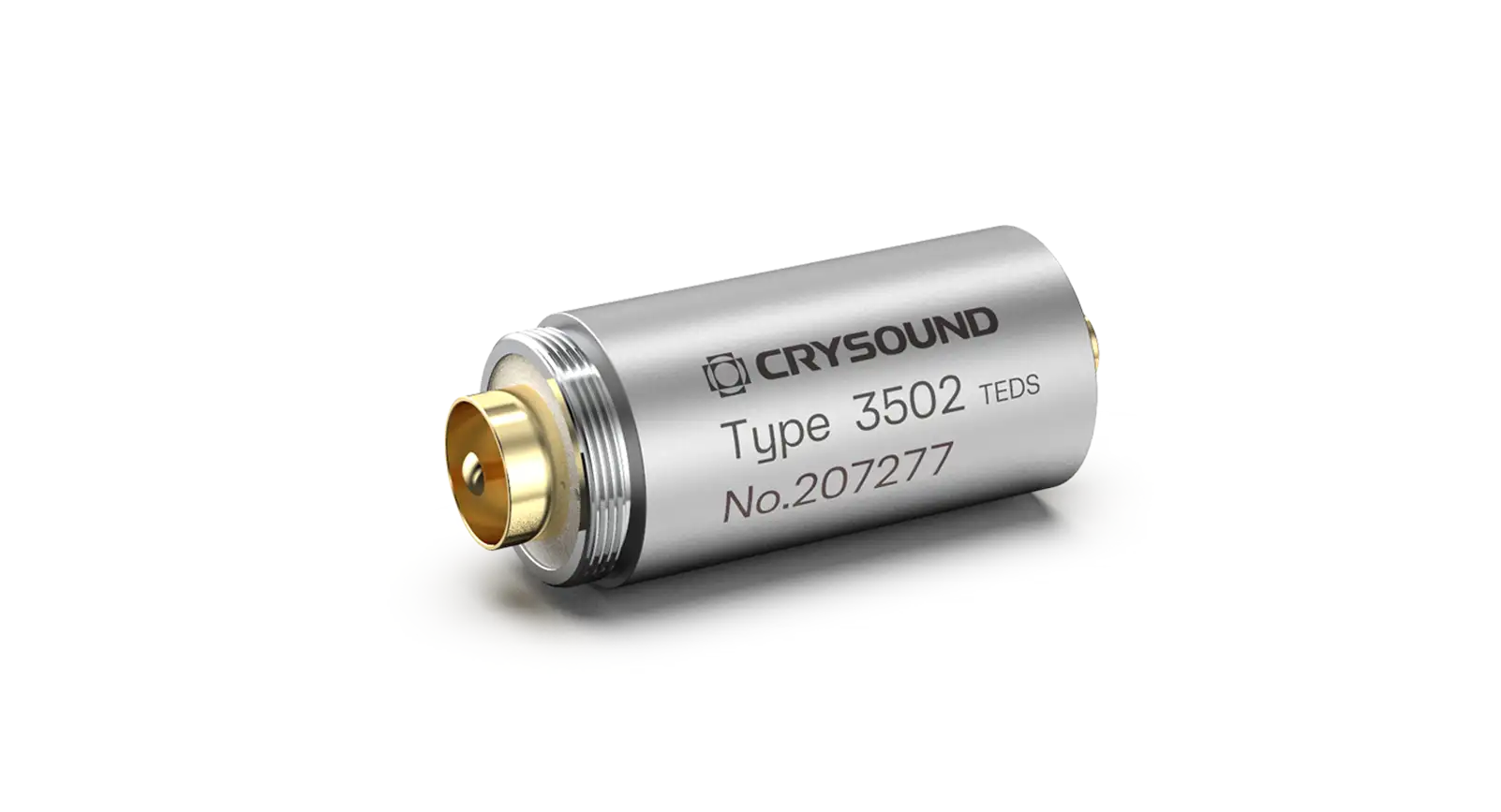

CRY3502 1/2" Preamplifier, IEPE, SMB Connector, Very Short
CRY3502 is a short constant current power preamplifier. It can be used with the CRY3000 series 1/2 inch prepolarized measurement microphone and is widely compatible with other brands.
CRY3502 converts high input impedance to low output impedance, allowing the use of a longer extension cable. The advantage is that the background noise is low and it hardly causes a load on the microphone. It supports the TEDS function and reduces test time. The compact design enables it to measure in environments with limited space.
Product Highlights
Technical Specifications
Frequency Response Range
1Hz ~ 200kHz (±0.2 dB)
Input Impedance
>26,0.4pF
Output Impedance
＜50Ω
Distortion (THD)
＜0.1%
Max Output Voltage
＞10Vp
Power Supply
2 mA to 20mA（Typical 4mA）
Nominal Operating Current
4mA
Noise, A-weighting
< 3 µV rms
Noise, linearity (20 ~ 20kHz)
< 4 µV rms
DC bias voltage
12V±2V
Connector Type
SMB
Temperature
-30℃ to +70℃(-22 to 158 °F )
Threaded Coupling
11.7-60 UNS
Diameter
12.7mm (0.5'')
Length
31.5mm(1.24'')
Main Features
- High input impedance, low output impedance
- SMB Interface
- Supports “Smart Transducer Interface” IEEE 1451.4
- Low background noise
