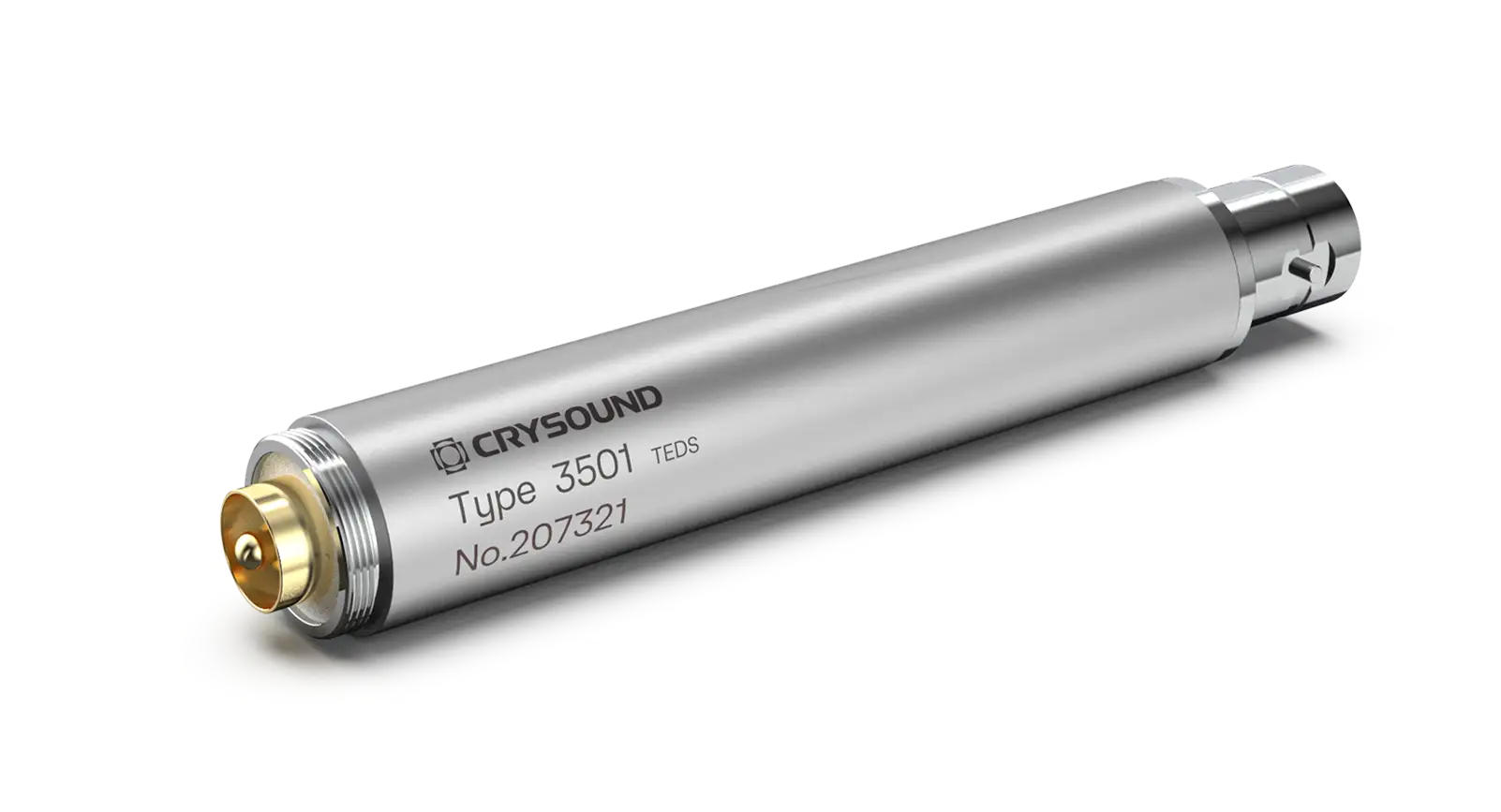

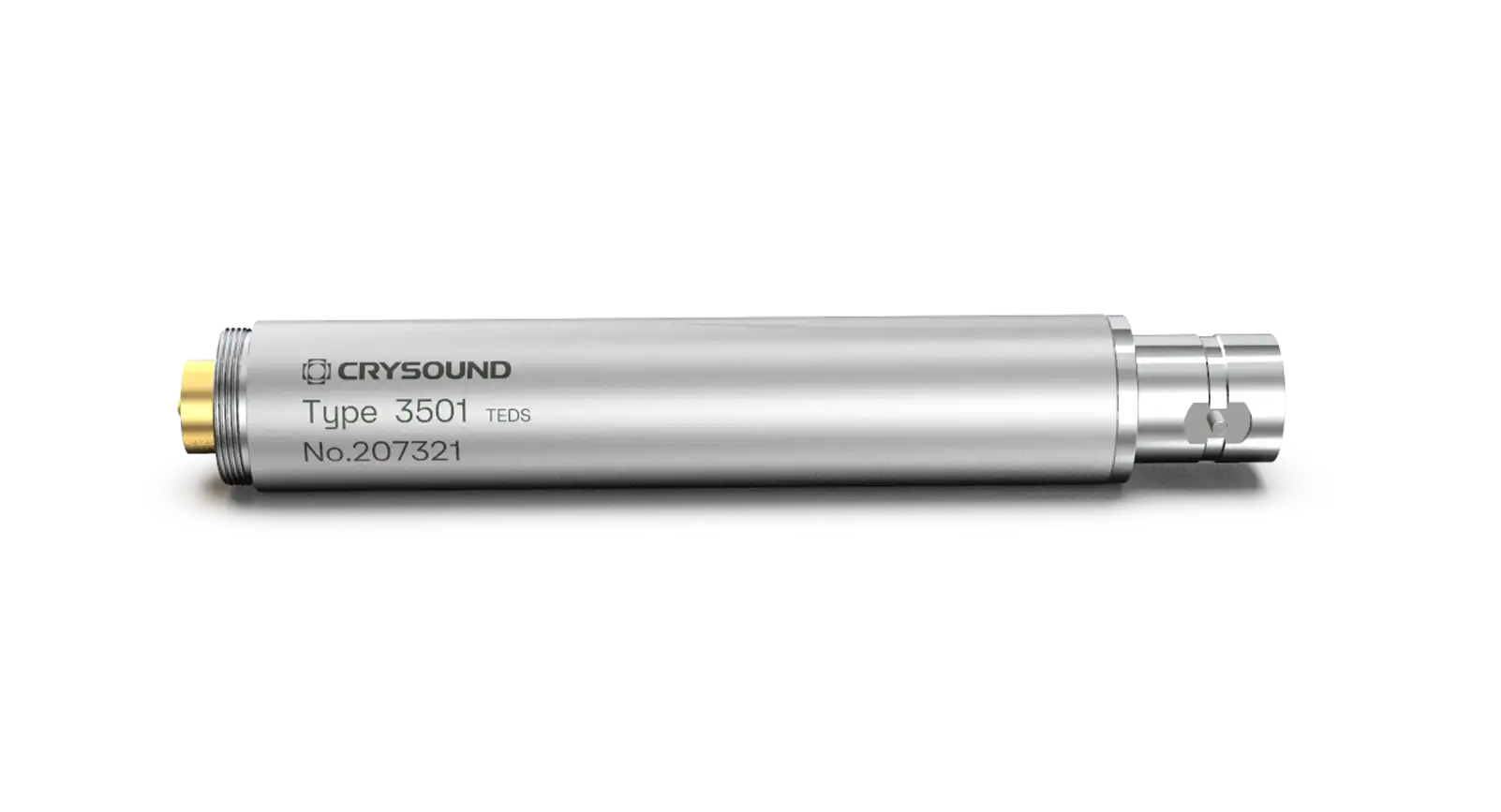

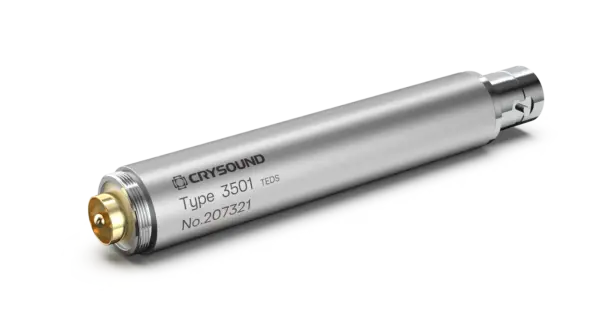

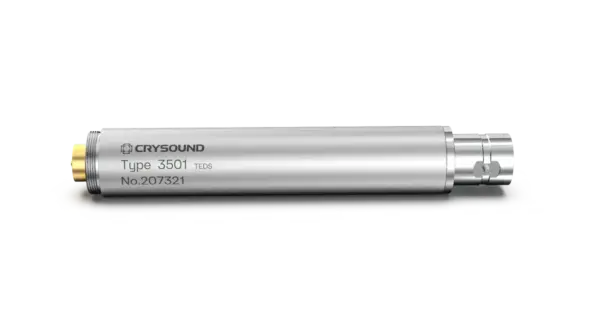

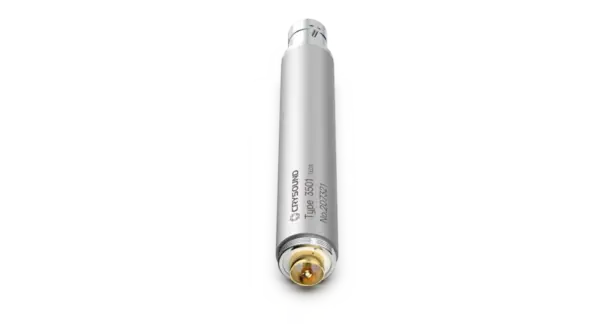

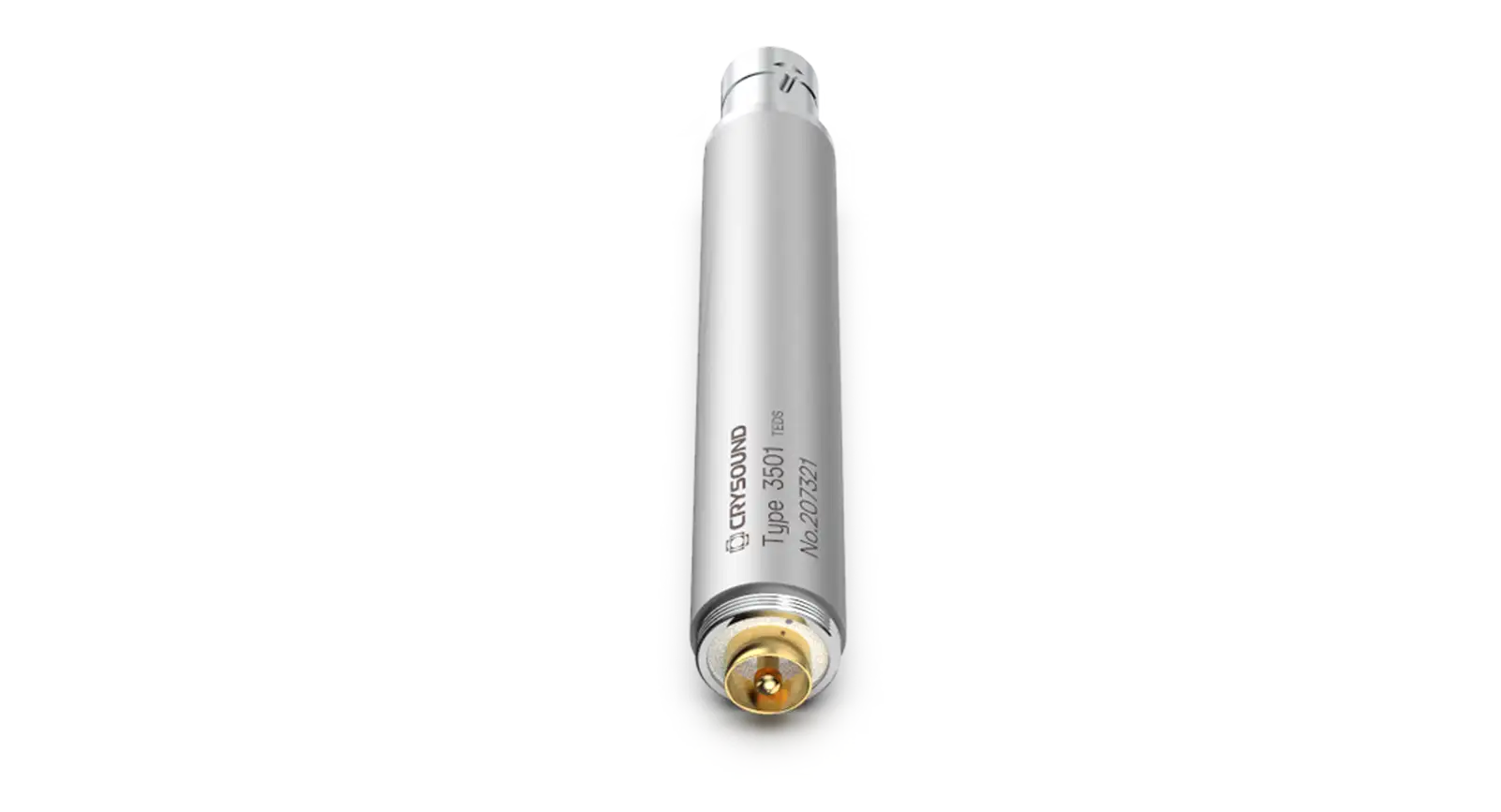

CRY3501 1/2" Preamplifier, IEPE, BNC Connector
CRY3501 is a preamplifier powered by a constant current power supply. It can be used in conjunction with the CRY3000 series 1/2 inch prepolarized measurement microphone. At the same time, it is widely compatible with other brands.
CRY3501 converts high input impedance to low output impedance, allowing the use of a longer extension cable. Its advantage of low background noise hardly causes a load to the microphone. It supports TEDS function, which can reduce test time. Its good design and toughness make it widely applicable to various environmental conditions.
Product Highlights
Technical Specifications
Frequency Response Range
1Hz ~ 200kHz (±0.2 dB)
Input Impedance
>6,0.4pF
Output Impedance
＜50Ω
Distortion (THD)
＜0. 1%
Max Output Voltage
＞10Vp
Power Supply
2 mA to 20mA（Typical 4mA）
Nominal Operating Current
4 mA
Noise, A-weighting
< 2.6 µV rms
Noise, linearity (20 ~ 20kHz)
< 7 µV rms
DC bias voltage
12V±2V
Connector Type
BNC
Temperature
30℃ to +70℃(-22 to 158 °F )
Threaded Coupling
11.7-60 UNS
Diameter
12.7mm ( 0.5'')
Length
80mm(3.15'')
Main Features
- High input impedance, low output impedance
- BNC interface
- Supports “Smart Transducer Interface” IEEE 1451.4 containing TEDS/TEDS function
- Low background noise
