CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa

CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa

CRY3403-S02 is a 1/4-inch free-field prepolarized measurement microphone and preamplifier set designed for ultra-high-frequency and high dynamic range acoustic measurements.

The CRY3403-S02 is engineered with a unique design that ensures an exceptionally wide and flat frequency response, extending up to 90kHz, and can handle sound pressure levels up to 154dB. This microphone set is an excellent choice for general-purpose measurements, offering superior performance for high-definition audio analysis and a range of ultrasonic acoustic applications.

  • Ultra-high frequency free-field microphone set
  • TEDS microphone set
  • Extensive compatibility
  • Durable, reliable, and high-quality
CRY3403-S02 Measurement Microphone Set Typical Frequency Response

The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.

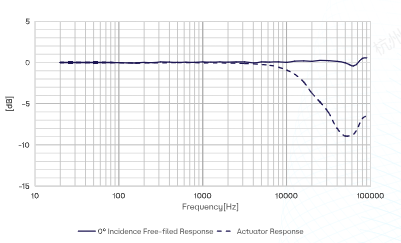

CRY3403-S02 Measurement Microphone Set Typical Frequency Response

The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Technical specification
Field Type
Field Type
Free-field
Noominal Sensitivity
Noominal Sensitivity
4mV/Pa, -48±3dB re 1V/Pa
Frequency Response
Frequency Response
4Hz to 90kHz±2dB
Polarization Voltage
Polarization Voltage
0V
Dynamic Range(re.20uPa)
Dynamic Range(re.20uPa)
35dBA to 154dB
Operating Temperature
Operating Temperature
-30 to +70℃ (-22 to +158℉)
Temperature Stability
Temperature Stability
0.010dB/℃(-10 to +50℃) 0.006dB/℉(+14 to +122℉)
Static Pressure Stability
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Pressure Equalization Vent
Side vented
IEC 61094-4 Type
IEC 61094-4 Type
WS3F
Output Impedance
Output Impedance
< 20Ω
Maximum Output Voltage
Maximum Output Voltage
> 5.0Vrms
Current Source
Current Source
IEPE (2mA to 10mA)
Typical Operating Current
Typical Operating Current
4mA
Interface Type
Interface Type
SMB
Height with Grid
Height with Grid
62.5mm (2.461")
Diameter with Grid
Diameter with Grid
7mm (0.276")
