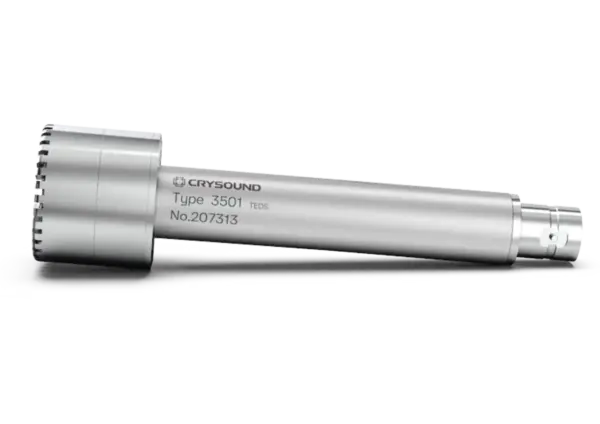

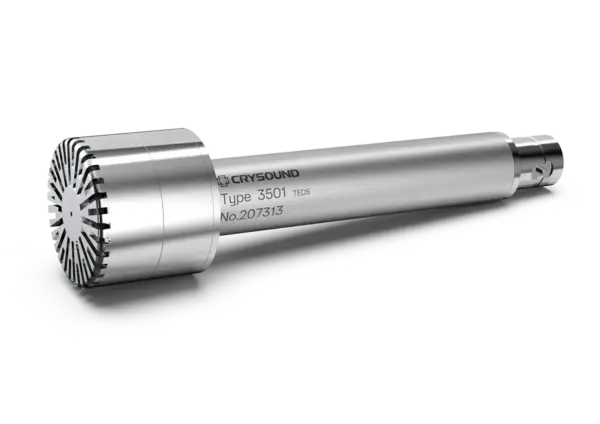

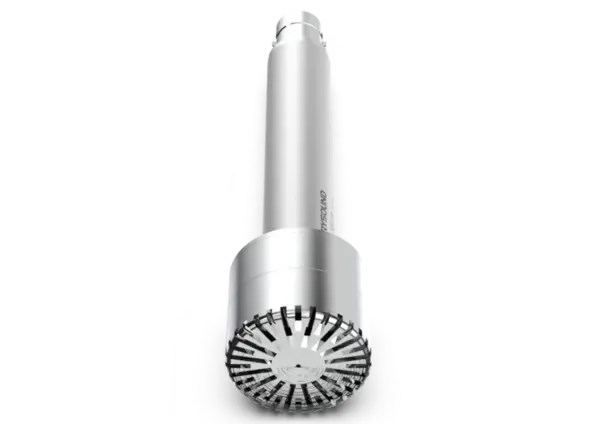

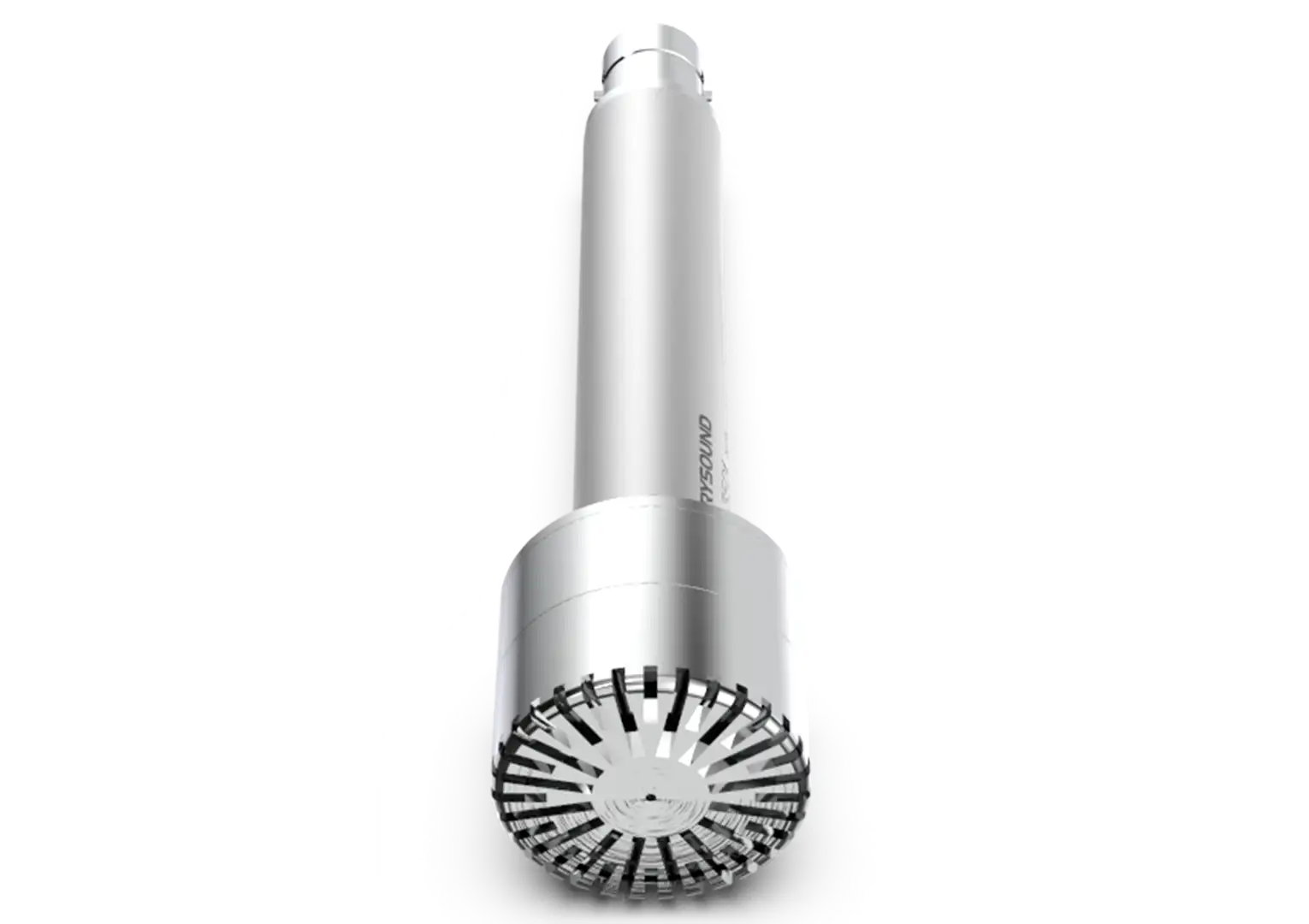

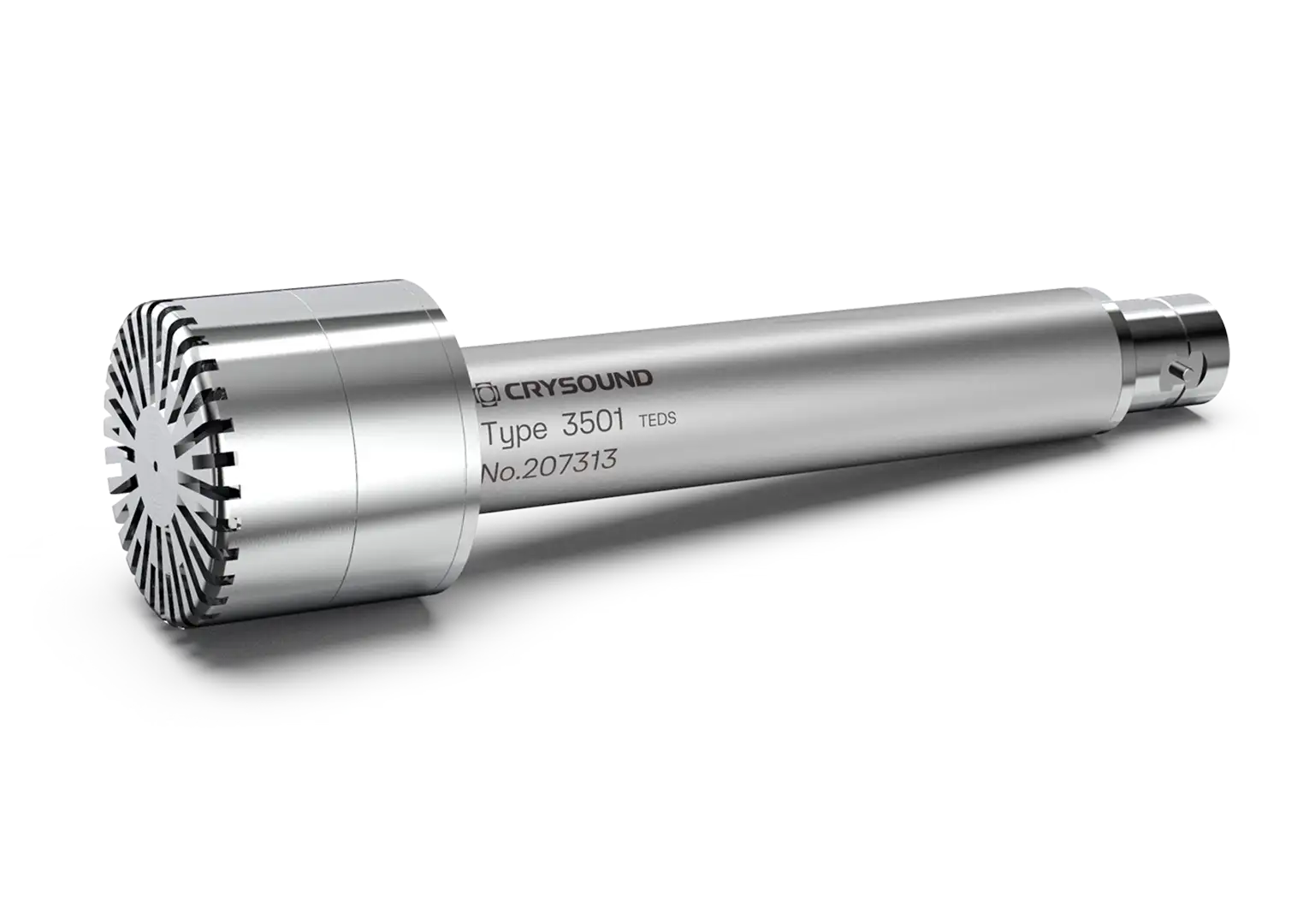

CRY3101-S01 Free-Field Microphone Set, 1", 50mV/Pa
The CRY3101-S01 is a 1-inch free-field prepolarized measurement microphone and preamplifier set, specifically designed for sensitive acoustic testing in low-noise environments such as anechoic chambers and quiet rooms.
It is also widely applicable in various fields that require precise acoustic testing, research in acoustical design, and calibration testing of audio equipment including speakers.
Product Highlights
CRY3101-S01 Measurement Microphone Set Typical Frequency Response
The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Field Type
Free-field
Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
4Hz to 16kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
12 dBA to 138 dBA
Operating Temperature
-20 to +60℃ (-4 to +140℉)
Temperature Stability
0.015dB/℃(-10 to +50℃) 0.008dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS1F
Output Impedance
< 50Ω
Maximum Output Voltage
> 10.0Vp
Current Source
IEPE (2mA to 20mA)
Typical Operating Current
4mA
Interface Type
BNC
Height with Grid
94.3mm (3.712")
Diameter with Grid
23.77mm (0.936")
Main Features
- Low-noise free-field microphone set
- TEDS microphone set
- Extensive compatibilities
- Durable, reliable, and high-quality
