Valve Internal Leak Detection Solution
A Closed Valve Is Not Always a Sealed Valve
In industrial piping systems, a valve may appear closed while still allowing medium to pass through damaged or worn sealing surfaces. Corrosion, debris, pressure cycling, and long-term wear can all reduce sealing integrity and create hidden internal leakage.
The value of internal leak inspection is not only to confirm a fault after it becomes obvious. It is to identify suspicious leakage earlier, while teams still have more flexibility to plan verification, isolation checks, and maintenance action.
Pressure differential can still drive leakage through sealing defects
If the valve is closed but sealing is imperfect, the high-pressure side can still force medium through small gaps toward the low-pressure side.
Internal leakage often stays hidden until it affects process stability or safety
What begins as a concealed leak can later lead to energy loss, process disturbance, unsafe isolation, or unplanned maintenance risk.
Why Conventional Internal Leak Checks Are Harder to Scale
Traditional internal leak review often relies on listening, temperature comparison, pressure-hold observation, or operator experience. These methods can still be useful, but they become harder to scale when sites need to inspect more valves, shorten shutdown windows, and keep judgments consistent across people and shifts.
What many teams need now is a method that is easier to repeat, easier to document, and easier to turn into a standard workflow instead of a one-off experience-based decision.
Experience-based judgment is difficult to standardize across teams
Different operators may interpret the same symptoms differently, which can reduce consistency in leak identification and maintenance prioritization.
Point-by-point methods are slow when many valves need review
As valve count grows, conventional checks can become time-consuming and make it harder to keep inspection pace aligned with site demands.
Why Contact Ultrasound Fits Valve Internal Leak Verification
When a valve does not fully seal under differential pressure, the flowing medium generates turbulence and high-frequency ultrasonic energy as it passes through narrow leakage paths. A contact ultrasound sensor placed at upstream, valve-body, and downstream positions can capture these signals and support guided internal leak analysis.
Compared with purely experience-driven checking, this approach is easier to standardize. Operators can follow a defined test sequence, collect data consistently, and review outputs that are more useful for repeatable leak judgment and maintenance decisions.
Non-intrusive testing supports on-site verification
Teams can assess likely internal leakage without dismantling the valve, which helps keep testing practical in normal operating conditions.
Guided analysis helps turn ultrasound signals into repeatable judgments
Structured data collection and signal analysis reduce reliance on subjective interpretation alone.
Combine Acoustic Imaging Screening with Internal Leak Verification
Not every valve-related issue is purely internal. Some sites also need to separate suspected internal leakage from nearby external leaks, flange leakage, or other abnormal sound sources. If only contact verification is used, surrounding external issues may be missed. If only non-contact screening is used, internal leakage can remain uncertain.
A more complete workflow combines both methods. CRY8124 supports fast screening in ordinary industrial areas, CRY8125 extends the same approach into hazardous environments, and IA3104 adds contact ultrasound verification for internal valve leak assessment.
Acoustic imaging helps narrow down suspicious valves first
Teams can quickly screen valves, flanges, and nearby assets before moving into closer verification and maintenance review.
Contact ultrasound adds closer evidence for internal leak assessment
The contact sensor supports a more focused judgment when teams need to confirm whether the problem is likely inside the valve.

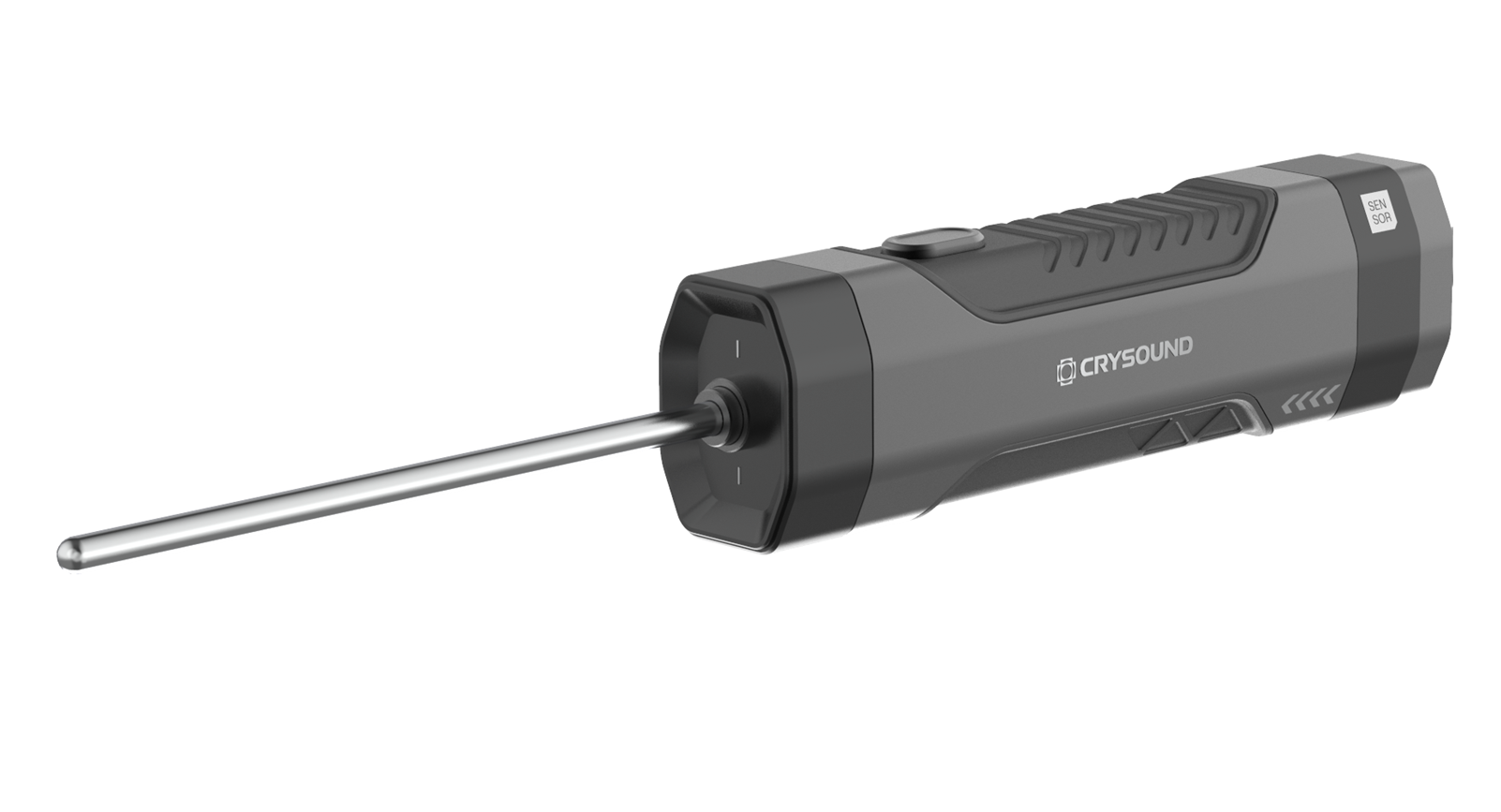

A 5-Point Field Method for More Repeatable Testing
Reliable valve internal leak detection depends on both the instrument and the method. A practical field workflow is to use a five-point measurement pattern that covers upstream, valve-body, and downstream positions so teams can compare results more consistently.
Before testing, operators should confirm that the valve is closed, verify that a pressure differential exists across the valve, and minimize interference from adjacent branches or conditions. The same point sequence can then be reused for rechecks and maintenance follow-up.
Confirm valve status and pressure differential before collecting data
A meaningful differential across the valve is essential if the result is expected to reflect internal leakage rather than background variation.
Use the same five-point sequence to improve repeatability
Consistent measurement order helps teams compare results across shifts, follow-up tests, and repair verification.
Move from Suspected Leakage to Maintenance Action Faster
The value of valve internal leak detection is not limited to finding a suspicious valve once. It becomes much more useful when valve identity, test points, signal evidence, and assessment results can be kept together and used to support maintenance planning.
That is what turns a single test into a workable solution. A stronger workflow helps operations and maintenance teams move from suspicion to verification to repair action with less ambiguity and better follow-up discipline.
Store valve ID, test points, and results together for easier reporting
Clearer documentation helps teams communicate findings, review history, and support traceability during follow-up work.
Turn suspicious leakage into clearer repair priorities
Structured evidence helps maintenance teams decide what to verify, what to repair first, and what to keep monitoring.
