AR/VR Device Audio Test System
In recent years, AR/VR (Augmented Reality/Virtual Reality) technology has
Overview
In recent years, Augmented Reality (AR) and Virtual Reality (VR) technologies have gained significant popularity. CRYSOUND offers a comprehensive AR/VR testing solution to ensure the highest product quality.
Key Features
- Compatibility
The AR/VR testing system supports single-chamber operations, with tests for smartwatch speakers, microphones, and motor vibrations, covering both audio and RF. It is also compatible with WiFi, Bluetooth®, and USB communication.
- Customization
CRYSOUND can quickly customize fixtures for different devices under test (DUTs).
System Devices
CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa
Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB
CRY3401-S01 Free-Field Microphone Set, 1/4", 15.8mV/Pa
Field Type Free-field
Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 40kHz±2dB
CRY3201-S01 Free-Field Microphone Set, 1/2", 12.5mV/Pa
Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB
CRY6151B Electroacoustic Analyzer
Quantity of Channels 4-channel input/output (scalable for synchronous 8-channel input/4-channel output)
Sample Rate All channels for simultaneous sampling at 44.1kHz - 192kHz, with 24-bit
Input Dynamic Range 115dB typical value

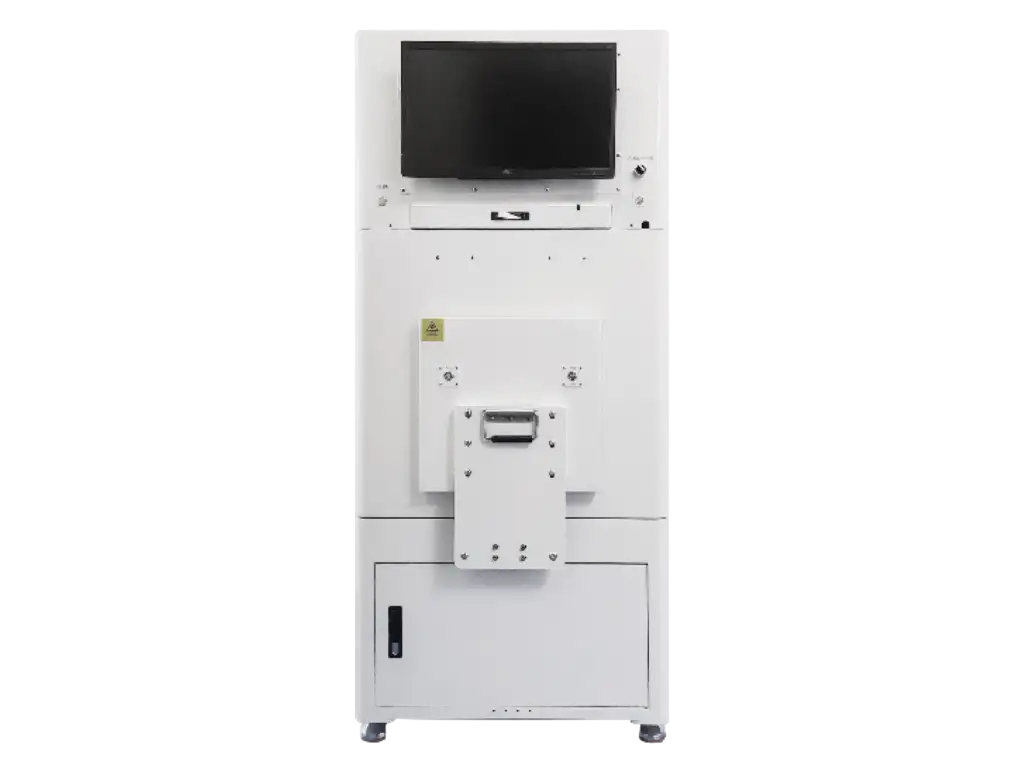

CRY721C Pneumatic Acoustic Test Chamber
Color White
Weight About 155kg
Outer dimension 950(L)*700(W)*700(H)mm
Explore More Cases
As the AR glasses market transitions from proof-of-concept to large-scale commercialization, product capabilities in audio and haptic interaction continue to expand, driving increased demands for production-line testing. With key modules such as audio and VPU (Vibration Processing Units), AR glass production-line testing is evolving from simple functional validation to consistency control aimed at enhancing real-world […]
CRYSOUND provides a quadruplex test in dual shell-shaped acoustic test chamber-audio test system solution.
CRYSOUND provides a shell-type dual-box four-measurement solution for headphone ANC&ENC testing.
CRYSOUND provides a Hearing Aid test system solution.
