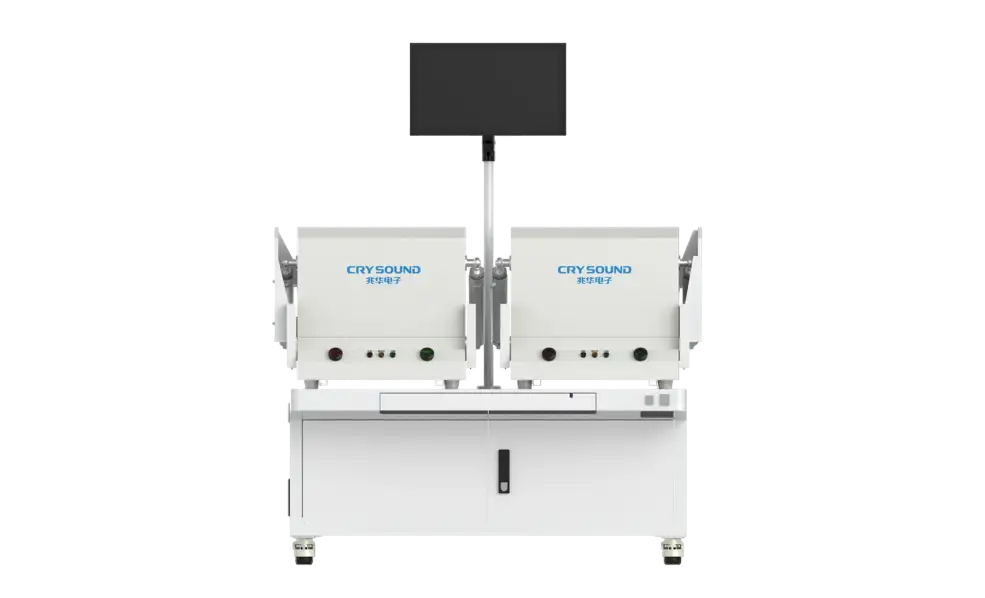

Smart Watch Audio Test System
CRYSOUND provides a smart watch audio test system solution specifically designed.
Overview
The audio characteristics of the speaker and microphone play a crucial role in the performance of smart watches.It is necessary for the producers to test their products‘ audio characteristics.
Therefore, CRYSOUND provides a smart watch audio test system solution to ensure the quality of the products.
Features
- Applicability
The solution ensure accurate and comprehensive testing, allowing evaluation of the audio and motor capabilities of smart watch.
- Compatibility
The solution supports single-chamber parallel dual testing of smart watch speakers, microphones and motor vibration.
- Customization
CRYSOUND can quickly customize fixture designs for different forms of products.
System Devices
CRY3201-S01 Free-Field Microphone Set, 1/2", 12.5mV/Pa
Field Type Free-field
Sensitivity 12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 40kHz±2dB
CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa
Field Type Free-field
Sensitivity 50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response 3.15Hz to 20kHz±2dB
CRY3401-S01 Free-Field Microphone Set, 1/4", 15.8mV/Pa
Field Type Free-field
Sensitivity 15.8mV/Pa, -36±1.5dB re 1V/Pa
Frequency Response 4Hz to 40kHz±2dB
CRY3403-S02 Free-Field Microphone Set, 1/4", 4mV/Pa
Field Type Free-field
Sensitivity 4mV/Pa, -48±3dB re 1V/Pa
Frequency Response 4Hz to 90kHz±2dB
CRY6151B Electroacoustic Analyzer
Quantity of Channels 4-channel input/output (scalable for synchronous 8-channel input/4-channel output)
Sample Rate All channels for simultaneous sampling at 44.1kHz - 192kHz, with 24-bit
Input Dynamic Range 115dB typical value

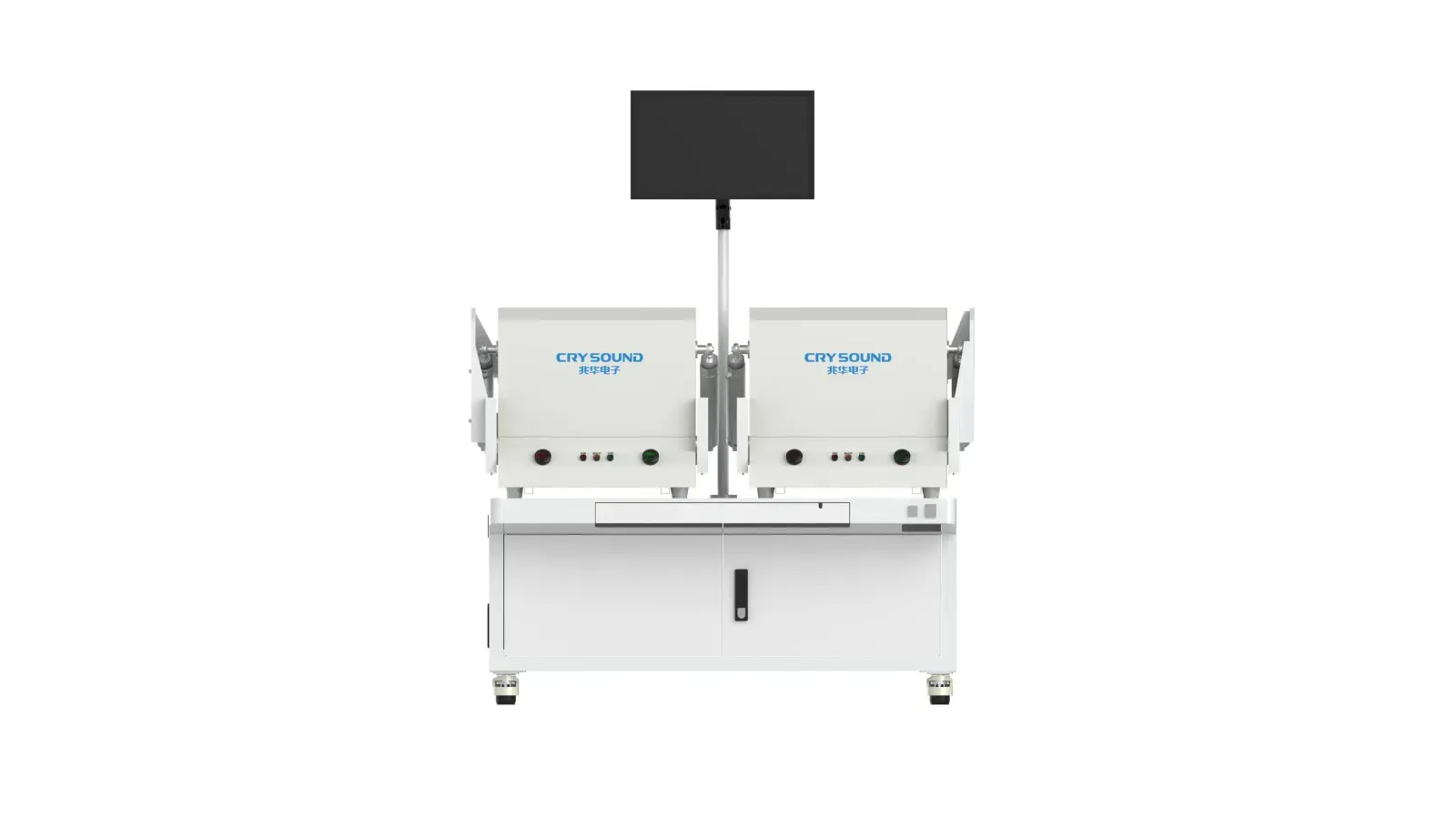

CRY721C Pneumatic Acoustic Test Chamber
Color White
Weight About 155kg
Outer dimension 950(L)*700(W)*700(H)mm
