CRY806 TWS Headphones Acoustic Test Fixture

CRY806 TWS Headphones Acoustic Test Fixture

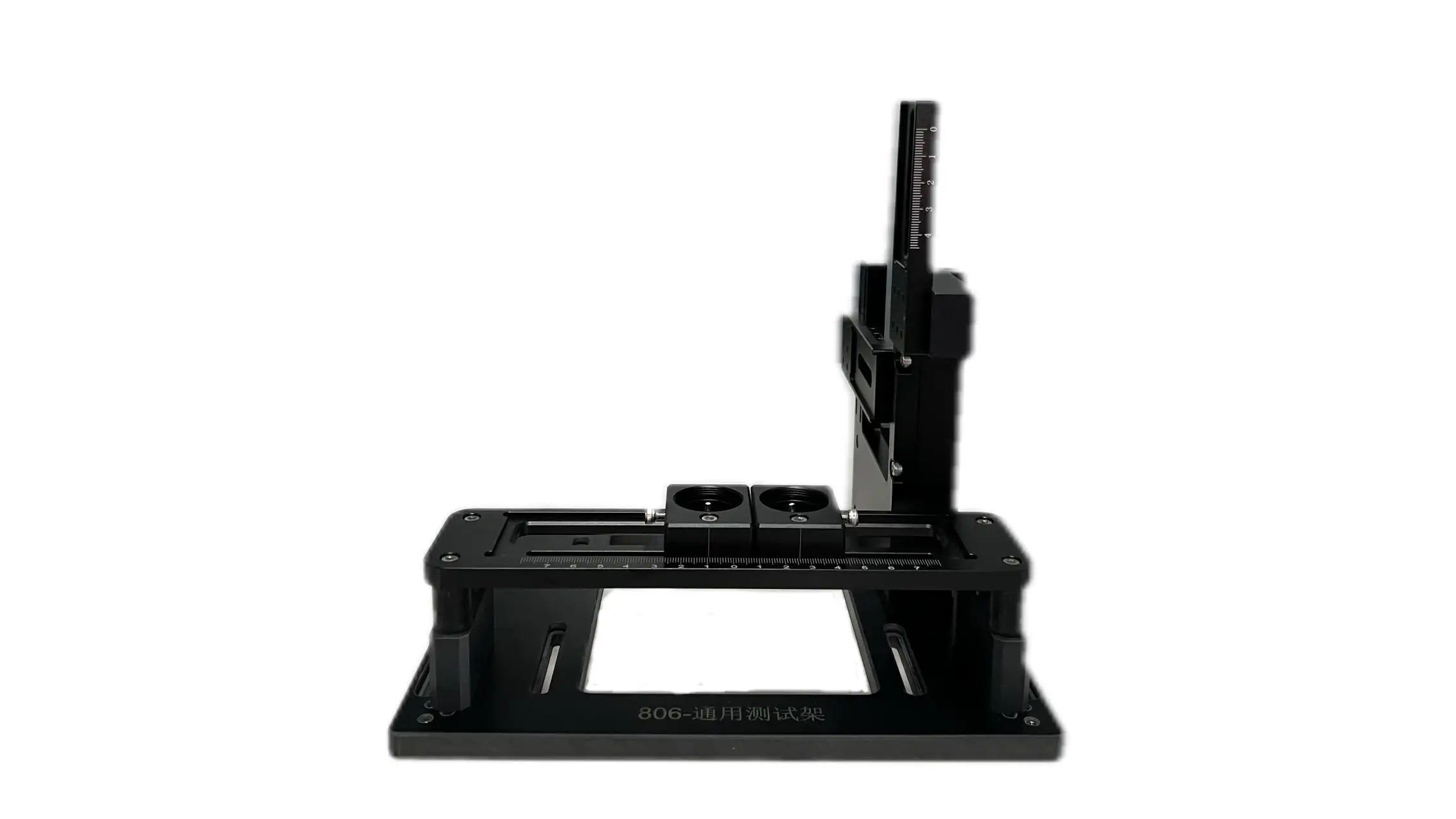

The CRY806 Headphone Test Fixture is specifically designed for testing TWS headphones. Constructed from oxidized and blackened aluminum, it offers enhanced robustness. The fixture is mounted on a resilient base, minimizing the noise floor in typical test scenarios.

The CRY806 can be configured with the CRY711 and CRY718 Ear Simulators for comprehensive headphone testing. Easy to assemble and often used with a mouth simulator, it serves as an ideal acoustic fixture for TWS headphone production lines.

  • Strong robustness
  • Mainly used with mouth simulator
Features
  • Fitted with CRY711 ear simulators complying with IEC 60318-4(2010).
  • Compatible with multiple devices for wide range of applications.
  • The fixture can be customized according to earmuffs and be vertically and horizontally adjusted.
  • Easy to assemble.
  • Manufactured with robust materials, ensuring the stability and longevity of the device
  • Complete with a mouth simulator.
Features
  • Fitted with CRY711 ear simulators complying with IEC 60318-4(2010).
  • Compatible with multiple devices for wide range of applications.
  • The fixture can be customized according to earmuffs and be vertically and horizontally adjusted.
  • Easy to assemble.
  • Manufactured with robust materials, ensuring the stability and longevity of the device
  • Complete with a mouth simulator.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Specifications
Weight
Weight
1.42kg
Material
Material
Oxidized and blackened aluminum
Dimension(L*W*H)
Dimension(L*W*H)
256*210*255mm
Adjustable width between ear simulators
Adjustable width between ear simulators
35mm-140mm
Adjustable height of the top mouth simulator
Adjustable height of the top mouth simulator
0-50mm
Adjustable height of rear mouth simulator
Adjustable height of rear mouth simulator
0-80mm
