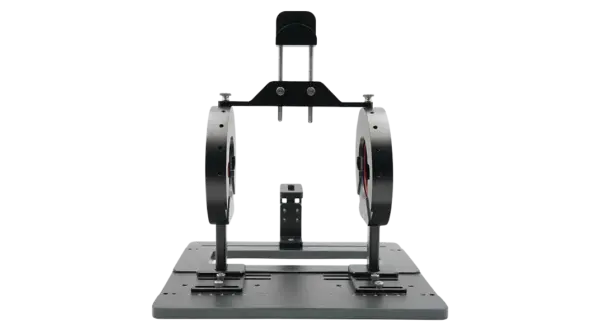

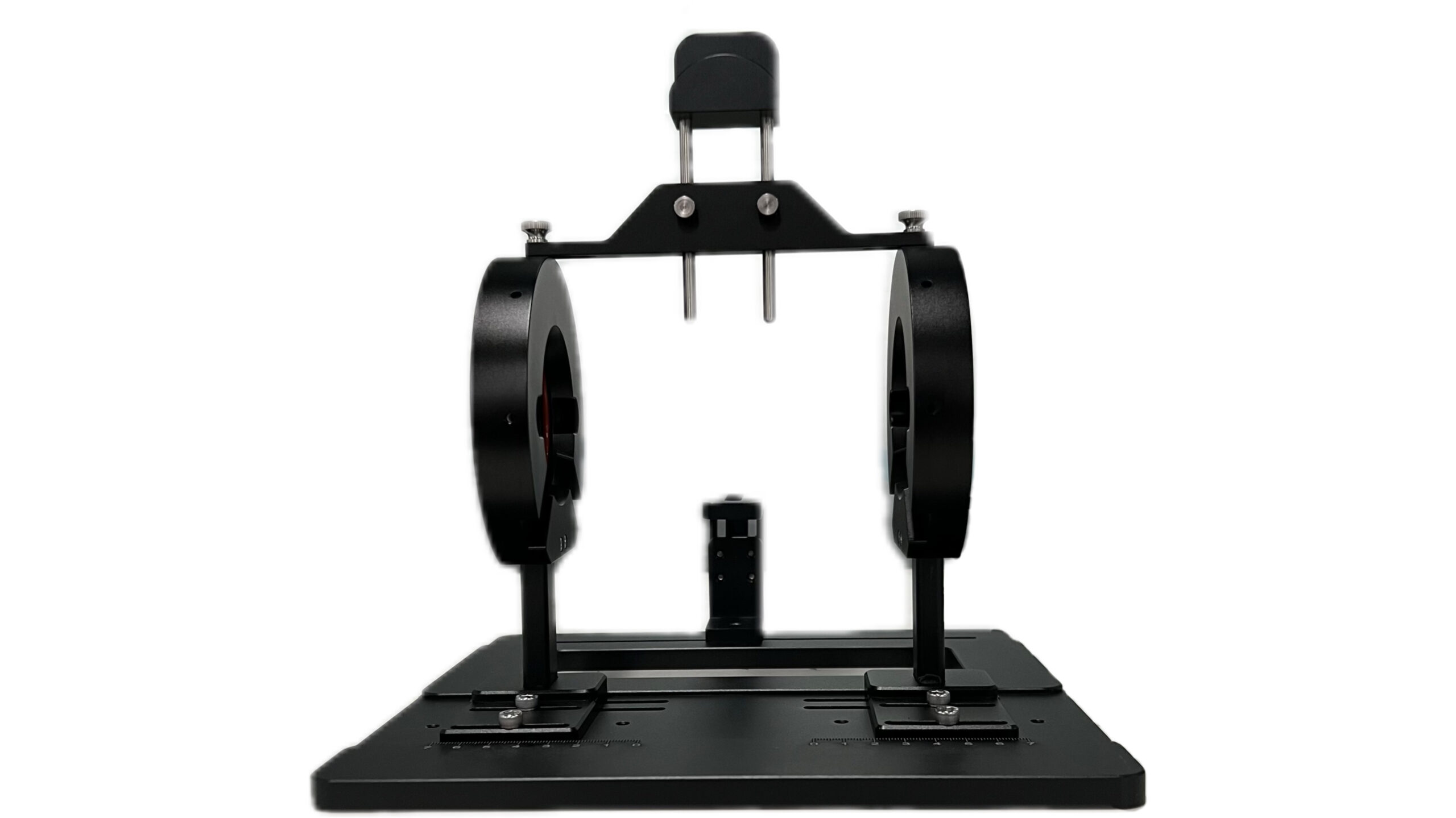

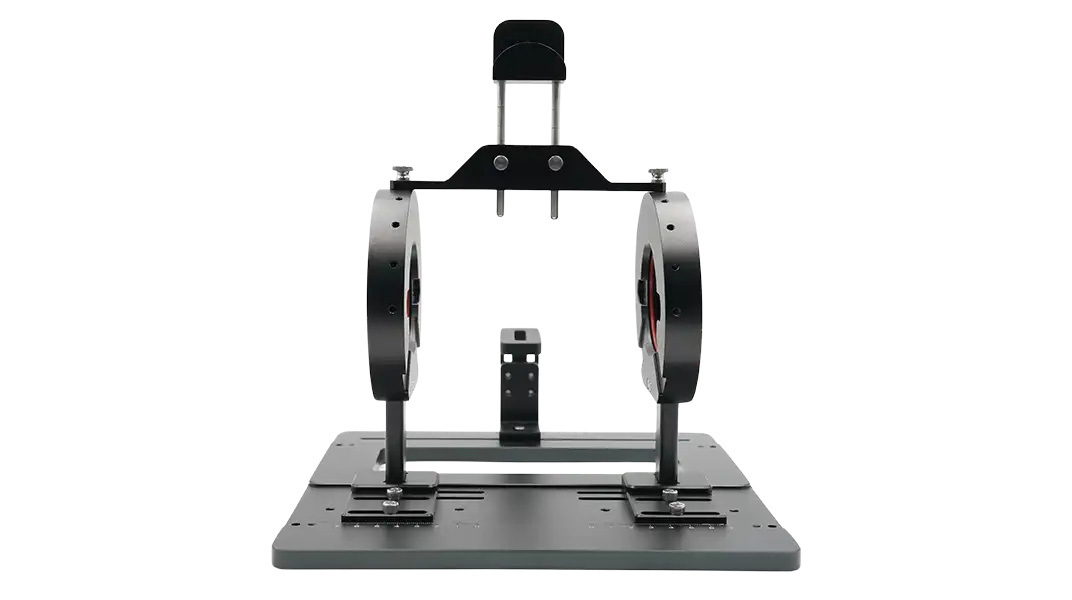

CRY801B Headphone Test Fixture
The CRY801B Headphone Test Fixture is designed for testing over-ear headphones, hearing protection devices such as earmuffs and earplugs. Constructed from robust oxidized and blackened aluminum, it is mounted on a resilient base that minimizes the noise floor during testing. Foam plugs are incorporated to prevent sound leakage along the cables.
The fixture can be configured with the CRY711 and CRY318 Ear Simulators for headphone testing. Its user-friendly assembly and compatibility with a mouth simulator make it an ideal choice for production line testing of over-ear headphones.
Product Highlights
Features
Allows for different configurations for typical applications and use cases.
Fitted with ear simulators complying with IEC 60318-4(2010) and IEC 60318-1(2009).
Fixture can be customized according to earmuffs and be vertically and horizontally adjusted.
Complete with a mouth simulator.
Technical Specifications
Weight
2.6kg
Material
Oxidized and blackened aluminum
Max-width
260mm
Height
260mm
Horizontal adjustment range
80mm-180mm
Vertical adjustment range
0-50mm
Main Features
- Compatible with multiple devices for wide range of applications
- Easy to assemble and designed with robust materials
Related Products

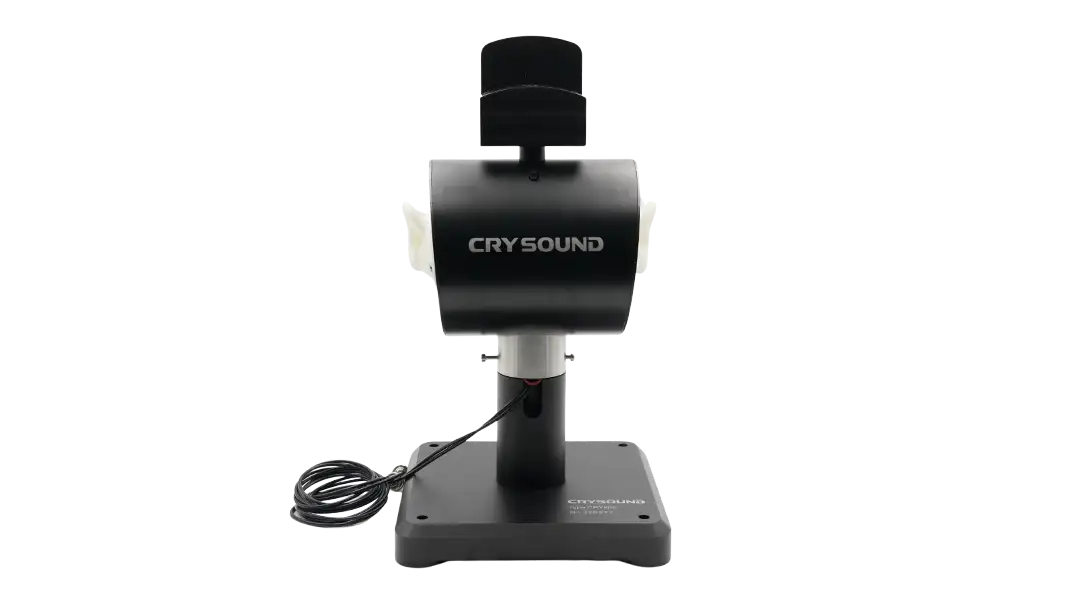

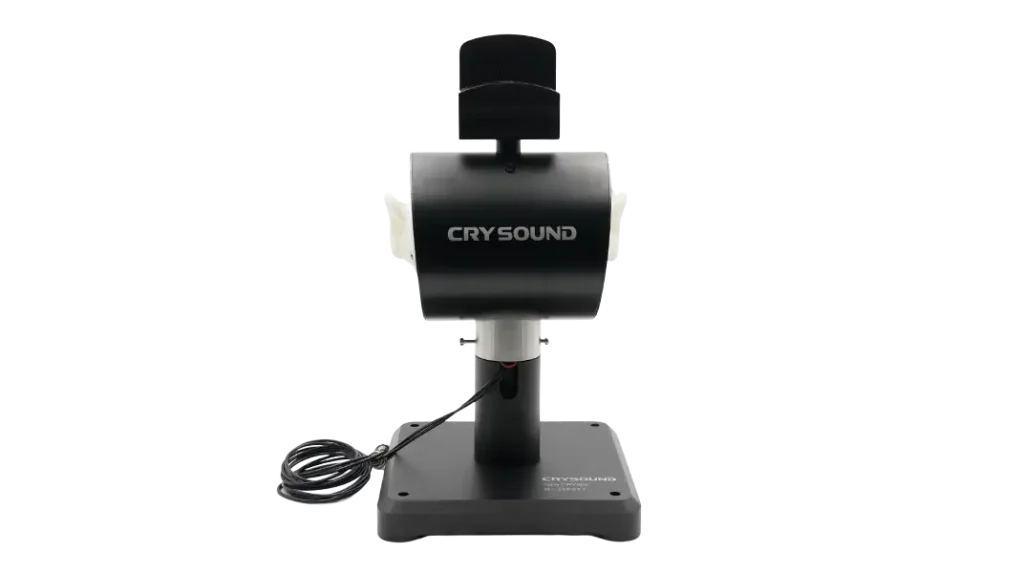

CRY802 ATF Hearing Protection Headphone Test Fixture
Weight
11.6kg
Material
Oxidized and blackened aluminum
Max-width
156mm
CRY806 TWS Headphones Acoustic Test Fixture
Weight
1.42kg
Material
Oxidized and blackened aluminum
Dimension(L*W*H)
256*210*255mm
