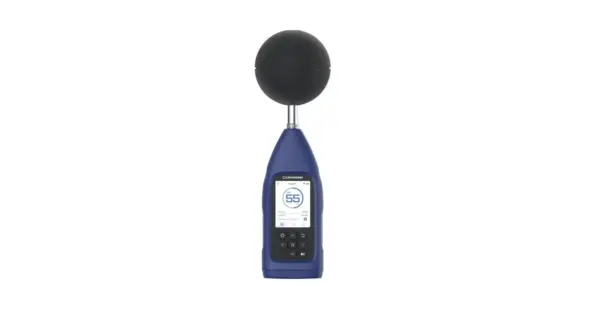

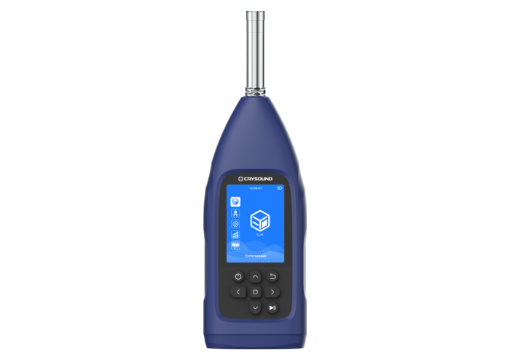

CRY2834 Sound level meter

The CRY2834 Sound Level Meter follows the IEC 61672-1:2013 Class 2 standard, ensuring precise and reliable measurements across a range of applications. The design of the device considers both aesthetics and ergonomics, resulting in a sleek, user-friendly instrument that is both visually appealing and comfortable to use. This sound level meter is suited for a wide array of applications, including environmental protection, industry, and occupational health. Its comprehensive functionality makes it an invaluable tool for professionals who require precise noise level measurements in their day-to-day operations.

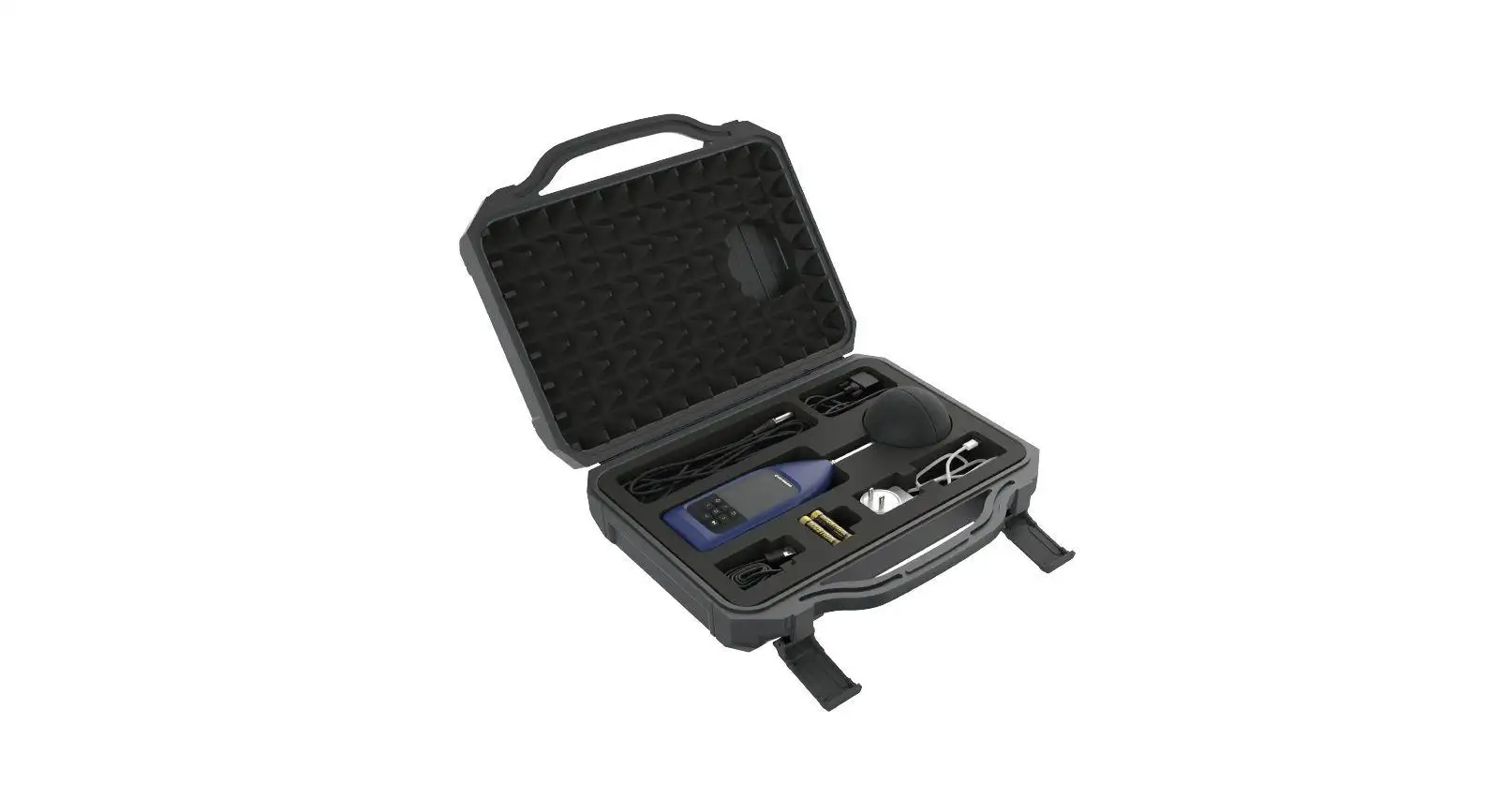

Compact and robust

Multiple weighting options supported

Compatible with various communication protocols

Wide range

CRY2834 sound level meter stands out with its impressive linear range of 25-140dBA, capturing a vast spectrum of sound intensities with unparalleled accuracy. Coupled with an ultra-low noise floor of 22dBA, it delivers superior background noise rejection. Its wide measurement range and exceptional base noise performance make it a true game-changer in noise monitoring and analysis.

Low noise floor.

Wide dynamic range.

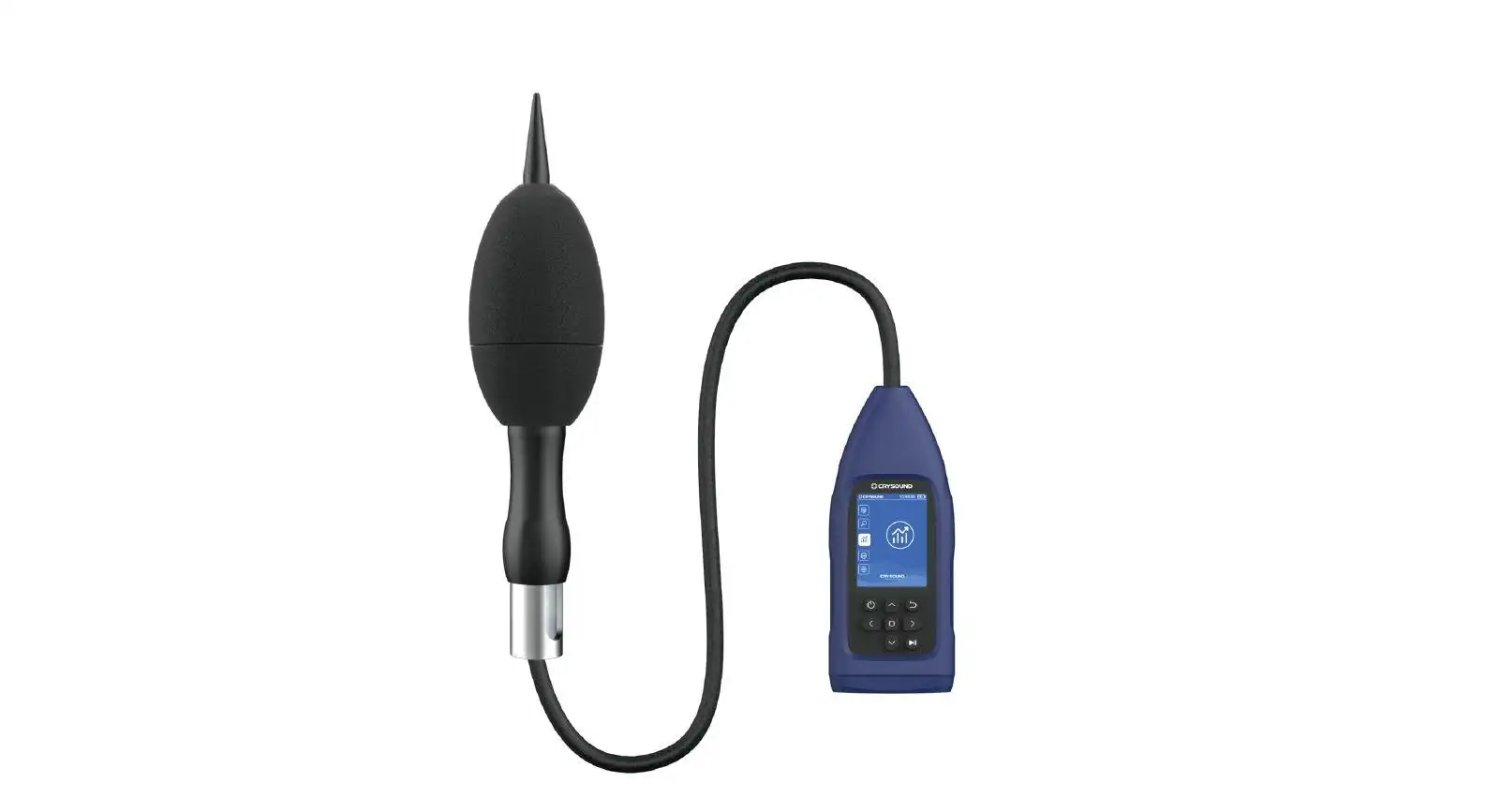

Comprehensive Functionality

The sound level meter boasts multifunctionality, capable of measuring multiple parameters, offering versatile weighting options tailored to various acoustic environments. It also equippes with data recording and storage capabilities, ensureing comprehensive acoustic analysis and documentation.

Multifunctional measurement.

Multiple measurement parameters.

Versatile weighting options.

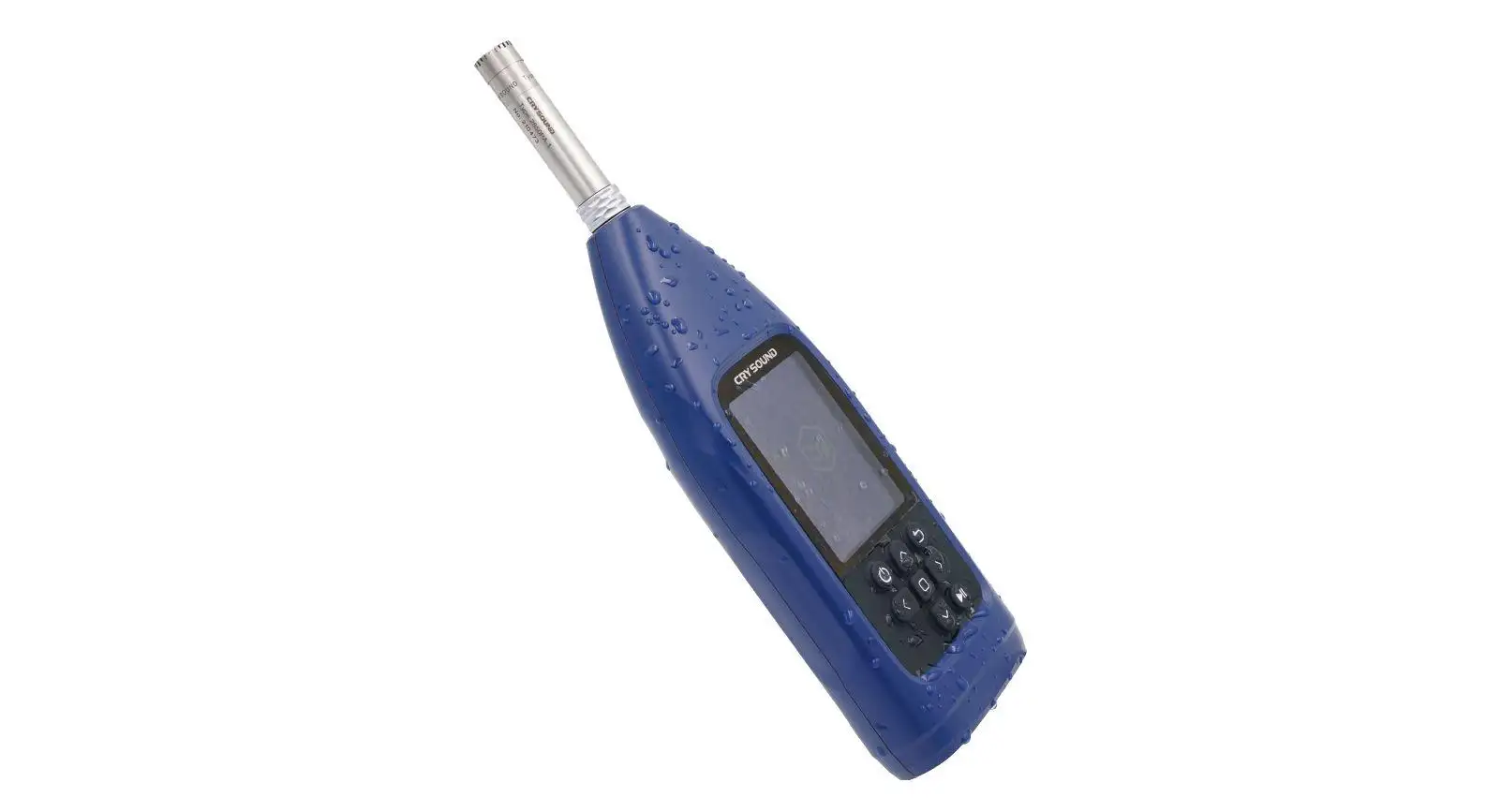

Ease of operation

CRY2834 sound level meter offers a seamless user experience with a simple, intuitive control interface. Navigate through menus effortlessly with clear, convenient options. Designed with tactile button controls for precision adjustments, it’s built to last with an IP54 protection rating, ensuring durability and reliability in various conditions.

Simple and intuitive control interface.

Clear and convenient menu navigation.

Designed with buttons control.

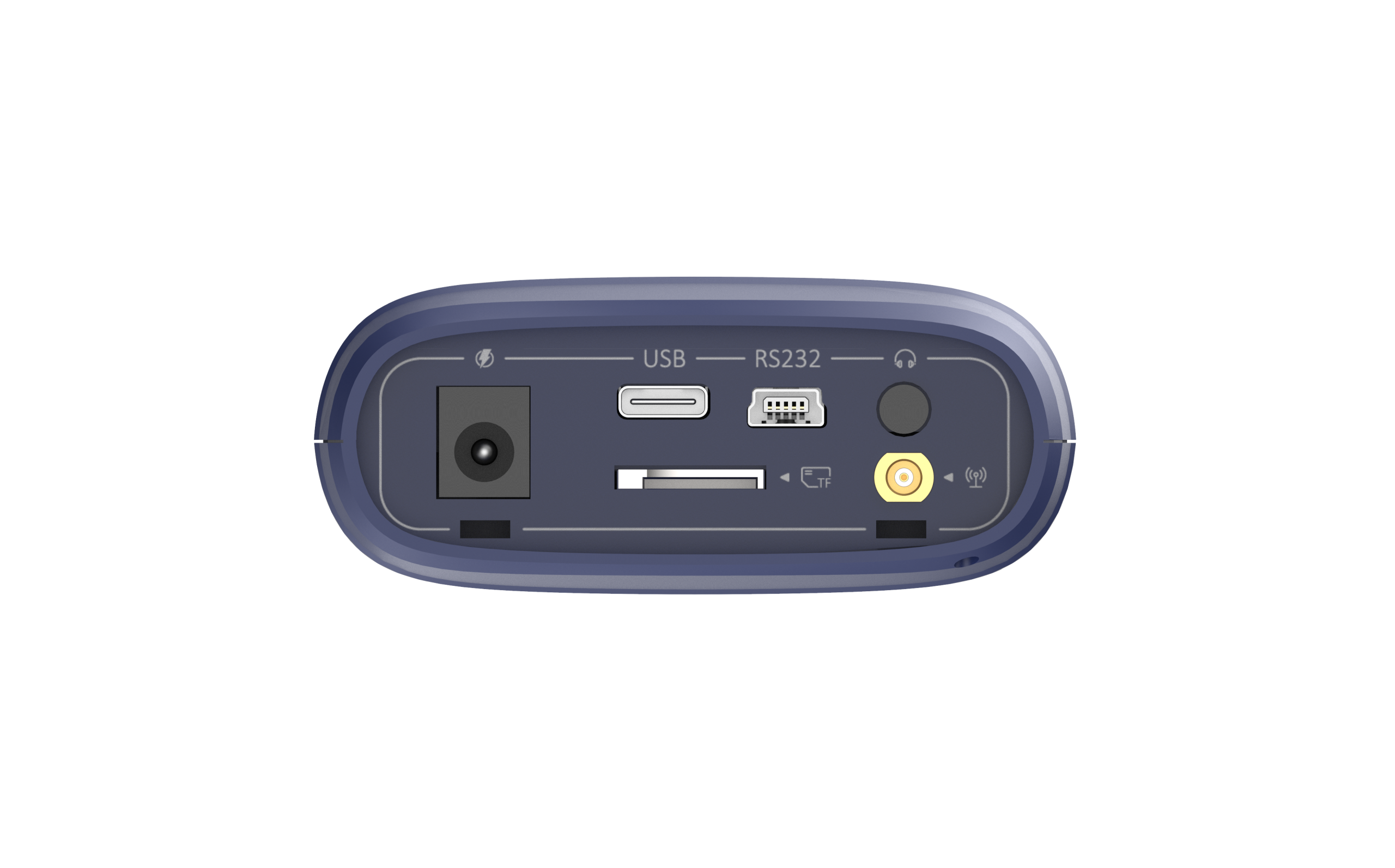

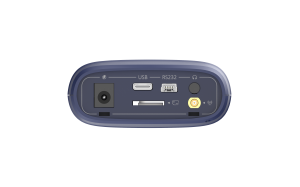

High flexibility

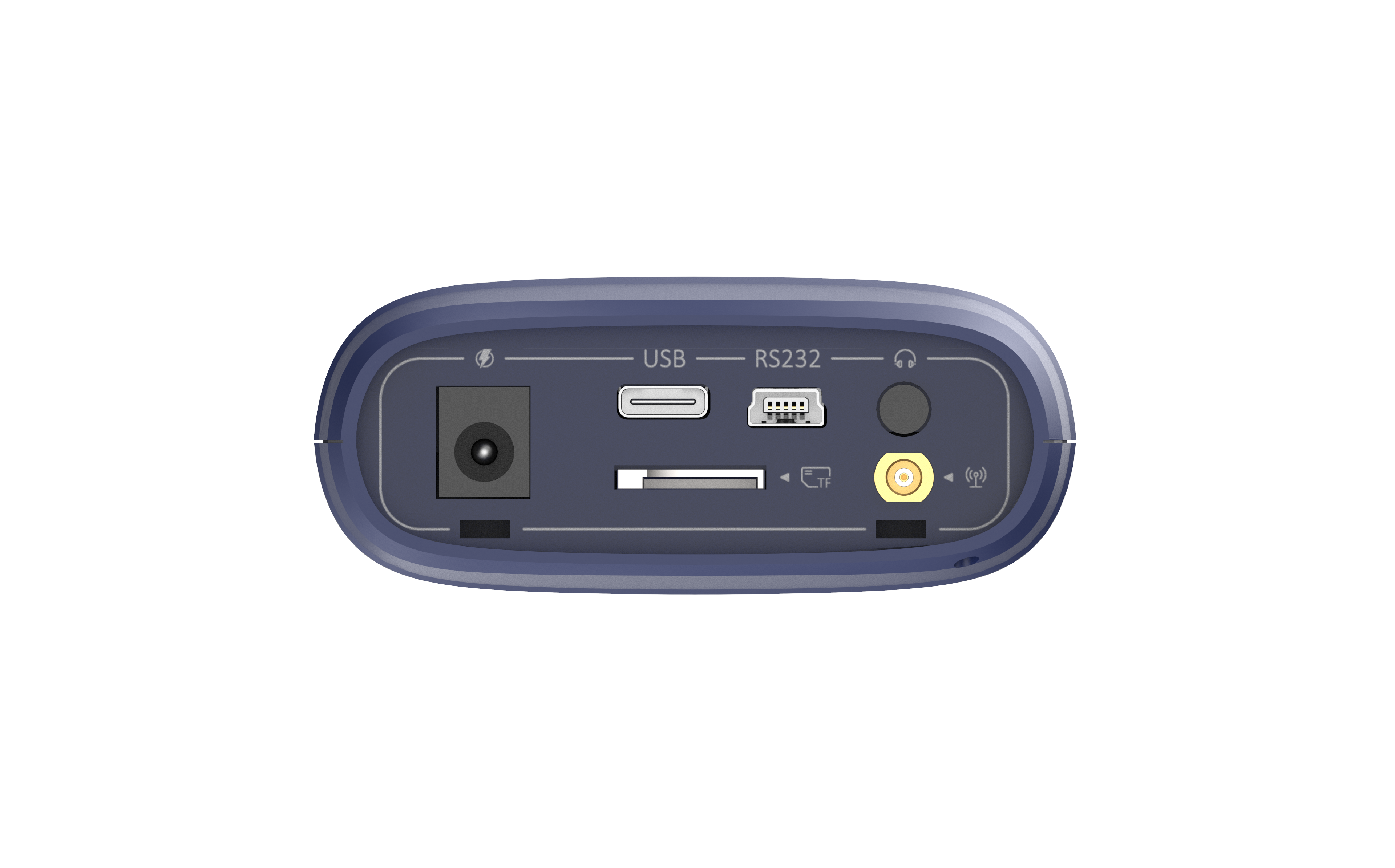

The sound level meter features diverse interfaces, supporting Modbus for industrial connectivity, and offers wireless capabilities via Bluetooth and WiFi. It also provides AC/DC signal output, ensuring compatibility and flexibility across various applications.

Offers wireless connectivity and remote control capabilities.

Technical Specifications

Microphone

Microphone type

CRY331

Open circuit Sensitivity

40mV/Pa(-28dB re 1 V/Pa)±1.5dB

Frequency range

20Hz~12.5kHz(±2dB)

Self-generated noise level

≤18dBA

Technical Specification

Linear Operating Range

25dBA ~ 140 dBA

Frequency range

20Hz~12.5kHz(±2dB)

Internal noise

≤22dBA

Applicable standards

IEC61672-1: 2013 Class 2

Weighting filters

Frequency weighting: A, C, Z

Time constants

Time Weighting: S, F, I

Measuring Parameter

Lp, Leq,t, Lpeak, Leq,T, Lmax, Lmin, SEL, Lex8h, LAVG, TWA, DOSE, Ln(n=5, 10, 50, 90, 95), SD, E

Measurement function

Integral Measurement, Statistical Analysis, 1/1 Oct, Sound Exposure Measurement, Monitoring

Statistics

L5, L10, L50, L90, L95

Communication Interfaces

AC/DC, PWM, USB, RS232, BT, WiFi

Memory

TF card 32 GB (removable & upgradeable up to 64 GB)

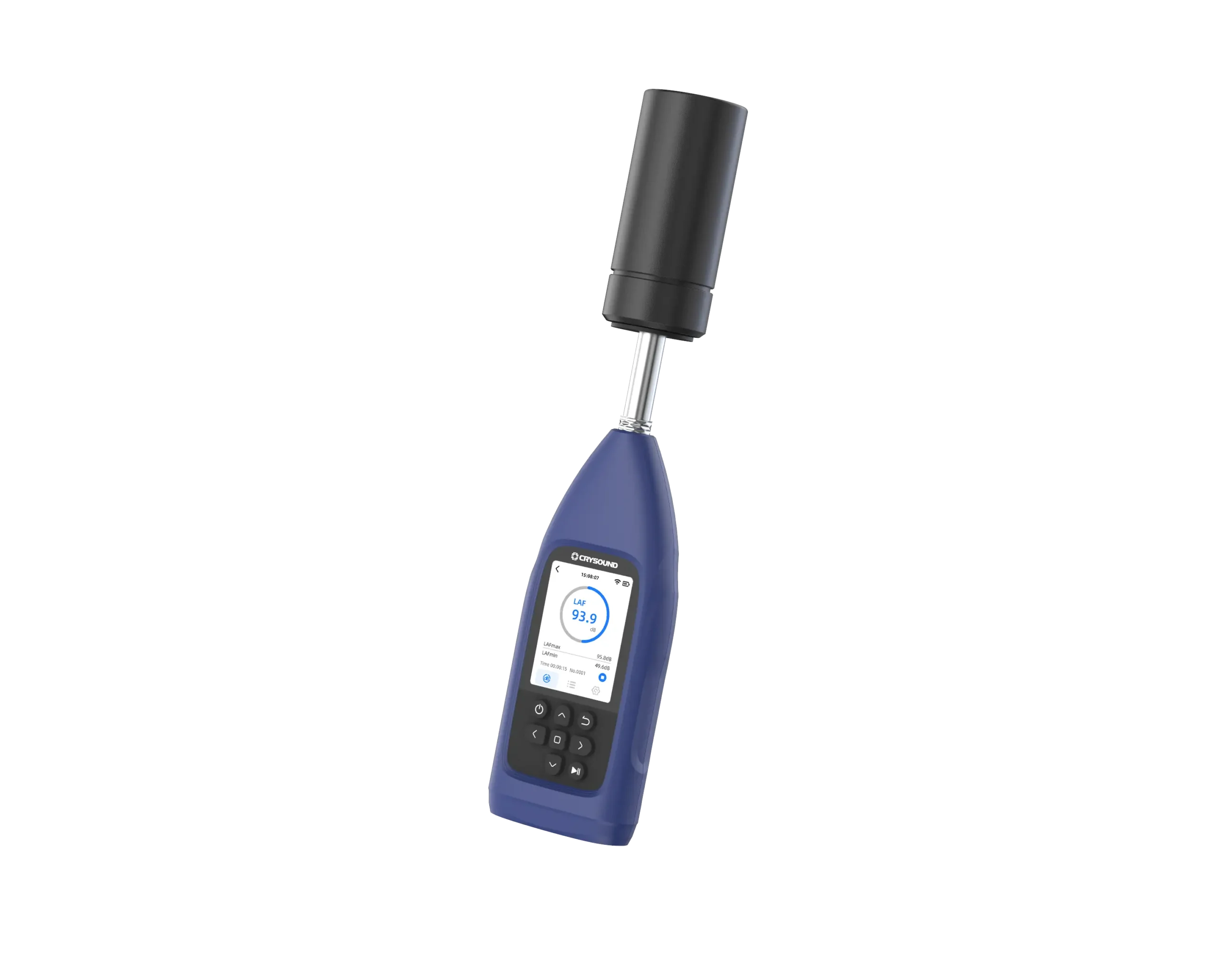

Calibration

Reference Level

94dB@1kHz/114dB@1kHz

Calibration

Sound Calibrator Class 2 or Class 1

Environment

Temperature 23°C，Pressure 101.325kPa，Humility 50% RH

Power Supply

Battery

4*AA battery

External Power Supply

5V USB Type C or DC

Ambient conditions for operation

Operating temperature range

-20~+60℃

Humidity range

≤90% RH

Physical

Weight

330g (With battery)

Size

L*W*H=249x76x30.5mm

Display

320*240, TFT Display

Operation

Button
