Microphone Test System

ELECTROACOUSTIC TEST

Software can be customized
to access to MES system

The fixture features a
modular design, allowing
for easy replacement based
on testing requirements

Compatible with most
digital signal tests

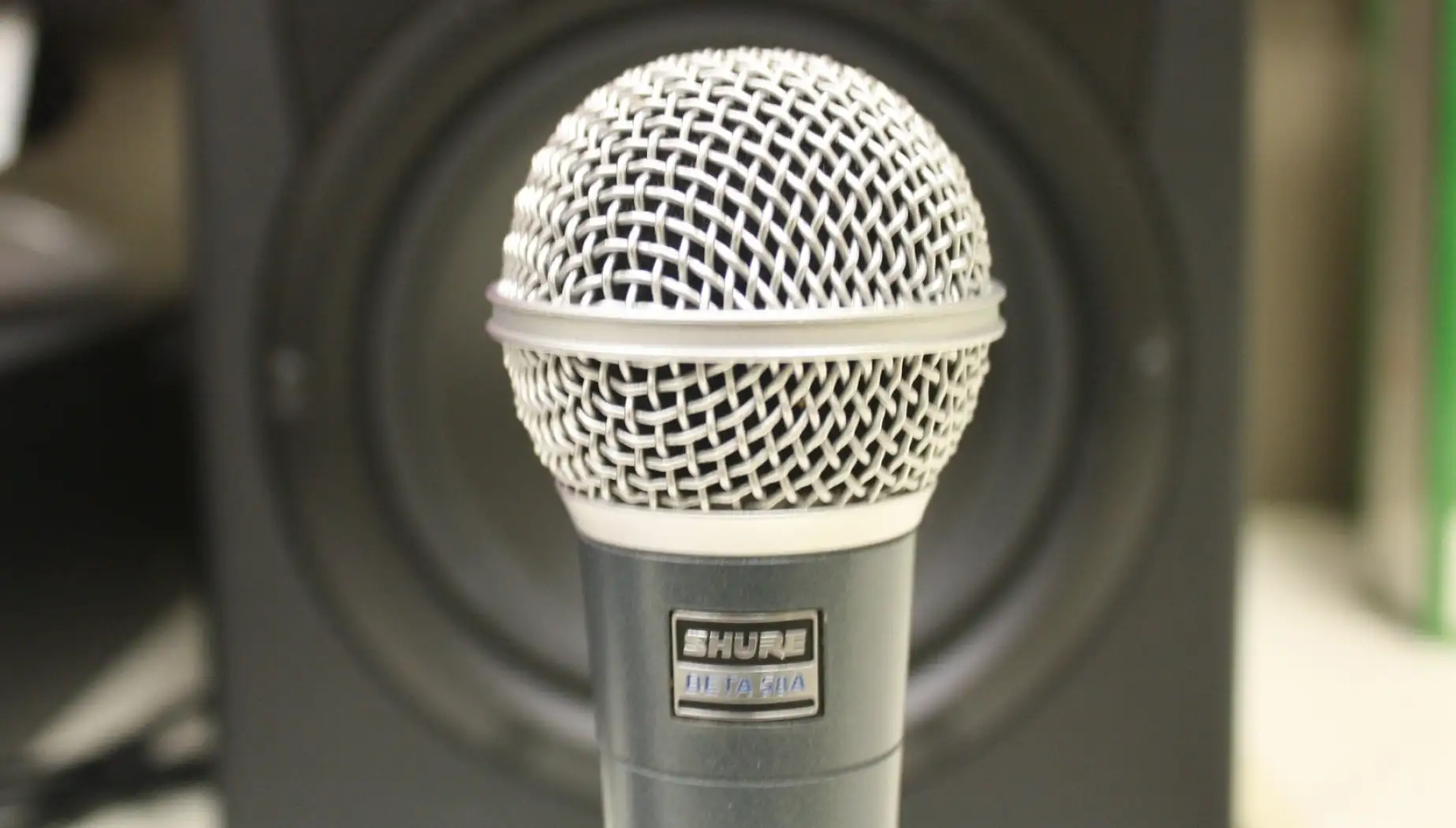

Microphone Versatility

With the wide variety of microphones on the market, accommodating different types has become a key focus for us. CRYSOUND offers versatile microphone testing systems that can be tailored to different microphone types by replacing specific components, ensuring optimal adaptability and performance.

Features

Applicability

‍The CRY6151B is engineered for testing raw materials, semi-finished products, and finished wired products.

Compatibility

The microphone testing system accommodates a wide range of single microphones, including electret microphones, MEMS analog and digital microphones, and moving coil microphones.

Test Items

MIC Test

Frequency response

Rub & Buzz

Total harmonic distortion

Signal-to-noise ratio

Phase

System Devices

Edit Content

CRY6151B Electroacoustic Analyzer

CRY6151B is a robust and reliable electroacoustic analyzer with a frequency range spanning from 20Hz to 20kHz. It is designed to evaluate a diverse array of devices, including USB, Bluetooth®, and noise-canceling headphones; electret, MEMS, and moving-coil microphones; receivers; speakers; Bluetooth loudspeakers; and loudspeaker crossover devices.

Technicians can assess device performance using key metrics and procedures such as sensitivity (SPL), impedance, total harmonic distortion (THD), resonance frequency (F0), headphone balance, headphone positioning, phase, polarity, microphone current and voltage, signal-to-noise ratio (SNR), microphone directivity, speaker Thiele/Small (TS) parameters, and telephone loudness ratings. The CRY6151B offers comprehensive capabilities for thorough and precise evaluation of electroacoustic equipment.

Edit Content

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.

‍CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.

Edit Content

CRY710 Pneumatic Acoustic Test Chamber

The CRY710 Pneumatic Shielding Box, constructed from welded steel plates, provides robust RF shielding for testing Bluetooth, Wi-Fi, and other devices, effectively preventing interference between production lines. It also offers a soundproof environment for assessing acoustic performance. The pneumatic door can be controlled via the serial port.

‍For quadruplex audio testing of TWS headphones, combining two CRY710 boxes with a CRY6151B enables a single operator to manage two test stations simultaneously, significantly reducing labor costs.

Edit Content

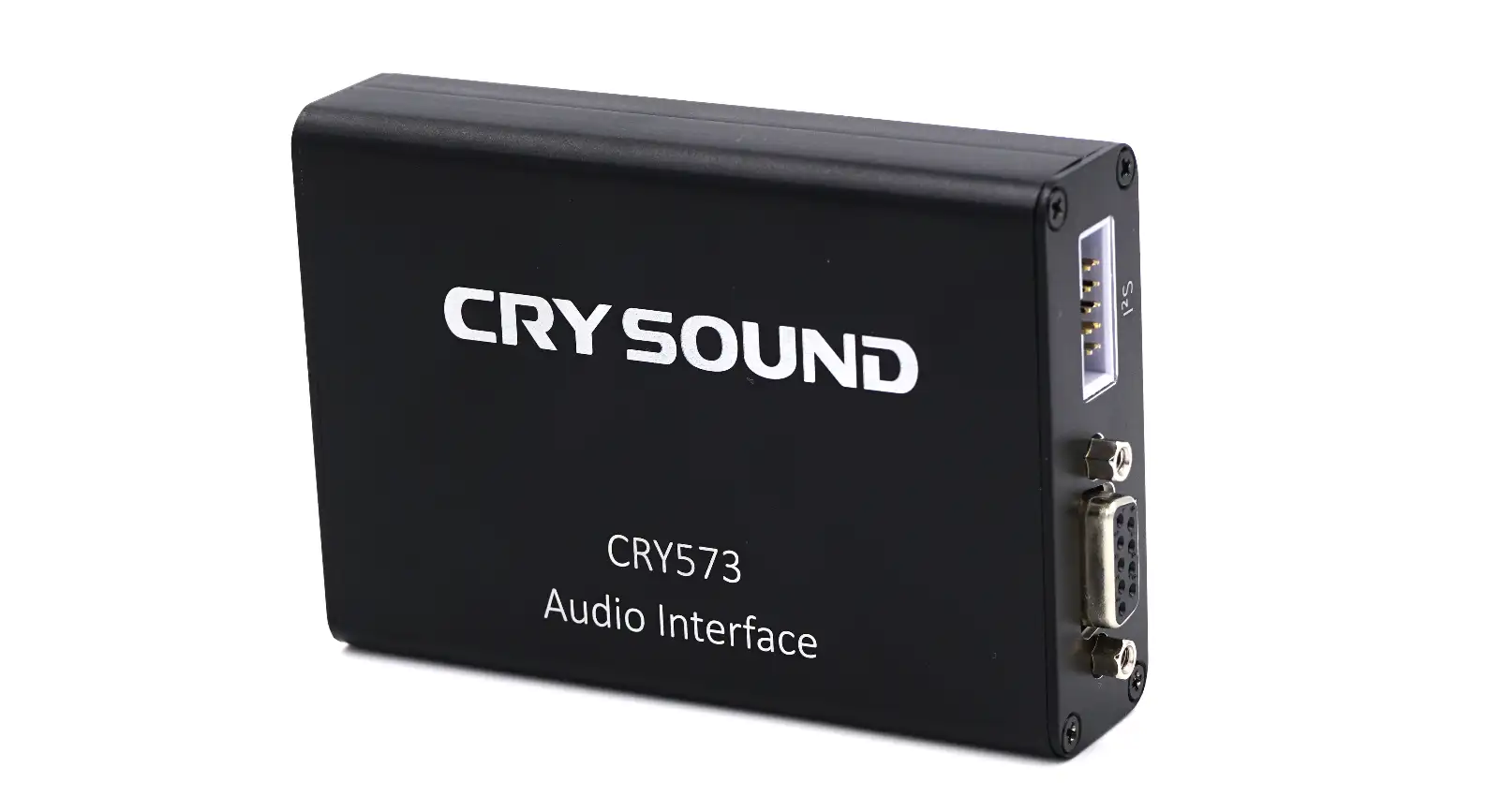

CRY573 Digital Microphone Converter

The CRY573 facilitates the conversion of PDM and I2S signals to analog output with software-controlled switching. It offers adjustable sampling rates ranging from 8kHz to 48kHz(available only in PDM mode) and allows for fine-tuning of left and right channel gains.

‍Connected via USB, the CRY573 appears as a virtual serial port on your PC, enabling straightforward configuration adjustments through this interface.
