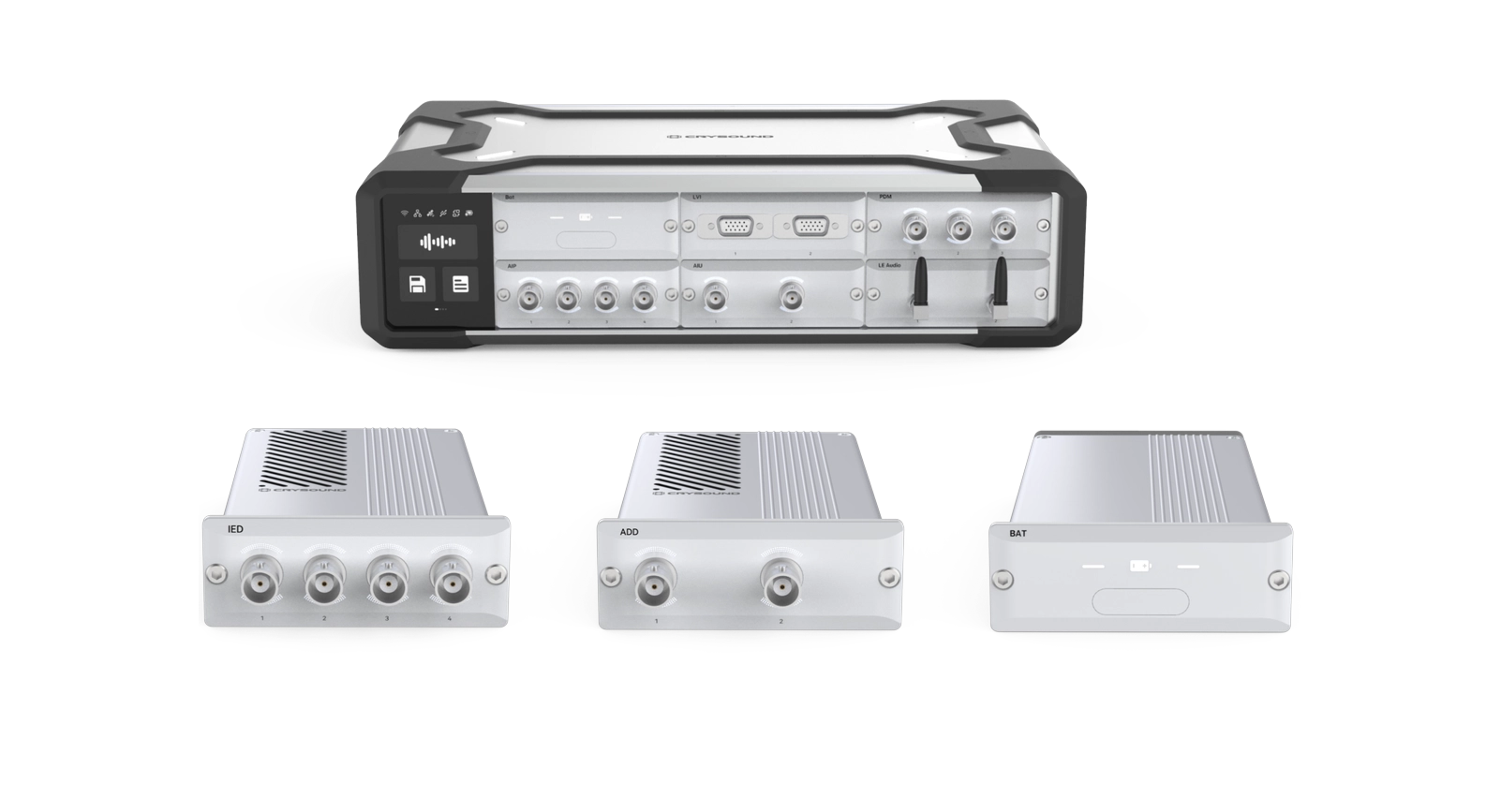

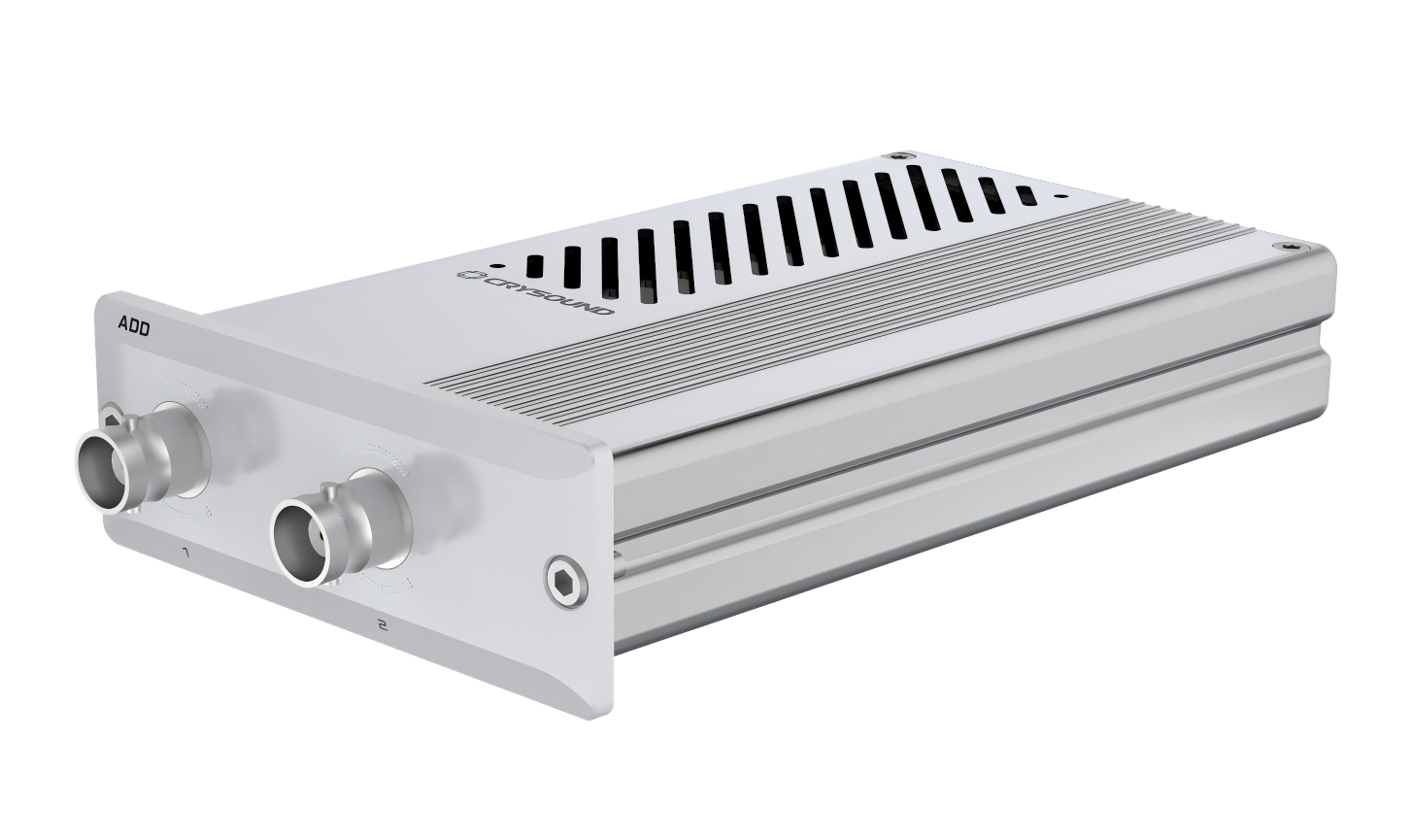

CRY5085 Analog Out - ADD

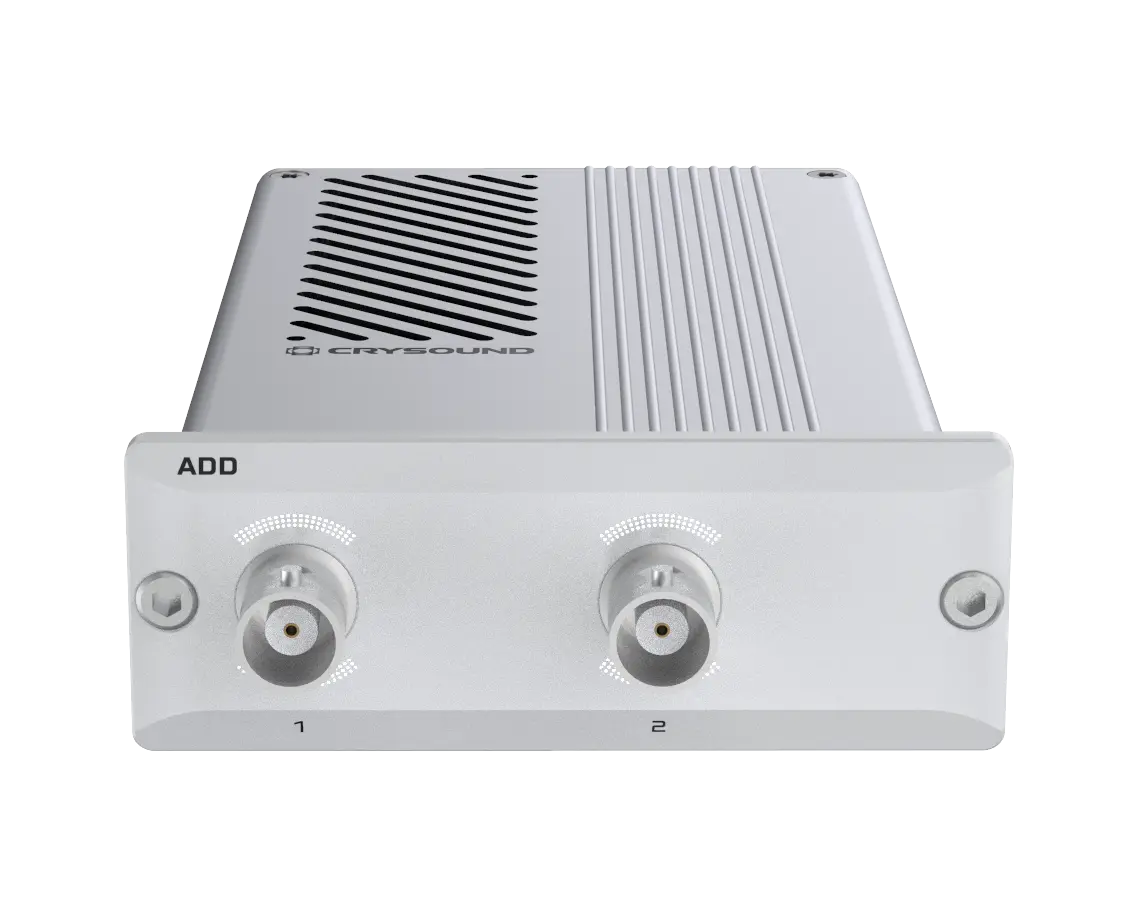

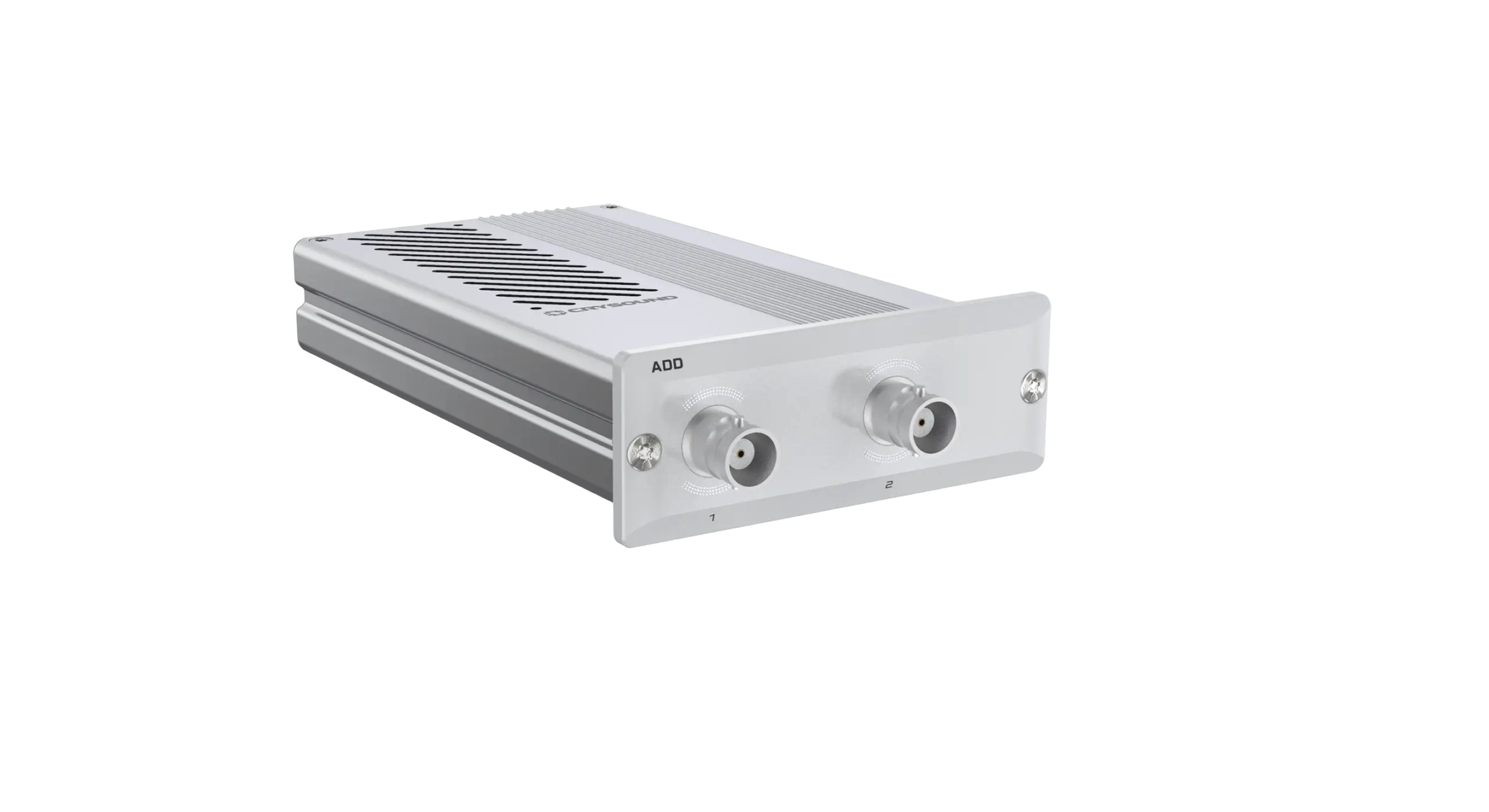

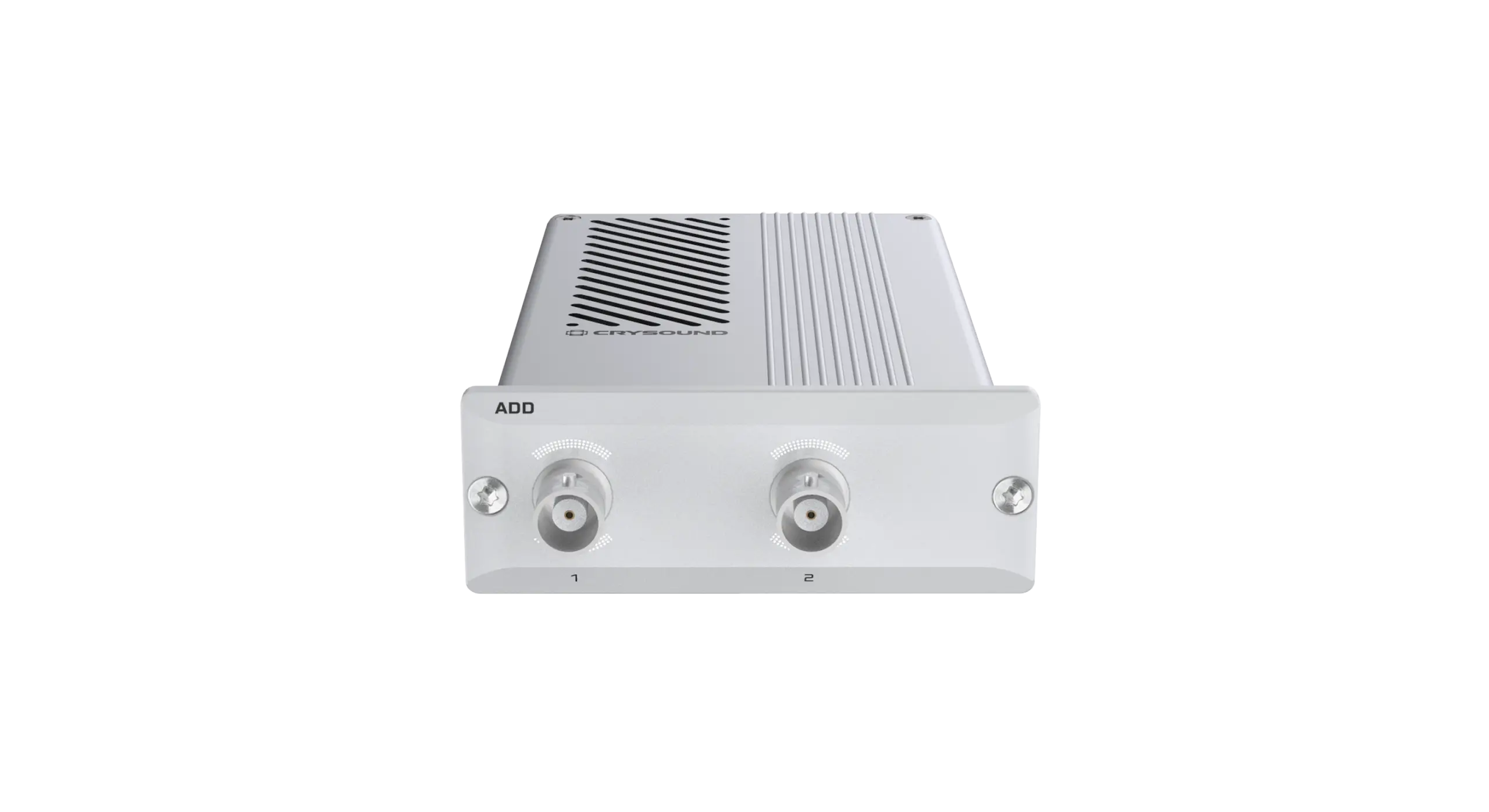

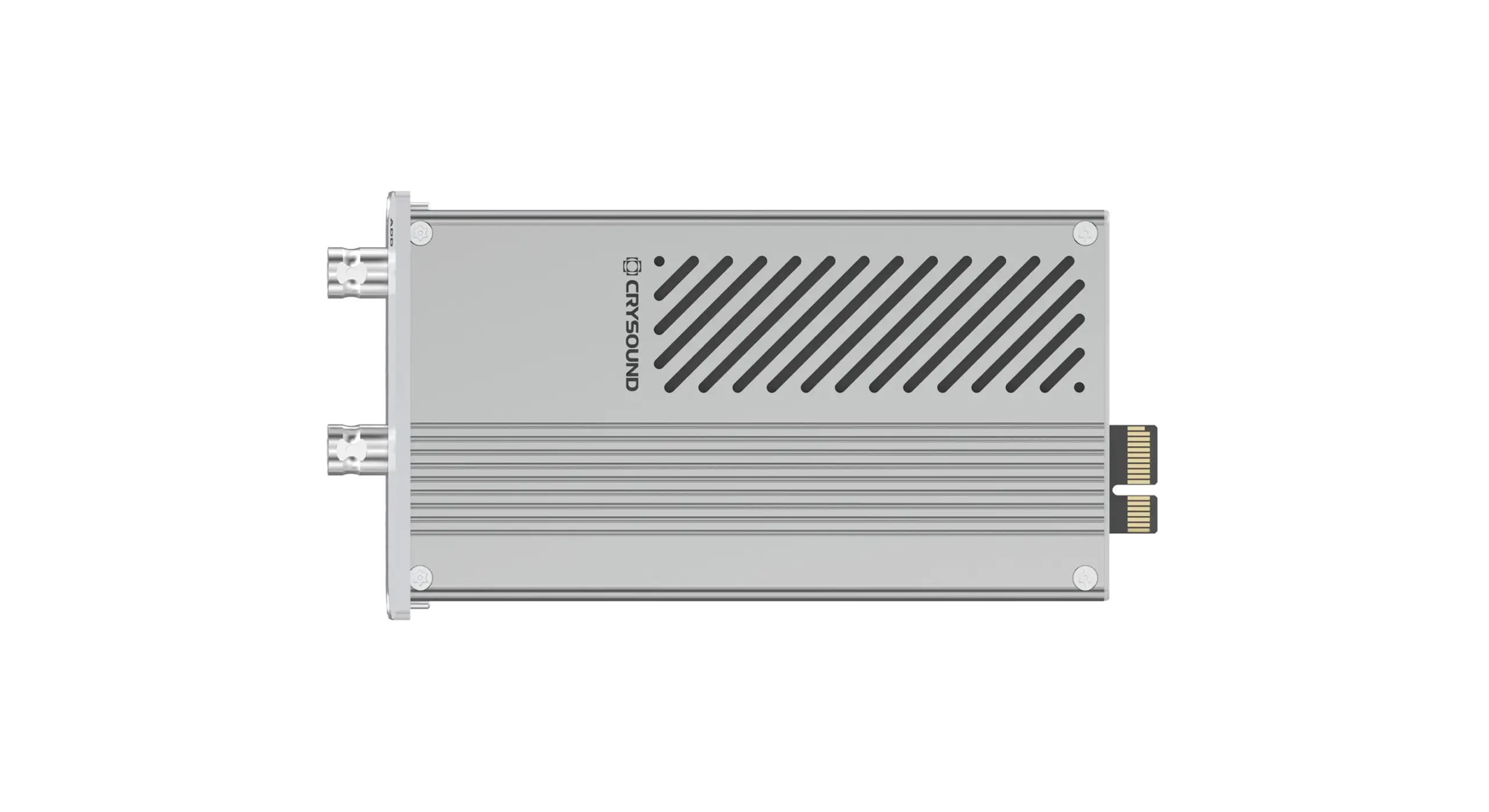

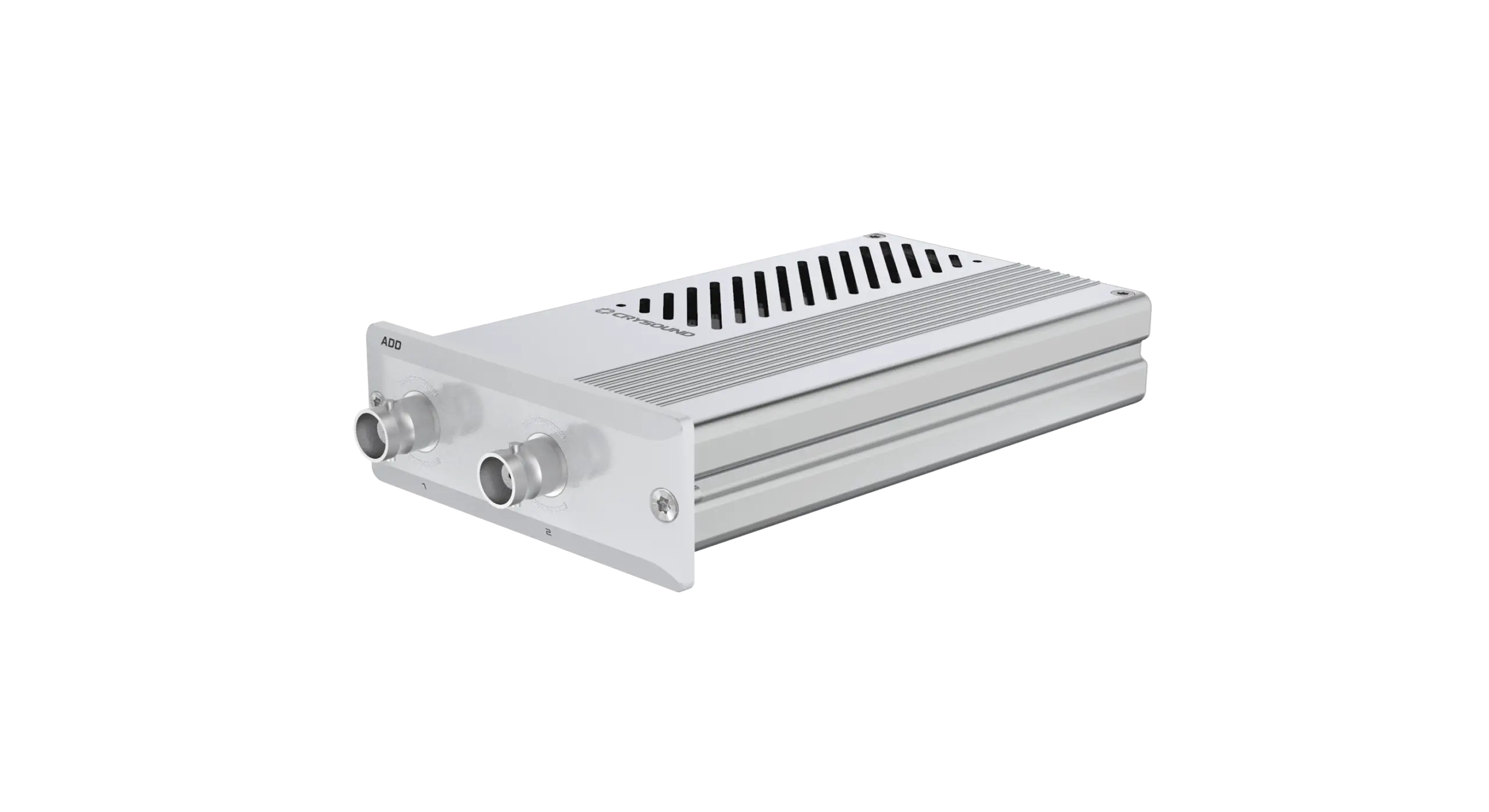

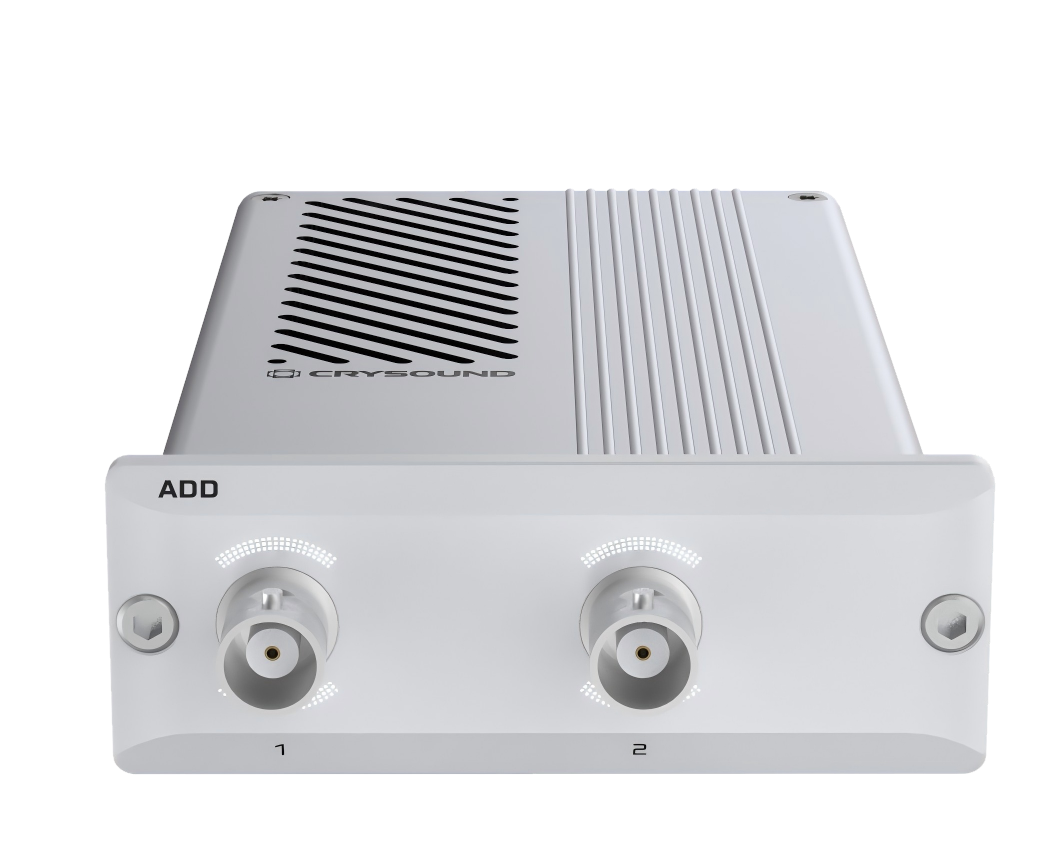

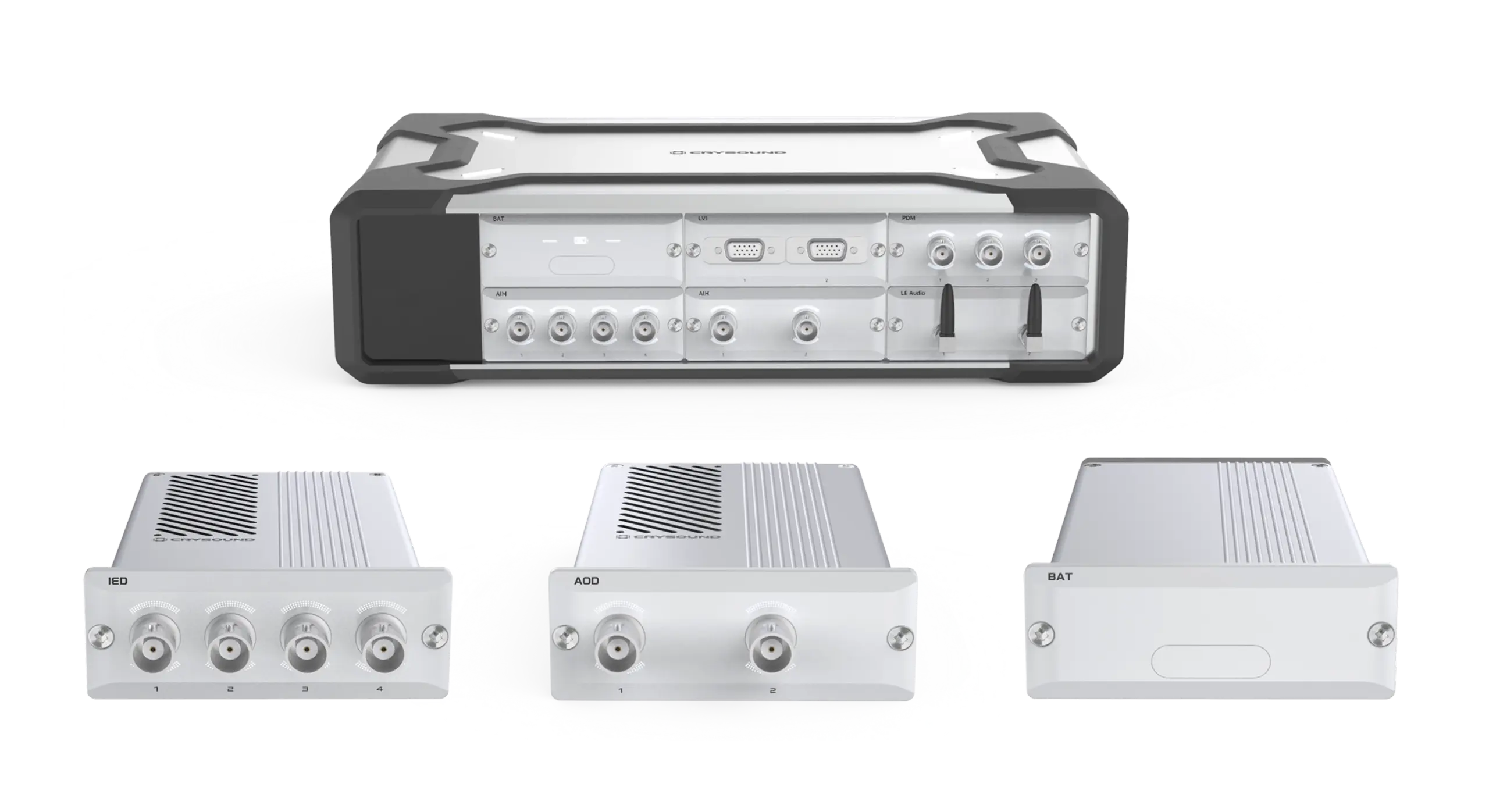

The ADD analog output module is designed for high-quality acoustic excitation and precision signal output. With 32-bit output, multiple sampling rates, a built-in 10 W Class-D amplifier, up to 30 Vpk output, and high-precision impedance measurement, it is ideal for electroacoustic, vibration, and calibration applications.
Product Highlights

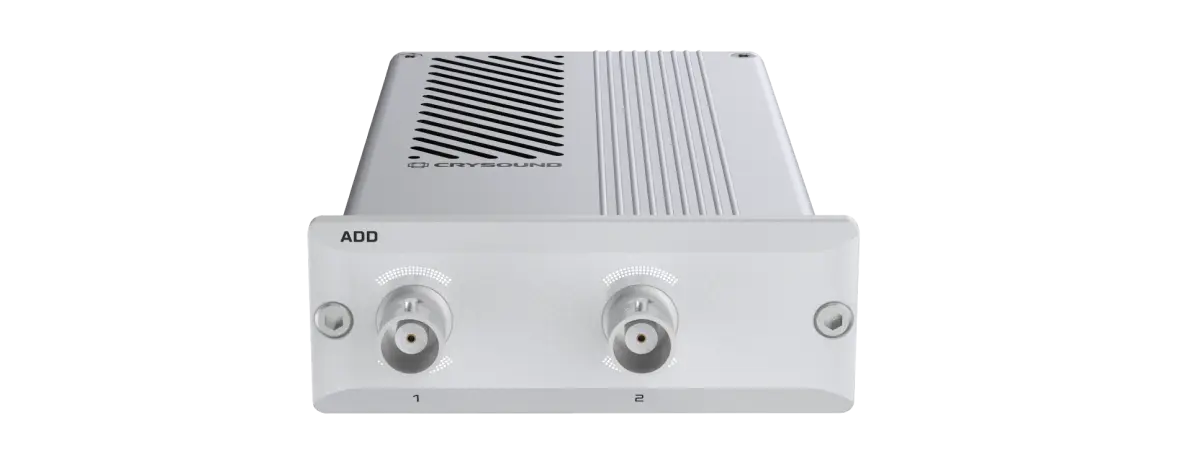

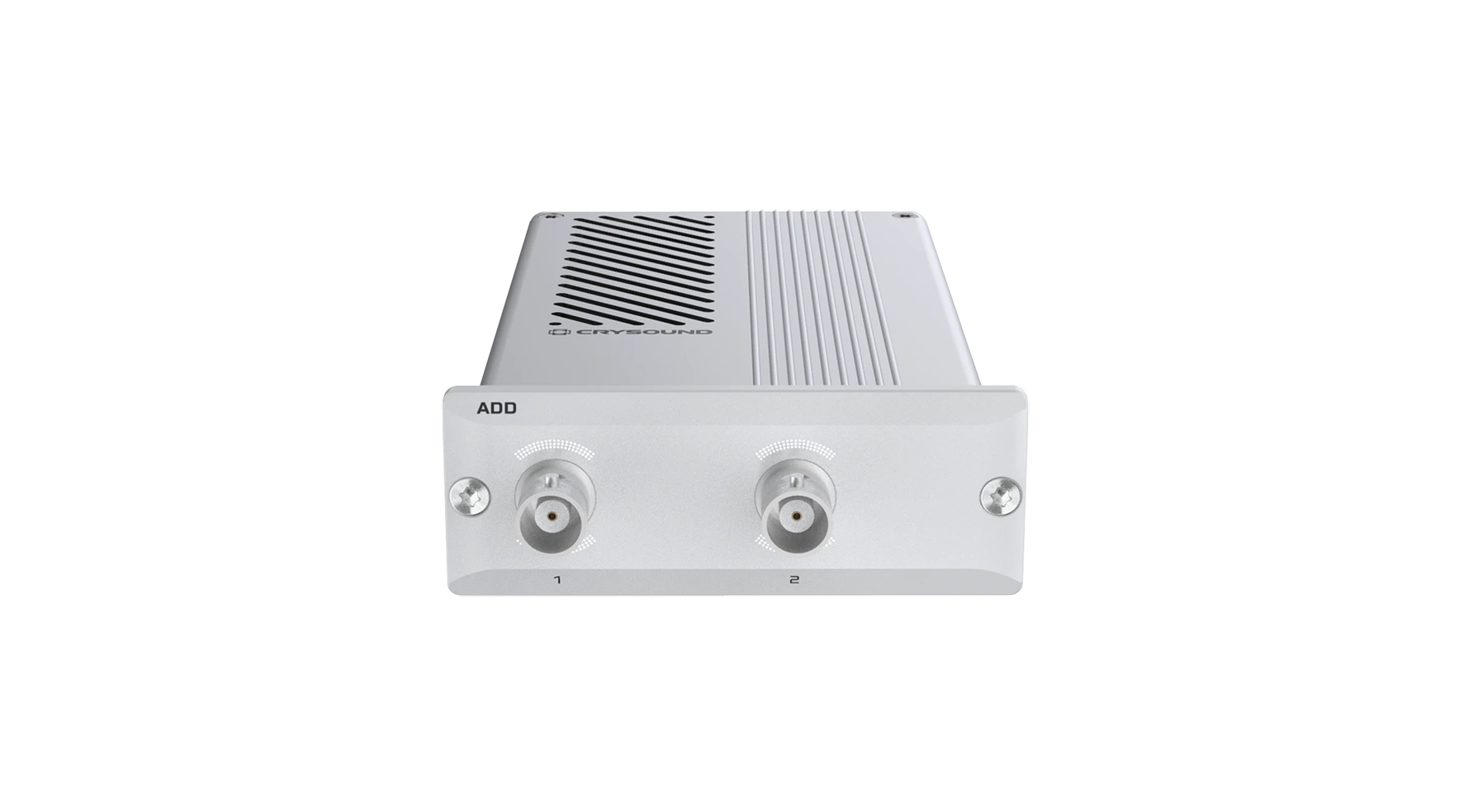

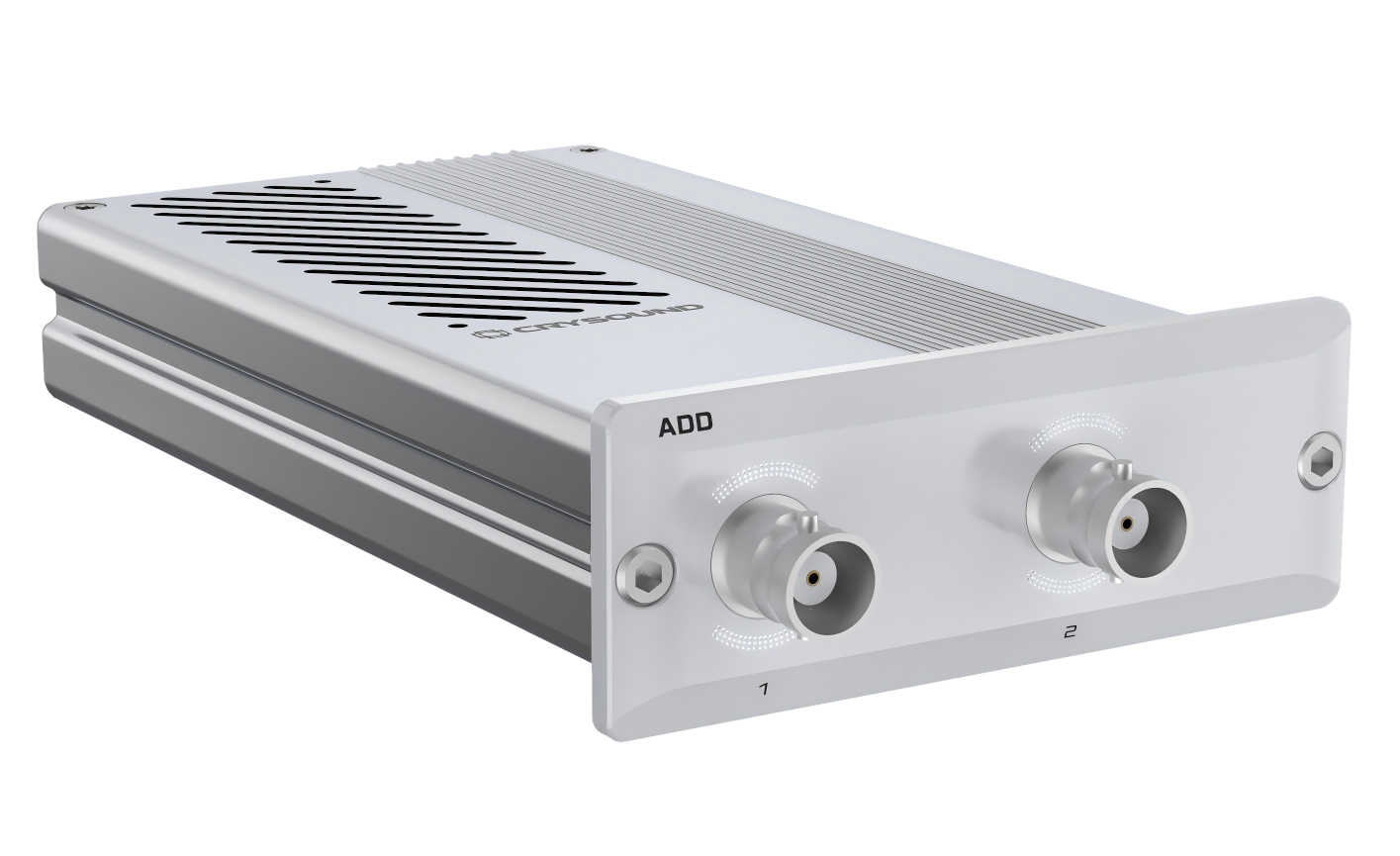

High-Fidelity Precision Output
With 32-bit output, 192 kHz sampling, and excellent distortion, noise, and crosstalk performance, the ADD module delivers clean, stable analog output for electroacoustic testing, calibration, and signal excitation.

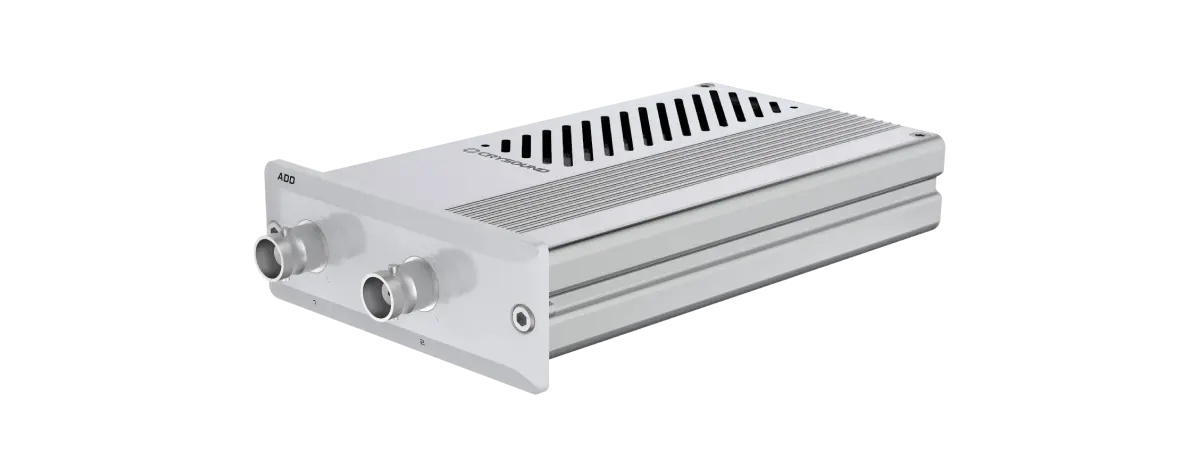

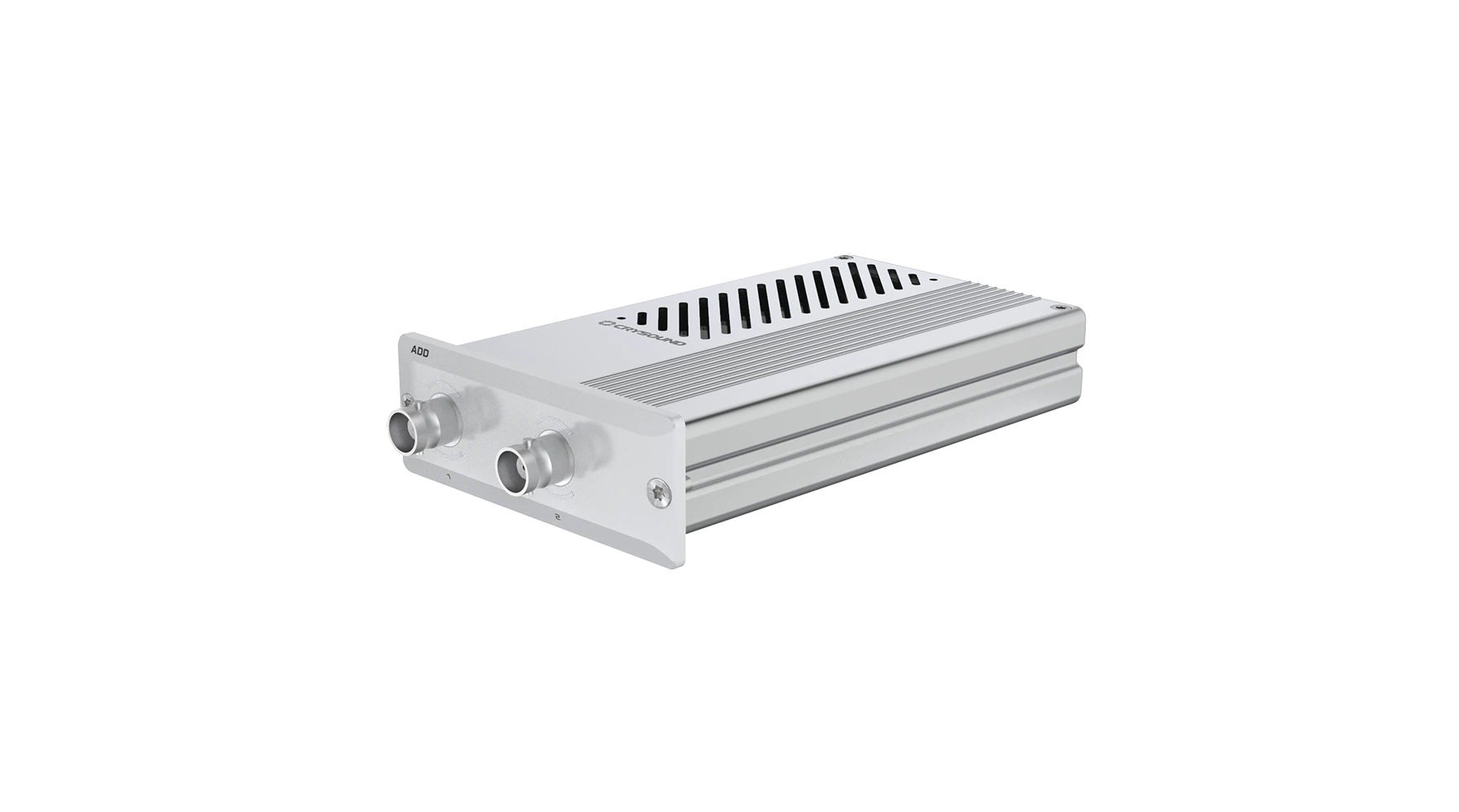

Built-in 10 W Class-D Amplifier
The ADD includes a built-in 10W Class-D amplifier, delivering 10W and up to 30 Vpk output for driving and exciting DUTs such as loudspeakers and actuators.

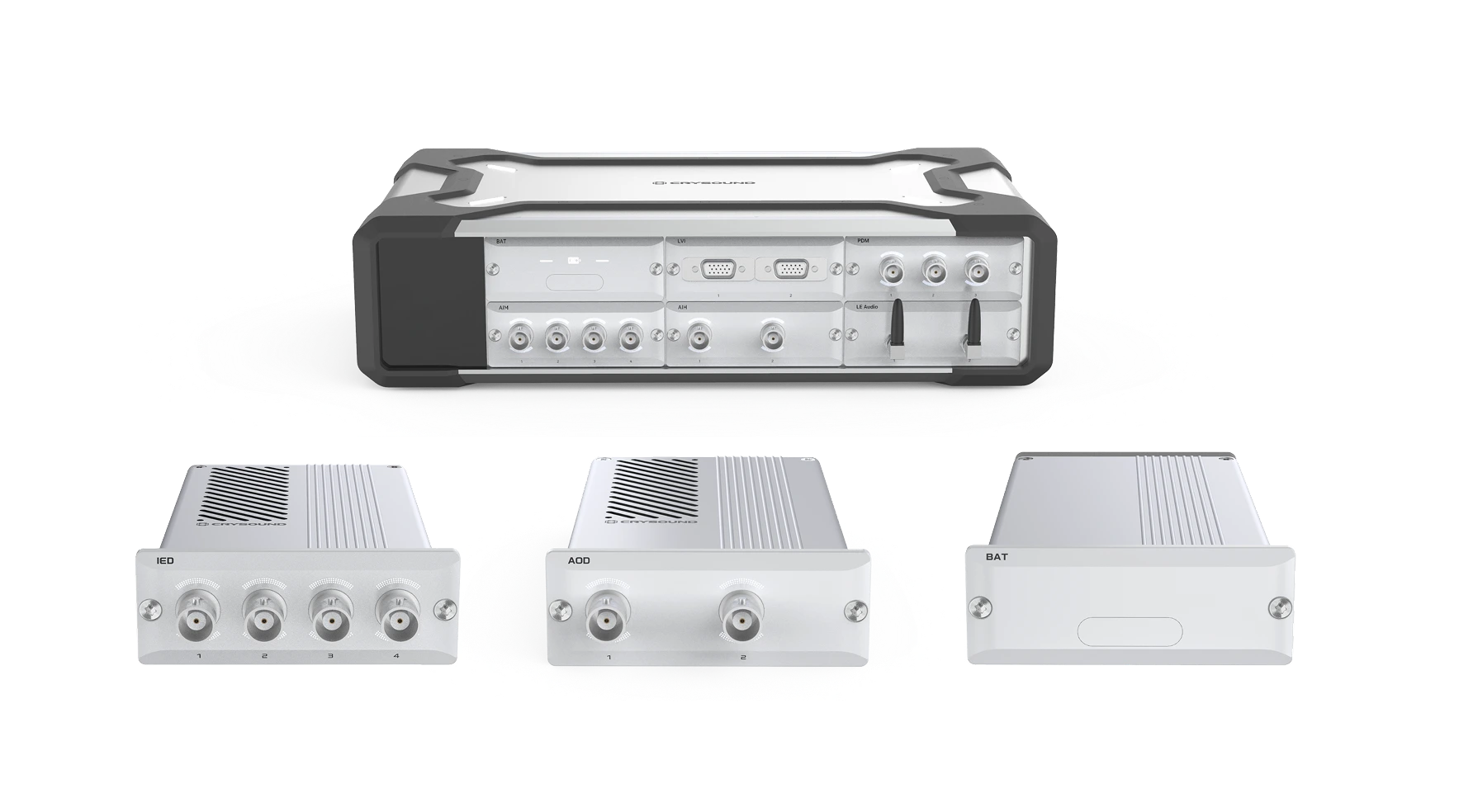

Integrated Output and Impedance Measurement
Supports high-precision impedance measurement up to≤0.5% accuracy, enabling more efficient output, drive, andanalysis workflows in R&D, lab, and production-line testing.
Technical Specifications
Channel
2
Sampling Rate
(48 / 96 / 192) kHz，Optional
DAC Resolution
32 bit
Coupling
DC
Output Signal Type
Differential
Output mode
Signal / ClassD Amplifier, optional
Frequency Accuracy
± 2 ppm (-10 ℃~50 ℃)
Amplitude Accuracy
± 0.35% (15 ℃ ~30 ℃) ; ± 0.58% (0 ℃ ~45 ℃) ; ± 1.2% (-10 ℃ ~50 ℃)
Signal Output Mode Crosstalk
≤ -147 dB @1 kHz
Output Range
30 Vpk
Impedance
40 Ω
Frequency Flatness
± 0.008 dB (0 Hz~ 20 kHz ) ; ± 0.030 dB (20 kHz~ 50 kHz ) ;± 0.1 dB (50 kHz~80 kHz )
THD + N
≤ -105 dB (20 Hz ~ 20 kHz) @1 kHz
ClassD Amplifier Output mode Noise Floor
≤ -117 dBV (20 Hz~20 kHz )
DC offset residual
≤ 0.25% of Vrms + 100 uV
Power
10W @ < 0.2% THD + N (8 Ω load) ; 6W @ < 0.3% THD + N (4 Ω load)
ClassD Amplifier Output mode Crosstalk
≤ -140 dB@1 kHz
Impedance Measurement
Support
Measurement Range
4 Ω ~600 Ω
ClassD Amplifier Output mode Noise Floor
≤ 0.1mV (20 Hz~20 kHz )
Output Range
9.475 Vrms @8 Ω load
Measurement Accuracy
≤ 0.5% (20 Hz~20 kHz)
Main Features
- 32-bit high resolution
- Built-in 10 W Class-D Amplifier
- High-Fidelity Precision Output
