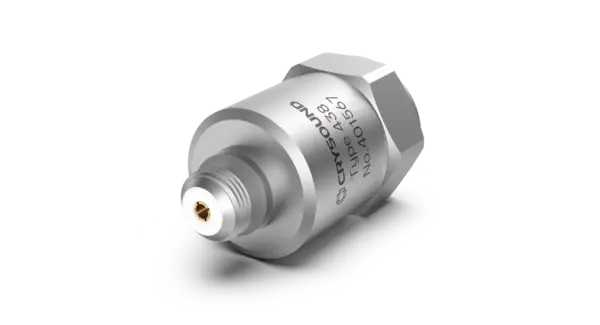

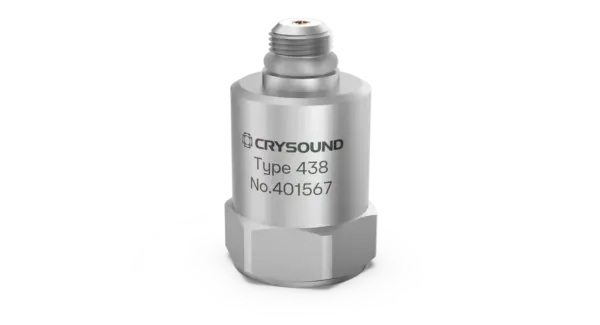

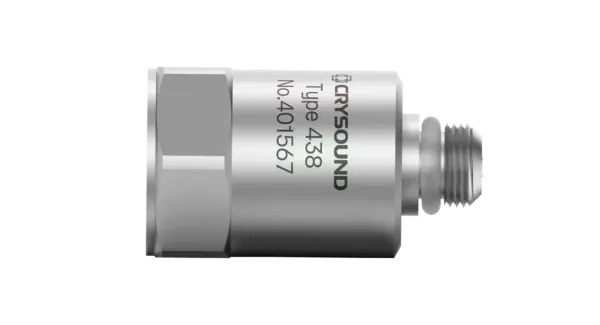

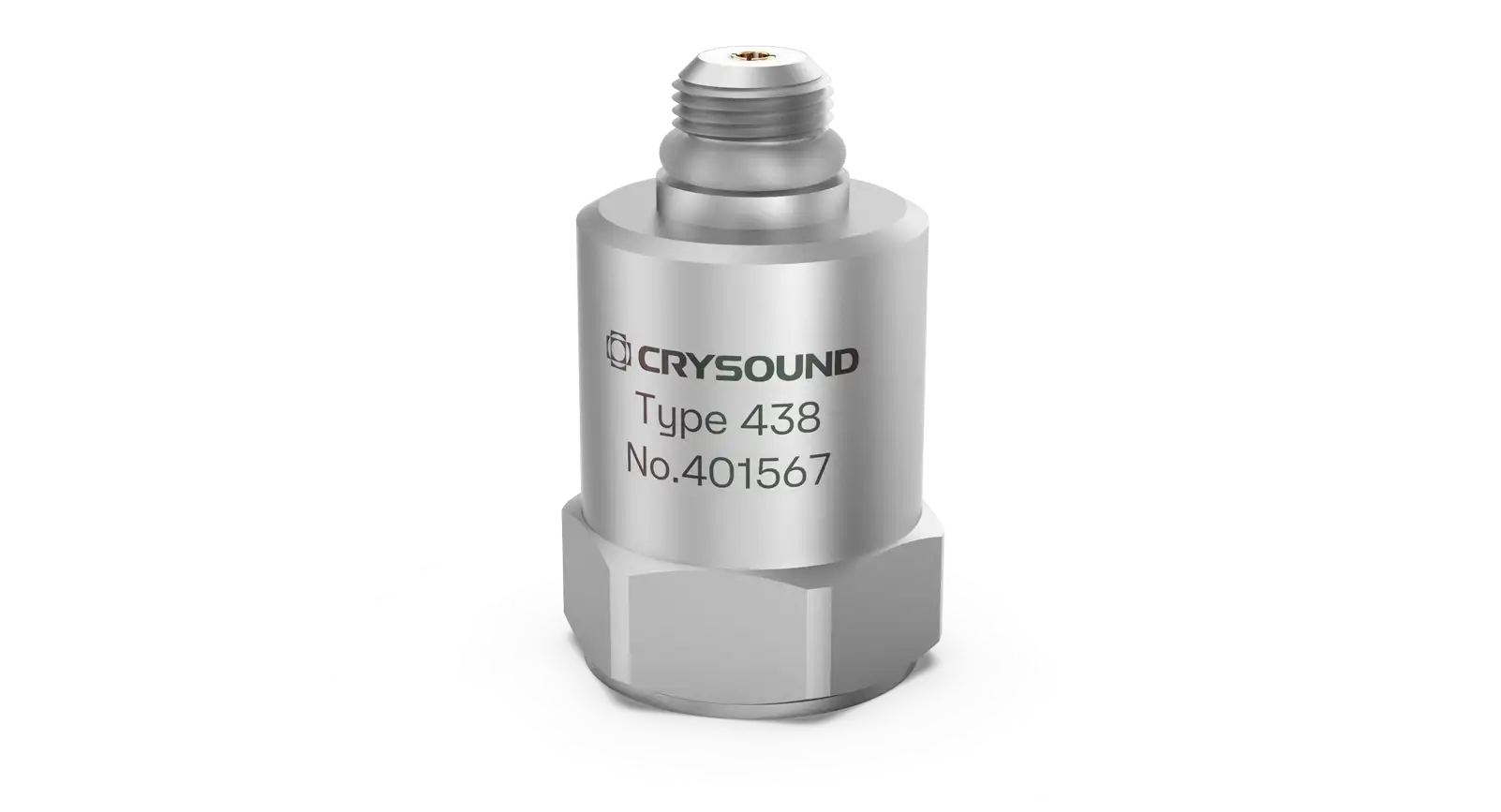

CRY438 IEPE Accelerometer, 1 Axis, 10mv/g, ±500g pk, 1Hz to 10kHz
The CRY438 is a single-axis acceleration sensor with an output mode of 10-32 UNF at the top, which is mounted to an object via a 10-32 UNF bolt. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
CRY438 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Technical Specifications
Measuring Range (Peak)
±500g
Sensitivity (25℃)
10mV/g (160Hz)
Frequency Response
1Hz to 10kHz(±1dB); 0.6Hz to 20KHz(±3dB)
Transverse Sensitivity
≤5%
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
19V to 12V
Maximum Shock Level
±3000g
Operating Temperature
-40°C to 120°C(-40℉ to 248℉ )
Connector Type
Top M5
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
9.5g
Main Features
- Top 10-32UNF(M5, Microdot) connection
- Compact structure
- Built-in IEPE preamplifier
