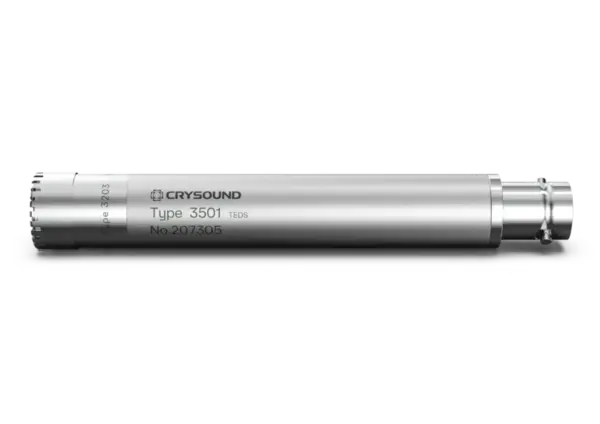

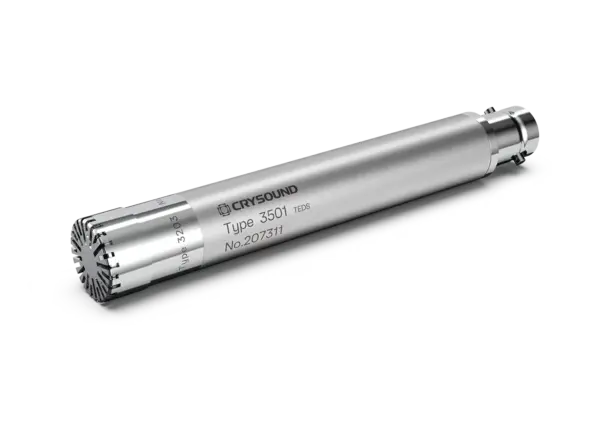

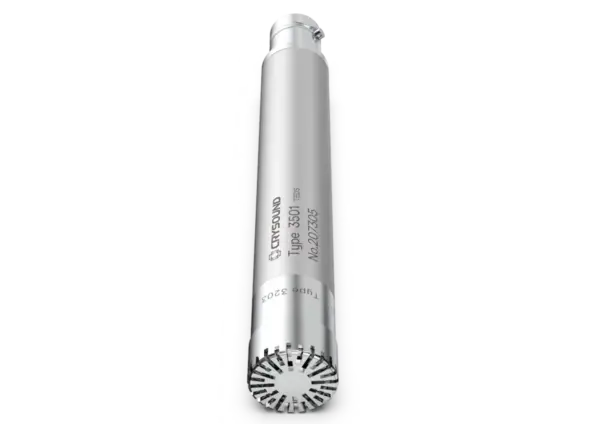

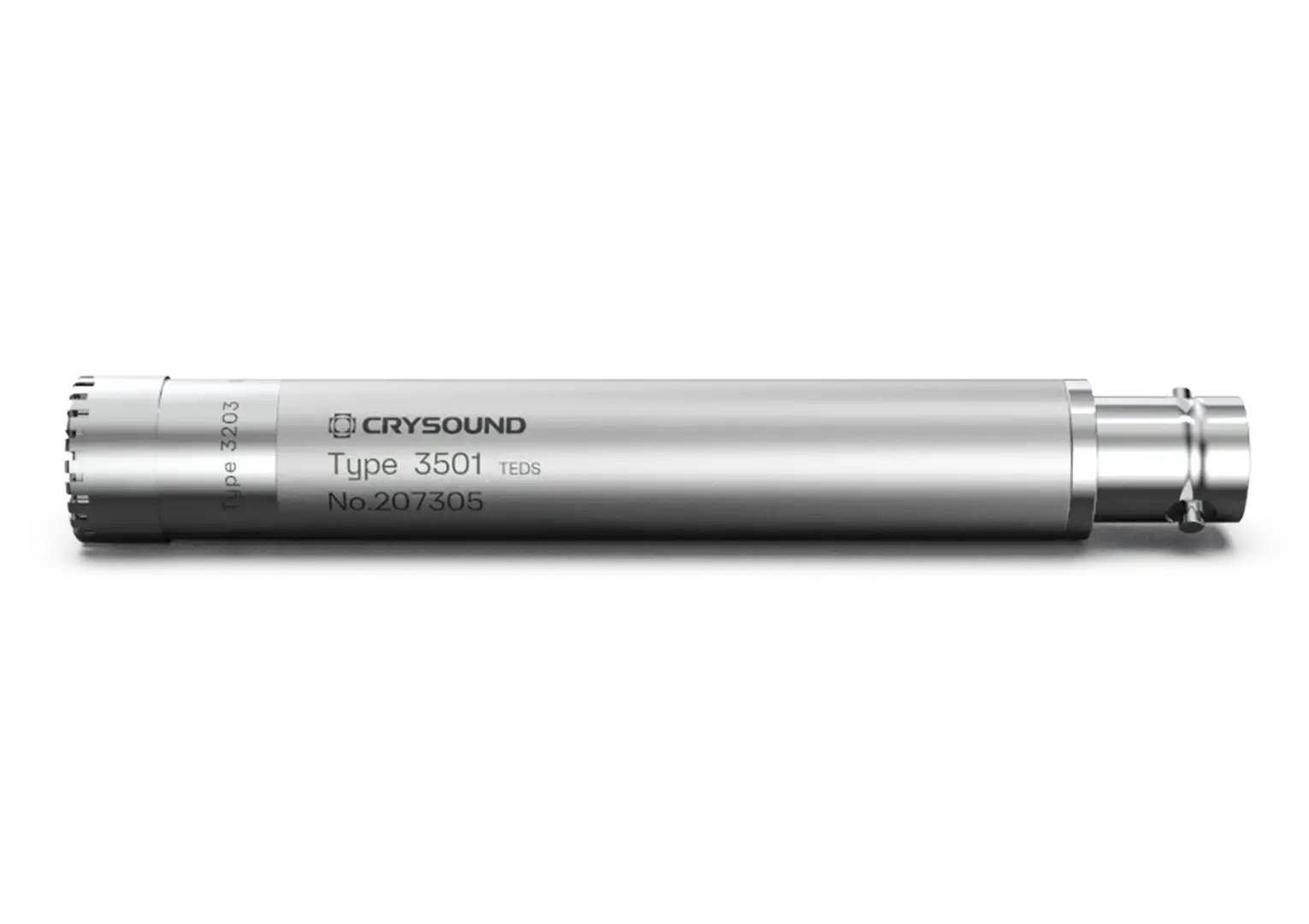

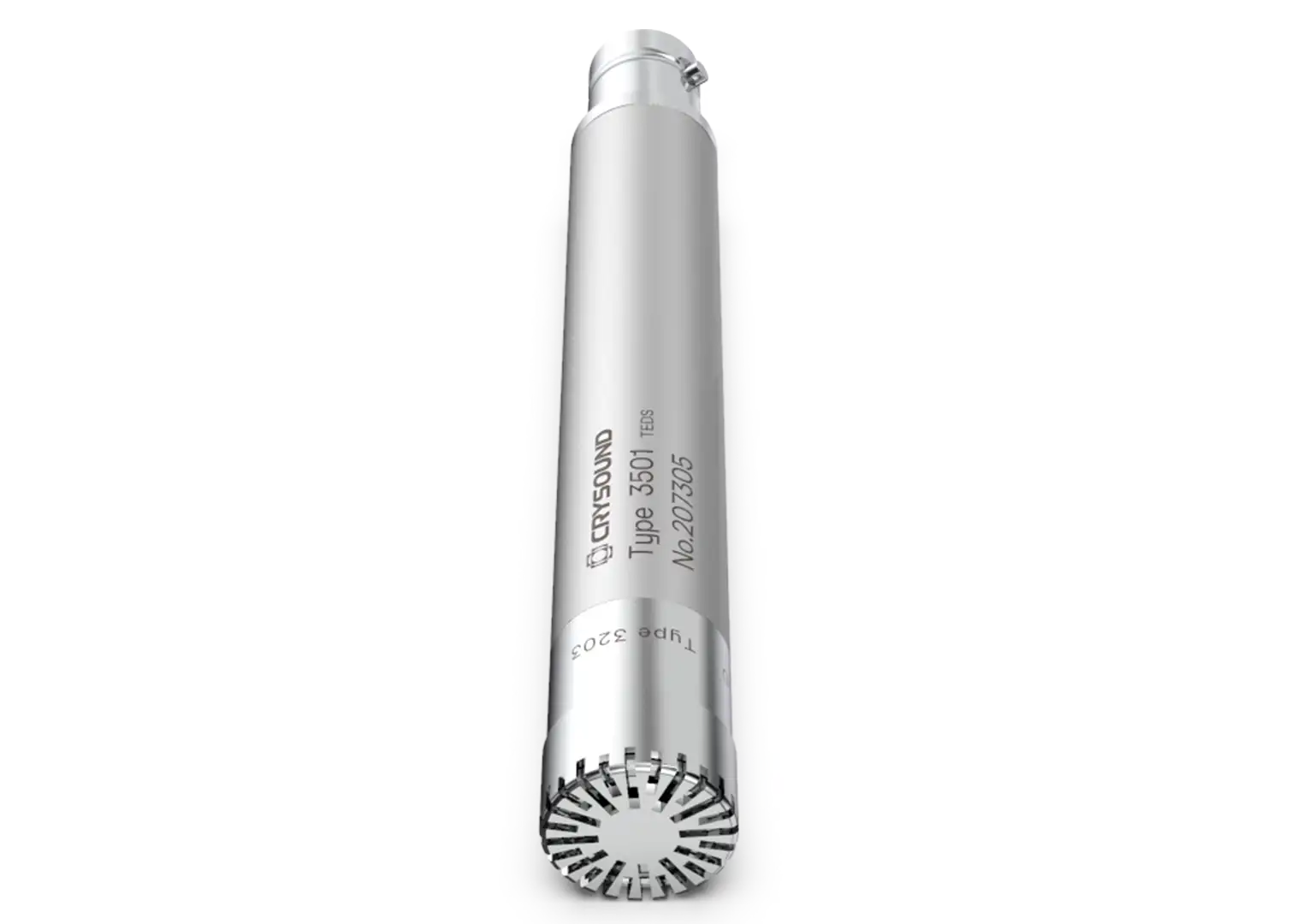

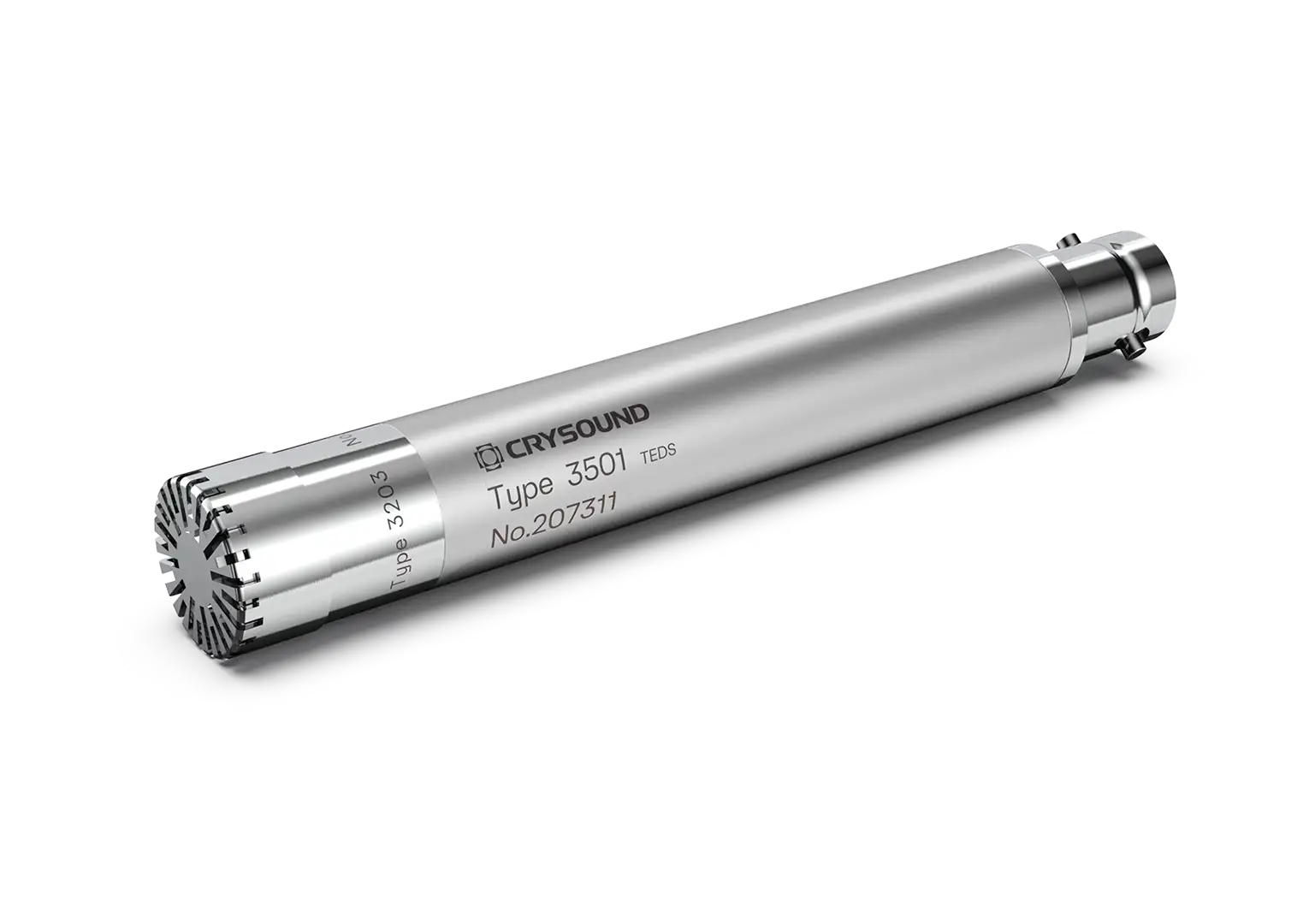

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa
The CRY3203-S01 is a free-field prepolarized measurement microphone and preamplifier set widely used in acoustic test environments such as anechoic chambers and quiet rooms.
Its frequency response covers the audible range of human hearing, making it particularly well suited for noise measurement and detection. In addition, it is widely used in electroacoustic testing, audio measurement, and acoustic research, supporting a broad range of precision acoustic measurement applications.
Product Highlights
High-Precision Free-Field Measurement for Everyday Applications
Featuring a 1/2-inch free-field prepolarized design, the CRY3203-S01 delivers stable and repeatable results across a wide range of common acoustic measurement tasks. It is well suited for applications including acoustic R&D validation, quality inspection, noise monitoring, acoustic metrology, and automotive NVH testing.
Balanced Performance for General Acoustic Applications
With a sensitivity of 50 mV/Pa, a frequency response of 3.15 Hz to 20 kHz, and a dynamic range of 16 dBA to 138 dB, the CRY3203-S01 provides an excellent balance of sensitivity, bandwidth, and measurement headroom. This allows it to maintain strong signal-to-noise performance across a variety of general-purpose acoustic tests while accommodating both fine detail capture and high-SPL conditions.
Easy Integration into Test Systems
Its prepolarized design supports IEPE powering, BNC connectivity, and IEEE 1451.4 TEDS, enabling fast and efficient integration into modern data acquisition and analysis systems. This translates into simpler setup, higher deployment efficiency, and greater flexibility for rapid switching between laboratory and field environments.
CRY3203-S01 Measurement Microphone Set Typical Frequency Response
The graph shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.
10-Year Warranty
The CRY3203-S01 measurement microphone is backed by a 10-year limited warranty from CRYSOUND. For details, please refer to the applicable warranty terms and service policy.
CRYSOUND recommends that the microphone be calibrated annually, with an additional calibration performed after exposure to extreme test environments.
Technical Specifications
Field Type
Free-field
Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
16 dBA to 138 dB
Operating Temperature
-30 to +70℃ (-22 to +158℉)
Temperature Stability
0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122/℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2F
Output Impedance
< 50Ω
Maximum Output Voltage
> 10.0Vp
Current Source
IEPE (2mA to 20mA)
Typical Operating Current
4mA
Interface Type
BNC
Height with Grid
92mm (3.62")
Diameter with Grid
13.2mm (0.52")
TEDS
IEEE 1451.4
Weight
36g
Main Features
- High-sensitivity free-field microphone set
- TEDS microphone set
- General purpose
- Durable, reliable, and high-quality
