CRY3213: The NVH Microphone That Goes Where Others Can't

CRY3213 is a 1/2-inch prepolarized free-field microphone engineered for NVH testing in the real world - rain, dust, engine bay heat, Arctic cold. With IP67 protection and a -50°C to +125°C operating range, it delivers lab-grade accuracy without compromise, from powertrain noise to road and wind noise measurements.

---

The Problem With Traditional Microphones

Every NVH engineer knows the frustration: you need accurate acoustic data, but the test environment is anything but laboratory-perfect.

Rain. Dust. Engine bay heat at 120°C. Scandinavian winter at -40°C. Vibration. Shock. Road spray.

Traditional measurement microphones weren't built for this. They're precision instruments designed for controlled environments - fragile, temperature-sensitive, and one drop away from an expensive recalibration. So engineers compromise: they protect the microphone instead of optimizing the measurement, or they accept degraded data from sensors pushed beyond their limits.

CRY3213 changes this equation entirely.

---

A Game Changer for NVH Testing

The CRY3213 is the NVH measurement microphone that delivers laboratory-grade accuracy in the harshest real-world conditions - without compromise, without babysitting, without excuses. This isn't an incremental improvement. It's a new category: the ruggedized precision NVH microphone.

Feature	What It Means for Your Testing
-50°C to +125°C operating range	Test in Arctic cold or next to a turbo manifold - same accuracy, same reliability
IP67 dust & water protection	Continue operating in rain, road spray, temporary water immersion, sand and dust - without extra protection
Ruggedized, vibration-resistant design	Survives the shocks and vibrations of real-world vehicle testing without signal degradation
50 mV/Pa sensitivity	High output for excellent signal-to-noise ratio, even in quiet cabin measurements
3.15 Hz - 20 kHz (±2 dB)	Full audible bandwidth plus infrasound - captures everything from tire cavity resonance to HVAC hiss

---

Why CRY3213 Is Different

Extreme Temperature Performance

Most measurement microphones spec a conservative operating range. That's fine for a lab. It's useless for:

• Cold climate testing in Arjeplog, Sweden (-35°C) or Northern China (-40°C)

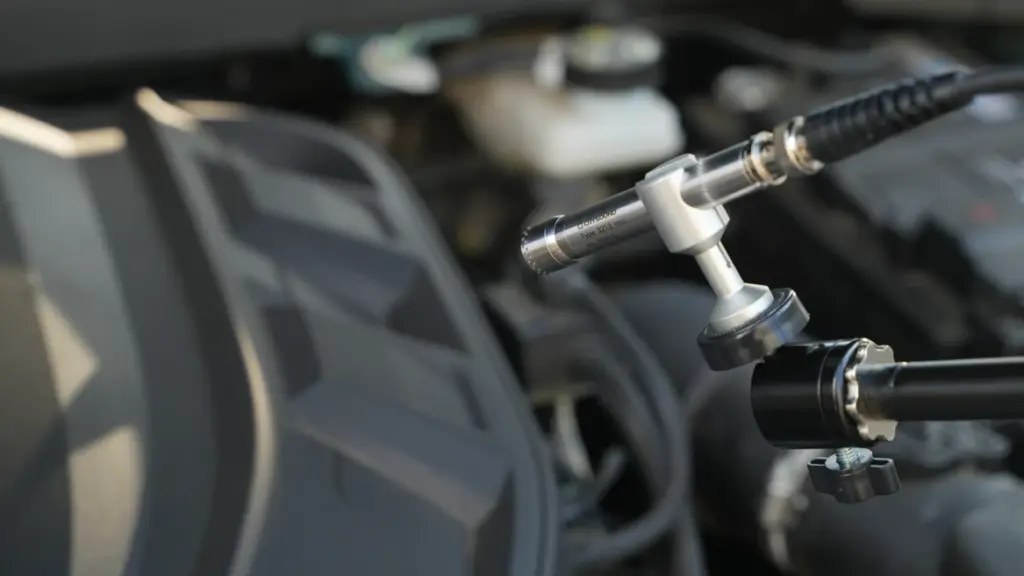

• Under-hood measurements where temperatures routinely exceed 100°C near exhaust manifolds and turbochargers
• Thermal cycling tests that swing from frozen to furnace in minutes

CRY3213 operates at -50°C to +125°C with specified accuracy. No warm-up drift. No thermal shutdown. No recalibration needed between temperature extremes.

When your competitors are swapping frozen microphones in the parking lot, your CRY3213 is still collecting data.

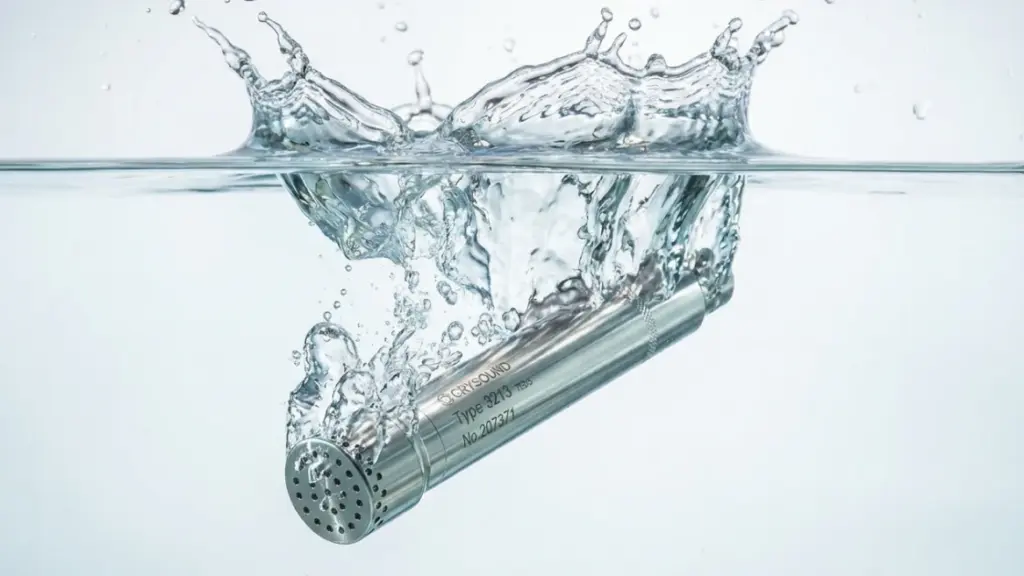

IP67: Truly Weatherproof

IP67 means:
- 6 = Total dust ingress protection (dust-tight)
- 7 = Protected against temporary immersion in water (up to 1 meter, 30 minutes)

For NVH testing, this translates to:
- Pass-by noise testing in rain - no test cancellations, no scrambling for covers
- Road spray and puddle testing - mount microphones at wheel height without worry
- Tropical humidity environments - no condensation-related signal drift
- Outdoor long-term monitoring - deploy and forget

CRY3213's IP67 is the highest protection class available in a precision NVH microphone.

Ruggedized and Vibration-Resistant

Traditional condenser microphones are inherently precise and delicate. The CRY3213 has been systematically reinforced at the structural level for field durability, allowing it not only to measure near the vehicle, but also to be mounted directly on the vehicle for testing.

Shock-resistant structural design helps withstand field handling and repeated installation/removal.

Power-on LED indication enables quick confirmation of the microphone's operating status.

Vibration-isolated design helps suppress mechanical interference transmitted through test benches and vehicle structures.

The cable and connector system is designed for frequent connection, disconnection, and field deployment.

No-Compromise Acoustic Performance

Ruggedized doesn't mean reduced performance. CRY3213 delivers:

• Sensitivity: 50 mV/Pa (-26 dB re 1V/Pa) - matching premium lab microphones
• Frequency Response: 3.15 Hz to 20 kHz (±2 dB) - the full NVH bandwidth
• Dynamic range 17 to 136 dB - handles everything from quiet cabin to high-SPL engine bay measurements
• Low-frequency extension to 3.15 Hz - critical for tire cavity resonance (180-250 Hz), body boom (30-60 Hz), and powertrain low-order vibrations
• Prepolarized design - no external polarization voltage needed; plug-and-play with any IEPE/CCP input

---

Application Scenarios

Automotive NVH - Where CRY3213 Shines

Application	Challenge	CRY3213 Advantage
Powertrain Noise	Engine bay, 80-120°C, heavy vibration	Temperature range + vibration resistance
Road Noise Testing	Outdoor, all weather, road spray	IP67 + wide temperature range
Wind Noise Testing	Wind tunnel or outdoor, high airflow	Ruggedized + dust protection
Pass-by Noise (ISO 362)	Outdoor, rain or shine, year-round	IP67 enables all-weather testing
Cold Climate Validation	Arctic conditions, -30°C to -50°C	-50°C low-end operating range
EV Motor Whine Analysis	Near e-drive, electromagnetic interference	High sensitivity + vibration isolation
Squeak & Rattle	Interior, door panels, dashboard	Full bandwidth down to 3.15 Hz
Production Line EOL Test	Factory floor, dust, temperature swings	IP67 + rugged design for 24/7 industrial use

Beyond the automotive industry, the CRY3213 is also well suited to aerospace, rail transportation, heavy industry, and the energy sector. Typical applications include engine ground run testing, interior and exterior train noise measurements, compressor and turbine noise monitoring, and wind turbine noise assessment under extreme weather conditions.

---

Technical Specifications

Parameter	Specification
Type	1/2" Free-field, Prepolarized
IEC Standard	IEC 61094 WS2F
Sensitivity (±2 dB)	50 mV/Pa, -26 dB re 1V/Pa
Frequency Response (±2 dB)	3.15 Hz - 20 kHz
Dynamic Range (re. 20 µPa)	17 dB(A) - 136 dB
Power Supply	IEPE (2-20 mA)
Connector	BNC
Operating Temperature	-50°C to +125°C
Storage Temperature	-25°C to +70°C
Operating Humidity	0-90% RH, non-condensing
IP Rating	IP67 (dust-tight, waterproof)
Dimensions (with grid)	Ø14.5 mm × 92 mm
Polarization	0 V (prepolarized)
Weight	36 g

---

Frequently Asked Questions

Q: Can I use CRY3213 with my existing NVH data acquisition system?
A: Yes. CRY3213 is a prepolarized (0V) IEPE/CCP microphone, compatible with any standard constant-current input - including systems from SonoDAQ, CRY6151B, Siemens (SCADAS), HBK (LAN-XI), Dewesoft, National Instruments, HEAD acoustics, and others.

Q: How does it handle rapid temperature changes during thermal cycling tests?
A: CRY3213 is designed for continuous operation across its full -50°C to +125°C range, including rapid transitions. The thermal compensation ensures sensitivity stability without requiring recalibration between temperature extremes.

Q: Is it suitable for permanent outdoor installation?
A: Yes. With IP67 protection, CRY3213 is suitable for long-term outdoor deployment.

Q: What's the advantage over ordinary microphones for NVH?
A: Compared with conventional microphones, the CRY3213 NVH microphone not only delivers more accurate measurements, but is also better suited for real-world testing conditions. With IP67 protection, an operating temperature range of -50°C to +125°C, and excellent resistance to vibration and shock, it can operate reliably in rain, dust, high heat, and extreme cold, making it ideal for vehicle road tests, under-hood measurements, and long-term outdoor monitoring.

Q: 10-year warranty - what does it cover?
A: CRYSOUND's 10-year warranty covers manufacturing defects and sensitivity drift beyond specification. It's one of the longest warranties in the measurement microphone industry, reflecting our confidence in CRY3213's long-term reliability.

---

Ready to Upgrade Your NVH Testing?

Stop compromising between precision and durability. CRY3213 delivers both.
