Audio Test Interface
CRYSOUND audio test interfaces improve system compatibility and test repeatability for electroacoustic setups, helping standardize measurements across devices and test stations.
NEW

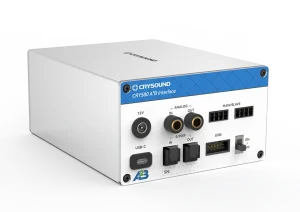

CRY580 A²B Interface
Topology
Single-master-multiple-slave linear topology
3.5mm Audio Interface
Supports analog audio input/output
USB Interface
Supports digital audio playback and recording
CRY573 Digital Microphone Converter
Mode
PDM/I2S
Noise floor
-95dB：A weighting；-92dB：Z weighting（20Hz-20kHz）
Dynamic range
>90dB（1kHz，A-weighting）
CRY591L Bluetooth Switch Matrix
Dimension
104*120*42mm
Working band
DC-18GHz
Working temperature
-25℃~65℃
CRY592 Audio Filter
Quantity of channels (Differential or single-ended)
4
Frequency response
±0.1dB, 20Hz~20kHz
Insert Loss
0.05dB(typical value)

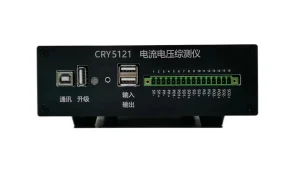

CRY5121 Programmable Battery Simulator
AC supply
AC90-240V/50-60Hz
Input voltage PI1+/PI1-,PI2+/PI2-
-30～+30V,-0.3～+30V
Input Current
4.096A

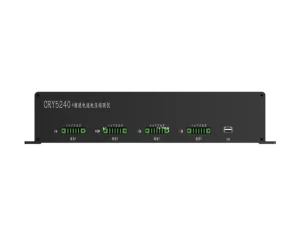

CRY5240 Programmable Battery Simulator
AC supply
AC90-240V/50-60Hz
Input voltage:P+/P-
-0.3～+26V
Input voltage of one channel:Vin1
9.9V
NEW

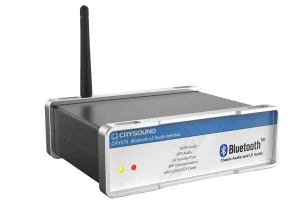

CRY578 Bluetooth LE Audio Interface
Bluetooth Version
v5.4
Profile
A2DP Source V1.3, AVRCP Target/Controller V1.6, HFP Hands Free/Audio Gateway V1.7, HSP Headset/Audio Gateway V1.2
Codec
SBC, AAC, aptX, LDAC, LC3, mSBC, CVSD
