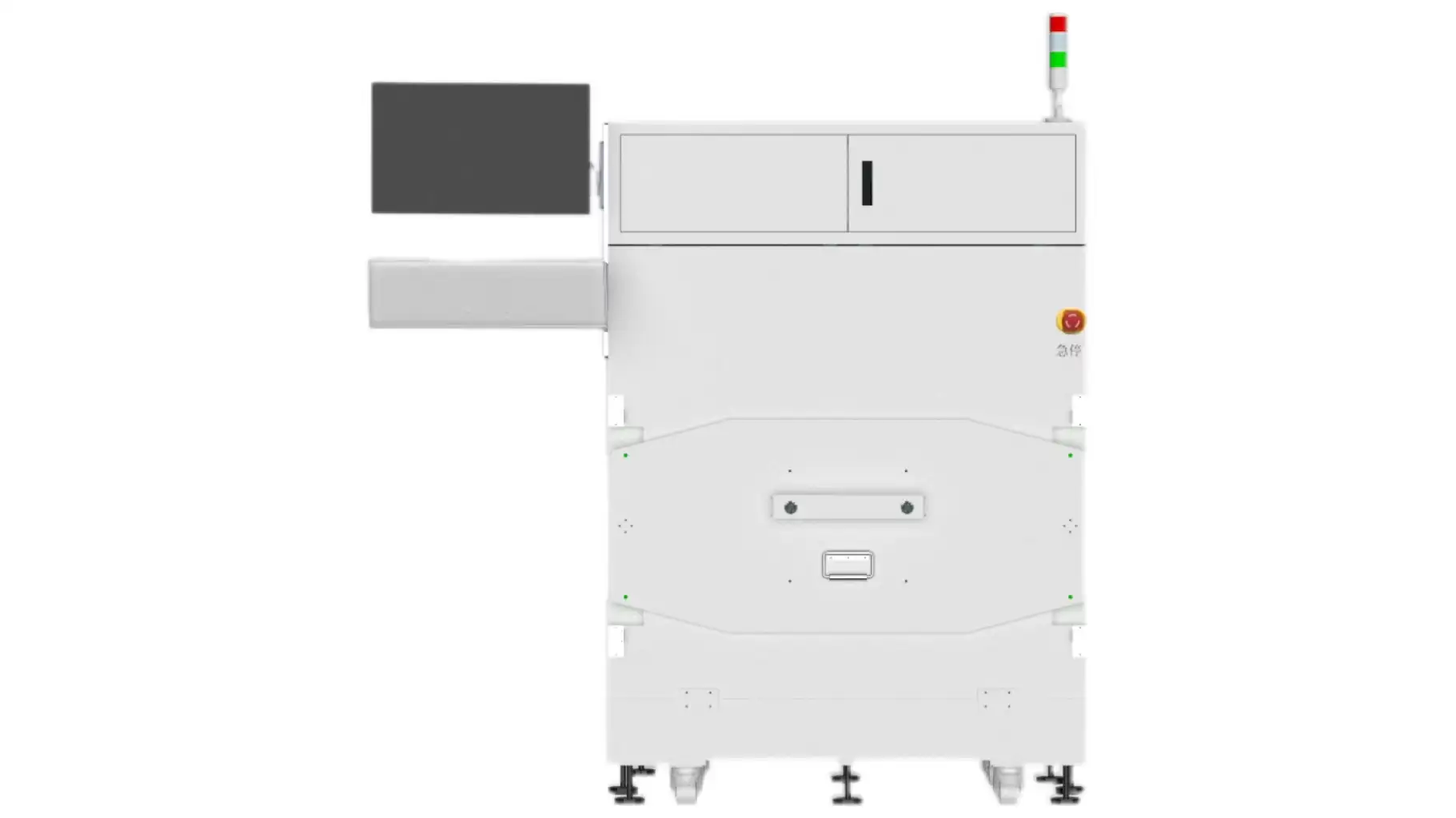

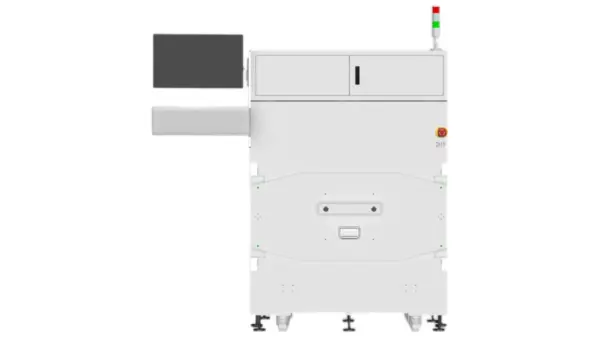

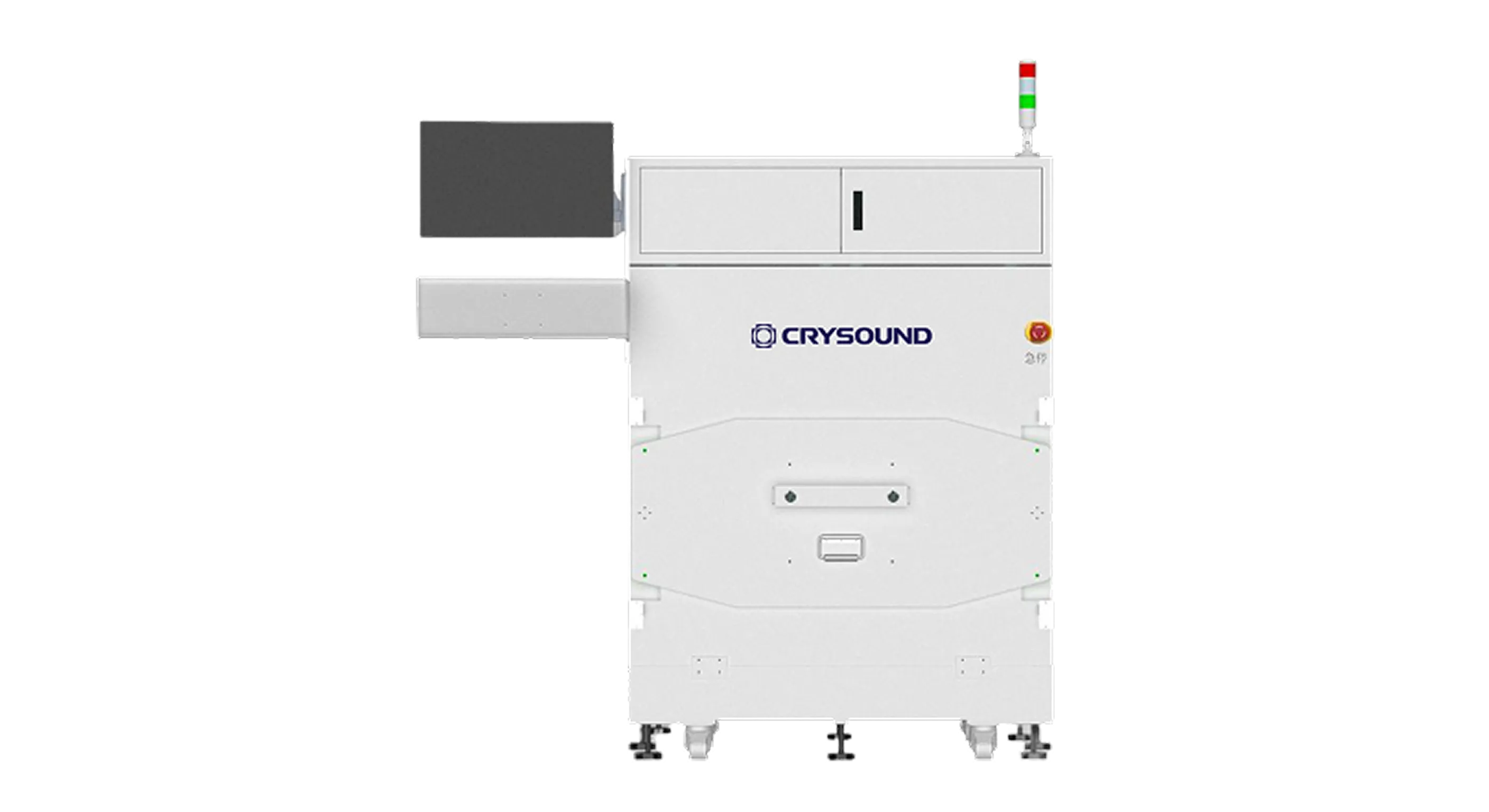

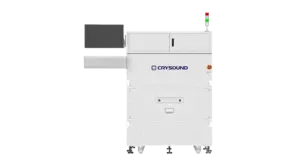

CRY7865 Pneumatic Acoustic Test Chamber

CRY7865 Pneumatic Acoustic Test Chamber

The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.

When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.

  • Drawer type
  • Pneumatic
Features
  • Ultra-quiet test environment with sound insulation of more than 60dB above 1000Hz.
  • Drawer-style chamber for conveniently loading and unloading materials and jumpstarting automation.
  • Three dimensions for working more than 700mm.
  • Superior performance in sound insulation and frequencies.
  • EMI filters are included in ports and power signals.
Features
  • Ultra-quiet test environment with sound insulation of more than 60dB above 1000Hz.
  • Drawer-style chamber for conveniently loading and unloading materials and jumpstarting automation.
  • Three dimensions for working more than 700mm.
  • Superior performance in sound insulation and frequencies.
  • EMI filters are included in ports and power signals.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Specifications
Color
Color
White
Weight
Weight
About 830Kg
Outer dimension
Outer dimension
1530(L)*1280(W)*1750(H)mm
Box dimension
Box dimension
1040(L)*1090(W)*1150(H)mm
Inner dimension
Inner dimension
600(L)*680(W)*740(H)mm
Electrical Specifications
Operating voltage
Operating voltage
AC 100-220V,50/60Hz
Rated power
Rated power
15W
Pneumatic pressure
Pneumatic pressure
>5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance
RF shielding performance
100MHz-6GHz 70dB(Without I/O interface)
Audio isolation performance
Audio isolation performance
50Hz-300Hz isolation>20dB, 300Hz-1000Hz isolation>40dB, Above 1000Hz isolation>60dB(1/3 octave)
