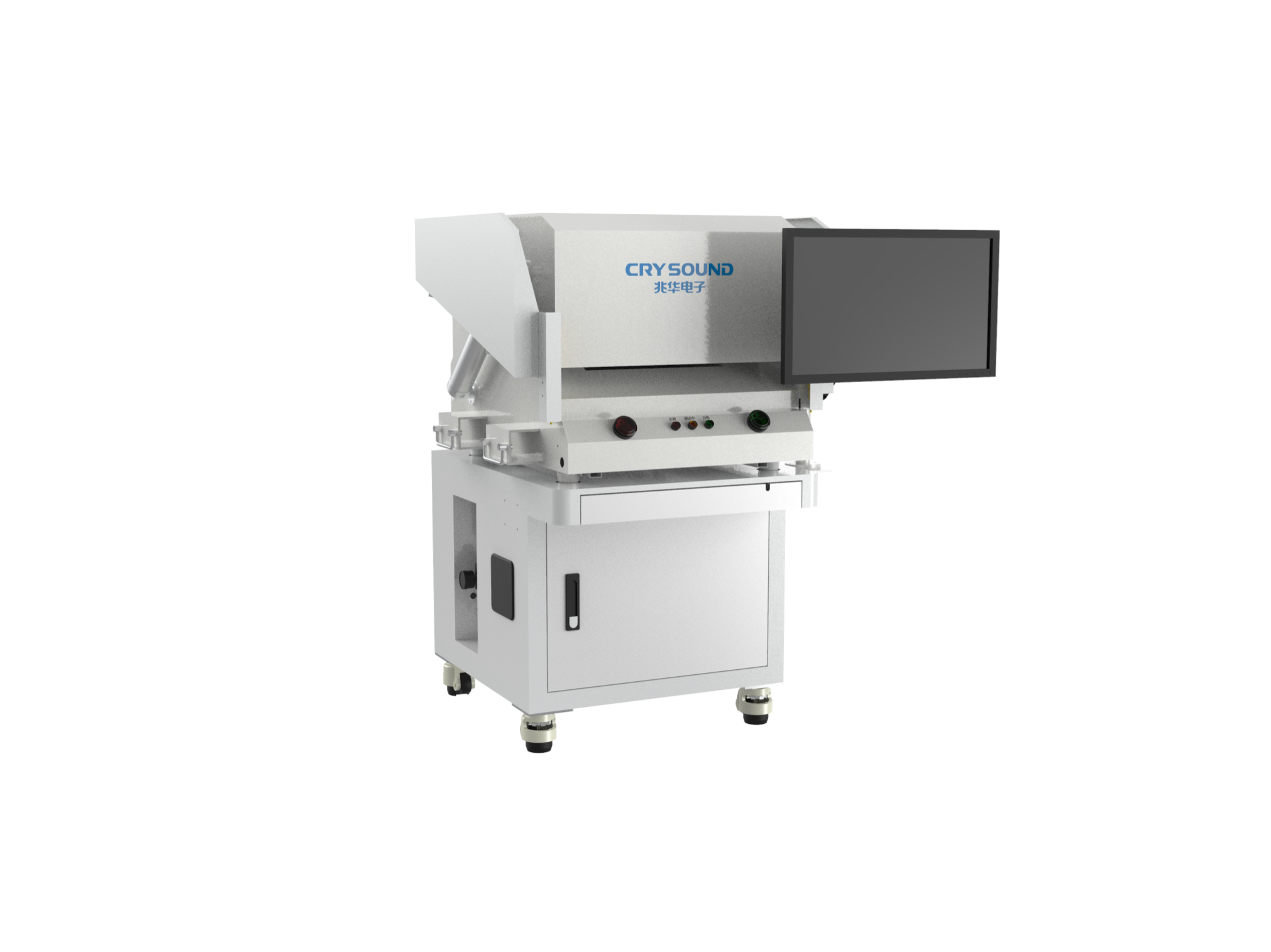

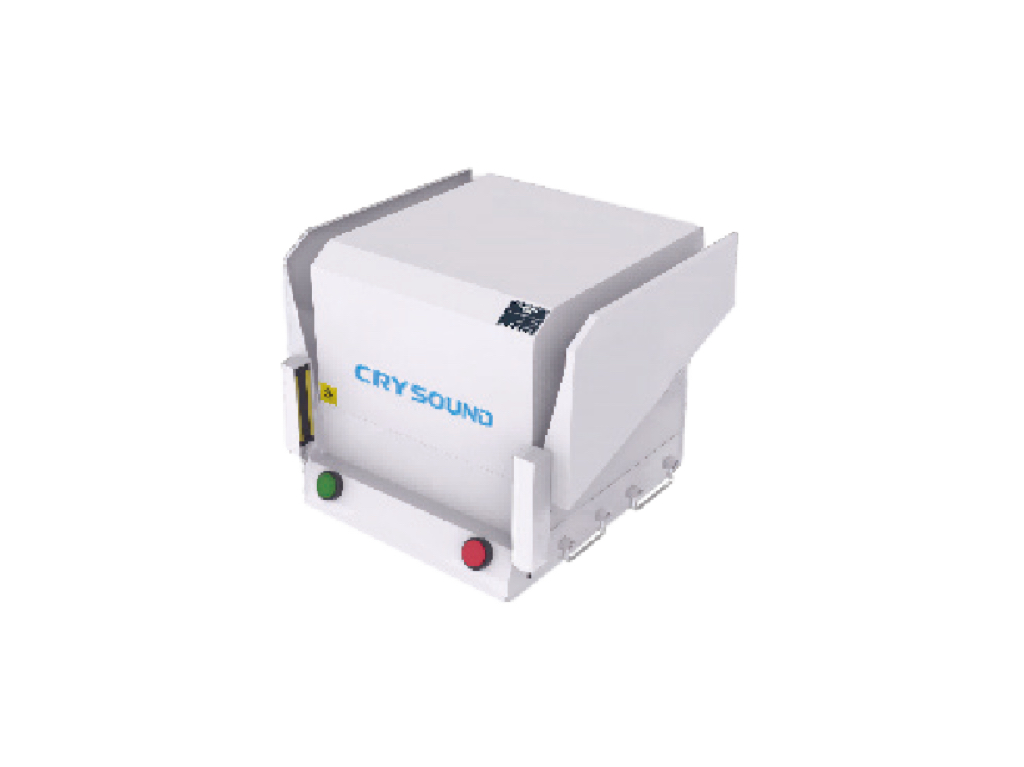

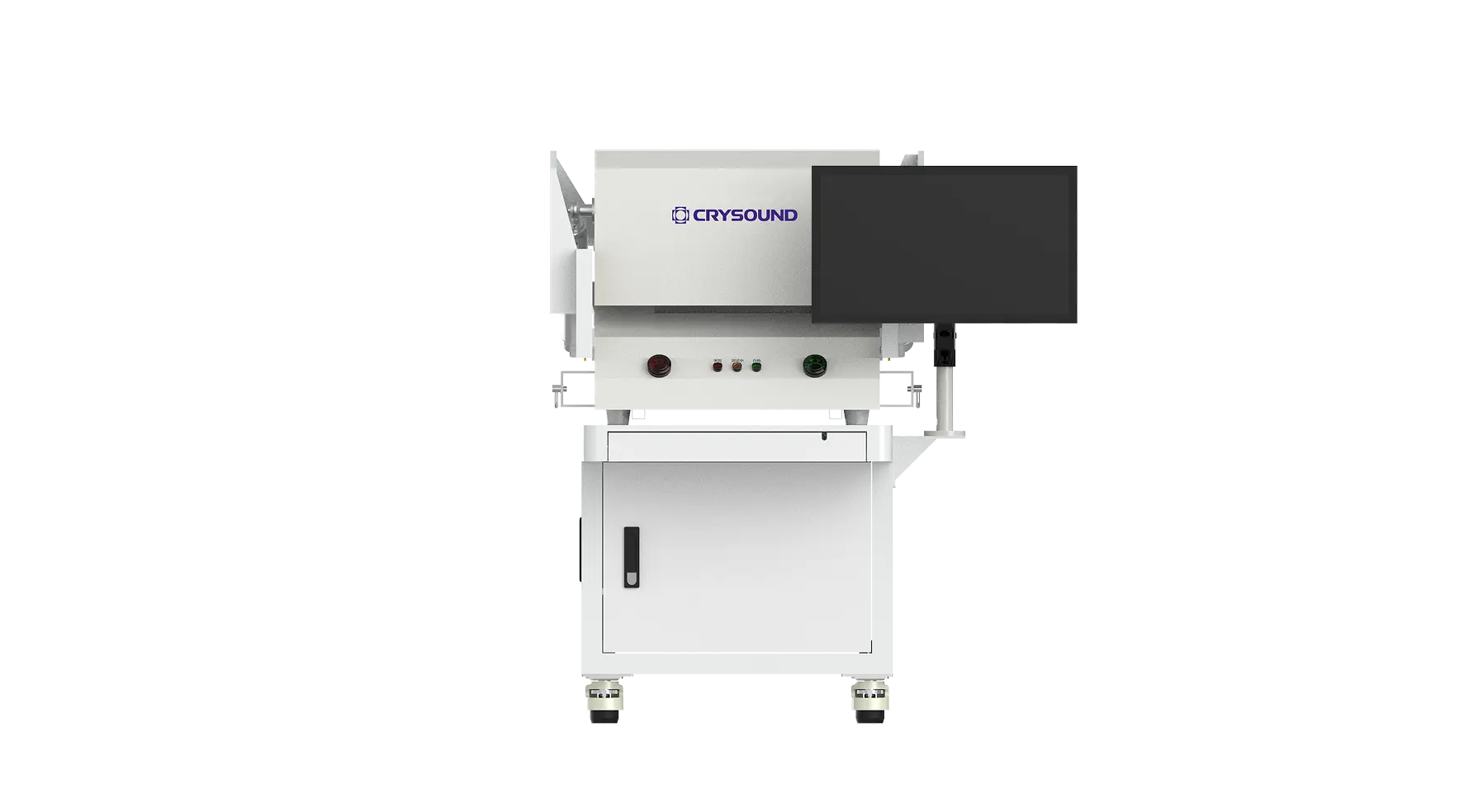

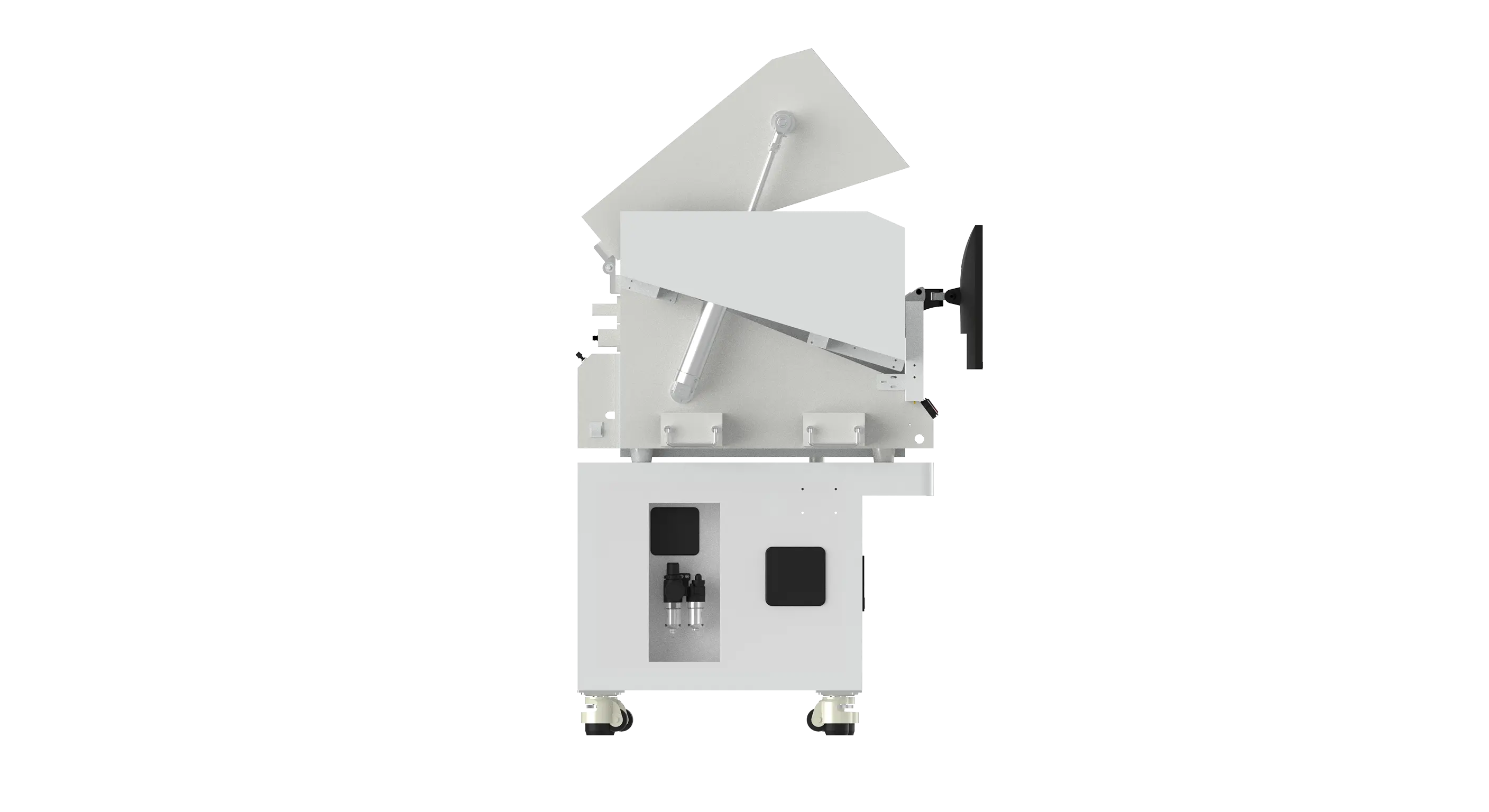

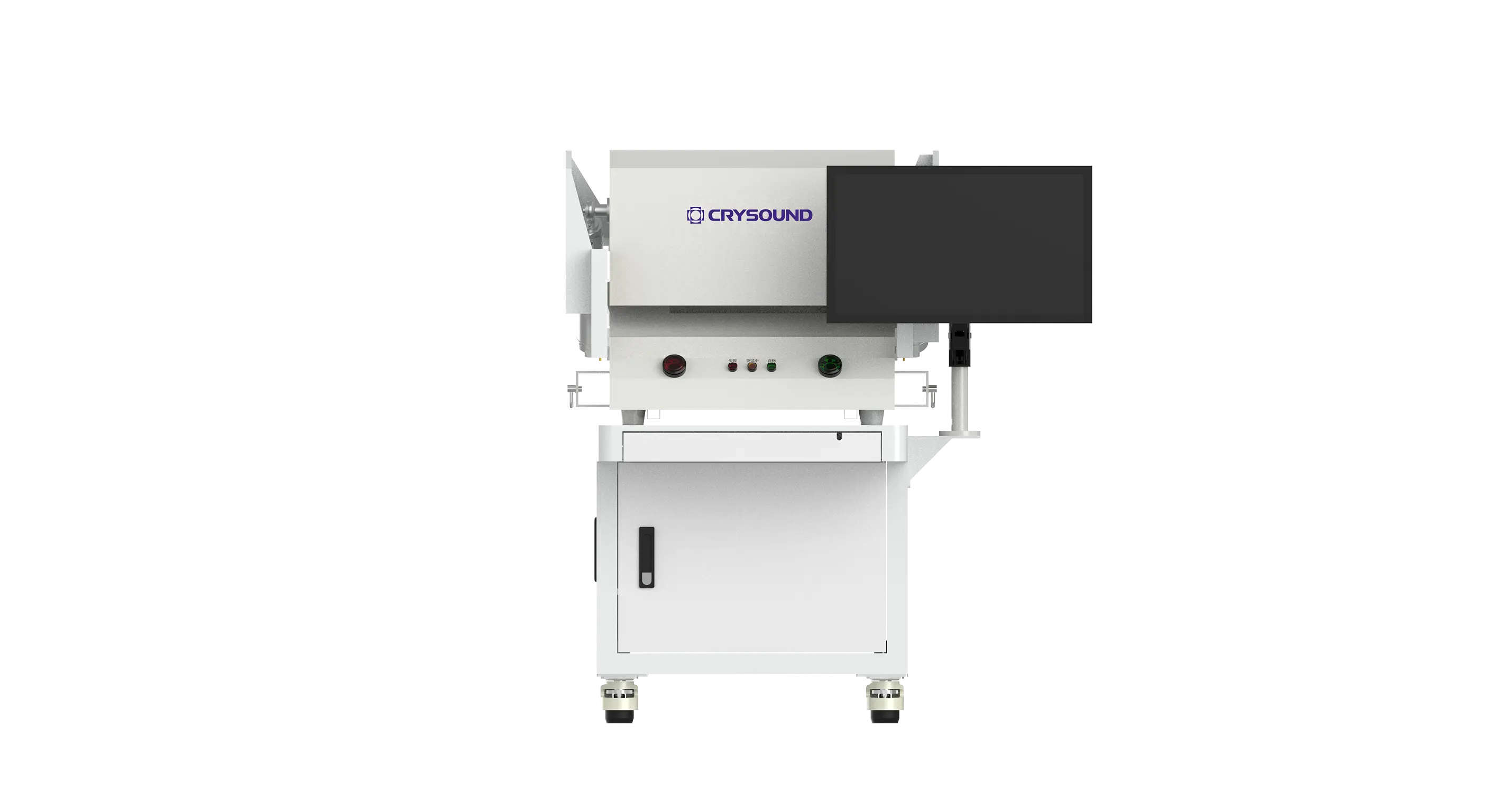

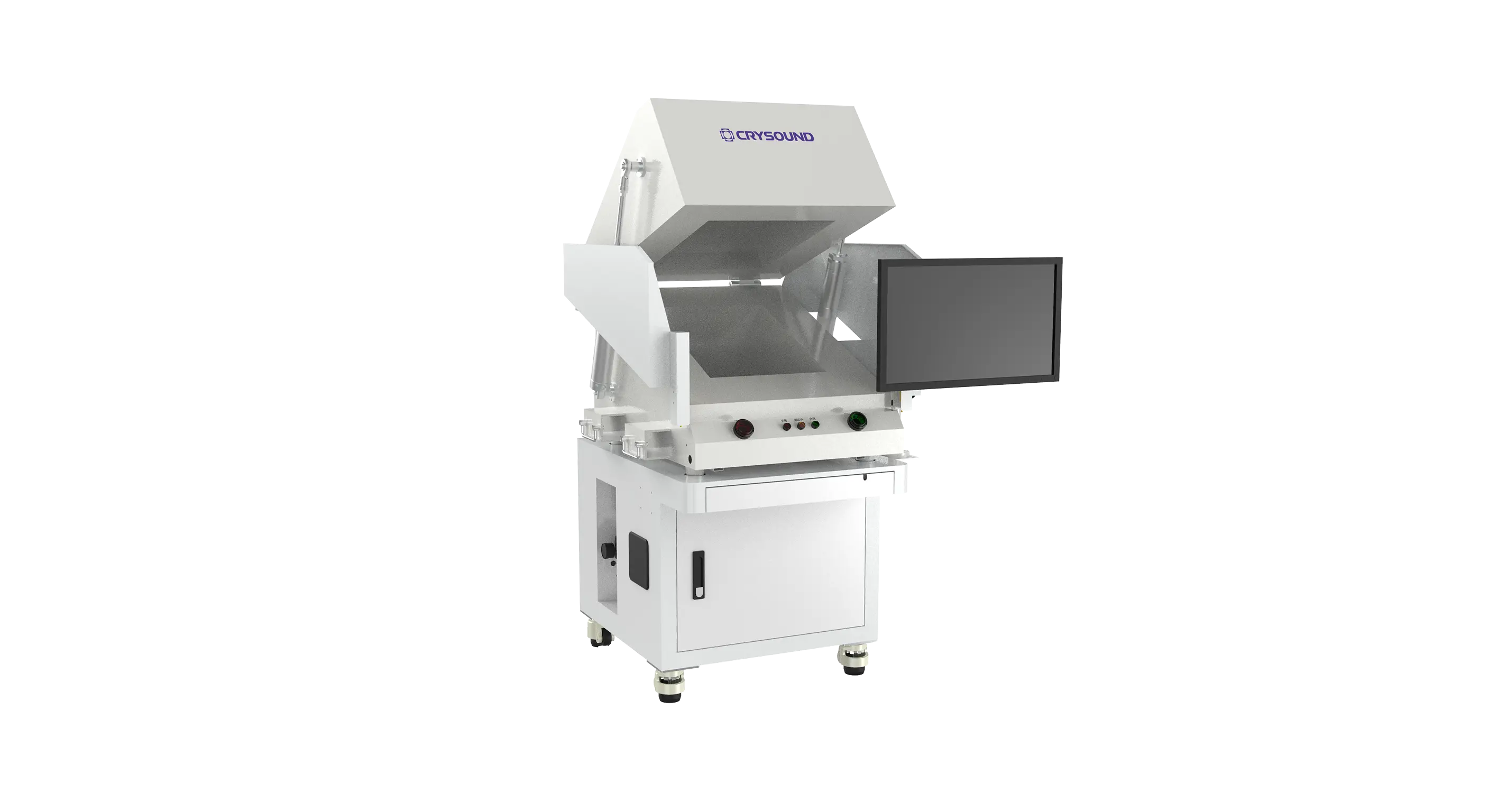

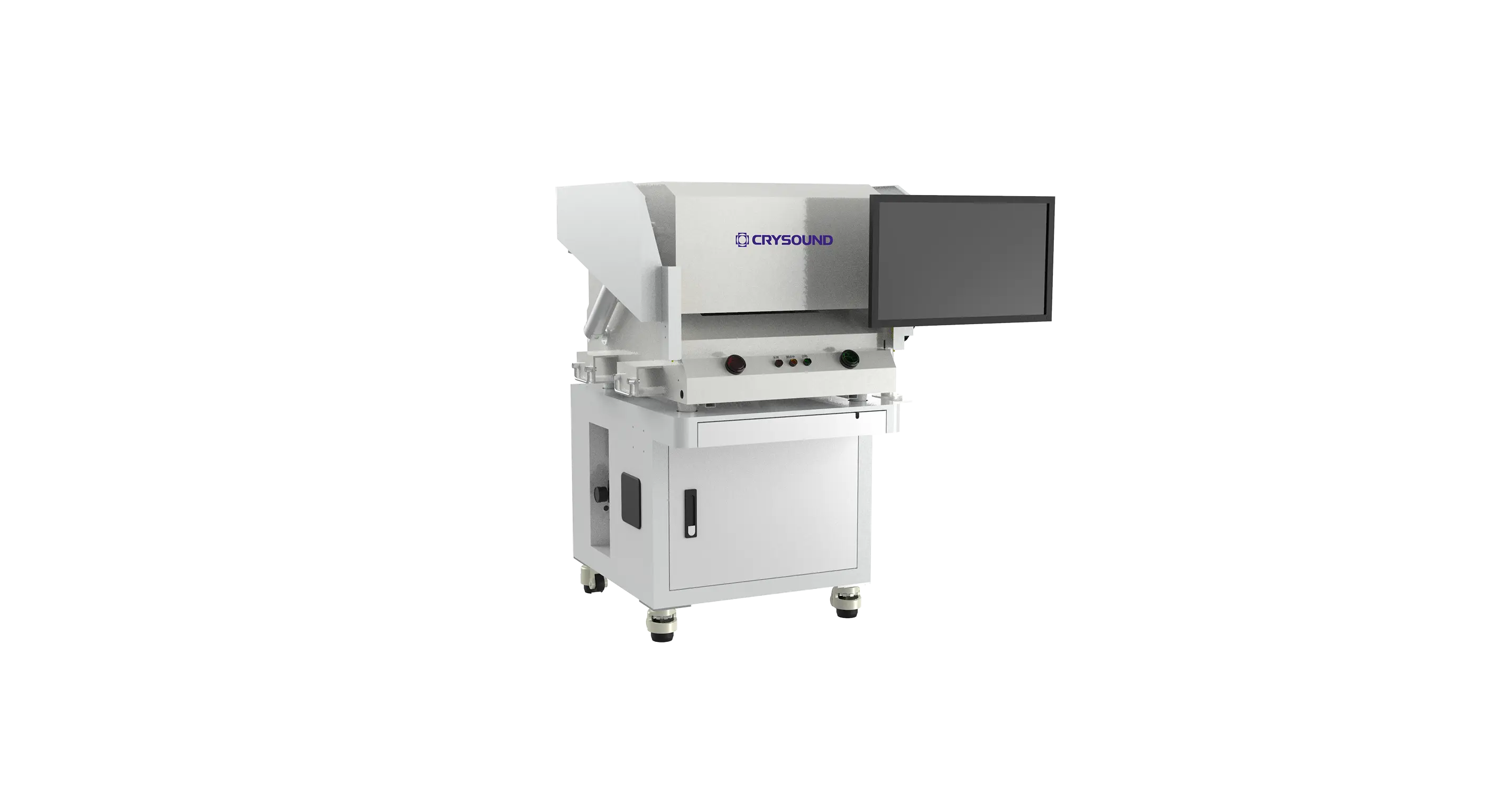

CRY723D Pneumatic Acoustic Test Chamber
CRY723D Pneumatic Acoustic Test Chamber
The CRY723D Pneumatic Acoustic Test Chamber is primarily used to test the power, sensitivity, and other electrical performance parameters of wireless electronic and communication products, such as wireless servers and walkie-talkies. This test chamber can be utilized with comprehensive testers, vector network analyzers, signal sources, and channel emulators to conduct essential testing. It is capable of connecting to wireless devices via Bluetooth, WiFi, GSM, WCDMA, RFID, or GPS remote controllers.
- Pneumatic
- Excellent performance
- Low noise
Features
- Shielded frequency up to 6GHZ.
- EMI filters on all data ports and power signals.
- With anti-pressure.
- High audio shielding performance.
Features
- Shielded frequency up to 6GHZ.
- EMI filters on all data ports and power signals.
- With anti-pressure.
- High audio shielding performance.
Technical Specifications
Specifications
Color
Color
White
Weight
Weight
About 135kg
Box dimension
Box dimension
600(L)*550(W)*500(H)mm
Operating dimension
Operating dimension
400(L)*350(W)*300(H)mm
Electrical Specifications
Operating voltage
Operating voltage
AC 220V, 50/60Hz
Rated power
Rated power
15W
Pneumatic pressure
Pneumatic pressure
>5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance
RF shielding performance
0.8~4GHz>70dB, 4～6GHz>60dB (Without I/O interface)
Audio isolation performance
Audio isolation performance
100~300Hz>38dB, Above 300Hz>48dB (1/3 octave)
Noise floor
Noise floor
30dBA, exterior noise≤80dBA (No shock or vibration)
