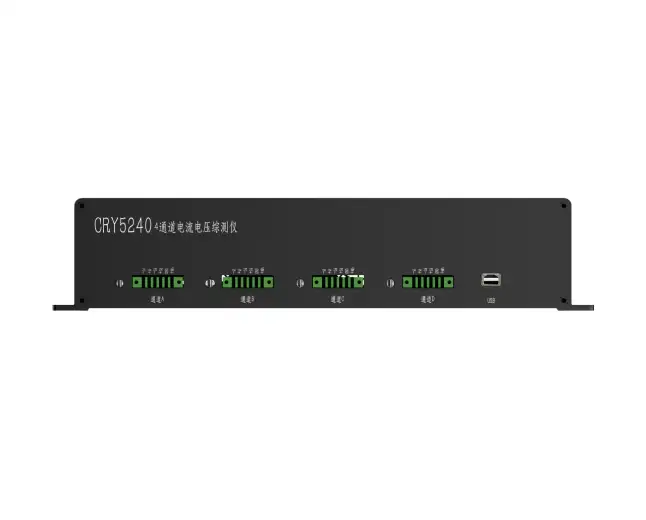

CRY5240 Programmable Battery Simulator
CRY5240 Programmable Battery Simulator
CRY5240 is a programmable battery simulator with comprehensive functions, high stability and accuracy for production line.
It can meet demands of battery simulators in multi-channel, multi-parameter and complex test environments, stand alone up to 4 channels.
- Isolated channels
- Wide voltage range
- Multi-functional mode
- Programmable parameters
Features
- USB communication circuit isolated from power supply circuit.
- Circuit isolation between 4 channels without electrical connection.
- Range of power supply output voltage: 0.810V~5.175V.
- Power supply current from 5nA to 1.5A.
- Support input external voltage and range can switch automatically from 5nA to 1.5A.
- Four current measurement levels: nA,uA,uA2,mA.
- Range mode:Auto-switching and fixed-range.
- Be able to set voltage, current threshold which saved independently.
- One channel provide independent setting of related parameters.
- Able to set parameters and read result through PC serial ports, even upload data to MES.
- Battery simulators have multiple functions and features supporting Charge, Battery, Load.
- Supports three modes of power supply: external power supply, programmable power supply, battery simulator powered.
- Automatic disconnection protection and alarm over range.
- AC 220,Integrated internal industrial switching power supply.
Features
- USB communication circuit isolated from power supply circuit.
- Circuit isolation between 4 channels without electrical connection.
- Range of power supply output voltage: 0.810V~5.175V.
- Power supply current from 5nA to 1.5A.
- Support input external voltage and range can switch automatically from 5nA to 1.5A.
- Four current measurement levels: nA,uA,uA2,mA.
- Range mode:Auto-switching and fixed-range.
- Be able to set voltage, current threshold which saved independently.
- One channel provide independent setting of related parameters.
- Able to set parameters and read result through PC serial ports, even upload data to MES.
- Battery simulators have multiple functions and features supporting Charge, Battery, Load.
- Supports three modes of power supply: external power supply, programmable power supply, battery simulator powered.
- Automatic disconnection protection and alarm over range.
- AC 220,Integrated internal industrial switching power supply.
Technical Specifications
Specifications-Maximum Absolute Rating
AC supply
AC supply
AC90-240V/50-60Hz
Input voltage:P+/P-
Input voltage:P+/P-
-0.3~+26V
Input voltage of one channel:Vin1
Input voltage of one channel:Vin1
9.9V
Input current
Input current
3.5A
Simulation of supply current
Simulation of supply current
2A
Simulation of charging current
Simulation of charging current
2A
Storage temperature
Storage temperature
-40~125℃
Wroking temperature
Wroking temperature
5~45℃
ESD rated value-Human Body Model(HBM)
ESD rated value-Human Body Model(HBM)
2500V
ESD rated value-CharginZg Device Model(CDM)
ESD rated value-CharginZg Device Model(CDM)
1000V
ESD rated value-Machine Model(MM)
ESD rated value-Machine Model(MM)
150V
