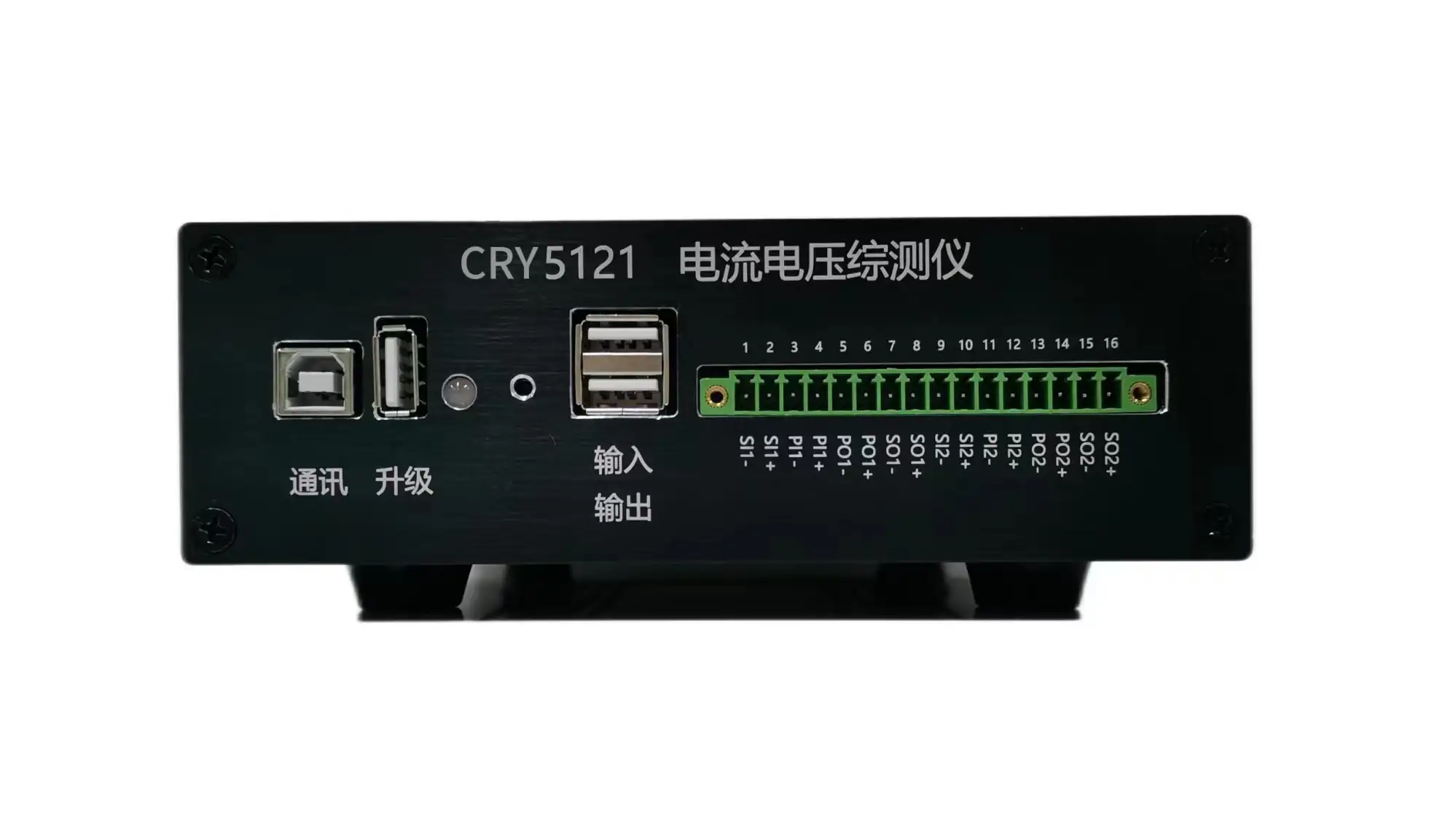

CRY5121 Programmable Battery Simulator
CRY5121 Programmable Battery Simulator
The CRY5121 programmable battery simulator is designed for mass-production to test voltage and current.
The has versatile functions, stability, precision, along with multiple channels, meeting the requirements of consumer electronic product testing.
- Wide voltage & current range
- Multi-scale measurement
- Programmable test parameters
- Dual-channel independent testing
Features
- The device supports external input voltage with automatic range switching, covering a measurement range of 5mV to 27V.
- Features external input current with automatic range switching, spanning 2nA to 3.5A.
- Current tests can be conducted at three levels: nA, µA, and mA.
- The range mode includes both auto-switching and fixed value options.
- Voltage and current threshold parameters can be set, with each current unit threshold parameter saved independently.
- Dual channels can be tested independently, each with its own parameters.
- Communication is facilitated through PC serial ports, allowing for parameter settings and results to be read and uploaded to an MES.
- The device is powered via USB, simulating battery charging and providing a constant current load function.
- Features automatic disconnection and alarms for over-range conditions.
Features
- The device supports external input voltage with automatic range switching, covering a measurement range of 5mV to 27V.
- Features external input current with automatic range switching, spanning 2nA to 3.5A.
- Current tests can be conducted at three levels: nA, µA, and mA.
- The range mode includes both auto-switching and fixed value options.
- Voltage and current threshold parameters can be set, with each current unit threshold parameter saved independently.
- Dual channels can be tested independently, each with its own parameters.
- Communication is facilitated through PC serial ports, allowing for parameter settings and results to be read and uploaded to an MES.
- The device is powered via USB, simulating battery charging and providing a constant current load function.
- Features automatic disconnection and alarms for over-range conditions.
Technical Specifications
Specifications-Maximum Absolute Rating
AC supply
AC supply
AC90-240V/50-60Hz
Input voltage PI1+/PI1-,PI2+/PI2-
Input voltage PI1+/PI1-,PI2+/PI2-
-30～+30V,-0.3～+30V
Input Current
Input Current
4.096A
Simulation of supply current
Simulation of supply current
2.5A
Simulation of charging current
Simulation of charging current
2.5A
Constant loaded pressure
Constant loaded pressure
7V
Constant loaded current
Constant loaded current
0.35A
Storage temperature
Storage temperature
-40～125℃
ESD rated value-Human Body Model(HBM)
ESD rated value-Human Body Model(HBM)
2500V
ESD rated value-Charging Device Model(CDM)
ESD rated value-Charging Device Model(CDM)
1000V
ESD rated value-Machine Model(MM)
ESD rated value-Machine Model(MM)
150V
