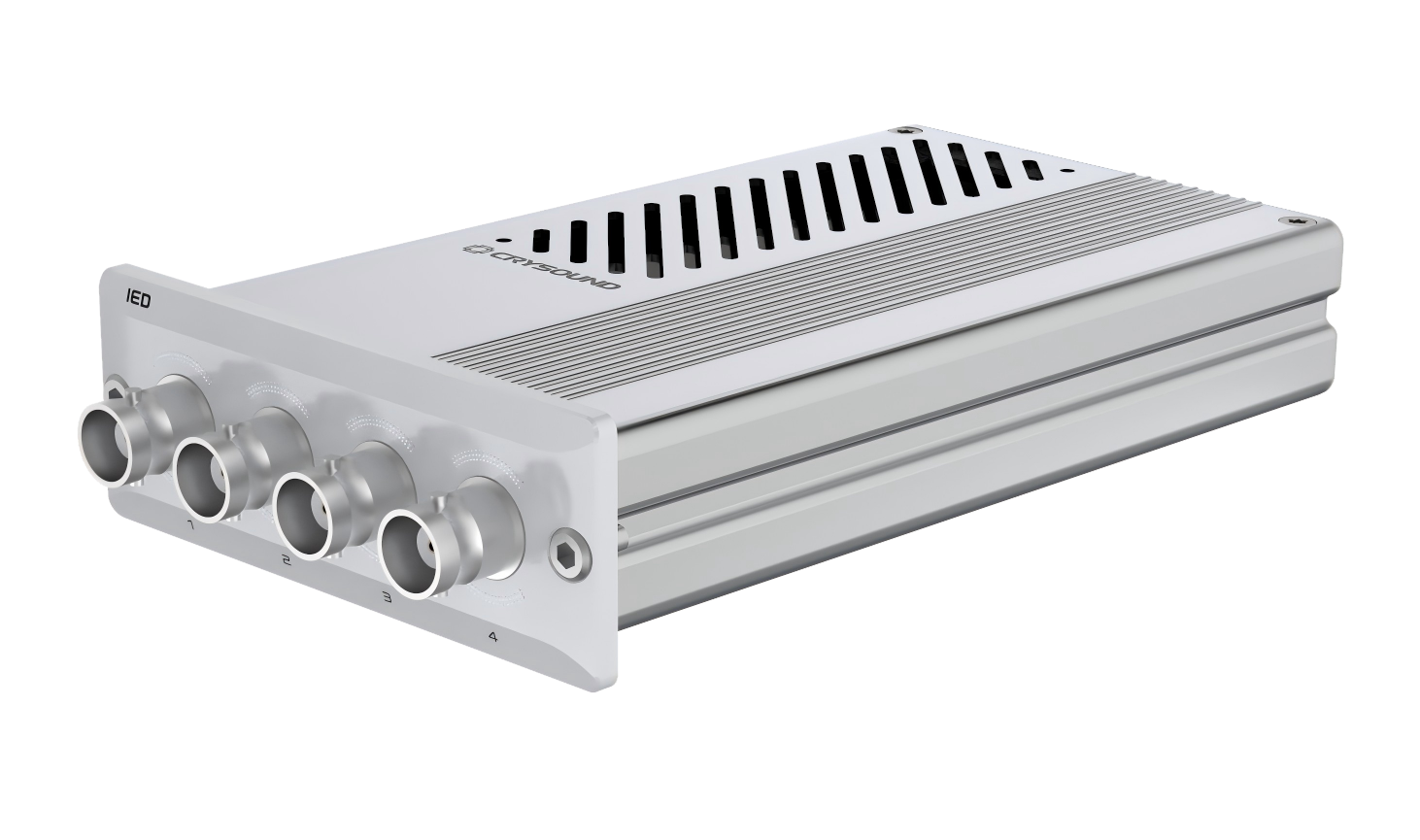

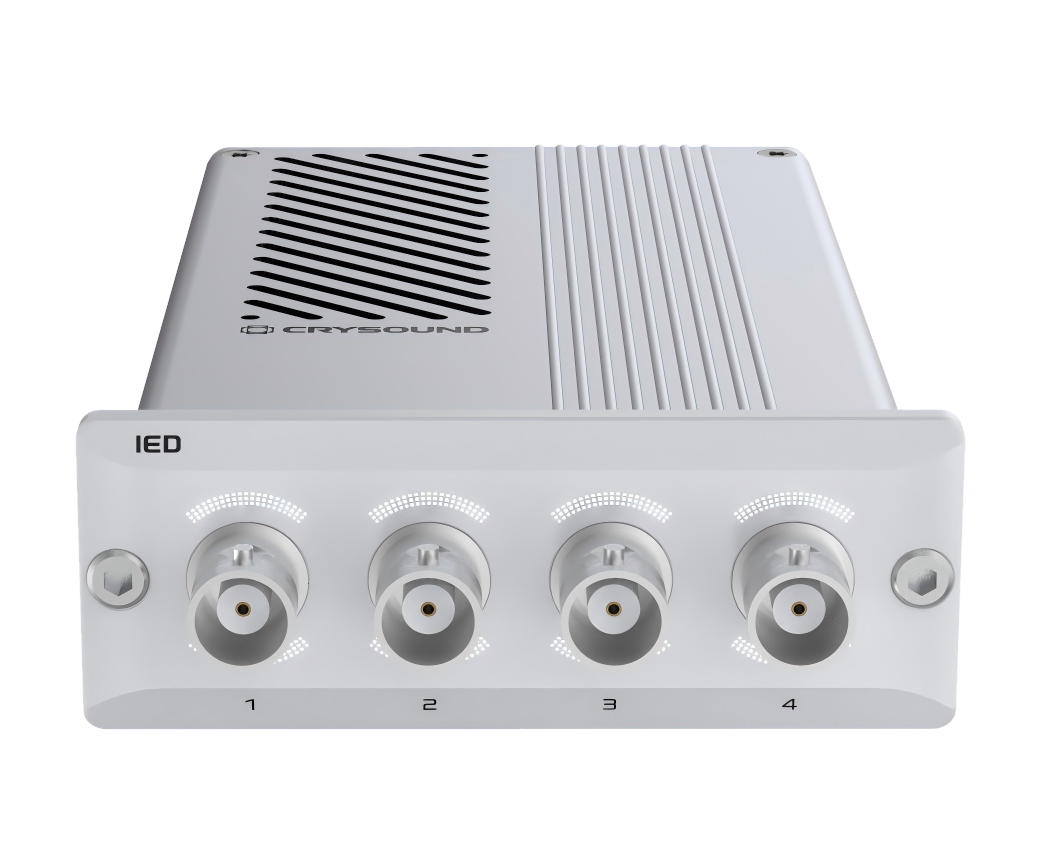

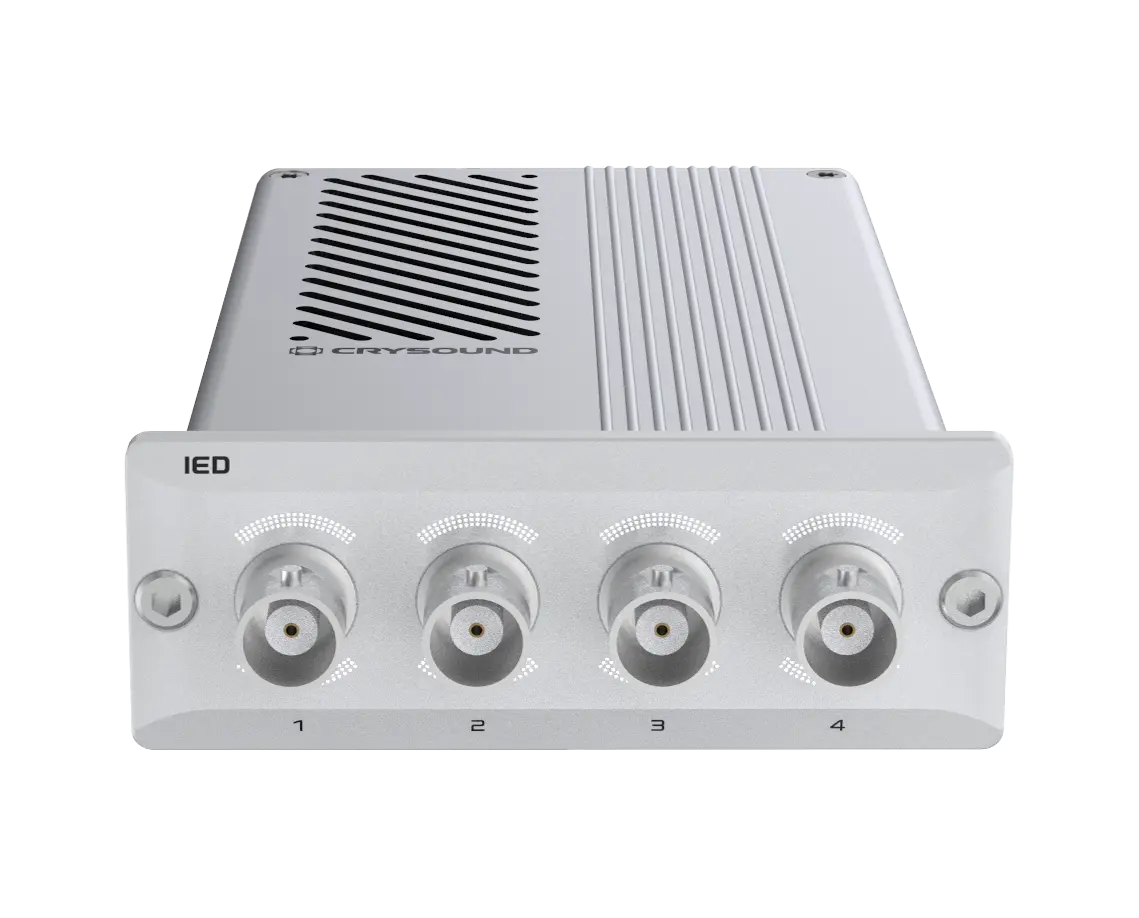

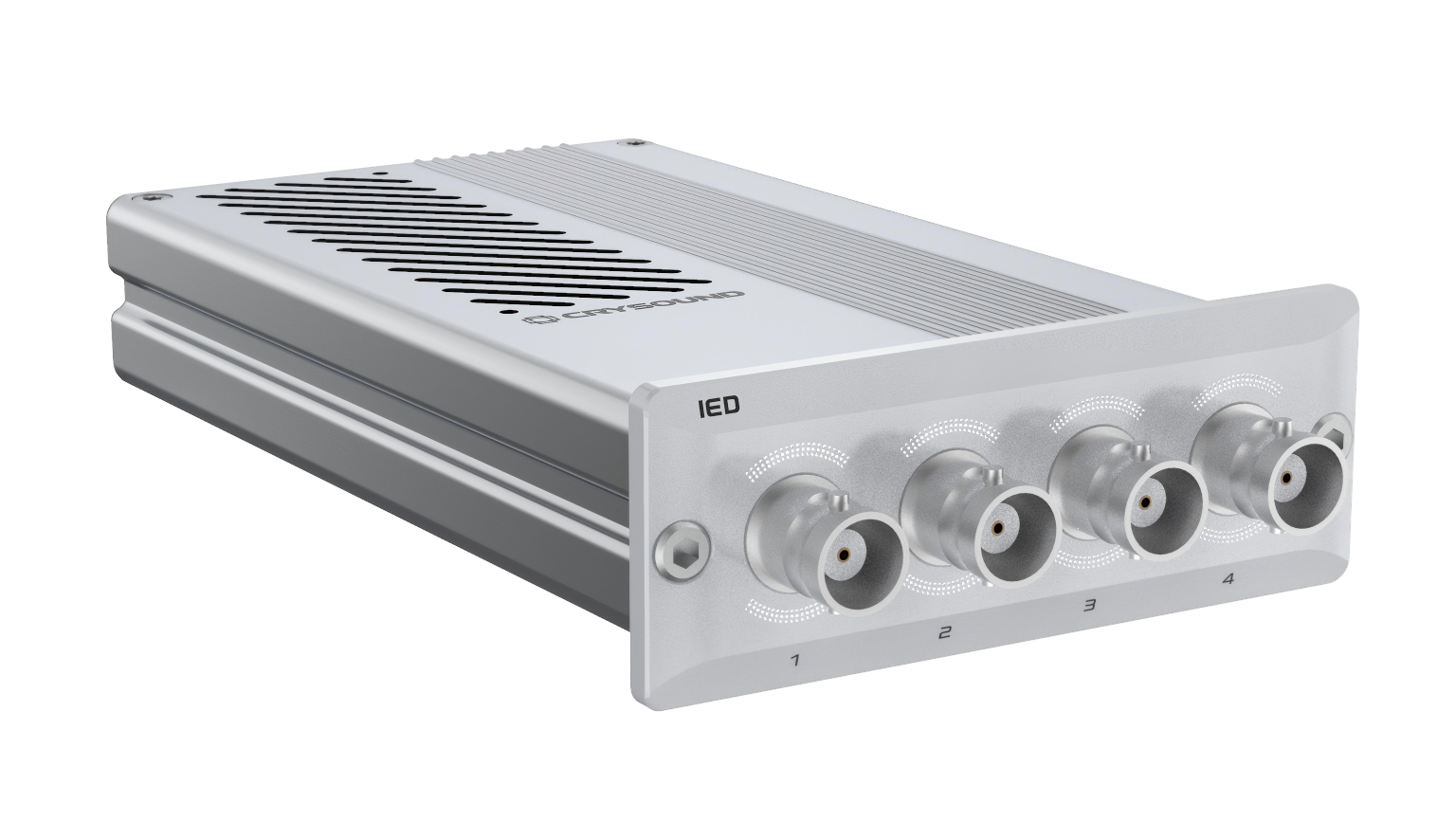

CRY5011 IEPE Analog In-IED

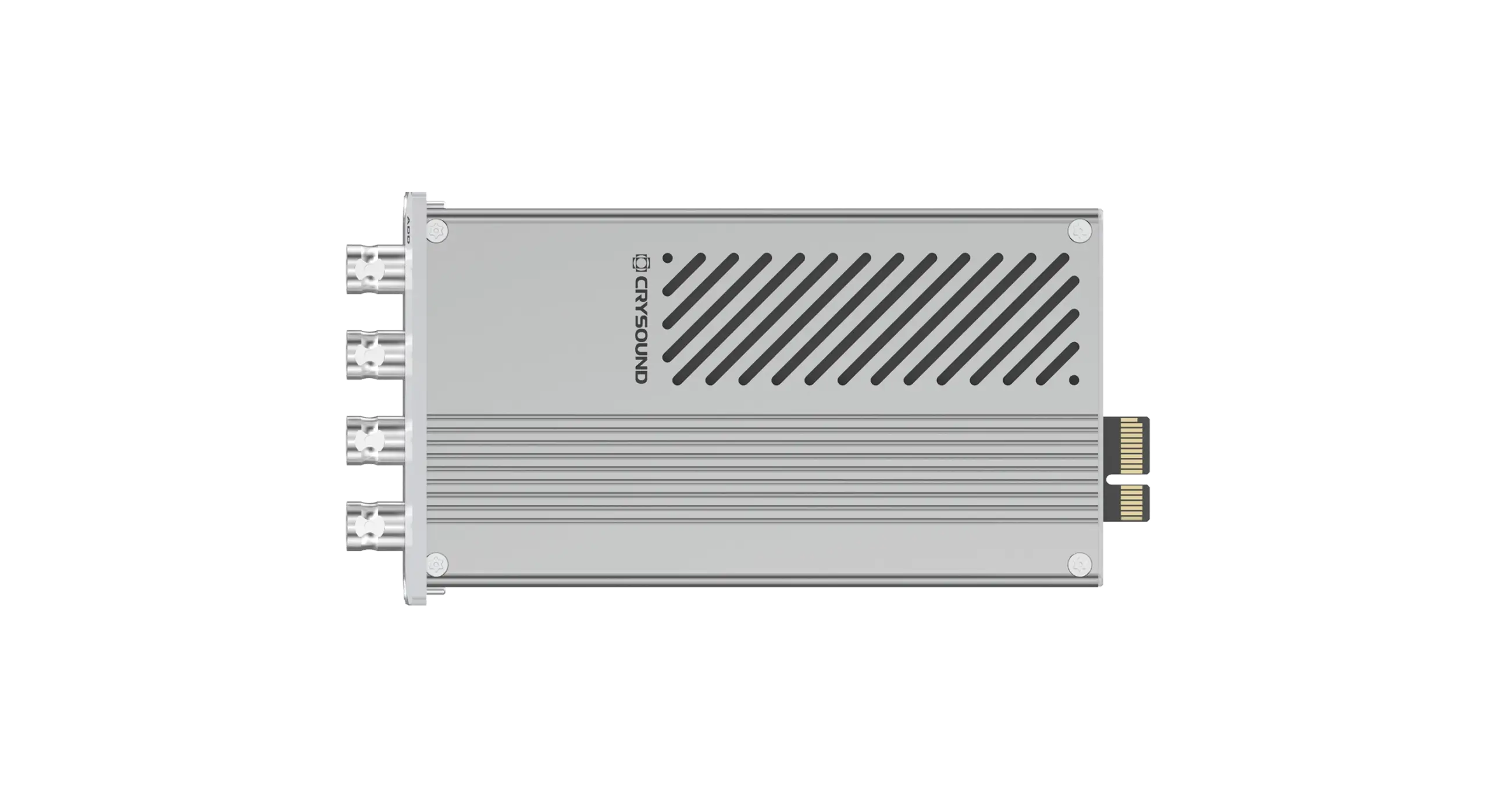

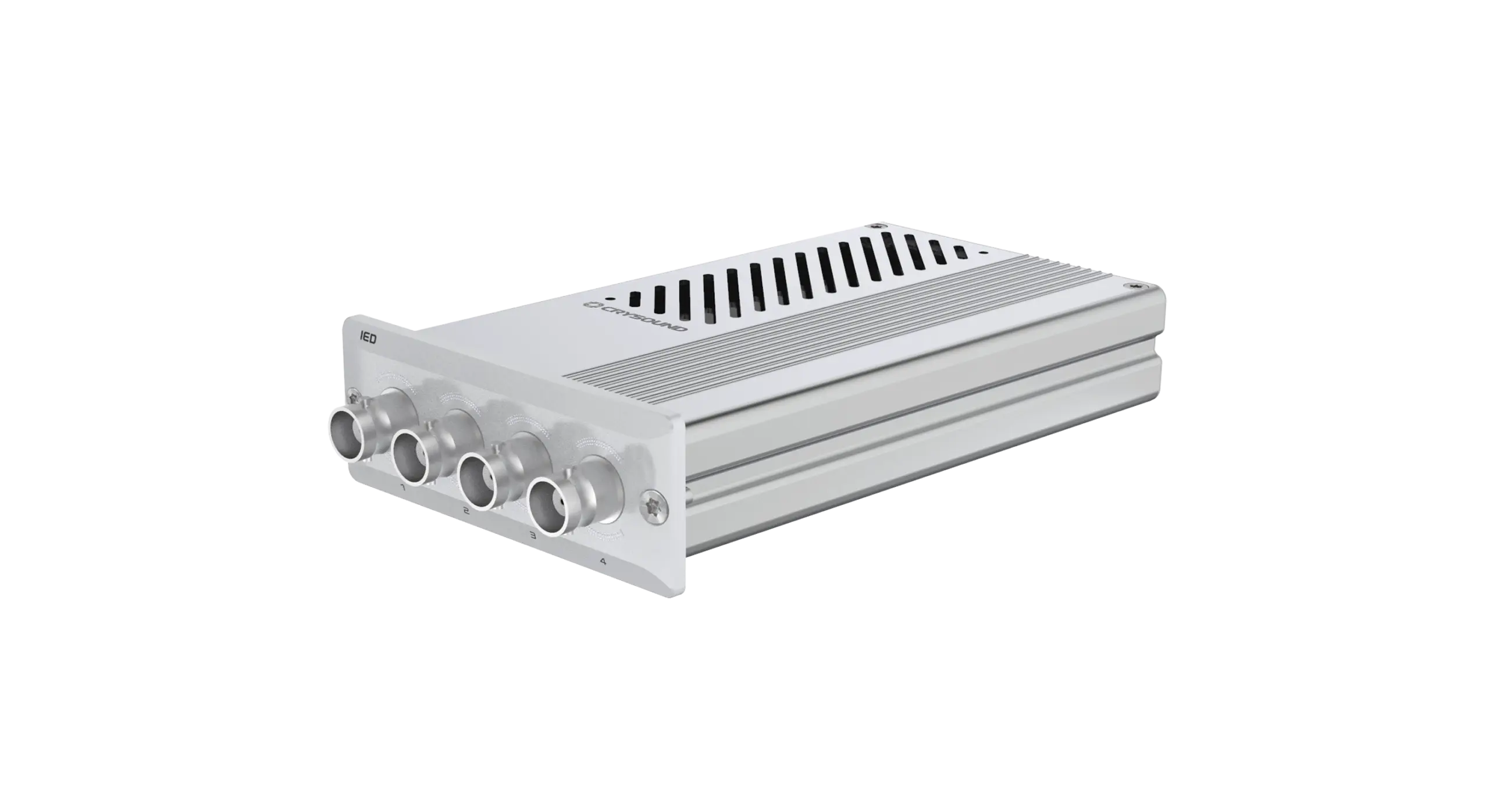

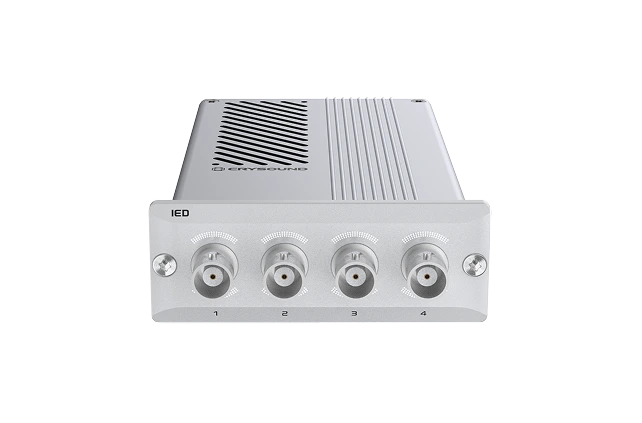

The IED input module is designed for high-precision acoustic and vibration testing. Supporting both IEPE and voltage inputs, it can flexibly interface with microphones, accelerometers, and various voltage signals. Featuring 32-bit high-resolution acquisition, a wide frequency range of 10 Hz to 204.8 kHz, and up to 160 dB dynamic range, the module also delivers excellent noise, distortion, crosstalk, and synchronization performance, providing stable and reliable signal acquisition for laboratory testing, NVH analysis, and multi-channel distributed measurement.
Product Highlights

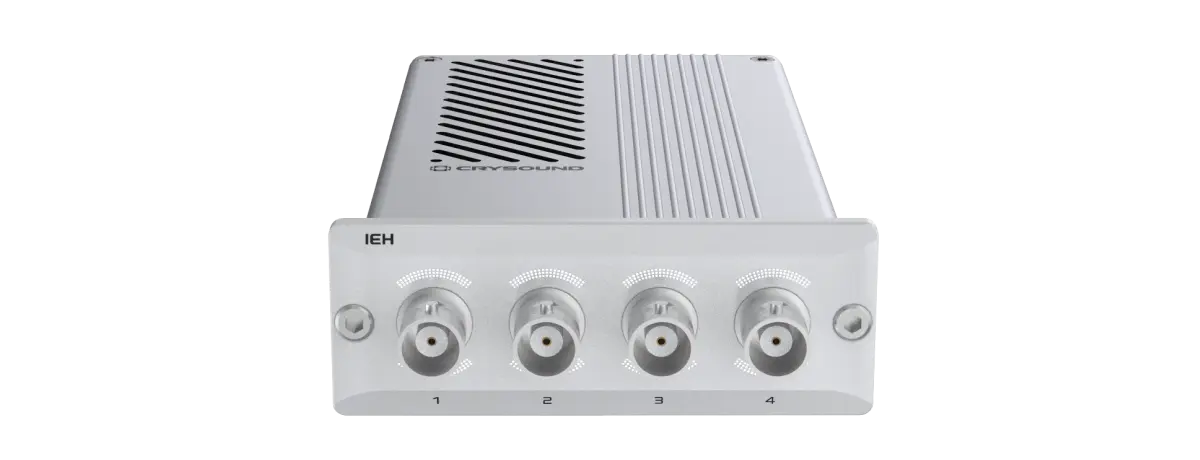

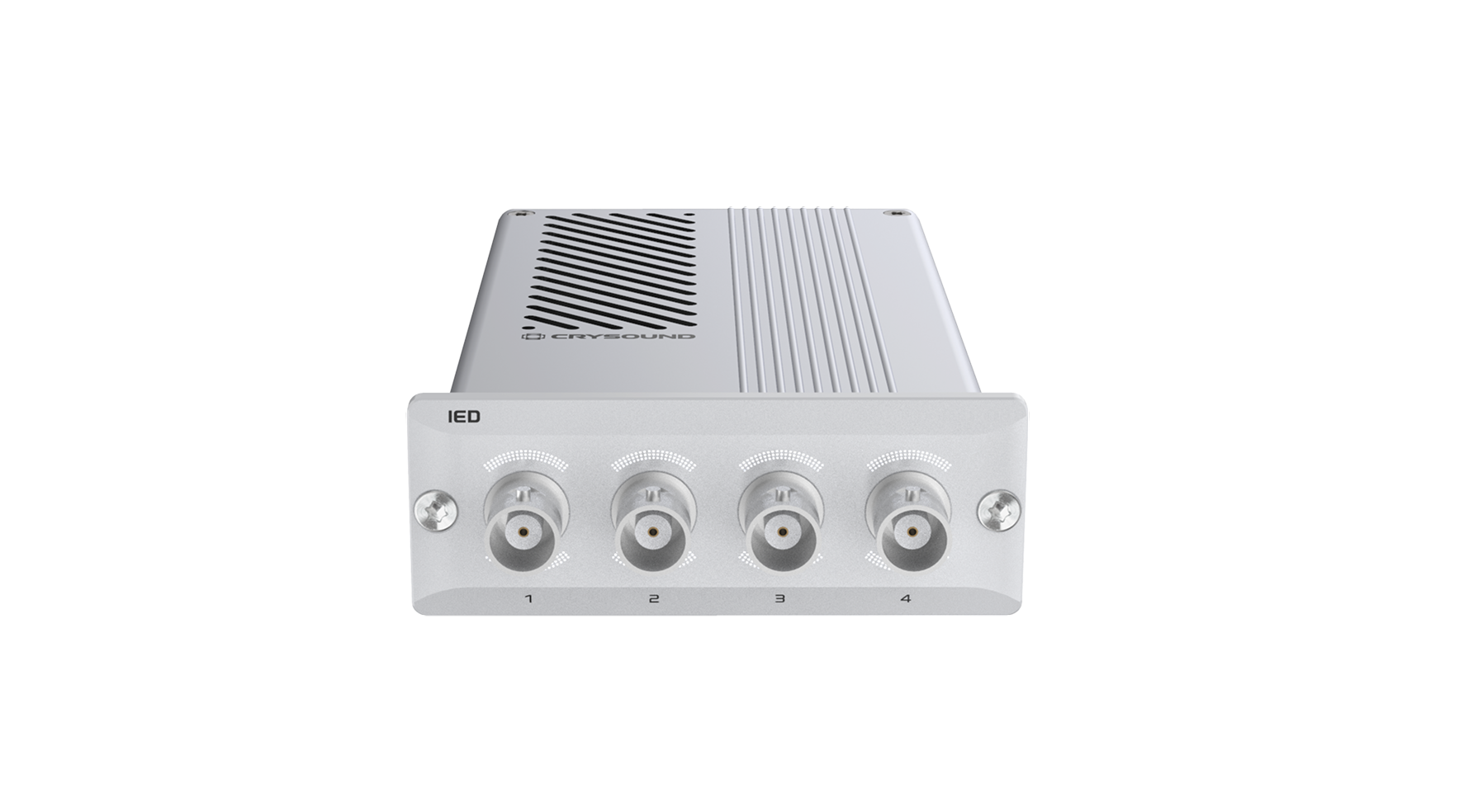

Capturing Fine Details and Wide Dynamic Range
With 32-bit high resolution and up to 160 dB dynamic range, the module can capture low-level weak signals while also handling large-amplitude test scenarios.

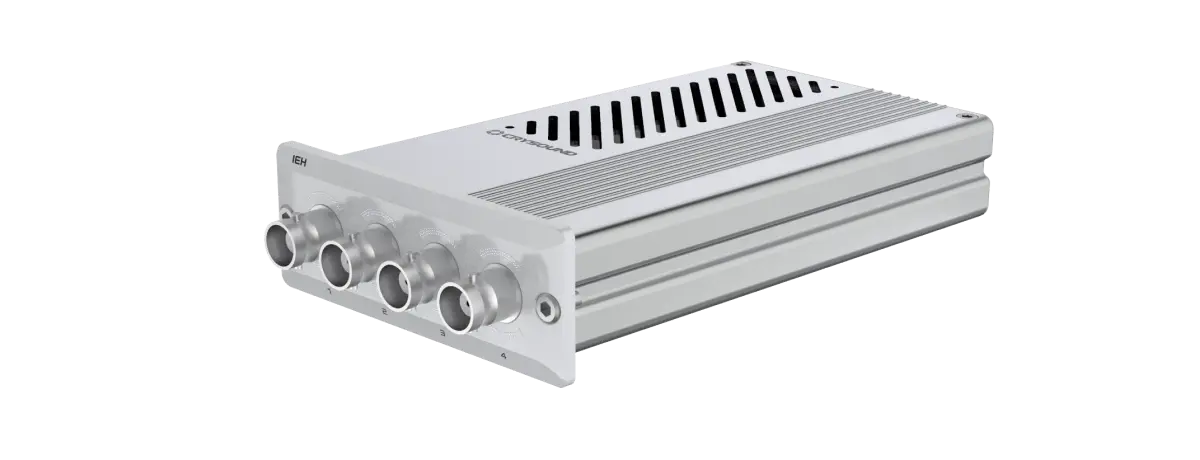

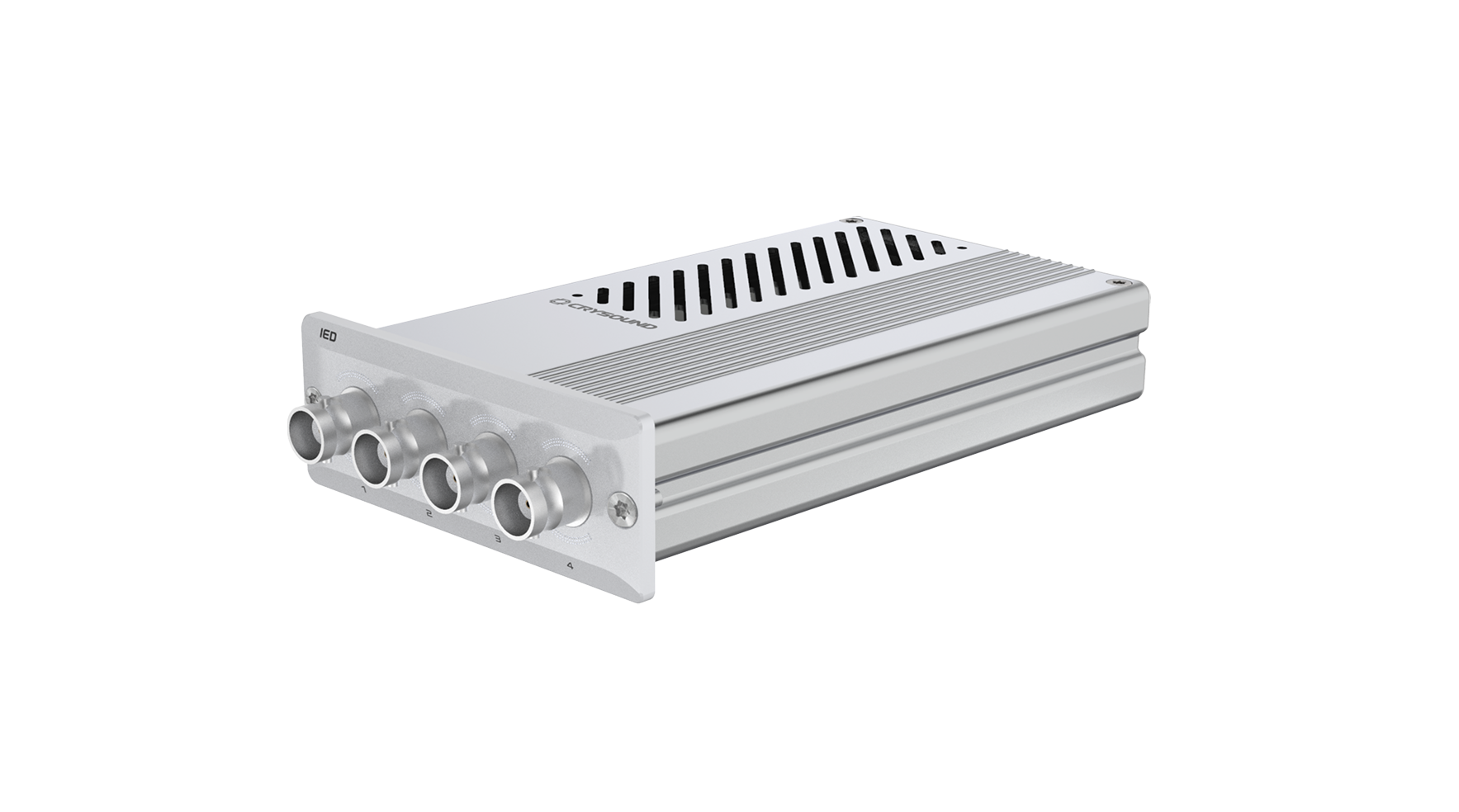

High Bandwidth with Flexible Testing
With a wide bandwidth of 10 Hz to 204.8 kHz, it supports measurements from low-frequency to high-frequency signal, making it suited for high-bandwidth signal analysis.

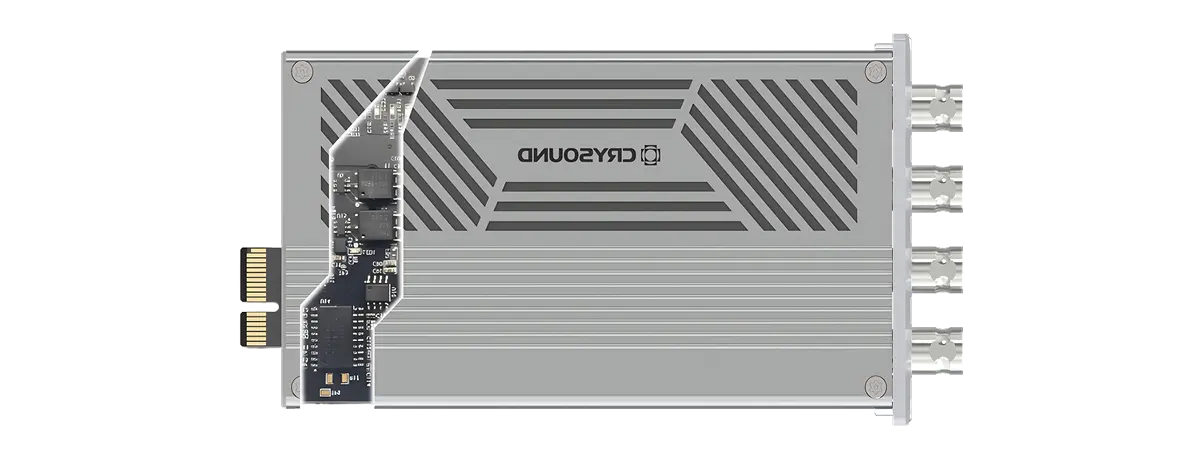

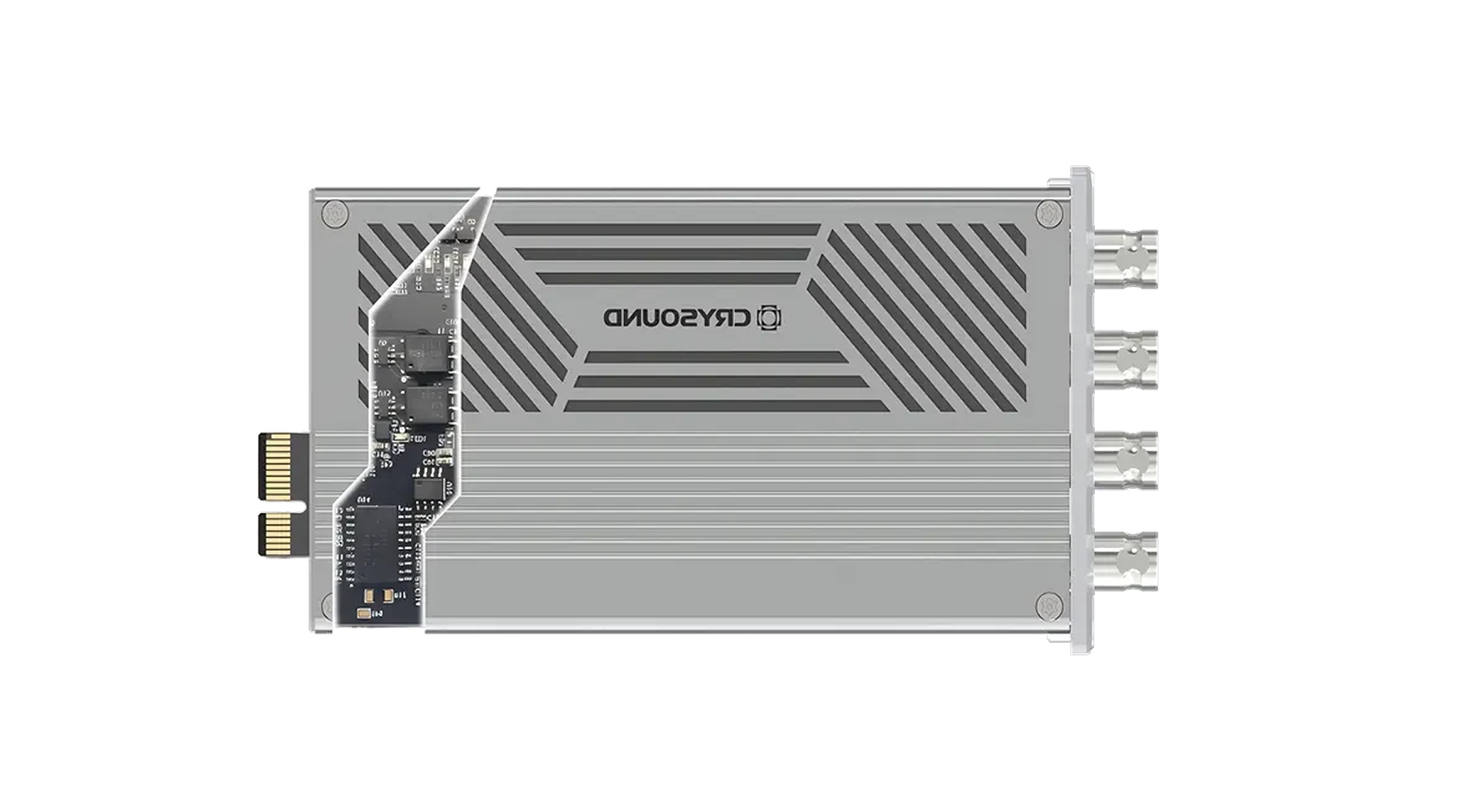

Low Noise and High Fidelity for True Signal
With excellent noise, distortion, and crosstalk performance, the module maintains signal purity and consistency in multi-channel testing, making it suited for precision measurements.

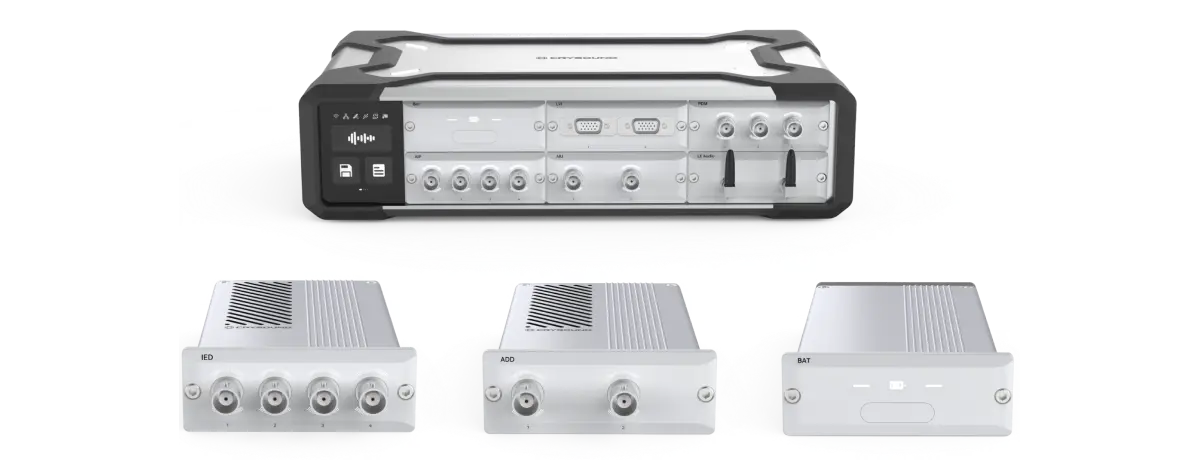

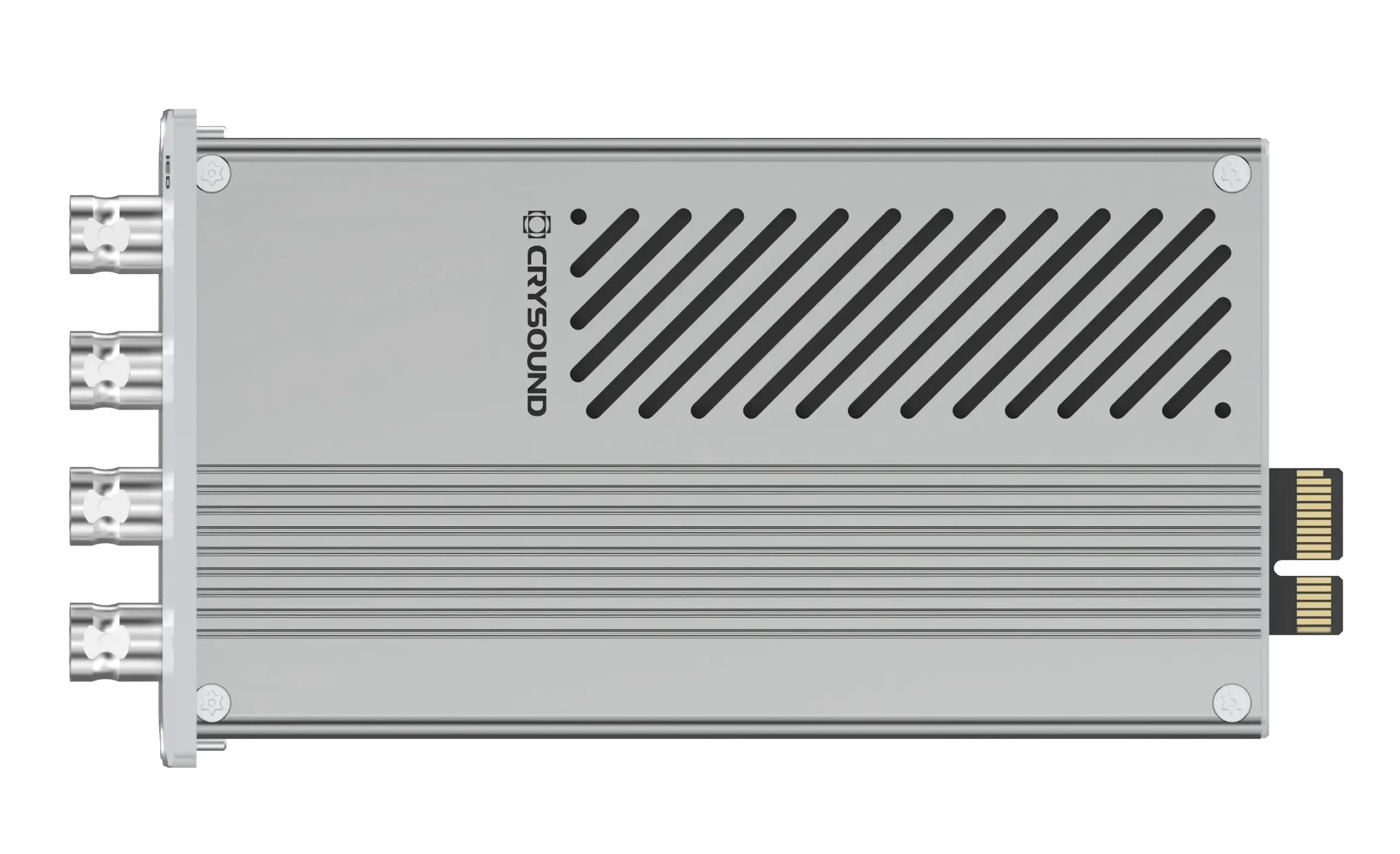

Compatible with Multiple Sensor Types
Supporting both IEPE and voltage inputs, it can be easily connected to microphones, accelerometers, and various voltage signal sources.
Technical Specifications
Channel
4
ADC Resolution
32 bit
Sampling Rate
10 Hz ~204.8 kHz, optional
Dynamic Range
160 dB
Coupling
AC / DC，Optional
Frequency Accuracy
± 2 ppm (-10 ℃~ 50 ℃)
Amplitude Accuracy
± 0.35% (15 ℃ ~30 ℃) ;± 0.58% (0 ℃ ~45 ℃) ; ± 1.2% (-10 ℃ ~50 ℃)
TEDS
Support
IEPE
4 mA / 24 V
Sync. Accuracy (Channel)
± 100 ns
Max Power
3W
THD + N
≤ -102 dB(20 Hz ~ 20 kHz) @1 kHz
Crosstalk
≤ -130 dB @1 kHz
Noise Floor
≤ -117dBV (20 Hz ~ 20 kHz )
Input Range
90 Vpk
Impedance
≥1 MΩ
Frequency Flatness
DC: ± 0.008 dB (0 Hz ~20 kHz ) ; ± 0.030 dB (20 kHz~ 50 kHz ) ; ± 0.1 dB (50 kHz ~80 kHz ) AC: ±0.08 dB(20 Hz~ 20 kHz )
Main Features
- 32-bit high resolution
- 160 dB dynamic range
- Low Noise and High Fidelity for True Signal
- Supporting both IEPE and voltage inputs
