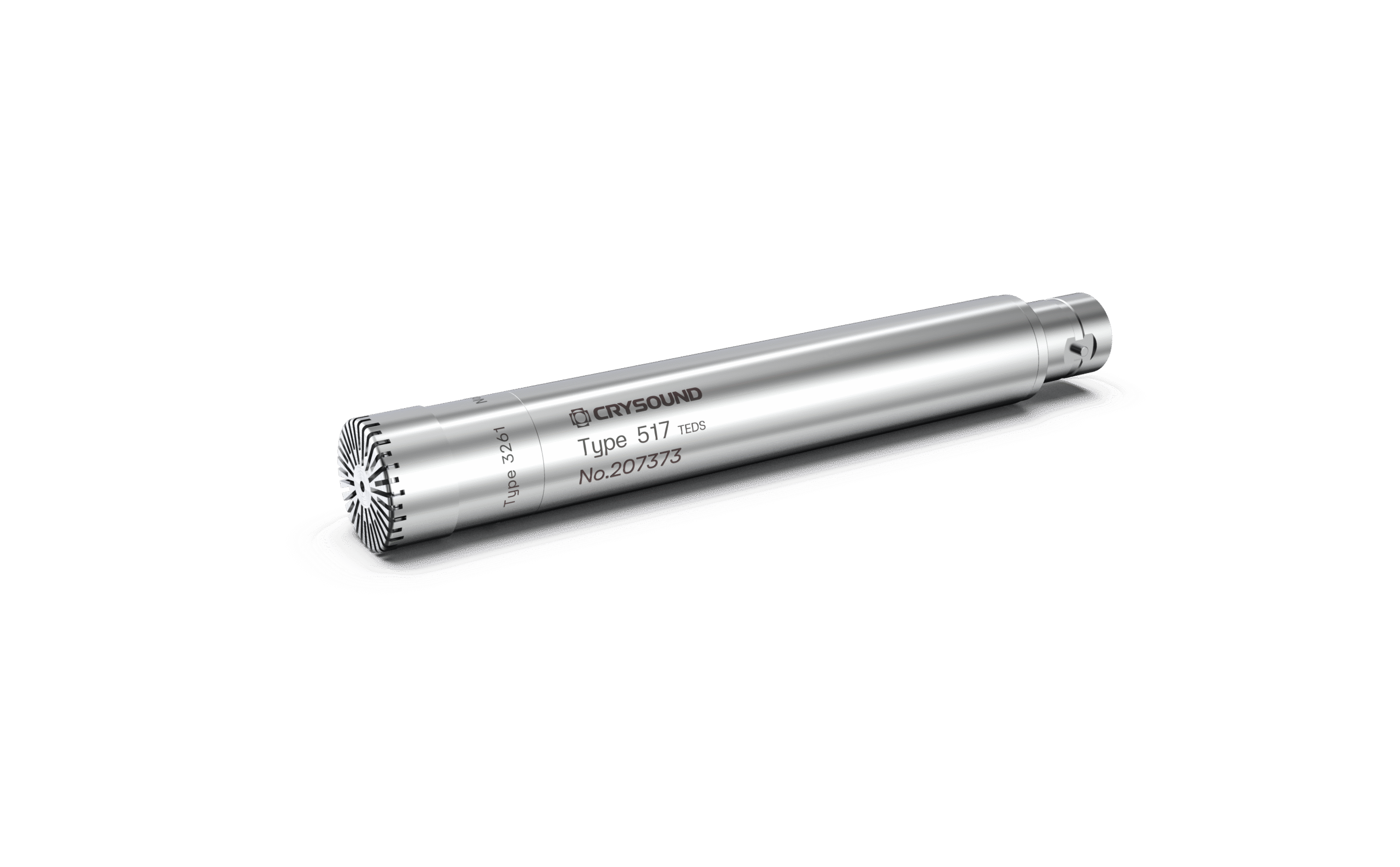

CRY3261-S02 Free-Field Microphone Set, 1/2", 450mV/Pa
The CRY3261-S02 is a 1/2-inch free-field prepolarized ultra-low-noise measurement microphone and IEPE preamplifier set, specifically designed for ultra-low-noise measurement applications below 10 dB. With an inherent noise level as low as 6.5 dBA (typical 6.0 dBA), a dynamic range of 6.5 dBA to 100 dB, and a frequency response from 6 Hz to 20 kHz, it provides stable and traceable measurement performance for applications such as product self-noise evaluation, household appliance noise measurement, transformer current noise analysis, and low-noise environmental assessment.
Technical Specifications
Field Type
Free-field
Sensitivity
450 mV/Pa, -7 dB±2dB re 1V/Pa
Frequency Response
10 Hz to 16kHz ±2dB; 6 Hz to 20kHz ±3dB
Polarization Voltage
0 V
Dynamic Range Lower Limit
6.5 dBA，Typical:<6.0 dB
Dynamic Range Upper Limit(re.20uPa)
100 dB（20Hz - 8kHz）; 85 dB（8kHz - 20kHz）
Power Supply
4mA -20mA, typical 4mA
Operating Temperature
-20℃ to +60℃ (-4℉ to +140℉)
Temperature Stability
0.012 dB/℃ (-10℃ to +50℃); 0.008 dB/℉ (+14℉ to +122℉)
Static Pressure Stability
-0.01 dB/kPa
Operating Humidity Range
< 0.1 dB (0 to 90%RH no condensation)
Humidity Stability
< 0.1 dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2F
Output Impedance
35 Ω
Interface Type
BNC
TEDS
IEEE 1451.4
Weight
36g
Main Features
- Inherent noise as low as 6.5 dBA
- Free-field
- Frequency range: 6 Hz to 20 kHz
- TEDS
Product Highlights
Ultra-Low Inherent Noise
With an inherent noise level as low as 6.5 dBA, the CRY3261-S02 is purpose-built for ultra-low-noise measurements and is capable of capturing extremely weak sound pressure levels, even below the threshold of human hearing. For low-noise sources that are difficult to resolve clearly with conventional general-purpose microphones, it delivers higher measurement resolution and lower uncertainty. This makes it particularly well suited for applications such as headphone self-noise evaluation, quiet household appliances, precision electronic devices, resistor and capacitor noise testing, and low-noise environment assessment.
IEPE and TEDS Support for True Plug-and-Play Integration
Featuring a prepolarized design, the CRY3261-S02 supports IEPE powering, allowing direct connection to IEPE-compatible data acquisition systems and analyzers without the need for a traditional external power supply module. This results in simpler cabling, faster deployment, and lower system integration complexity, making it particularly suitable for applications that require frequent switching between test objects or long-term continuous operation. In addition, the set supports TEDS programmed in accordance with IEEE 1451.4, enabling automatic identification of sensor information and key parameters, significantly improving configuration efficiency and consistency in multi-channel test systems.
Full Coverage of the Human Audible Frequency Range
The CRY3261-S02 offers a frequency response of 6 Hz to 20 kHz, providing effective coverage across the full audible frequency range of human hearing and enabling complete capture of both low-frequency detail and high-frequency information. Combined with its ultra-low inherent noise of 6.5 dBA and high sensitivity of 450 mV/Pa, the set can accurately detect weak acoustic signals close to the hearing threshold while delivering more realistic and complete measurement data for low-noise products, self-noise analysis, and precision acoustic research. It is especially suitable for applications that demand high sound field fidelity and the ability to resolve subtle acoustic differences.
10-Year Warranty
The CRY3261-S02 measurement microphone is backed by a 10-year limited warranty from CRYSOUND. For details, please refer to the applicable warranty terms and service policy.
CRYSOUND recommends that the microphone be calibrated annually, with an additional calibration performed after exposure to extreme test environments.
