CRY2620 64-Mic Industrial Acoustic Imaging Camera

CRY2620 64-Mic Industrial Acoustic Imaging Camera

The CRY2620 Industrial Acoustic Imaging Camera is designed for ease of use and quick operation. Its robust aluminum alloy shell ensures durability, making it adaptable to complex and changing work environments. The device provides a real-time sound image display, significantly accelerating the detection of pressurized or vacuum leaks compared to traditional methods.

The CRY2620 simplifies testing with just two adjustable parameters: test frequency range and dynamic range, covering most testing needs.

It offers multiple modes, including camera and video modes, along with flexible on-site data recording. The large-capacity TF storage card is expandable, allowing for quick export and reporting of test results.

This device helps enterprises minimize losses from gas leaks and other accidents, enhancing overall operational safety.

  • Gas and vacuum leak detection and leak rate evaluation
  • Real-time capture and visualization of acoustic data
  • Generate reports to share key data with stakeholders
  • Durable design and materials

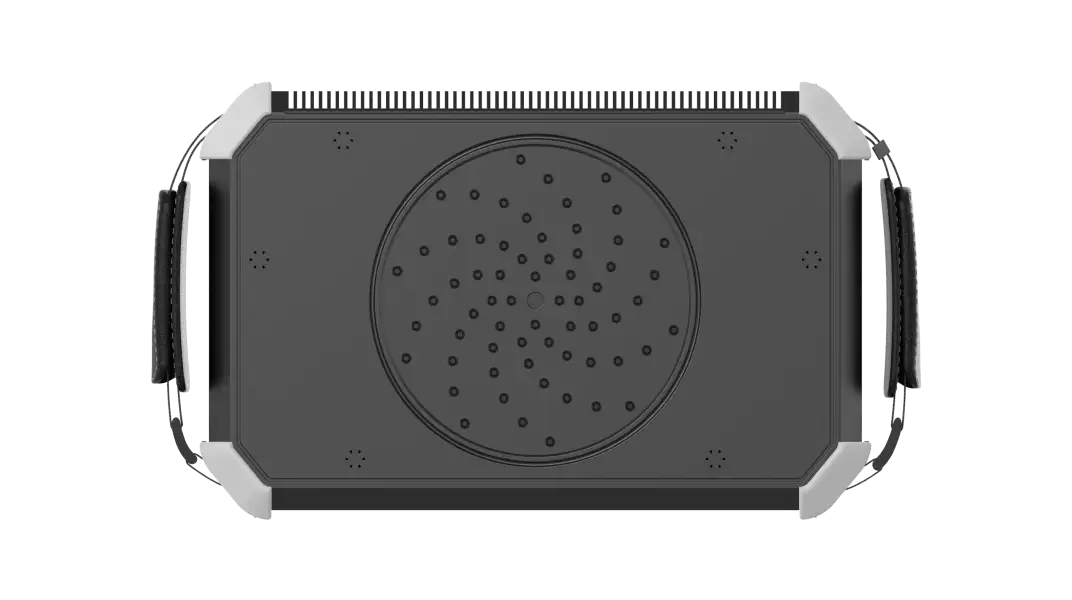

High-Performance Microphone Array

The CRY2620 utilizes state-of-the-art technology with a compact yet powerful 12 cm (4.7 inch), 64-channel microphone array. By analyzing the time delays of sound waves detected by each of the 64 microphones, the system precisely identifies the direction and distance of sound sources. Advanced algorithms then translate this data into a detailed acoustic image, highlighting key areas of interest. The compact size of the array ensures high-resolution imaging while maintaining a portable form factor, making it ideal for a wide range of industrial applications.

64-channel microphone array within 12cm (4.7 inch)
Testing distance reaches up to 70 meters
High-Performance Microphone Array

The CRY2620 utilizes state-of-the-art technology with a compact yet powerful 12 cm (4.7 inch), 64-channel microphone array. By analyzing the time delays of sound waves detected by each of the 64 microphones, the system precisely identifies the direction and distance of sound sources. Advanced algorithms then translate this data into a detailed acoustic image, highlighting key areas of interest. The compact size of the array ensures high-resolution imaging while maintaining a portable form factor, making it ideal for a wide range of industrial applications.

64-channel microphone array within 12cm (4.7 inch)
Testing distance reaches up to 70 meters

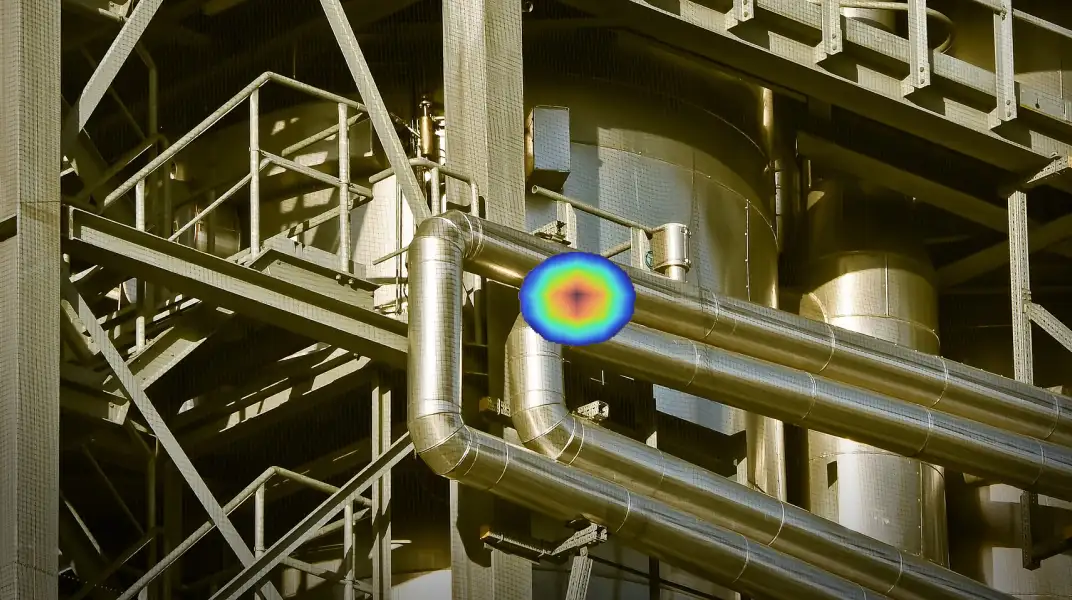

Gas/Vacuum Leak Detection & Leak Rating

The CRY2620 is a top-performing device for gas leak detection, offering precise location identification and comprehensive leak assessment. Leveraging advanced acoustic technology, it detects the ultrasound of escaping gases to pinpoint the exact source of the leak. This precision not only reduces inspection time but also enhances safety by minimizing the need for manual checks. The imager quantifies the leak rate for accurate evaluations of gas loss and calculates the economic impact of the leak, helping businesses assess potential financial losses and prioritize repairs effectively.

Locates 5bar 2.4ml/s leak at 10m distance
Easily calculate the economic losses caused by gas leak
Gas/Vacuum Leak Detection & Leak Rating

The CRY2620 is a top-performing device for gas leak detection, offering precise location identification and comprehensive leak assessment. Leveraging advanced acoustic technology, it detects the ultrasound of escaping gases to pinpoint the exact source of the leak. This precision not only reduces inspection time but also enhances safety by minimizing the need for manual checks. The imager quantifies the leak rate for accurate evaluations of gas loss and calculates the economic impact of the leak, helping businesses assess potential financial losses and prioritize repairs effectively.

Locates 5bar 2.4ml/s leak at 10m distance
Easily calculate the economic losses caused by gas leak
Detects leaks of any type of gas

The CRY2620 is engineered to detect leaks of any gas type, offering exceptional versatility for a range of industrial applications. Employing advanced acoustic technology, the camera captures ultrasound waves emitted by gas leaks, regardless of the gas composition. This ensures efficient and accurate detection across a broad spectrum of gases, including compressed air, natural gas, hydrogen, oxygen, and more. Its adaptability makes it ideal for various stages of industrial processes, from production and processing to transportation and storage. Whether used for routine maintenance or emergency situations, the real-time visualization feature enables operators to swiftly locate and assess leaks, facilitating prompt corrective actions.

Detects leaks of any type of gas

The CRY2620 is engineered to detect leaks of any gas type, offering exceptional versatility for a range of industrial applications. Employing advanced acoustic technology, the camera captures ultrasound waves emitted by gas leaks, regardless of the gas composition. This ensures efficient and accurate detection across a broad spectrum of gases, including compressed air, natural gas, hydrogen, oxygen, and more. Its adaptability makes it ideal for various stages of industrial processes, from production and processing to transportation and storage. Whether used for routine maintenance or emergency situations, the real-time visualization feature enables operators to swiftly locate and assess leaks, facilitating prompt corrective actions.

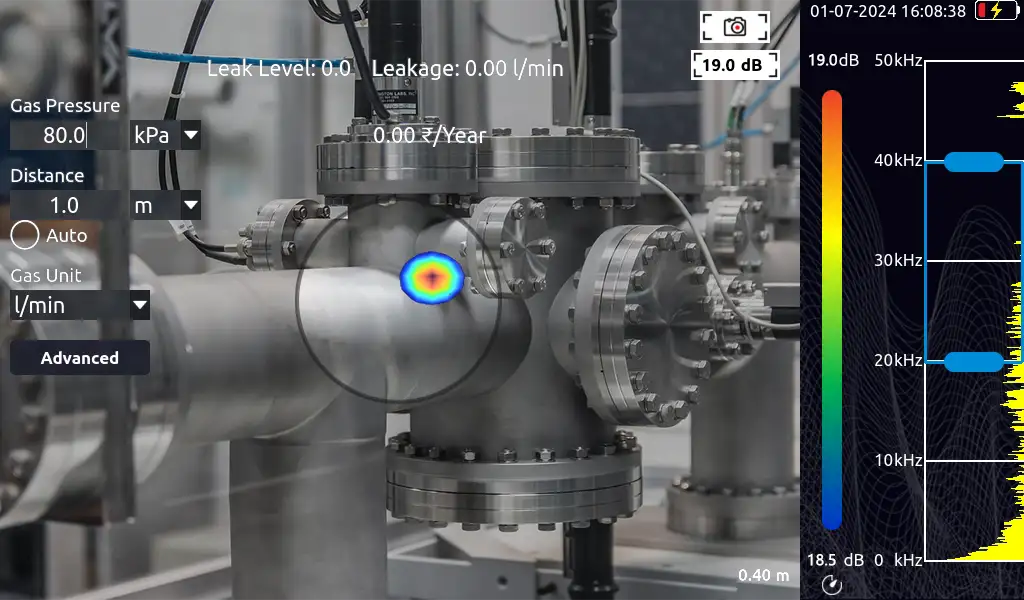

Eliminating Environmental Noise Interference by “Beamforming”

The CRY2620 boasts a "focusing" function that effectively eliminates environmental noise interference through advanced "Beamforming" technology. This acoustic innovation uses a sophisticated microphone array to pinpoint and amplify specific sound sources while reducing background noise. By concentrating on targeted areas of interest, such as machinery or structural components, the imager enhances signal clarity and accuracy in noisy environments. This feature is especially valuable in industrial settings where background noise can obscure critical acoustic signals related to equipment health and performance.

Eliminating Environmental Noise Interference by “Beamforming”

The CRY2620 boasts a "focusing" function that effectively eliminates environmental noise interference through advanced "Beamforming" technology. This acoustic innovation uses a sophisticated microphone array to pinpoint and amplify specific sound sources while reducing background noise. By concentrating on targeted areas of interest, such as machinery or structural components, the imager enhances signal clarity and accuracy in noisy environments. This feature is especially valuable in industrial settings where background noise can obscure critical acoustic signals related to equipment health and performance.

Durable for Harsh Industrial Environments

Exceptionally robust and built to endure significant pressure and accidental drops, the CRY2620 is constructed from durable aluminum alloy and engineered for resilience, delivering reliable performance in demanding environments. Its rugged design ensures consistent functionality and accuracy even in harsh conditions where physical impacts may occur. Whether deployed in industrial settings, outdoor environments, or during transportation, the imager's sturdy construction and protective features guard against impacts, ensuring uninterrupted operation. This resilience is vital for long-term reliability and cost-effectiveness in inspection and diagnostic applications, where equipment durability is essential for dependable performance.

Durable for Harsh Industrial Environments

Exceptionally robust and built to endure significant pressure and accidental drops, the CRY2620 is constructed from durable aluminum alloy and engineered for resilience, delivering reliable performance in demanding environments. Its rugged design ensures consistent functionality and accuracy even in harsh conditions where physical impacts may occur. Whether deployed in industrial settings, outdoor environments, or during transportation, the imager's sturdy construction and protective features guard against impacts, ensuring uninterrupted operation. This resilience is vital for long-term reliability and cost-effectiveness in inspection and diagnostic applications, where equipment durability is essential for dependable performance.

IP54 Rating

The IP54 rating of the CRY2620 indicates its ability to resist dust ingress and withstand water splashes, making it ideal for use in demanding environments. This rating ensures the camera is protected against most solid particles and limited water exposure, enhancing its durability and reliability. Whether used in industrial settings, outdoor conditions, or other challenging applications, the IP54 rating guarantees that the device will maintain optimal performance despite environmental factors.

IP54 Rating

The IP54 rating of the CRY2620 indicates its ability to resist dust ingress and withstand water splashes, making it ideal for use in demanding environments. This rating ensures the camera is protected against most solid particles and limited water exposure, enhancing its durability and reliability. Whether used in industrial settings, outdoor conditions, or other challenging applications, the IP54 rating guarantees that the device will maintain optimal performance despite environmental factors.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Acoustic Specification
Microphone array
Microphone array
64 channels MEMS microphone
Effective test bandwidth
Effective test bandwidth
2kHz-40kHz
Dynamic range
Dynamic range
2dB-12dB user adjustable
Test sound pressure level range
Test sound pressure level range
28-120dBA
Auto max/min dB gain
Auto max/min dB gain
User-settable, minimum test bandwidth 1kHz
Number of digits
Number of digits
24bit
Sound image FOV
Sound image FOV
62°
Sound image frame rate
Sound image frame rate
At least 25 FPS
Leak detection rate
Leak detection rate
10m 5bar 2.4ml/s, 0.5m 5bar 1.2ml/s
Detect distances
Detect distances
0.5m-70m
Camera
Camera FOV
Camera FOV
62°
Camera focal length
Camera focal length
3.04mm fixed focal length
Camera pixel
Camera pixel
8 million pixel
Display
Resolution
Resolution
1024*600 (614,400 pixels)
Size
Size
7 inch
Touch screen
Touch screen
Capacitive touch screen
Brightness
Brightness
Adjustable
Photo notes
Photo notes
Up to 5 photos notes for reference
Source
Source
Show single or multiple sources
Standard palettes
Standard palettes
3: Grayscale, Ironbow, Blue-Red
Playback function
Playback function
View photos, videos anytime,and add notes or tags
Storage
Internal storage
Internal storage
About 8G
External storage
External storage
TF memory card, at least 64G,expandable to 256G
Data storage format
Data storage format
jpg(Picture), .mp4(Video)and .wav (Recording)
Video length
Video length
5 minutes
Digital export
Digital export
TF Card
POWER
Battery capacity
Battery capacity
1×6600mAH@7.2V Rechargeable battery and 1×external battery package, continuous
Battery life
Battery life
4+6 hours operation time
Charger
Charger
USB Type-C port,USB PD protocol supported, 15W
Power consumption
Power consumption
15W for battery charge;29W for maximum power consumption
Energy management
Energy management
Sleep/Auto power off modes
Interface
3.5 mm audio jack
3.5 mm audio jack
Headphone output
USB-C
USB-C
USB 3.0 Type-C USB host port
Operating Environment
Operating environment
Operating environment
-20℃- +50℃,10%-95% no condensation
Storage temperature
Storage temperature
-20℃ – +60℃
Charging temperature
Charging temperature
10℃ – +45℃
General Specification
Ingress Protection (IP)
Ingress Protection (IP)
IP54
Size
Size
272mm×174mm×42mm
Weight
Weight
1.7kg
Warranty
Warranty
2 years
Self-diagnostic notification
Self-diagnostic notification
Array-health test function to identify when microphone array needs attention
System
System
Linux system
Certification
Certification
CE, FCC, RoHS-compliant
Supported Language
Language
Language
Chinese, English, Korean, French, Japanese, Russian, German, Italian, EU Spanish, Portuguese, Hungarian, Dutch, Cambodian, Vietnamese, Turkish, Polish
Software
Report types
Report types
Gas/ISO 50001-compliant
Analysis
Analysis
Waveform, Spectrum,Spectrogram, leakage assessment,discharge type discrimination
