Automated Test System

Electroacoustic Test

Integrated automation module

Independent operation of simplex modules

Fast turnaround speed

With TWS Bluetooth headphones dominating the market, the development of automated TWS Bluetooth headphone testing has become crucial. This testing process encompasses the measurement of audio, RF (Radio Frequency), and pairing capabilities.

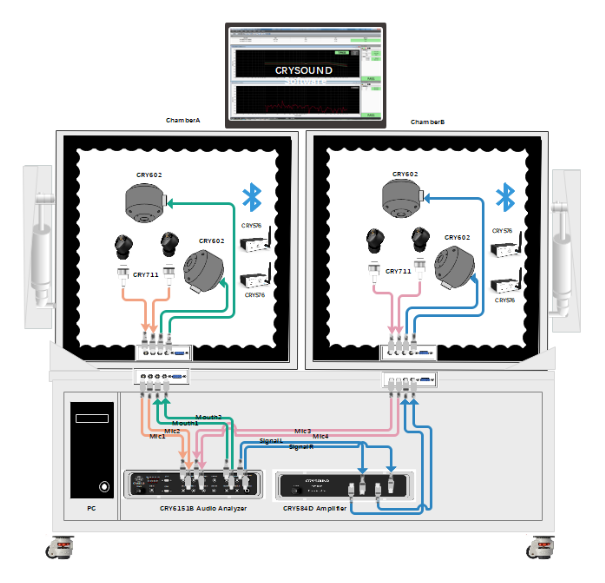

CRYSOUND provides a automated headphone test system solution.by incorporating a wide range of test items, this comprehensive testing approach significantly speeds up the overall testing process. The automated TWS Bluetooth headphone test utilizes standard acoustic test equipment, manipulators, and module designs, ensuring an effective and efficient testing procedure. These measures enable accurate and reliable assessment of headphone performance, contributing to improved quality control and faster production cycles.

Explore More Use Cases

System Devices

Edit Content

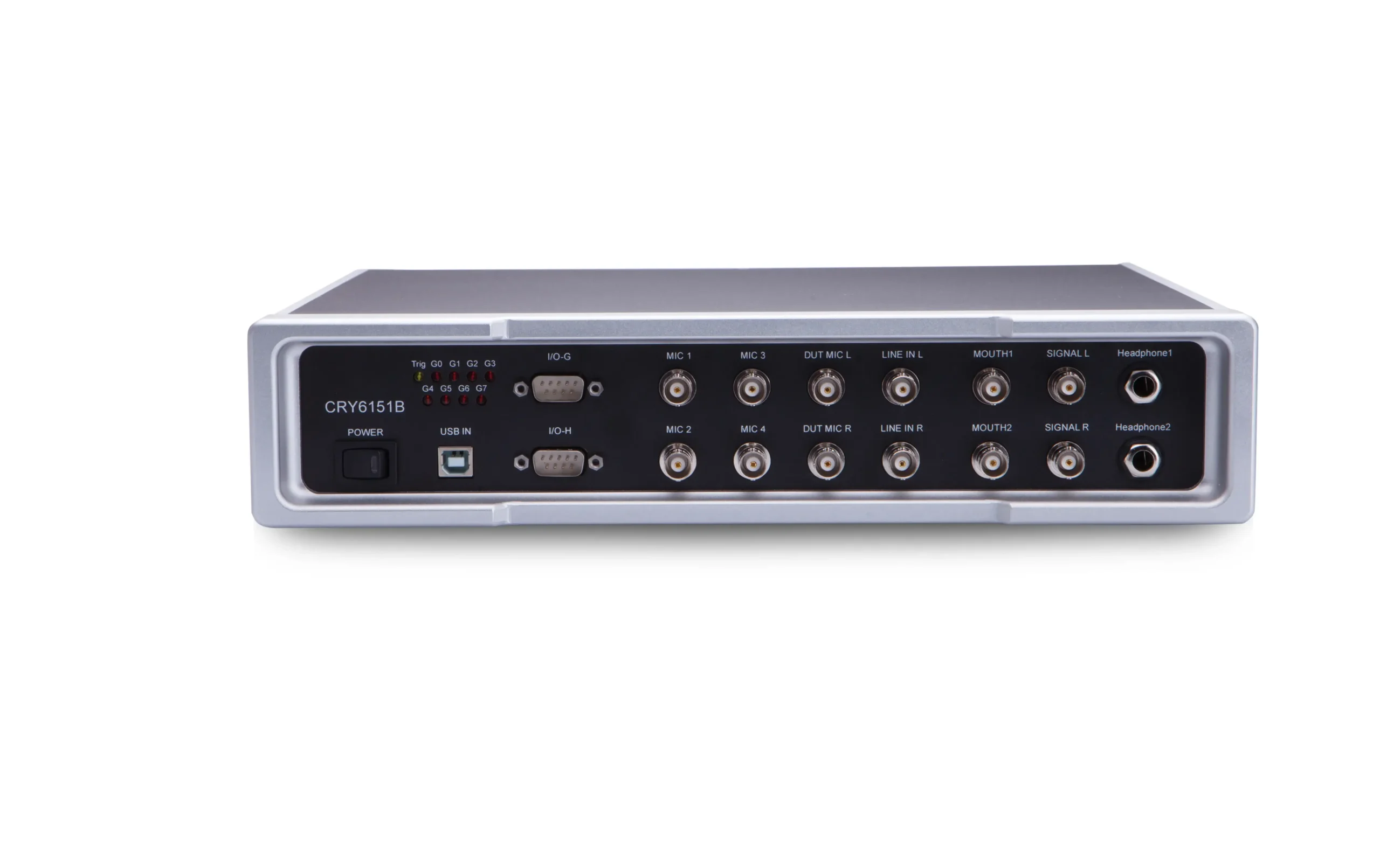

CRY6151B Electroacoustic Analyzer

CRY6151B is a robust and reliable electroacoustic analyzer with a frequency range spanning from 20Hz to 20kHz. It is designed to evaluate a diverse array of devices, including USB, Bluetooth®, and noise-canceling headphones; electret, MEMS, and moving-coil microphones; receivers; speakers; Bluetooth loudspeakers; and loudspeaker crossover devices.

Technicians can assess device performance using key metrics and procedures such as sensitivity (SPL), impedance, total harmonic distortion (THD), resonance frequency (F0), headphone balance, headphone positioning, phase, polarity, microphone current and voltage, signal-to-noise ratio (SNR), microphone directivity, speaker Thiele/Small (TS) parameters, and telephone loudness ratings. The CRY6151B offers comprehensive capabilities for thorough and precise evaluation of electroacoustic equipment.

Edit Content

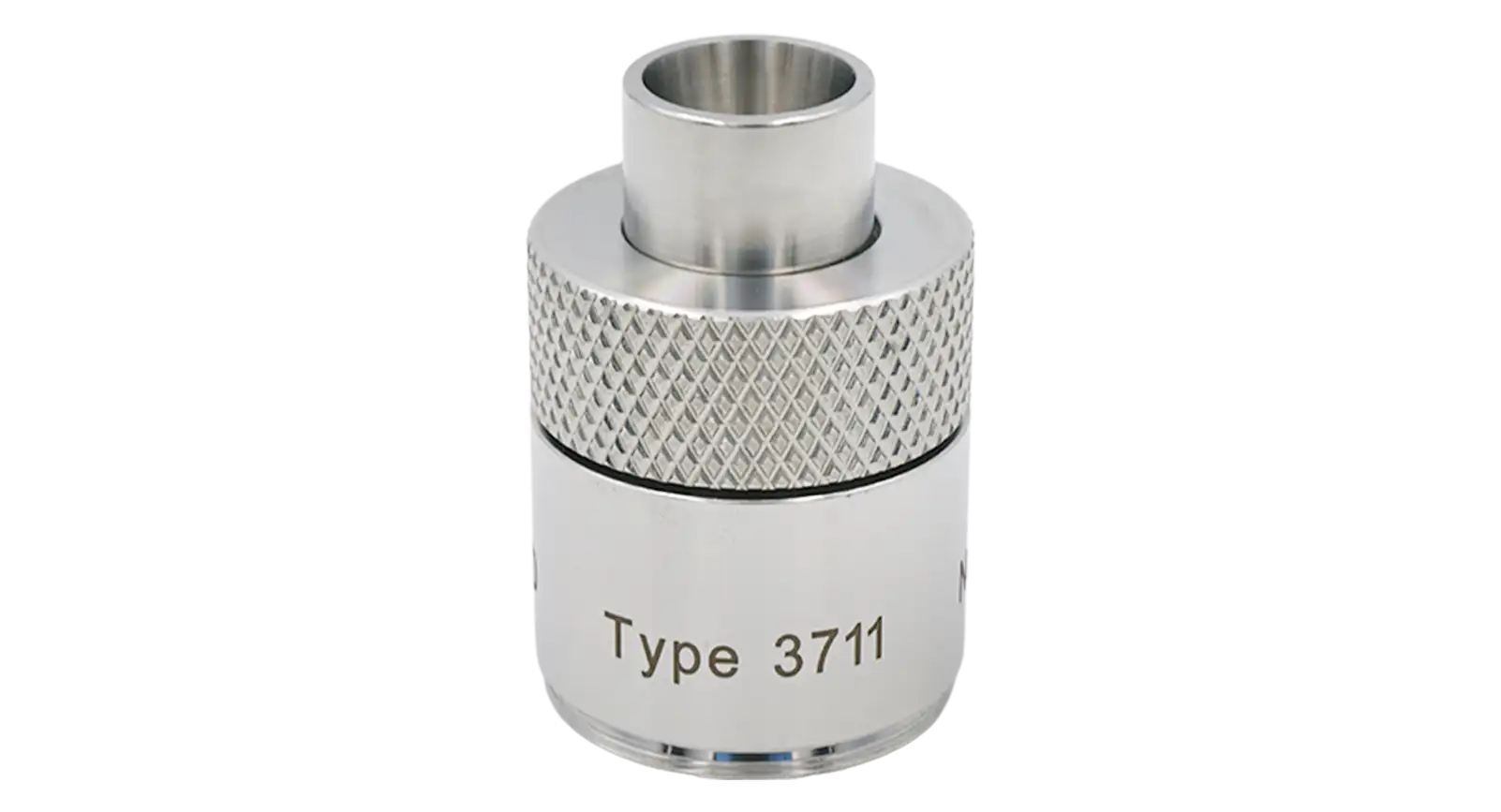

CRY3711 Ear Simulator IEC60318-4

The CRY3711 ear simulator simulates the way an earplug conduit is inserted into the ear canal or auricle to measure headphone performance. It has a 1/2 inch prepolarized pressure field measurement microphone inside and can be used for acoustic testing of high-quality in-ear headphones.

‍The input impedance of CRY3711 is very close to the input impedance of an ordinary human ear, enabling effective measurement up to 10 kHz.

Edit Content

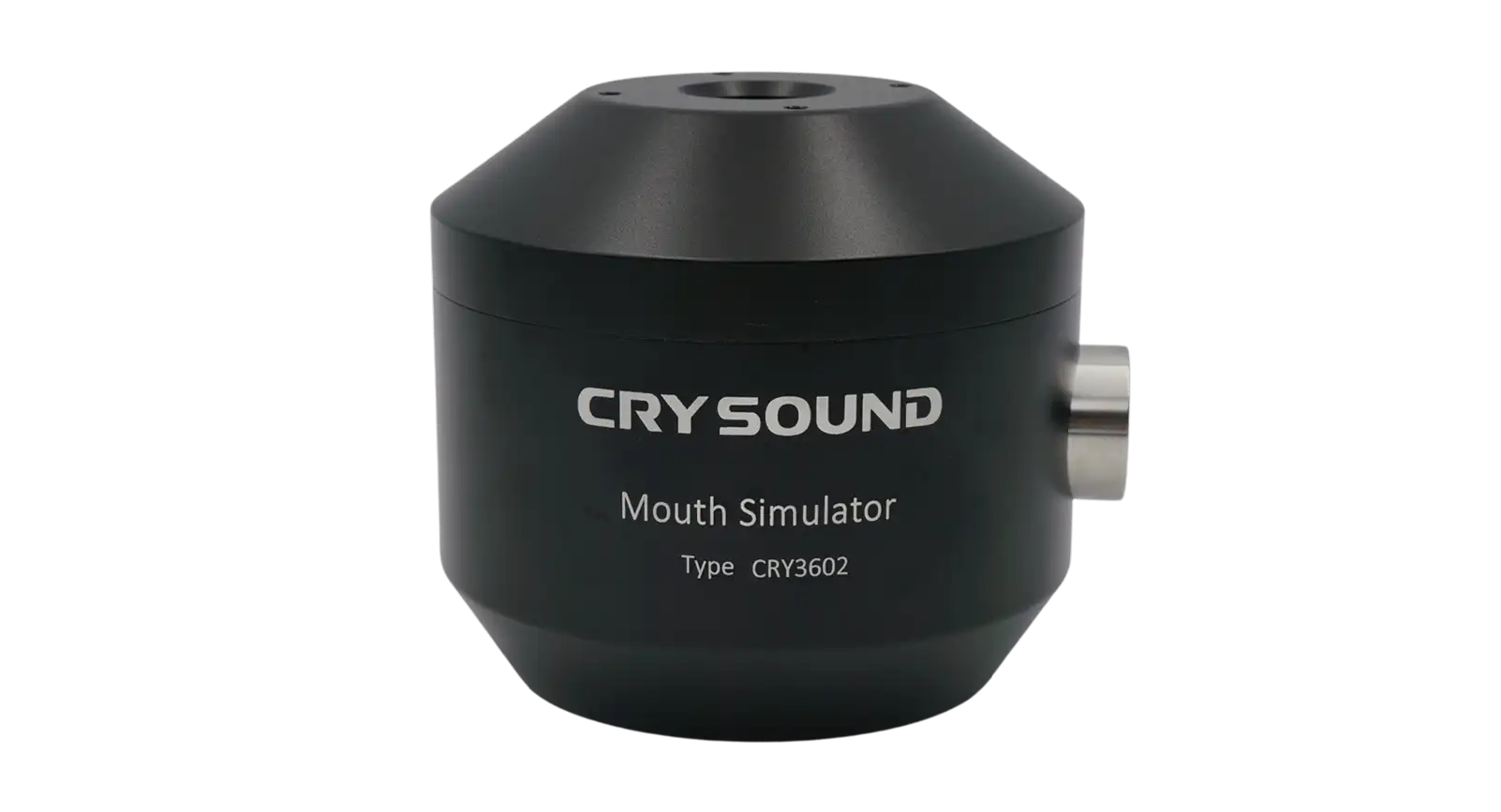

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.

‍CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.

Edit Content

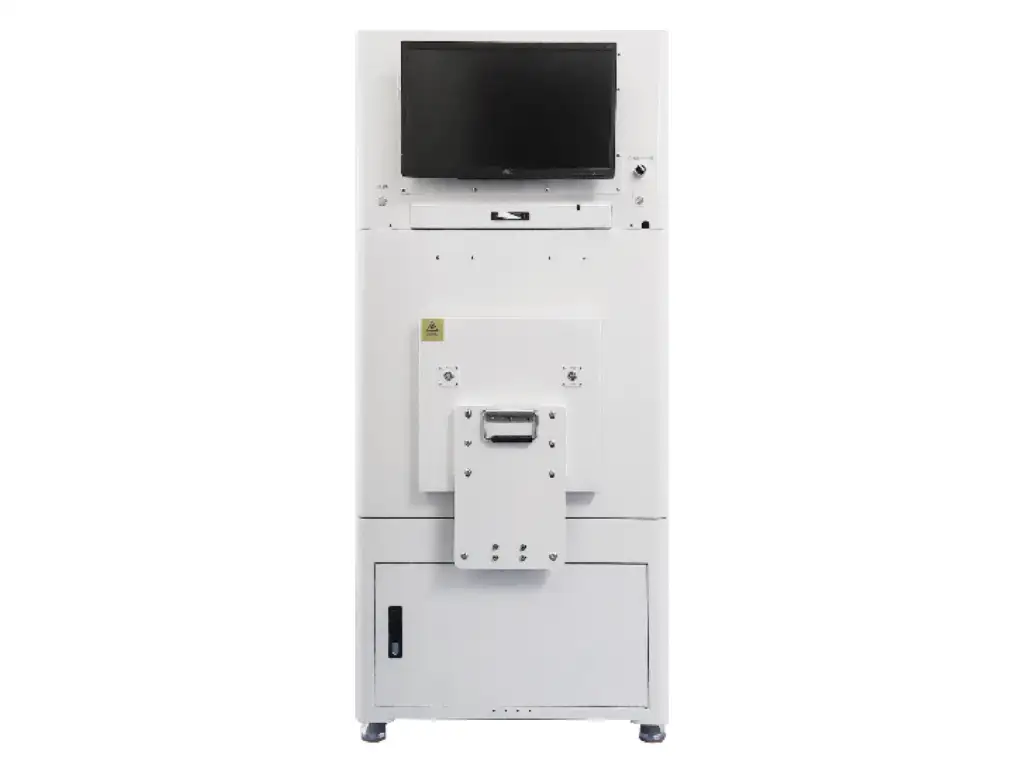

CRY725 Pneumatic Acoustic Test Chamber

CRY725 Acoustic Test Chamber is mainly used to test power, sensitivity and other electrical performance of large-scale wireless electronics and communication products, such as wireless servers, laptop and walkie-talkies, etc.

The box can be used with comprehensive tester, vector network analyzer, signal source, channel emulator to carry out the necessary test items. It is able to connect to the wireless devices with Bluetooth, WiFi, GSM, WCDMA, RFID or GPS remote controller.
