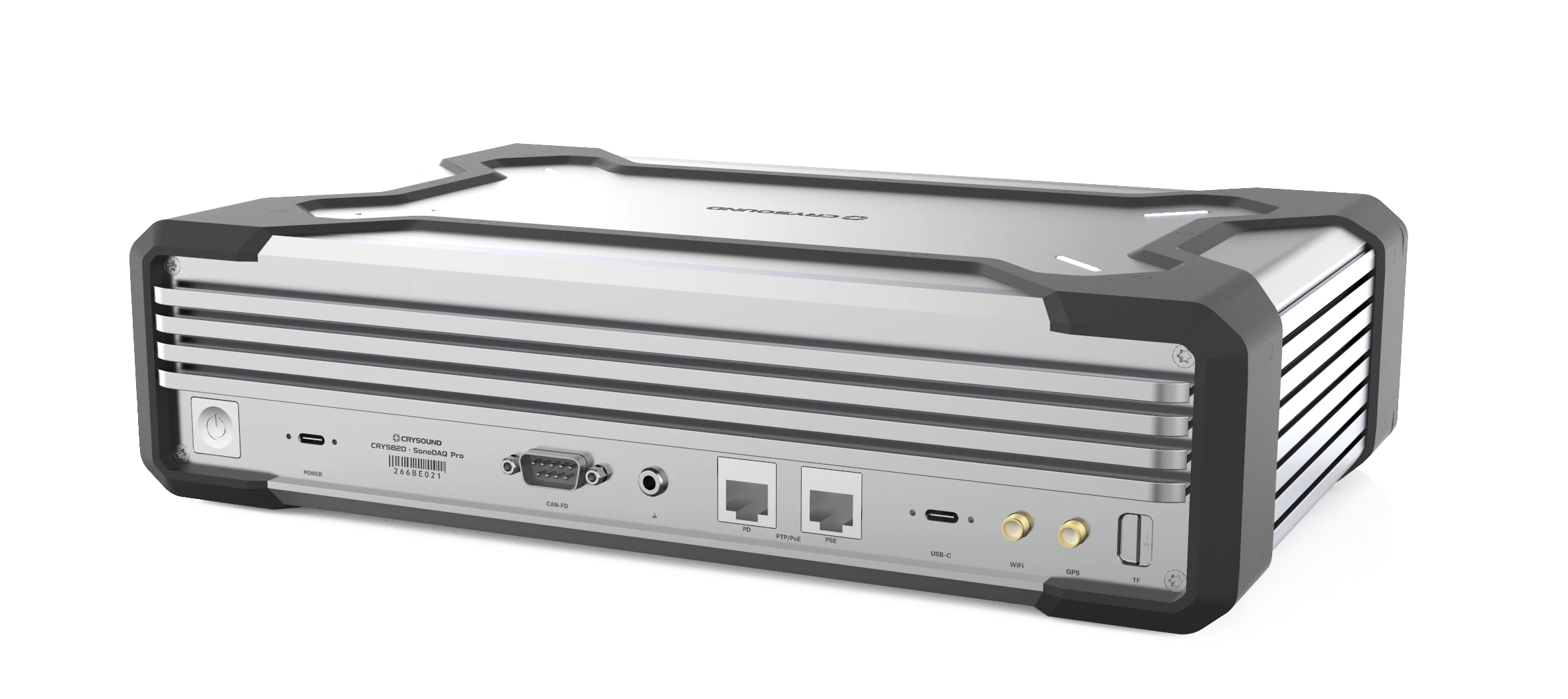

CRY5820 SonoDAQ Pro

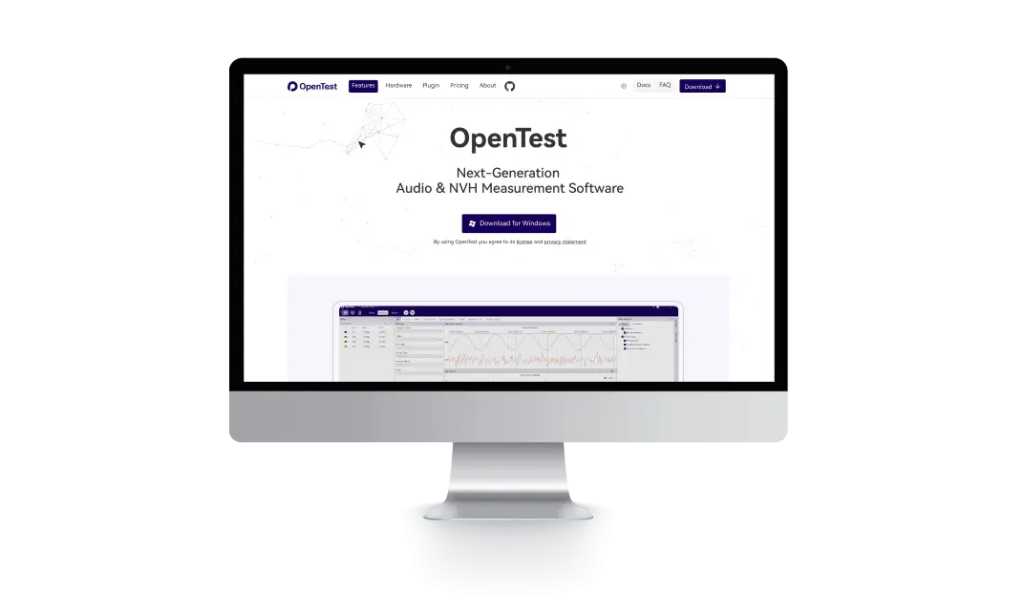

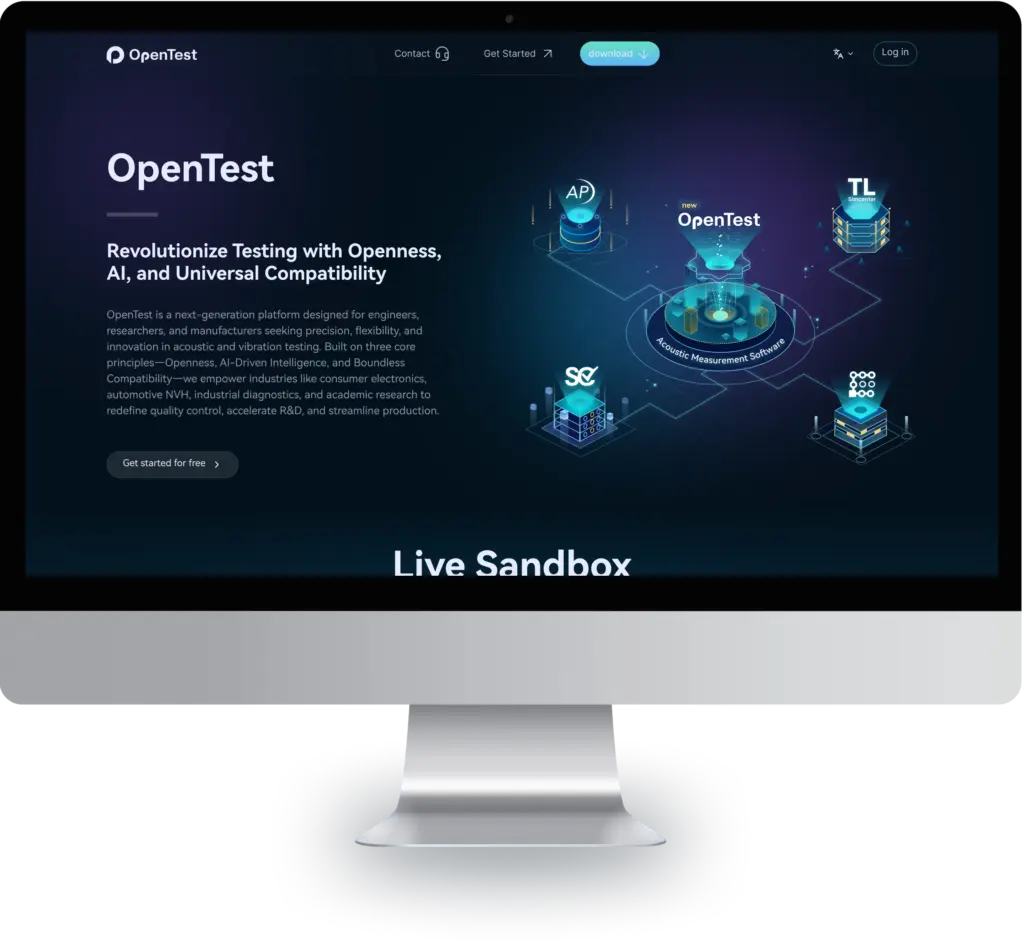

CRYSOUND has launched the new CRY5820 SonoDAQ Pro data acquisition system, seamlessly integrated with the OpenTest software platform. Featuring modular scalability, wide dynamic range, and precise PTP/GPS synchronization, SonoDAQ Pro ensures stable and reliable operation in both laboratory and field environments.
The system is widely applied in automotive NVH testing, aerospace, consumer electronics, and industrial machinery. By combining high-precision data acquisition with intelligent analysis, SonoDAQ and OpenTest deliver a complete workflow—from multi-channel acquisition and real-time monitoring to advanced processing and automated reporting—significantly enhancing testing efficiency and engineering reliability.
Scale from a Few Channels to Over 1000+
Achieve Nanosecond-Level Synchronization
Compatible with Multi-Physical Quantity Testing
Open Interfaces, Open Ecosystem

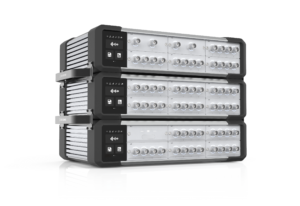

Flexible Scalability — Expandable to 1000+ Channels

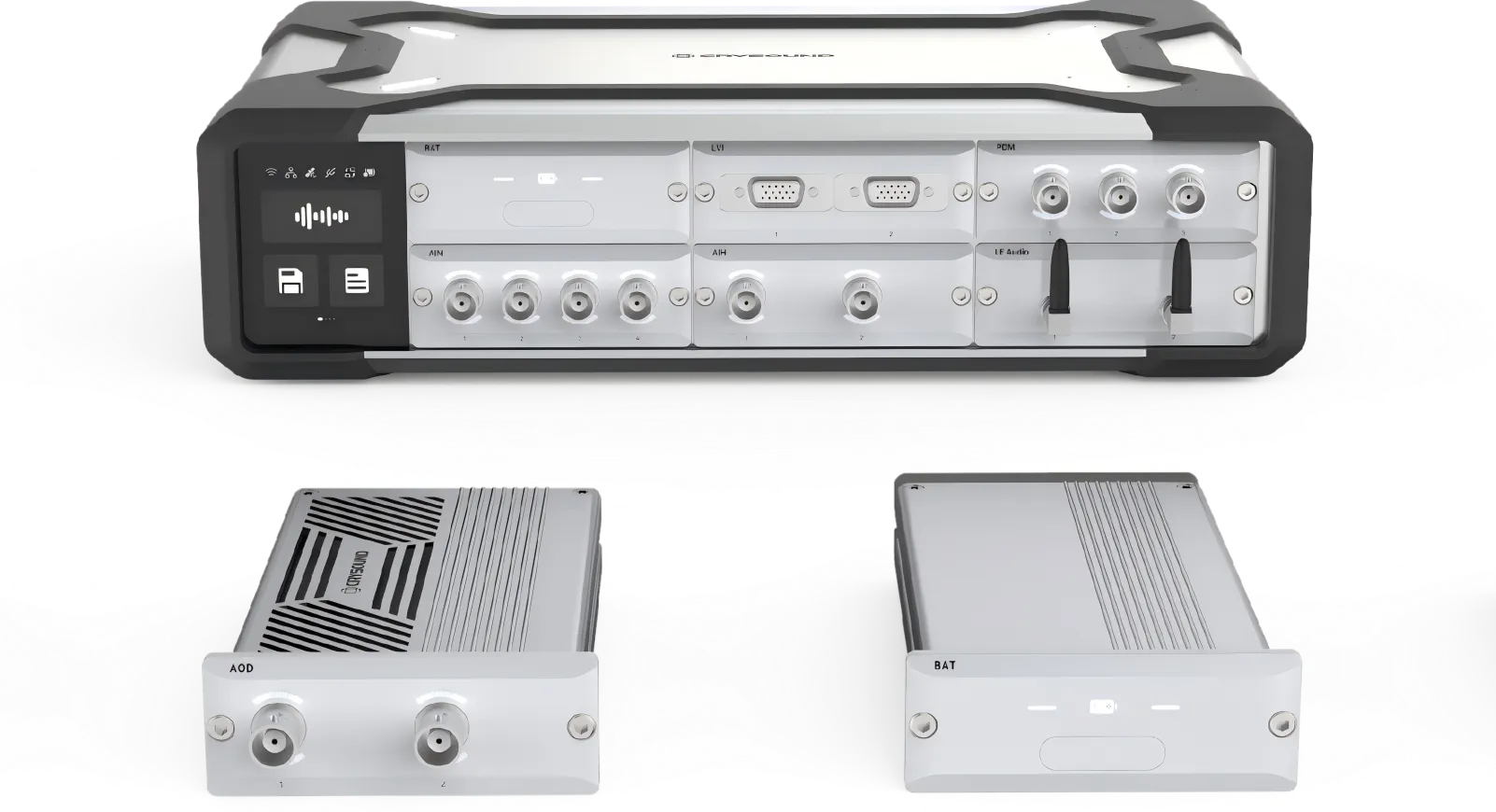

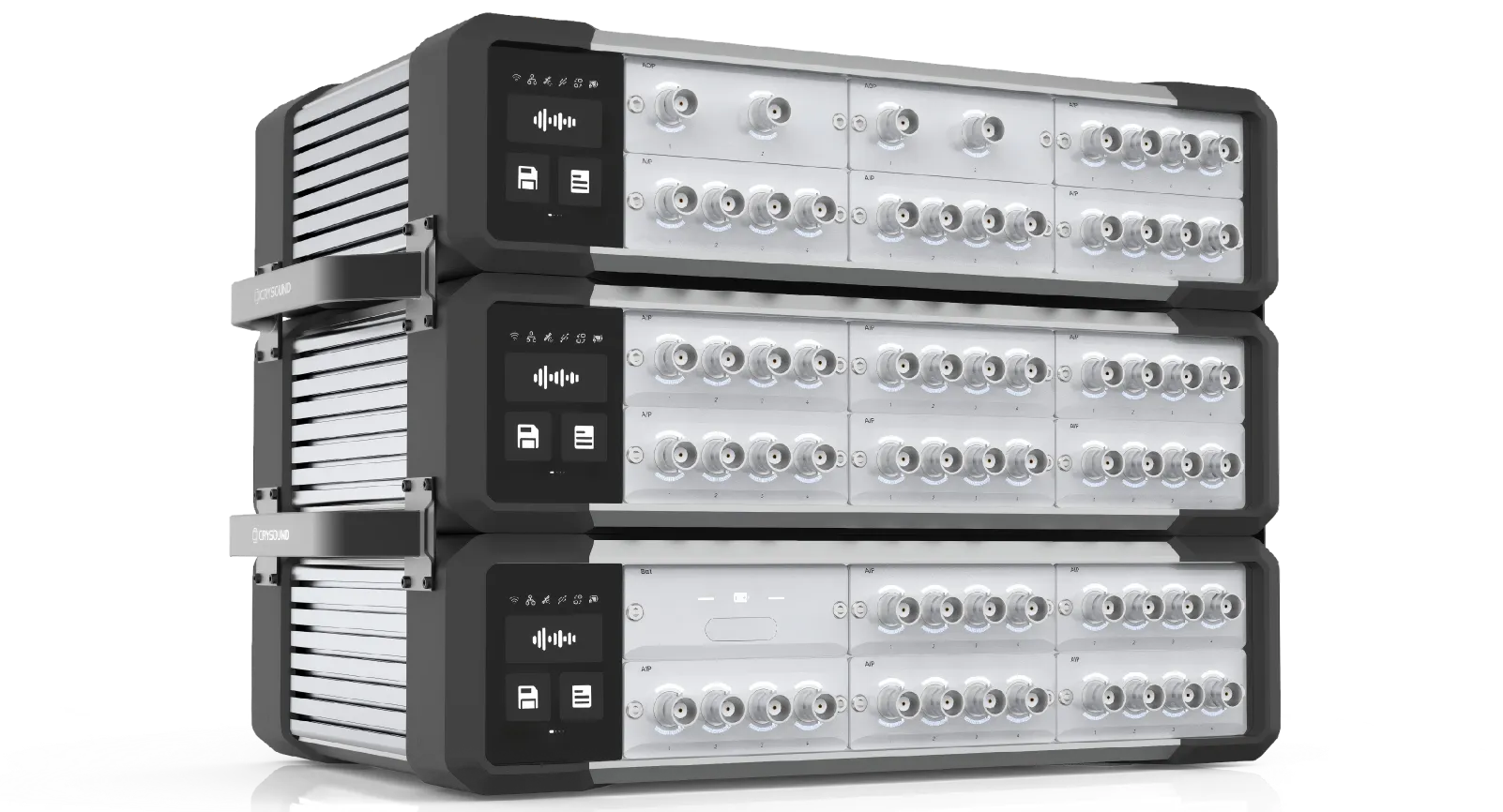

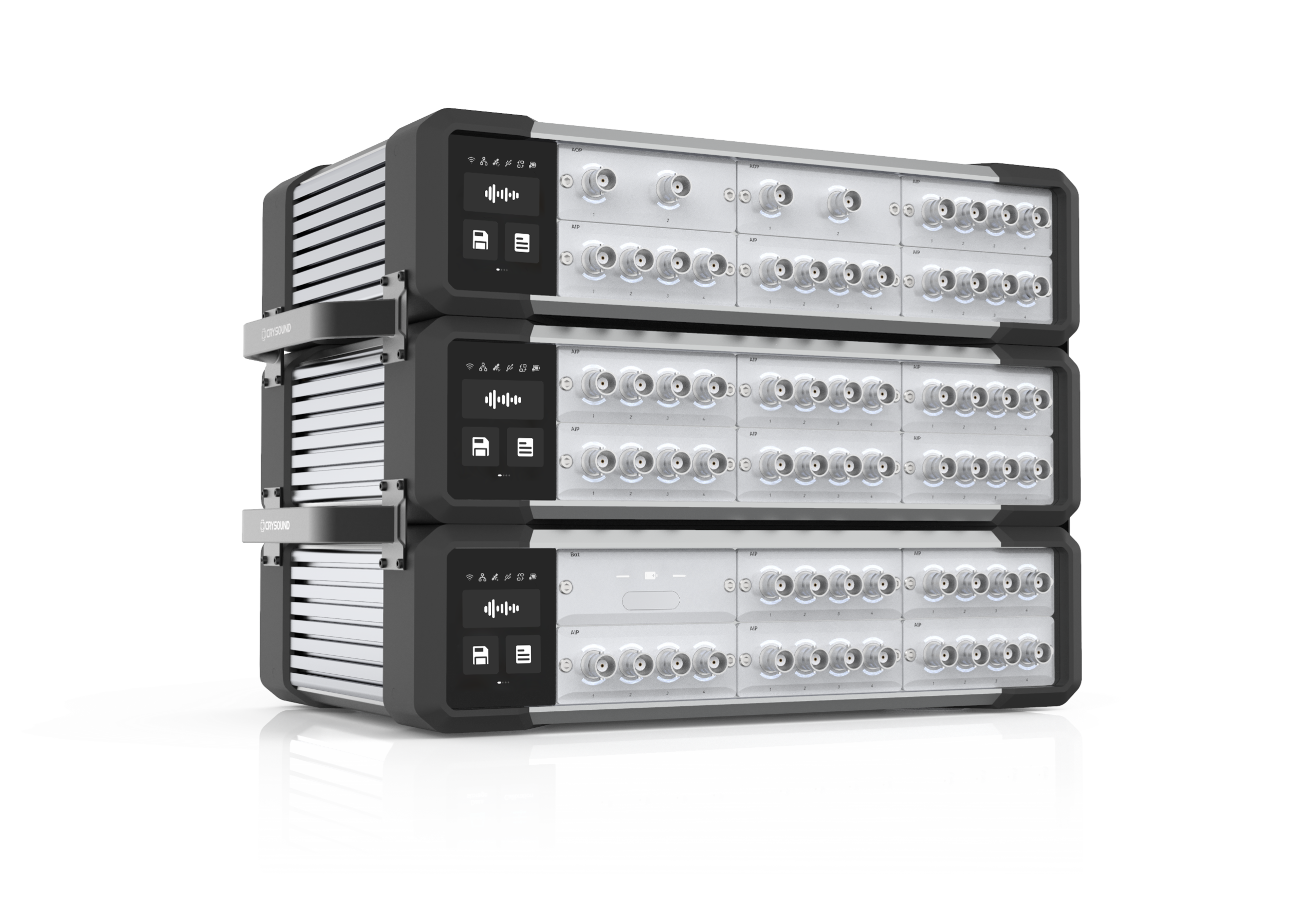

SonoDAQ features modular scalability, supporting 4–24 channels per unit and expandable to 1000+ channels via daisy-chain, star, or hybrid topologies. Each slot supports hot-swappable modules with independent sampling rates, offering maximum flexibility.
Beyond simple channel expansion, SonoDAQ ensures true plug-and-play usability. From small bench-top experiments to full-vehicle tests, engineers can expand seamlessly without workflow changes, saving time and reducing setup complexity.

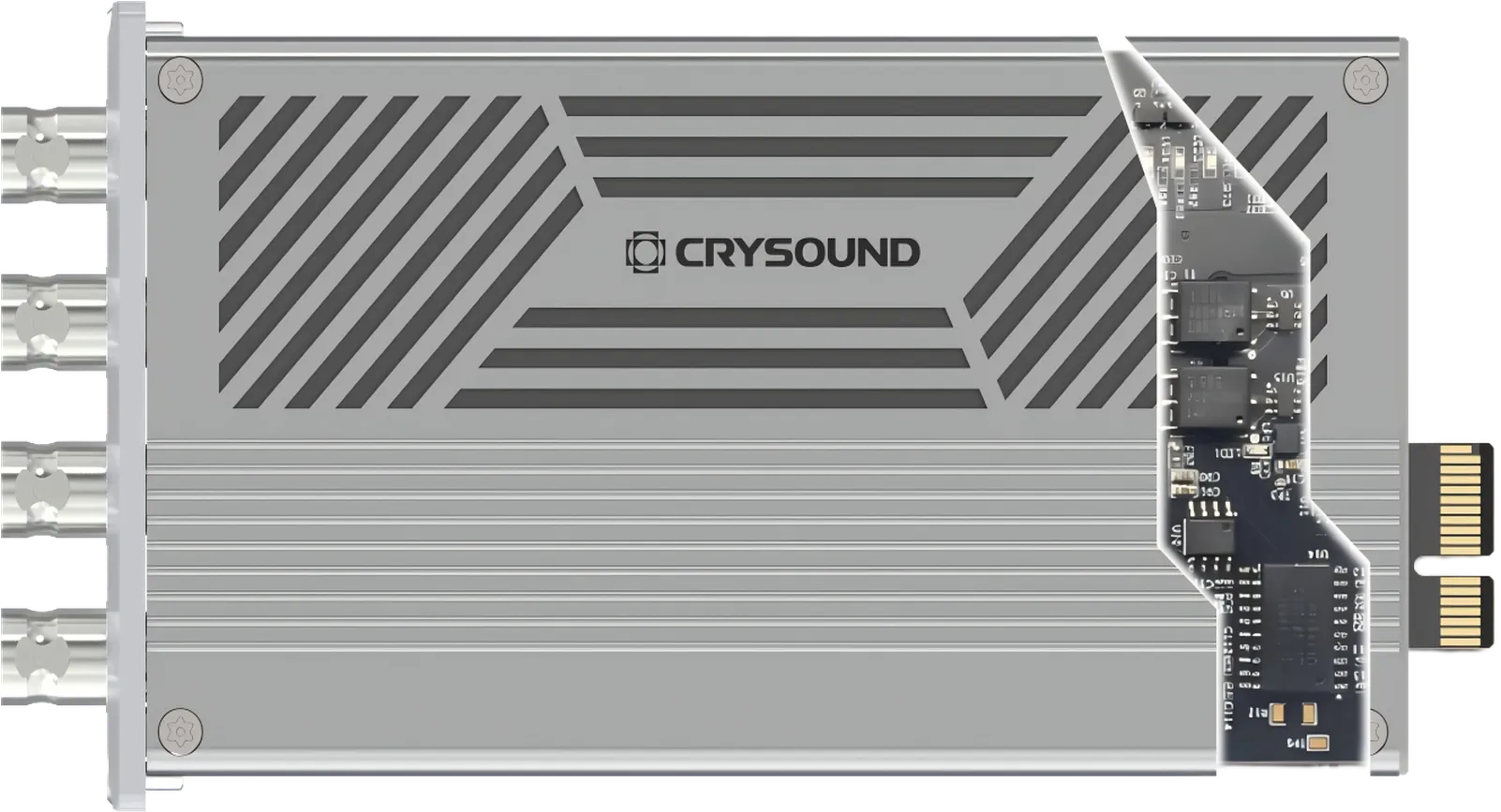

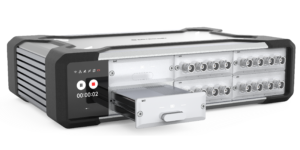

Modular Design
True Plug-and-Play

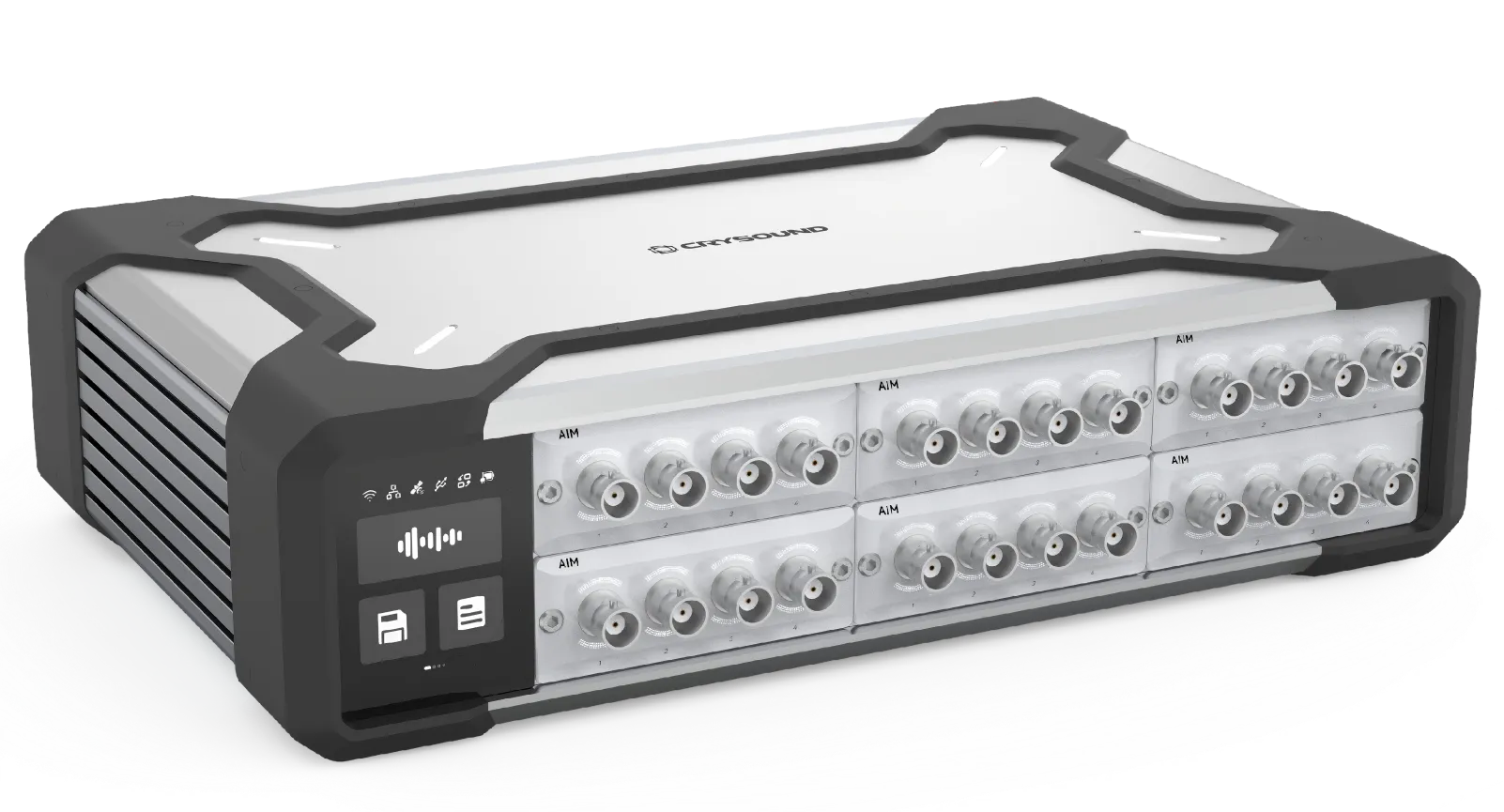

Nanosecond-Level Synchronization
The SonoDAQ achieves nanosecond-level synchronization across distributed systems, with main frame to main frame skew less than ±100 ns. By integrating IEEE 1588 PTP and GPS timing, it eliminates the need for bulky sync cables. This is critical for applications such as order tracking, acoustic holography, and precise NVH analysis, where even microsecond drift can distort results.
In addition, SonoDAQ maintains amplitude and phase consistency over 1000 hours of operation, ensuring long-term stability. Engineers can conduct advanced testing with confidence, improving both data reliability and efficiency.
PTP or GPS Synchronization
Main frame to Main frame Skew ≤ 100 ns
Capture Any Signal — Acoustic, Vibration, and Beyond

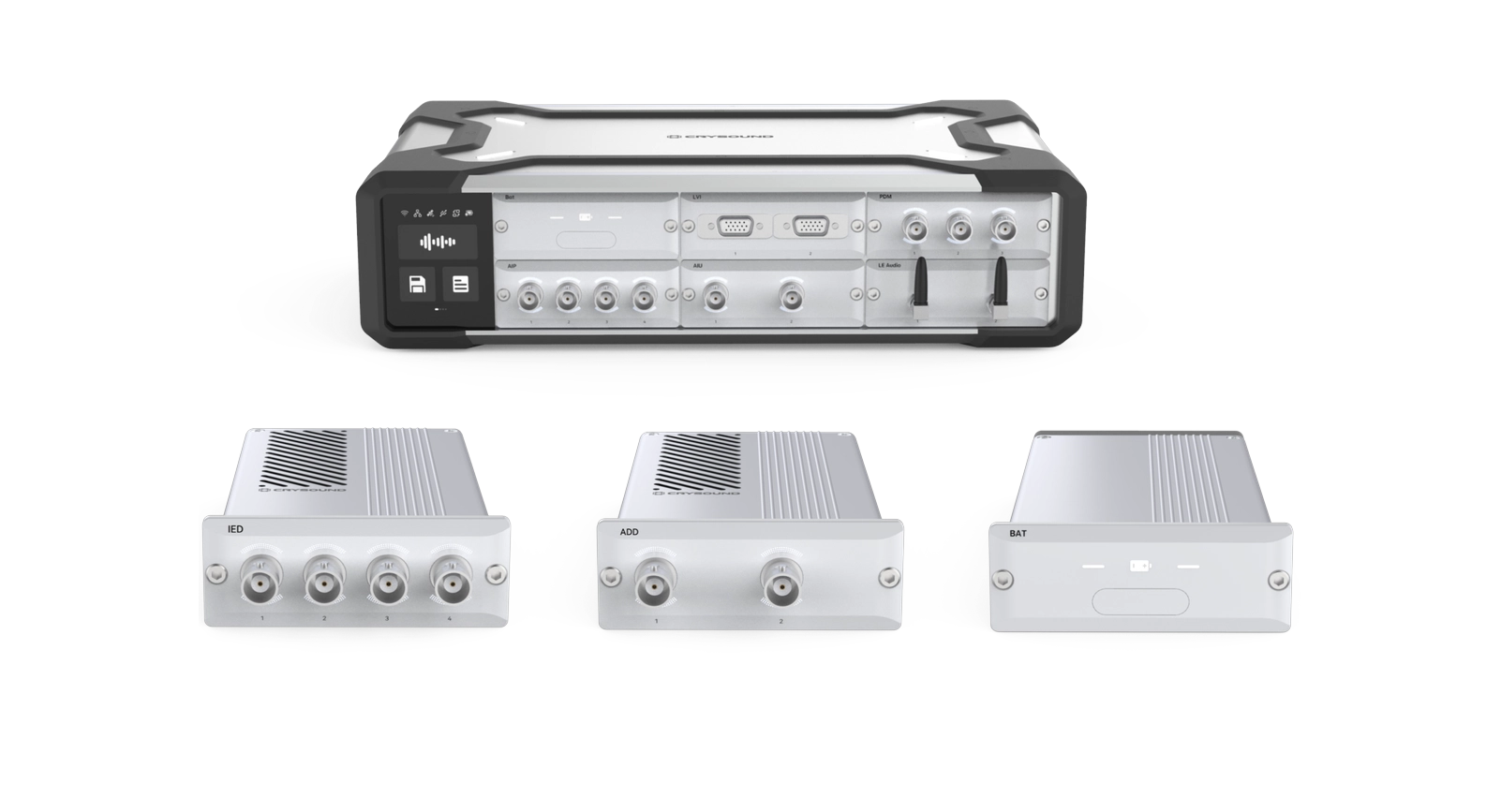

SonoDAQ supports a wide range of signals, including noise, vibration, strain gauges, thermocouples, charge inputs, and voltage/current. A single system can handle acoustic, vibration, thermal, and electrical inputs.
This compatibility reduces the need for multiple DAQs, lowering cost and complexity. It improves efficiency and extends usability across industries from automotive to aerospace.
Multi-Physics Testing
Hot-Swappable Battery
Low Noise Floor and Wide Dynamic Range
With 32-bit ADC resolution,1000V isolation, 170 dB dynamic range, and noise floor down to 1.3 µV, SonoDAQ captures both powerful impacts and faint anomalies with precision, ensuring data integrity.
It guarantees high fidelity and wide-bandwidth, distortion-free recording, enabling engineers to analyze complex frequency behaviors with confidence.
32bit resolution
1000V isolation
Dyanmic Range: 170 dB
Robust Design with Industrial-Grade Protection

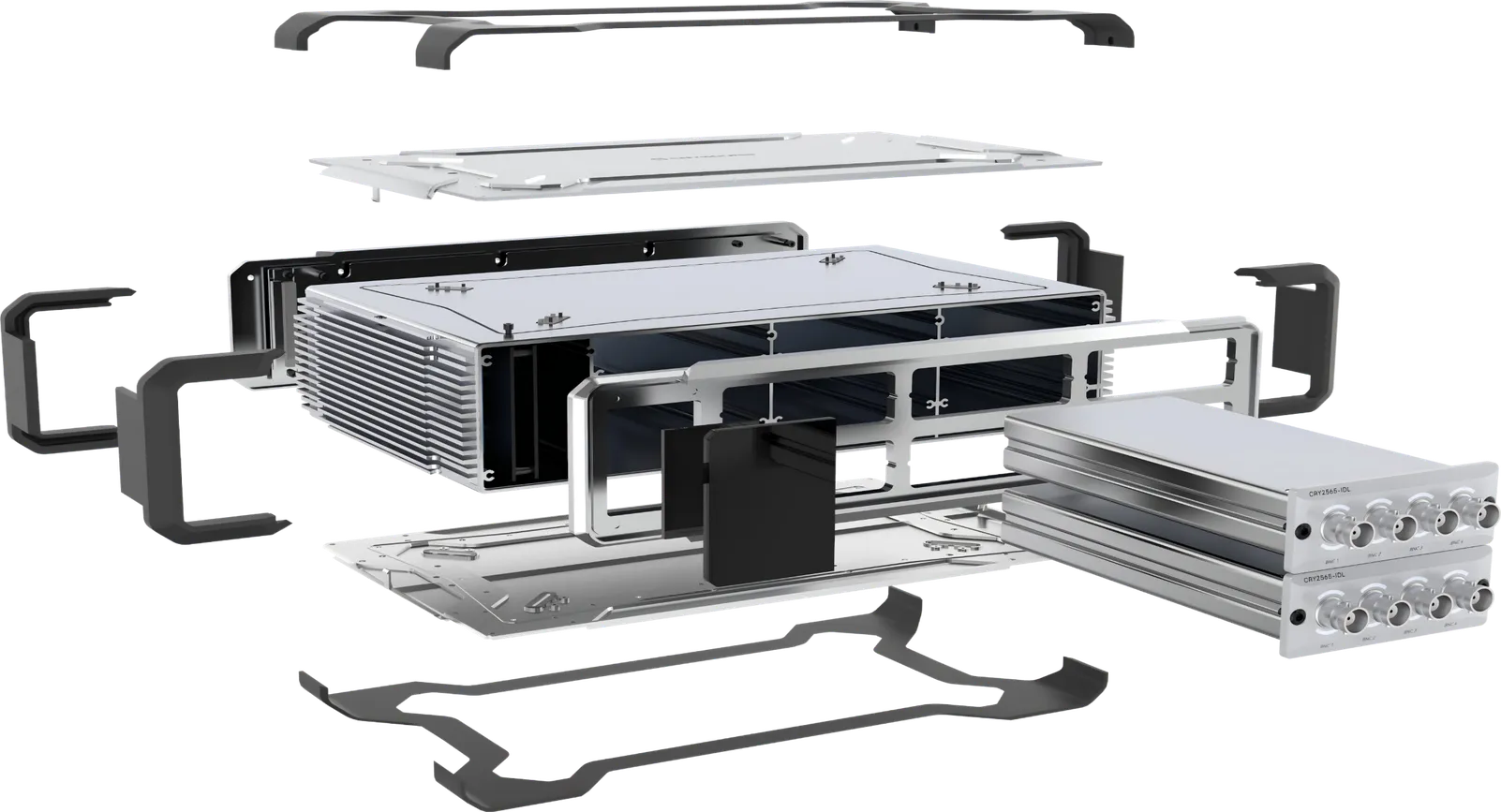

SonoDAQ is built with an aluminum alloy frame reinforced with carbon fiber, combining lightweight design with strength. With IP43 protection and -10 °C to +50 °C operating range, it performs reliably in labs and harsh field conditions.

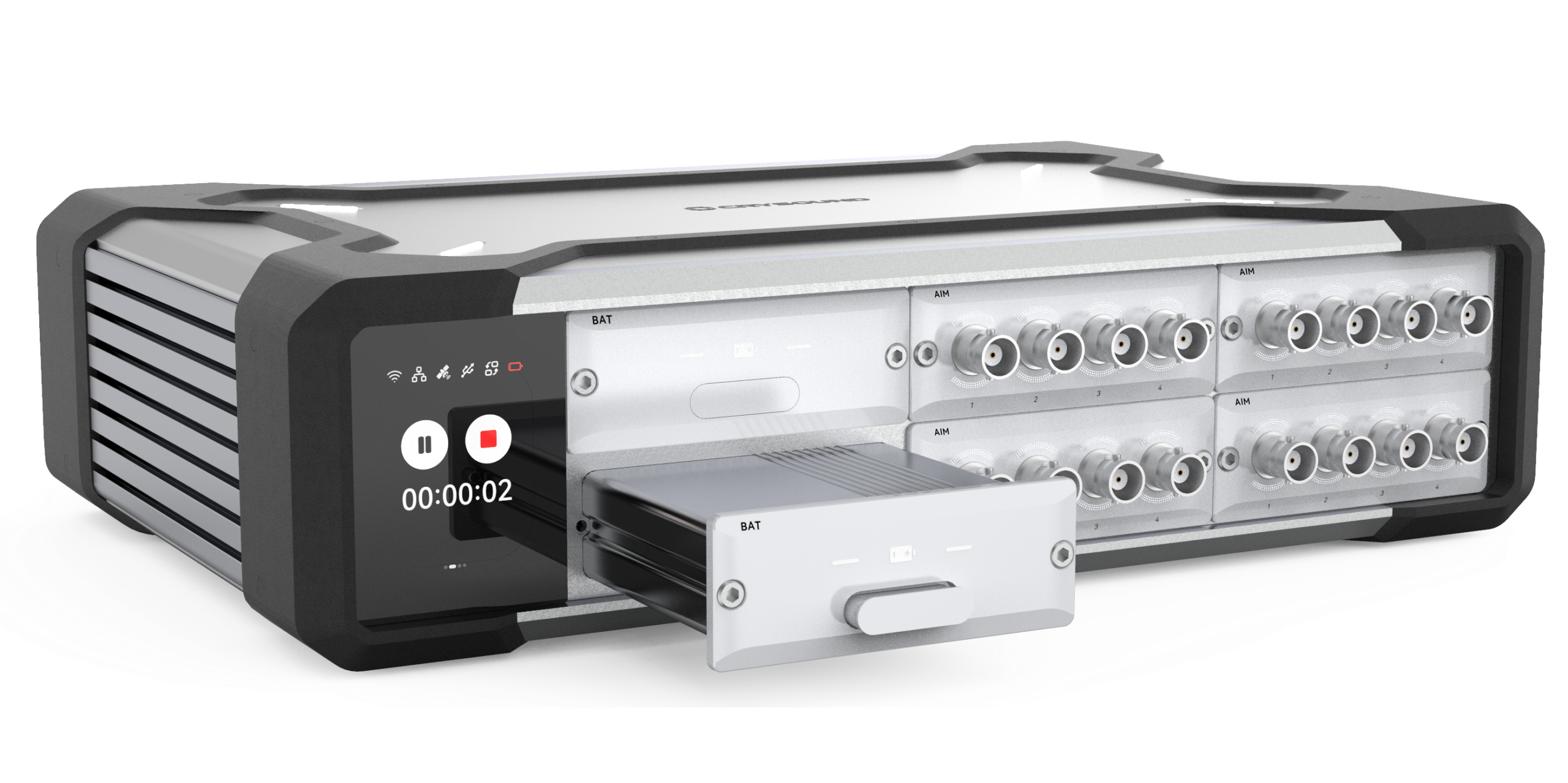

With triple power options—adapter, PoE, and hot-swappable batteries—it ensures uninterrupted operation even under unstable power conditions, increasing reliability.
Aluminum Alloy Frame
Carbon-Fiber Structure
Open Interfaces — Enabling a Collaborative Ecosystem Across Hardware and Software

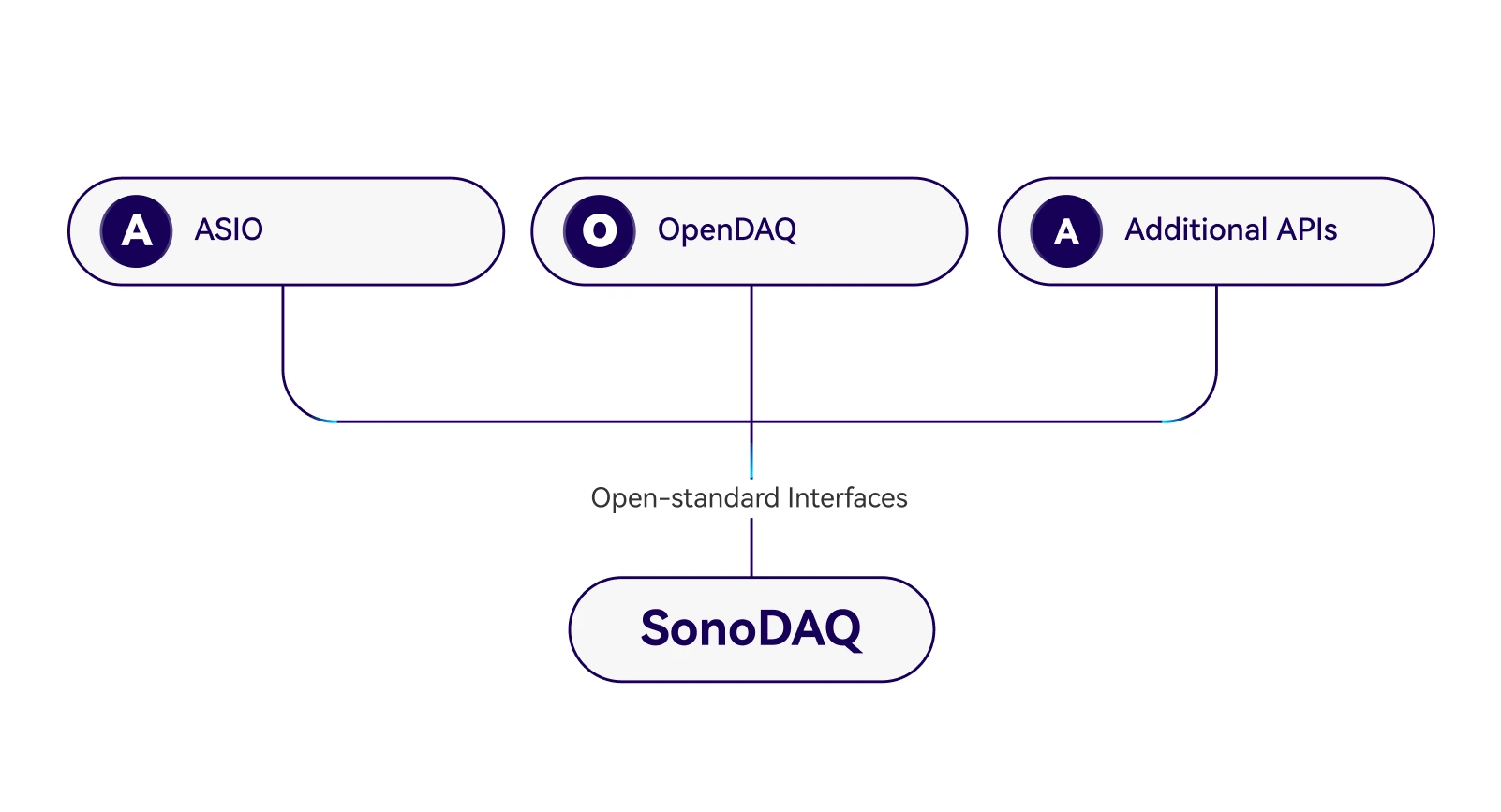

SonoDAQ provides open-standard interfaces such as ASIO and openDAQ, ensuring seamless compatibility with a wide range of test and analysis software platforms.
CRY5820 SonoDAQ Pro Chassis
Dynamic Range
160dB
Resolution Ratio
32bit
lsolation Voltage
1000V
Channels Number
24 channels/Chassis
Interface
USB/2xGL AN/2xCANFD/WIFI
Data Synchronization
PTP (IEEE 1588)/ GPS
Power Supply Type
DC input/PoE/Battery
Internal Storage
256GB TF card (2TB optional)
Calibration
Self-calibration/On-site calibration service
Firmware Upgrade
OTA/Browser
Ambient Temperature
-10°C~50°C
Heat Dissipation
Fanless
Class of Protection
IP 43
Edge Computing
Support
AI
NPU with 6TOPS computing power

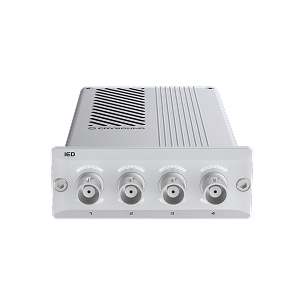

Analog In Module
Channel
4
ADC Resolution
32bit
Sampling Rate
(8/16/24/32/48/96/192/25.6/51.2/102.4/204.8) kHz, Configurable
coupled modes
AC/DC, Configurable
Signal input type
Differential/Single-ended
Frequency accuracy
±2 ppm (-10 ℃ ~ 50 ℃)
Module isolation voltage
1000V
THD+N
≤-105 dB (20 Hz ~ 20 kHz)@1 kHz
Cross Talk
≥130 dB@1 kHz
Noise Floor
≤1.3 μV(20 Hz ~ 20 kHz)
Maximum Input Voltage
31.4 Vpk
Input Impedance
≥100 kΩ
TEDS
support
Analog Output Module
Channel
2
ADC Resolution
32bit
Output Mode
Signal / Class-D Amplifier, Configurable
Coupling Mode
DC
Output Signal Type
Differential
Amplitude Accuracy
±0.35%（15 ℃ ~ 30 ℃）
Cross Talk
≥130 dB@1 kHz
Maximum Output Voltage
30 Vpk
Output Power
10W @ ＜ 0.2% THD +N (8Ω load）
Output Impedance
4 Ω ~ 600 Ω
