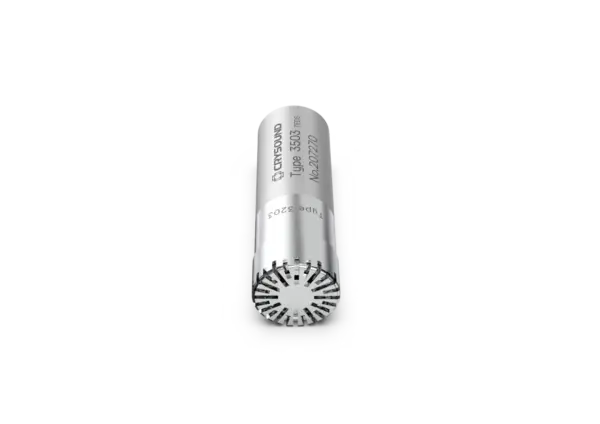

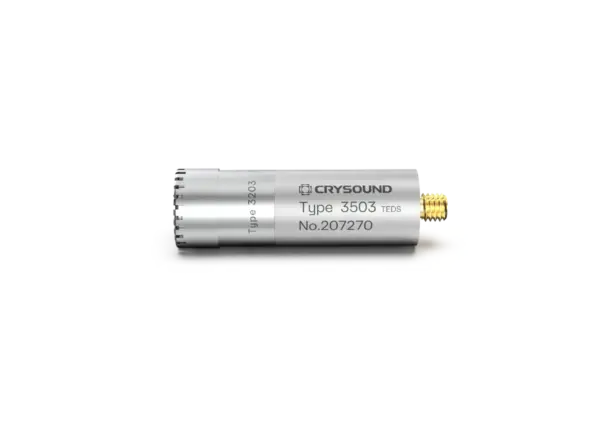

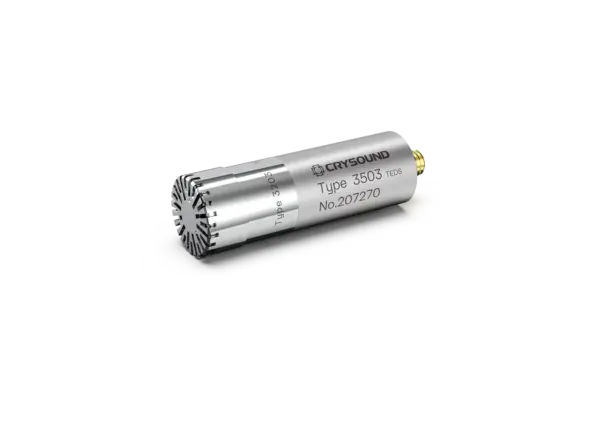

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

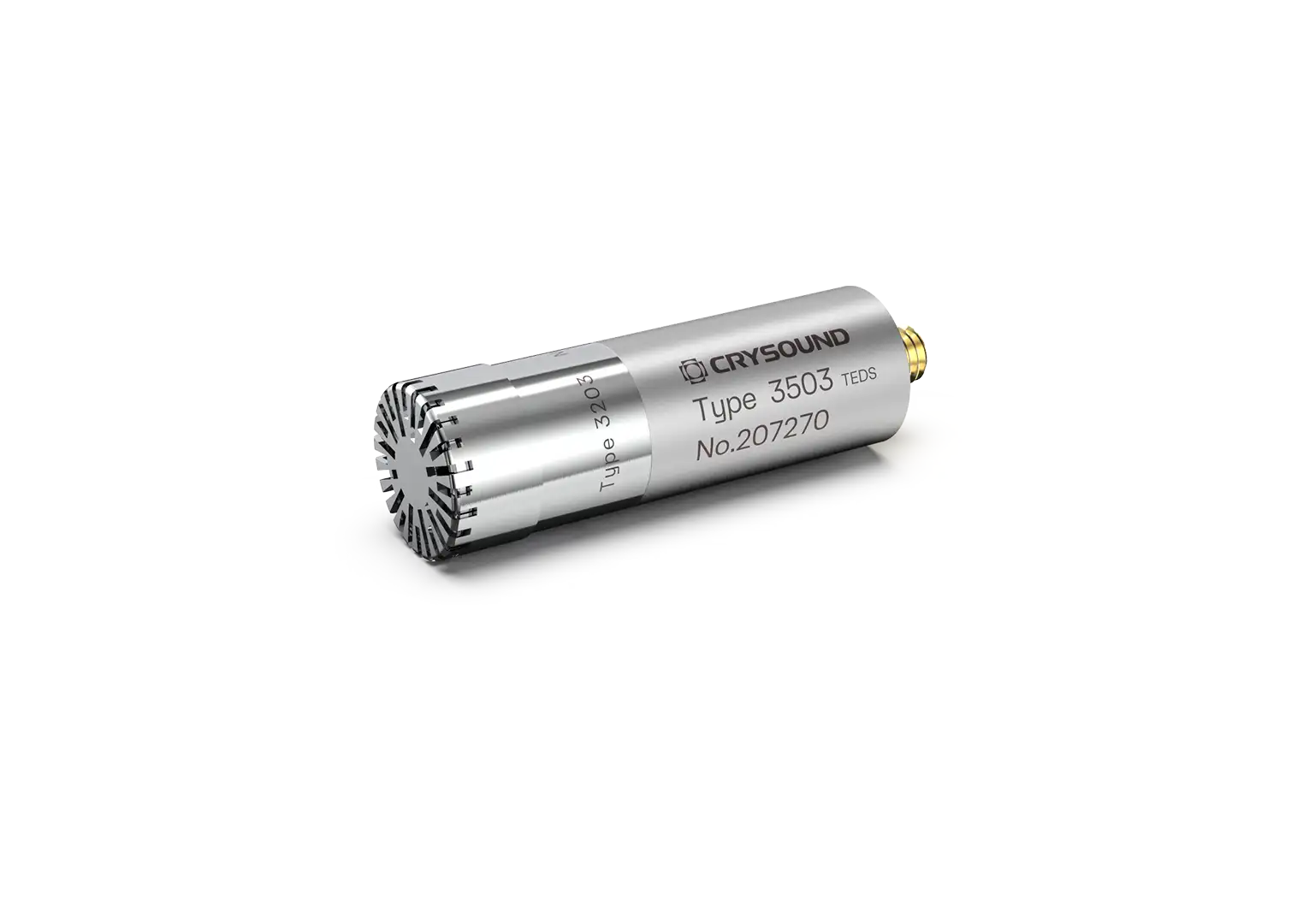

CRY3203-S02 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

The unique design of CRY3203-S02 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

CRY3203-S02 Measurement Microphone Set Typical Frequency Response

The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.

CRY3203-S02 Measurement Microphone Set Typical Frequency Response

The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Technical specification
Field Type
Field Type
Free-field
Noominal Sensitivity
Noominal Sensitivity
50mV/Pa, -26±1.5dB re 1V/Pa
Frequency Response
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
Polarization Voltage
0V
Dynamic Range(re.20uPa)
Dynamic Range(re.20uPa)
16dBA to 132dB
Operating Temperature
Operating Temperature
-30 to +70℃ (-22 to +158℉)
Temperature Stability
Temperature Stability
0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122℉)
Static Pressure Stability
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
IEC 61094-4 Type
WS2F
Output Impedance
Output Impedance
< 20Ω
Maximum Output Voltage
Maximum Output Voltage
> 5.0Vrms
Current Source
Current Source
IEPE (2mA to 10mA)
Typical Operating Current
Typical Operating Current
4mA
Interface Type
Interface Type
Microdot
Height with Grid
Height with Grid
43mm (1.69")
Diameter with Grid
Diameter with Grid
13.2mm (0.52")
